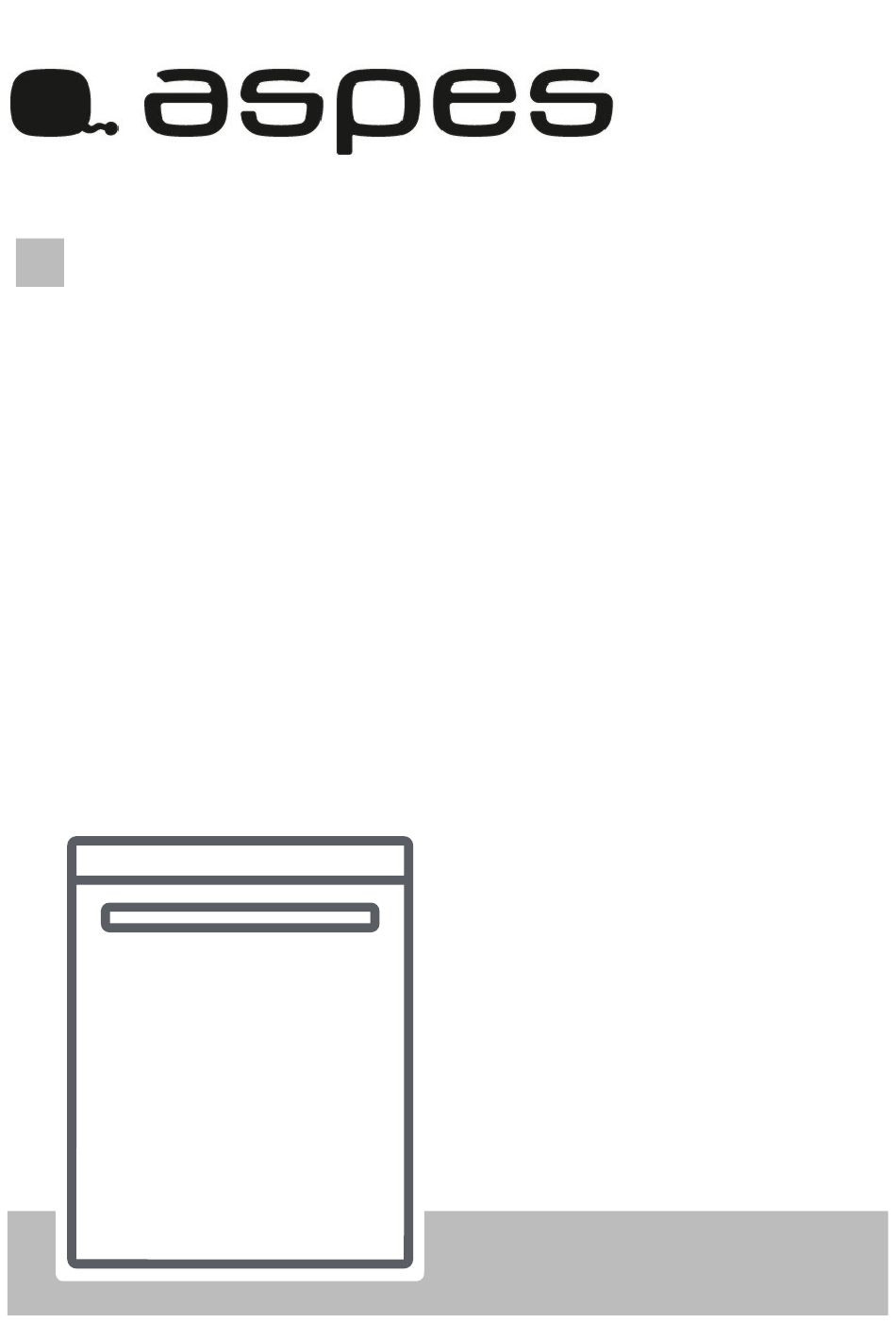

Dishwasher / User Manual
ALV137X / ALV137

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALV137X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aspes ALV137X

Summary of Contents for Aspes ALV137X

  • Page 1 Dishwasher / User Manual ALV137X / ALV137...
  • Page 2 Thank you for choosing this product. This User Manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference.

  • Page 3: Table Of Contents

    CONTENTS 1.SAFETY INSTRUCTIONS ....................1 1.1. General Safety Warnings ....................1 1.2. Installation Warnings .....................1 1.3. During Use........................2 2.INSTALLATION .........................6 2.1. Machine Positioning .....................6 2.2. Water Connection ......................6 2.3. Water Inlet Hose ......................6 2.4. Drain Hose........................7 2.5. Electrical Connection ....................7 2.6. Fitting the Machine Undercounter .................7 3.TECHNICAL SPECIFICATIONS ..................8 3.1.
  • Page 4 8.CCLEANING AND MAINTENANCE ................18 8.1. Filters ........................... 18 8.2. Spray Arms ........................18 8.3. Drain Pump ........................19 9.TROUBLESHOOTING ....................20...

  • Page 5: Safety Instructions

    1. SAFETY INSTRUCTIONS 1. General Safety Warnings • Read these instructions carefully before using your appliance and keep this manual for future reference. Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened.

  • Page 6: Installation Warnings

    2. Installation Warnings • Choose a suitable and safe place to install your machine. • Only original spare parts should be used with the machine. Unplug the machine before installation. Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void.

  • Page 7: During Use

    pressure exceeds 1 MPa, a pressure relief valve must be fitted between the connection. 3. During Usage • This machine is for domestic use only; do not use it for other purposes. Commercial use will void the guarantee. Do not stand, sit or place loads on the open door of the dishwasher.
  • Page 8 the door for one minute after it has opened. For effective drying, keep the door open for 30 minutes after a programme has ended. Do not stand in front of the door after the auto-open signal sounds. In the case of a malfunction, repair should only be performed by an authorised service company, otherwise the warranty will be void.
  • Page 9 CE Declaration of Conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced. Disposal of your old machine The symbol on the product or on its packaging indicates that this product may not be treated as household waste.

  • Page 10: Installation

    WARNING: Use the new water inlet 2. INSTALLATION hose supplied with your machine, do not use an old machine’s hose. 2.1. Machine positioning WARNING: Run water through the When positioning the machine, place it in new hose before connecting. an area where dishes can be easily loaded and unloaded.

  • Page 11: Electrical Connection

    2.5. Electrical connection WARNING: Your machine is set to operate at 220-240 V. If the mains voltage supply to your machine is 110 V, connect a transformer of 110/220 V and 3000 W between the electrical connection. Connect the product to a grounded outlet protected by a fuse complying with the values in the "Technical Specifications"...

  • Page 12: Technical Specifications

    3. TECHNICAL SPECIFICATIONS 3.2. Technical specifications 15 place Capacity settings Dimensions (mm) Height (mm) Width 598(mm) Depth 598(mm) Net weight 53.600kg Operating 220-240V voltage / 50 Hz, frequency Total current 10(A) 3.1. General appearance 1. Worktop Total power 1900(W) 2. Upper basket with racks 3.

  • Page 13: Fill The Salt

    4..3 Fill the salt (IF AVAILABLE) 4. BEFORE USING To add softener salt, open the salt THE APPLIANCE compartment cap by turning it counter clockwise. (1) (2) At first use, fill the 4.1. Preparing your compartment with 1 kg salt and water (3) until dishwasher for first use it is almost overflowing.

  • Page 14: Test Strip

    4.4. Test Strip Run water Keep the Shake the Wait Set the hardness level of through the strip in the strip. (1min.) your machine. tap (1min.) water (1sec) second munite munite NOTE: The level is set to 3 as default. If the water is well water or has a hardness level above 90 dF, we recommend that you use filter and refinement devices.

  • Page 15: Filling The Detergent

    amount of detergent needed depends on 4.11 Rinse-aid usage the cycle, load size, and soil level of dishes. The rinse aid helps to dry the dishes without Do not fill detergent into the detergent streaks and stains. Rinse-aid is required for compartment more than required;...
  • Page 16 Level Brightener Dose Indicator Rinse-aid not r1 is shown on the dispensed display. 1 dose is r2 is shown on the dispensed display. 2 doses are r3 is shown on the dispensed display. 3 doses are r4 is shown on the dispensed display.

  • Page 17: Loading Your Dishwasher

    5. LOADING YOUR WARNING: To avoid any possible DISHWASHER injuries, place long-handle and sharp- pointed knives with their sharp points facing down or horizontally on the baskets. For best results, follow these loading guidelines. Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings.

  • Page 18: Height Adjustment

    Height Adjustable Rack (peg type) Upper Basket The height adjustable racks enable glasses Height adjustment and cups to be placed on or under the Turn the Rail Stop Clips, at the ends of the racks. The racks can be adjusted to 2 rails, to the sides to open them (as shown in different heights.
  • Page 19 Upper Cutlery Basket The upper cutlery basket is designed for the placement of large and small cutlery and utensils. WARNING: Knives and other sharp objects must be placed horizontally in the cutlery basket. EN - 15...

  • Page 20: Alternative Basket Loads

    5.2. Alternative Basket Loads Lower Basket Incorrect Loads Incorrect loading can cause poor washing and drying performance. Please follow the manufacturer's recommendations for a good performans result. Top basket Incorrect loads EN - 16...
  • Page 21 EN - 17...
  • Page 22 • The program duration may change according to the amount of dishes, the water temperature, the ambient temperature and selected additional functions. • Values given for programmes other than the eco programme are indicative only. • Eco programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU ecodesign legislation.

  • Page 23: The Control Panel

    7. THE CONTROL PANEL 7. Start/Pause Button Press the Start/Pause button to start the programme. The wash lamp turns on and the Remaining Time Indicator shows the programme duration. It also indicates the remaining time during the programme flow. If you open the door of your machine when the programme is running the duration of the programme pauses,and the Start/Pause led blinks.

  • Page 24: Changing A Programme

    NOTE: Child lock is activated/deacti- vated by pressing the select button (5) for about 3 seconds. When it is activated, all leds blink and “CL” is shown on the Re Press the Start/Pause button for 3 seconds. During cancellation, the NOTE: If you switch the machine to off End light blinks.

  • Page 25: Ccleaning And Maintenance

    8. CLEANING AND To remove and clean the filter combination, turn it counter clockwise and remove it by MAINTENANCE lifting it upwards (1).Pull the coarse filter out of the micro filter (2).Then pull and remove Cleaning your dishwasher is important to the metal filter (3).Rinse the filter with lots of maintain the machine’s service life water until it is free of residue.

  • Page 26: Drain Pump

    8.3 Drain Pump Large food residues or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter. Warning Risk of cuts! When cleaning the waste water pump, ensure that you do not injure yourself on pieces of broken glass or pointed implements.

  • Page 27: Troubleshooting

    9. TROUBLESHOOTING FAULT POSSIBLE CAUSE TROUBLESHOOTING Your Dishwasher is not plugged in. Plug your Dishwasher in. Switch your Dishwasher on by pressing the Your Dishwasher is not switched on. On/Off button. Fuse blown. Check your indoor fuses. The programme does not start.
  • Page 28 FAULT POSSIBLE CAUSE TROUBLESHOOTING Use the correct amount of detergent, as Not enough detergent used. instructed in the programme table. Rinse aid dosage and/or water Increase rinse aid and/or water softener softener setting set too low. level. Whitish stains remains on dishes.
  • Page 29 AUTOMATIC FAULT WARNINGS AND WHAT TO DO TROUBLE POSSIBLE FAULT WHAT TO DO CODE Make sure the water inlet tap is open and water is flowing Separate the inlet hose from the tap and clean the filter of Insufficient water the hose.
  • Page 30 www.svanelectro.com 52253525 R35...
