Electrical Trouble

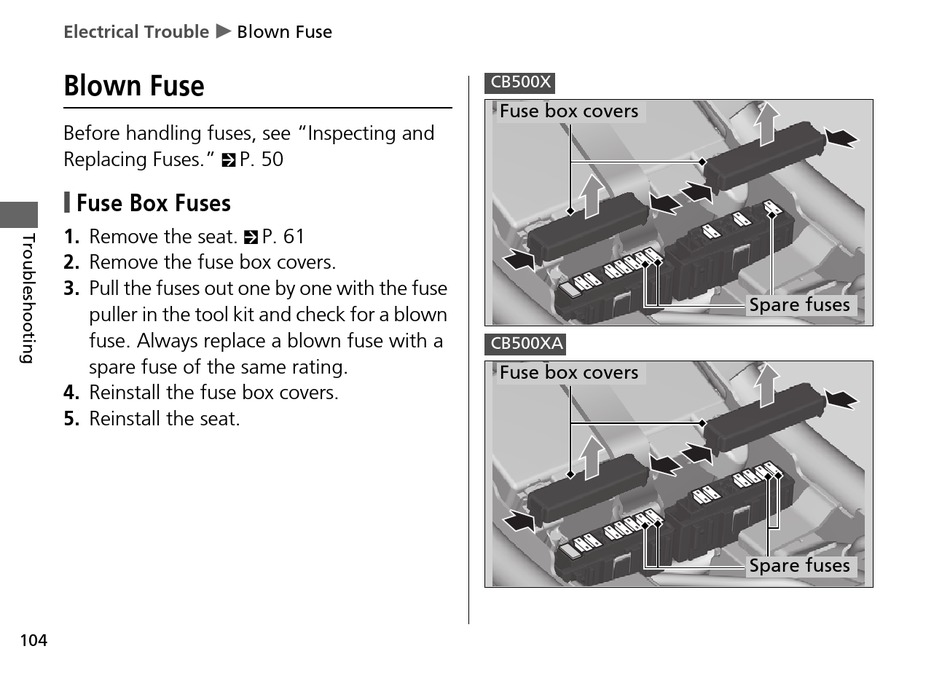

Blown Fuse

Before handling fuses, see "Inspecting and
Replacing Fuses."
❙
Fuse Box Fuses
1. Remove the seat.
2. Remove the fuse box covers.
3. Pull the fuses out one by one with the fuse
puller in the tool kit and check for a blown
fuse. Always replace a blown fuse with a
spare fuse of the same rating.
4. Reinstall the fuse box covers.
5. Reinstall the seat.
104
Blown Fuse
u
P. 50
2
P. 61
2
CB500X
Fuse box covers
CB500XA
Fuse box covers
Spare fuses
Spare fuses
