Summary of Contents for simatherm IH 070

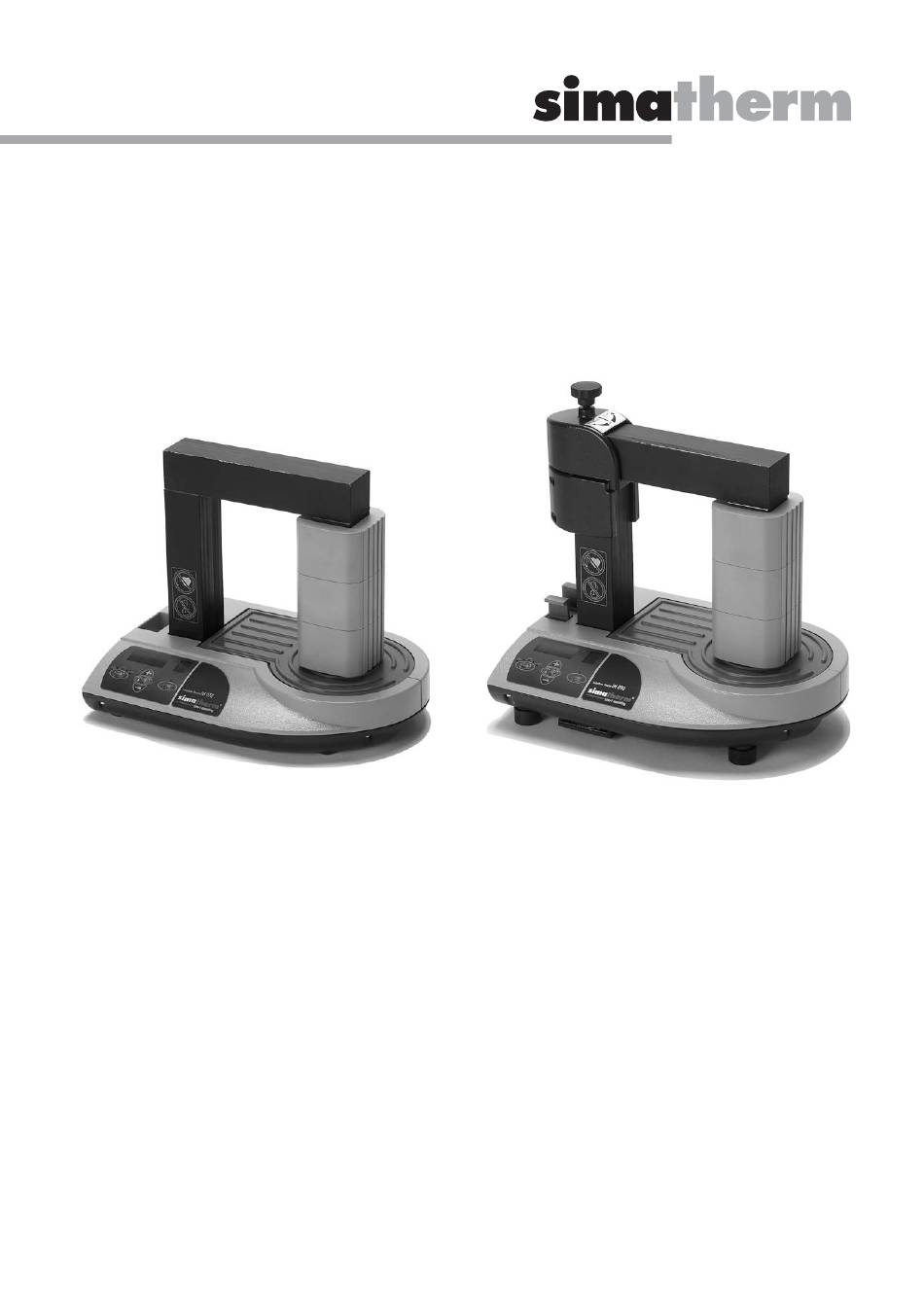

- Page 1 ® smart mounting Induction Heater IH 070/090 Bedienungsanleitung Instructions for use Mode d‘emploi Manuale d‘istruzioni Manual de instrucciones...
- Page 2 ® smart mounting Induktionsheizgerät IH 070/090 © simatec ag...
-
Page 3: Table Of Contents
Preparation for use Operation Function of displays Function of buttons TEMP MODE TEMP MODE TIME MODE Temperature measurement Change of temperature unit Demagnetisation Power level selection Safety features Troubleshooting Spare parts ® smart mounting Induction Heater IH 070/090 © simatec ag... -
Page 4: Eu Declaration Of Conformity
Directive 89/336/EEC The following standards have been applied: EN 60519-1 EN 60519-3 EN 55011 EN 61000-3-3 EN 61000-6-2 Wangen a. Aare, 2013-10-01 Mischa N. Wyssmann Managing Director / CEO ® smart mounting © simatec ag Induction Heater IH 070/090... -
Page 5: Safety Recommendations
• Be certain that the voltage supply is correct. • Electrical arcing may occur when a potential difference exists between the IH 070/090 and the workpiece. This is not dangerous to human beings and will not cause damage to the IH 070/090 or the workpiece. -
Page 6: Introduction

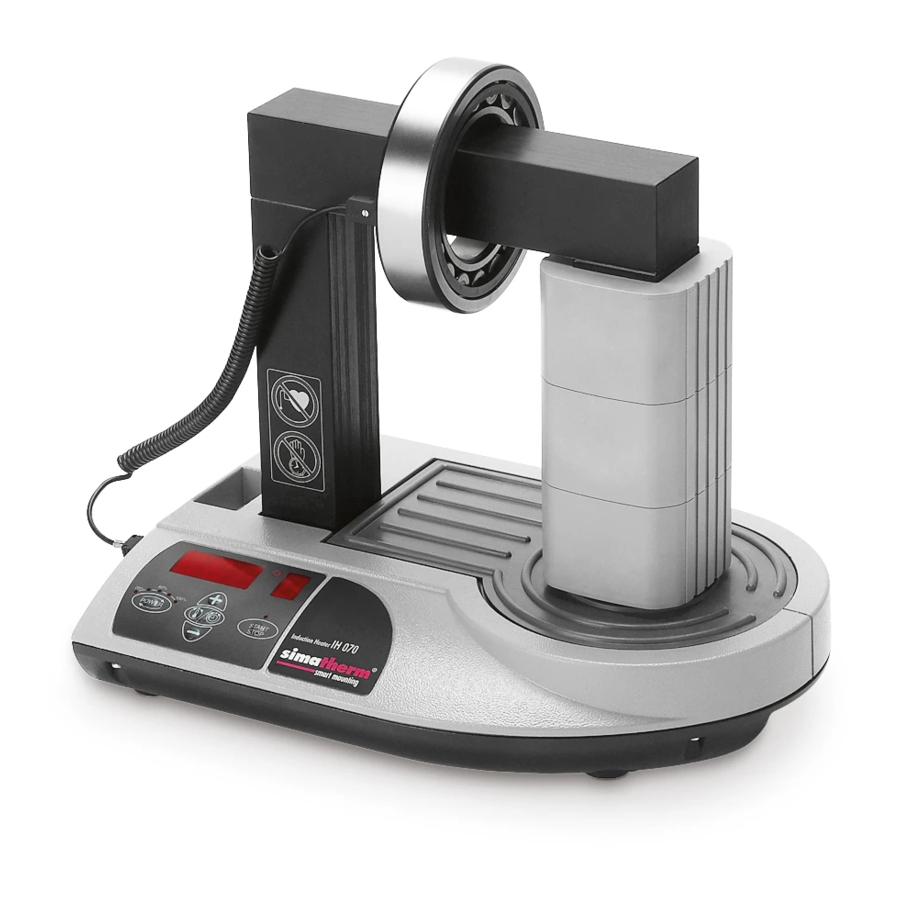

All bearings that fit over the inductive coil and between the vertical supports with the top yoke in place can be heated using the IH 070/090. In addition, smaller bearings can be placed over either of the three standard yokes. See the illustrations at the beginning of this manual for examples. -
Page 7: Distinguishing Feature
Distinguishing feature The distinguishing feature of the IH 070/090 induction heater is the location of the workpiece at the same position on the core as the inductive coil. This design improves efficiency, resulting in less power consumption and faster heating, which reduces the cost to heat each bearing. -
Page 8: Technical Data
Standard yoke dimensions 55 x 55 x 275mm (for of 78mm) Ø 28 x 28 x 275mm (for of 40mm) Ø 14 x 14 x 275mm (for of 20mm) Ø ® smart mounting © simatec ag Induction Heater IH 070/090... - Page 9 Standard yoke dimensions 55 x 55 x 275mm (for of 78mm) Ø 28 x 28 x 275mm (for of 40mm) Ø 14 x 14 x 275mm (for of 20mm) Ø ® smart mounting Induction Heater IH 070/090 © simatec ag...
-
Page 10: Installation Of Mains Plug
Installation of mains plug Due to the many types of mains plugs, no mains plug is supplied with the IH 070/090. A qualified electrician must install a suitable mains plug. The correct supply voltage is shown in section 2.2. The wires should be connected as follows:... -
Page 11: Preparation For Use
Preparation for use • Place the IH 070/090 in the horizontal position on a stable surface. • Connect the mains plug to a suitable mains supply. • For the IH 090 only, follow these steps to install the swivel arm: - Attach the protection plate (4) to the side post to prevent damage. - Page 12 • Use the power switch on the left side to switch on the IH 070/090. • Observe the self-test of the display and signal tone.
-
Page 13: Operation
Press to decrease the value shown on the main display. START/STOP Press to start or stop the heater. The LED on the START/ STOP button is lit when the heater is heating and flashes during temperature measurement. ® smart mounting Induction Heater IH 070/090 © simatec ag... -
Page 14: Temp Mode
• If the workpiece remains on the heater, the heater will start again when the temperature of the workpiece drops 10°C (18°F). Press START/STOP to stop the heater and demagnetise the workpiece. • The IH 070/090 is now ready to heat another workpiece with the same settings. ®... -
Page 15: Time Mode
The workpiece is automatically demagnetised when heating is complete. Demagnetisation will not occur if the power is interrupted or the main switch is switched off. To use the IH 070/090 for demagnetisation only, select TIME MODE and set the time to 0.1 minute (6 seconds). -
Page 16: Power Level Selection
• When using the small yoke, never exceed 40% power. • When using the medium yoke, never exceed 60% power. Safety features The IH 070/090 is equipped with the following safety features: • Automatic overheating protection • Automatic current control •... -
Page 17: Troubleshooting
A system fault will be indicated by an acoustic signal and one of the following fault codes on the main display: Display Fault Action E01 E General system failure Return IH 070/090 for repair. E02 E Memory failure Return IH 070/090 for repair. E03 E Overheated coil Wait until the inductive coil cools. -
Page 18: Spare Parts
Coil 100-115V/50-60Hz 190.1310 IH 070-C230V Coil 200-230V/50-60Hz 190.1313 IH 090-C Coil 400-460V/50-60Hz 190.7302 IH 070-CP/100V Control print IH 070/100V 190.7303 IH 070-CP/110V Control print IH 070/110V 190.7402 IH 210-CP Control print 200V for IH 090 190.7304 IH 070/090-CP Control print IH 070/230V Control print IH 090/400-460V 190.7301... - Page 19 Swiss made by: simatec ag Stadthof 2 3380 Wangen a. Aare Switzerland www.simatec.com ® smart mounting...
