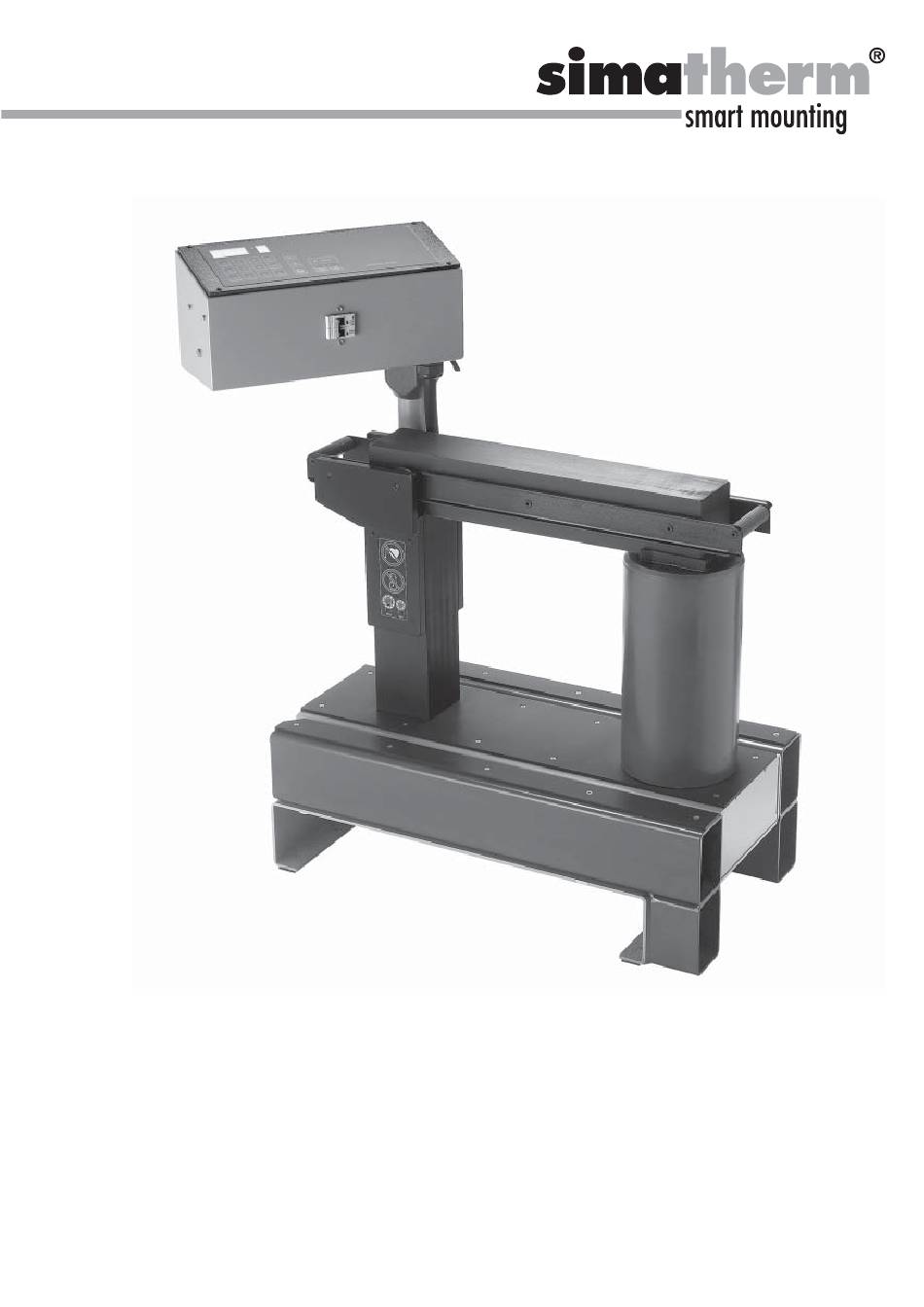

- Page 1 IH 240 Induction Heater Bedienungsanleitung Instruction for use Mode d‘emploi Manuale d‘instruzioni Manual de instrucciones...
- Page 2 © simatec ag Induktionsheizgerät IH 240...
-
Page 3: Table Of Contents
Installation of main plug Preparation for use Operation Function of displays Function of buttons Temp Mode Time Mode Temperature measurement Change of temperature unit Demagnetisation Power level selection Safety features Troubleshooting Spare parts © simatec ag Induction Heater IH 240... -
Page 4: Eu-Declaration Of Conformity
EMC NORM 89/336/EEC The follwoing norms are used: Harmonized Norms: EN 60519-3 :1996 EN 55011 EN 61000-6-2 EN 61000-3-3/3 National Norms: VDE 0721 Wangen a. Aare, 2005-02-01 Mischa Wyssmann Managing Direktor / CEO © simatec ag Induction Heater IH 240... -
Page 5: Safety Recommendations
IH 240 and the workpiece. This is not dangerous to human beings and will not cause damage to the IH 240 or the workpiece. However, the IH 240 must never be used in areas where there is a risk of explosion. -
Page 6: Introduction
Introduction The simatec IH 240 induction heater is designed to heat bearings that are mounted with an interference fit onto a shaft. The heat causes the bearing to expand, which eliminates the need to use force during installation. A 90 °C temperature difference between the bearing and shaft is generally sufficient to enable installation. -
Page 7: Technical Description
The induction heater consists of a U-shaped iron core with a large induction coil on one of its legs. The control electronics sits in a separate control box on top of the heater. The temperature is controlled by means of a magnetic probe. © simatec ag Induction Heater IH 240... -
Page 8: Technical Data
1 blue phase 2 Connect the IH 240 to only two of the three phases. Verify that the correct cicuit breaker is installed. See section 2.2 for circuit breaker specifications. © simatec ag Induction Heater IH 240... -
Page 9: Preparation For Use
- For best performance, adjust the position of the workpiece so that the inductive coil is in the centre. - If the sliding yoke is not installed on the IH 240, follow the steps shown in the illustrations at the beginning of this manual. -
Page 10: Operation
BEARING MODE - recommended heating temperature for bearings of 110°C (230°F) is automatically selected. START/STOP To start and stop heating. ON/OFF Press to start or stop the heater. Power reduced to 50%. 100% Full capacity. © simatec ag Induction Heater IH 240... -
Page 11: Temp Mode
• If the workpiece remains on the heater, the heater will start again when the temperature of the workpiece drops 10 °C (18 °F). Press START/STOP to stop the heater and demagnetise the workpiece. • The IH 240 is now ready to heat another workpiece with the same settings. © simatec ag... -
Page 12: Time Mode
10 seconds. • Press START/STOP to cancel the acoustic signal and stop the heater. • Remove the workpiece with proper handling equipment. • The IH 240 is now ready to heat another workpiece with the same settings. Temperature measurement When the heater is not operating, the temperature of the workpiece can be measured by pressing 0 and TEMP at the same time. -
Page 13: Power Level Selection
50%. Safety features The IH 240 is equipped with the following safety features: • Main switch with overcurrent circuit breaker • Automatic overheating protection •... -
Page 14: Troubleshooting
Yoke 100 x 100 x 570 mm IH 240-3 Yoke 65 x 65 x 570 mm IH 240-5 Thyristor IH 240-6 Thyristor protection board IH 240 IH 240-7 Main switch IH 240 IH 240-10 Set support yoke 100 x 100 x 150 mm IH 240-11... - Page 15 N e d e r l a n d B . V . Wagenmakerij 11 4762 AV Zevenbergen T: 0168 371 538 F: 0168 338 329 E: info@beka.nl www.beka.nl www.simalube.nl...
