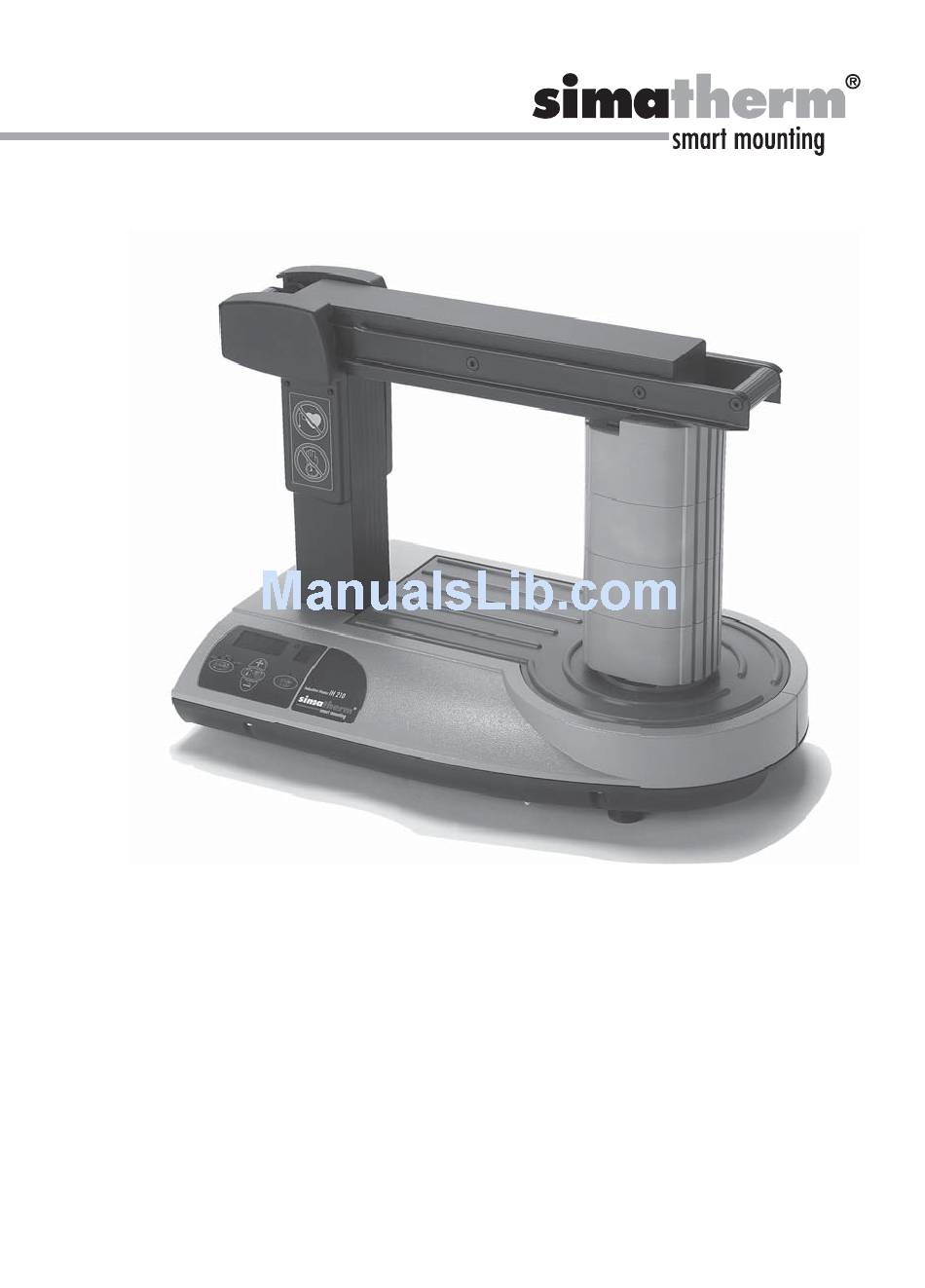

- Page 1 IH 210 Induction Heater Bedienungsanleitung Instructions for use Mode d‘emploi Manuale d‘istruzioni Manual de instrucciones...
- Page 2 Induktionsheizgerät IH 210 © simatec ag...
-
Page 3: Table Of Contents
Installation of mains plug Preparation for use Operation Function of displays Function of buttons Temp Mode Time Mode Temperature measurement Change of temperature unit Demagnetisation Power level selection Safety features Troubleshooting Spare parts © simatec ag Induction Heater IH 210... -
Page 4: Eu Declaration Of Conformity
Directive 89/336/EEC The following standards have been applied: EN 60519-1 EN 60519-3 EN 55011 EN 61000-3-3 EN 61000-6-2 Wangen a. Aare, 2012-06-06 Mischa N. Wyssmann Managing Director / CEO Induction Heater IH 210 © simatec ag... -
Page 5: Safety Recommendations
IH 210 and the workpiece. This is not dangerous to human beings and will not cause damage to the IH 210 or the workpiece. However, the IH 210 must never be used in areas where there is a risk of explosion. -
Page 6: Introduction
All bearings that fit over the inductive coil and between the vertical supports with the sliding yoke in place can be heated using the IH 210. In addition, smaller bearings can be placed over either of the two standard yokes. -
Page 7: Distinguishing Feature
Distinguishing feature The distinguishing feature of the IH 210 induction heater is the location of the workpiece at the same position on the core as the inductive coil. This design improves efficiency, resulting in less power consumption and faster heating, which reduces the cost to heat each bearing. -
Page 8: Technical Data
Installation of mains plug Due to the many types of mains plugs, no mains plug is supplied with the IH 210. A qualified electrician must install a suitable mains plug. The correct supply voltage is shown in section 2.2. The wires should be connected as follows: Induction Heater IH 210 ©... -
Page 9: Preparation For Use
(„1“ or black) Phase 1 (L1) blue („2“ or white) Phase 2 (L2) Connect the IH 210 to only two of the three phases. Verify that the correct cicuit breaker is installed. See section 2.2 for circuit breaker specifications. Preparation for use •... -
Page 10: Operation
Press to decrease the value shown on the main display. START/STOP Press to start or stop the heater. The LED on the START/STOP button is lit when the heater is heating and flashes during temperature measurement. Induction Heater IH 210 © simatec ag... -
Page 11: Temp Mode
• If the workpiece remains on the heater, the heater will start again when the temperature of the workpiece drops 10°C (18°F). Press START/STOP to stop the heater and demagnetise the workpiece. • The IH 210 is now ready to heat another workpiece with the same settings. © simatec ag... -
Page 12: Time Mode
10 seconds. • Press START/STOP to cancel the acoustic signal and stop the heater. • Remove the workpiece with proper handling equipment. • The IH 210 is now ready to heat another workpiece with the same settings. Temperature measurement When the heater is not operating, the temperature of the workpiece can be measured by pressing MODE and START/STOP at the same time. -
Page 13: Power Level Selection
60% power when using the sliding yoke. • When using the small yoke, never exceed 60% power. Safety features The IH 210 is equipped with the following safety features: • Main switch with overcurrent circuit breaker • Automatic overheating protection •... -
Page 14: Troubleshooting
Return heater for repair. measurement E08 E Failure during communi- Return heater for repair. cation with power printed circuit board E09 E Overheated printed circuit Wait until the printed circuit board board (PCB) has cooled down. Induction Heater IH 210 © simatec ag... -
Page 15: Spare Parts
Yoke 40 x 40 x 420mm (for bearings with minimum 60mm bore) 190.7404 IH 210-YH Yoke roller housing 190.1406 IH 210-YS Set support yoke 70 x 70 x 150mm 190.1001 IH P2 Temperature probe, K type © simatec ag Induction Heater IH 210... - Page 16 N e d e r l a n d B . V . Wagenmakerij 11 4762 AV Zevenbergen 0168 371 538 0168 338 329 info@beka.nl www.beka.nl www.simalube.nl...
