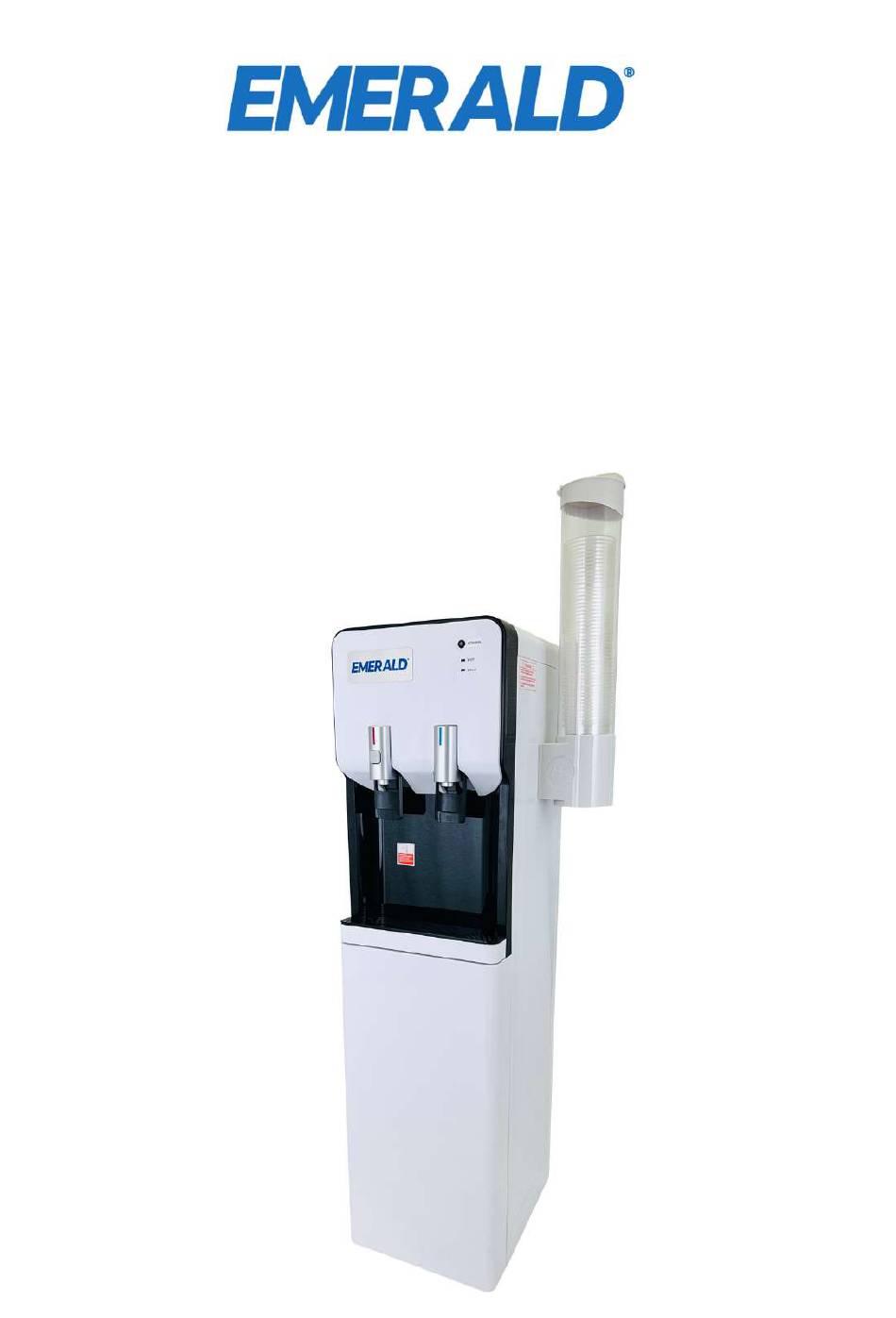

- Page 1 OPERATING MANUAL EMERALD HOME 60 OFFICE DEVICE FOR FRESH WATER PURIFICATION AND ELECTROCHEMICAL TREATMENT...
-
Page 2: Table Of Contents
PRECAUTIONARY MEASURES ..................8 DEVICE FEATURES ....................... 10 CONTENTS OF DELIVERY ................... 11 DEVICE CONNECTION ....................13 Description of the main elements on the EMERALD Device casing ............13 ® General rules for handling John Guest type quick-release fittings ............. 14 Connecting EMERALD Device under sink with clean water tap .............. -
Page 3: Introduction
9001 quality management system certificate, hygiene certificate (expert report) of Rospotrebnadzor, EAC certificate of conformity, GOST R certificate of conformity. EMERALD HOME 60 OFFICE Device is developed jointly with the Vitold Bakhir Institute of Electrochemical Systems and Technologies, which is the world's main scientific center in the field of electrochemical activation. -
Page 4: Information About Antioxidant Water - Catholyte
(including free radicals). Antioxidant water from EMERALD HOME 60 OFFICE Device has a beneficial effect on the entire body, normalizing metabolism and the functioning of internal organs, cleansing toxins, and also strengthening the immune system, improving memory and toning up the body. - Page 5 - freshly squeezed juices of carrots, apples, various berries, by adding antioxidant water from EMERALD Device to them. Herbal teas prepared with this water acquire a special taste and aroma. Ice cubes made of frozen antioxidant water will give the drink an extra benefit.
-
Page 6: Principles Of Water Treatment
3. PRINCIPLES OF WATER TREATMENT The EMERALD Device is high performance and runs on cold tap water, producing 40 to 60 liters of purified antioxidant drinking water (catholyte) per hour. EMERALD Device ensures high quality of drinking water purification due to the consistent combination of water activation in electrochemical modules and the use of auxiliary environmentally friendly filter elements. - Page 7 Useful information! All water purification and activation processes in EMERALD Devices are as close as possible to what happens to water in living Nature, since the mechanism of fresh water purification in Nature is represented by two main processes: redox reactions and filtration.
-
Page 8: The Main Stages Of Water Treatment In Emerald Device
The main stages of water treatment in EMERALD Device Stage 1. Anode chamber of the MB-11 electrochemical module Destruction of microorganisms, microbial toxins and biofilms in the water flowing through the anode chamber of the electrochemical module; Oxidative destruction of organic compounds, such as herbicides, pesticides, antibiotics, hormones, antidepressants, surfactants, phenols, petroleum products;... -
Page 9: Precautionary Measures
4. PRECAUTIONARY MEASURES For normal operation of the EMERALD Device, it is necessary to comply with the requirements for its operation and maintenance specified in this Operating Manual. Before you start using the Device, please read this manual carefully. If you have any questions regarding the connection or operation of the EMERALD Device, please contact our authorized dealers for advice or call our customer service. - Page 10 Before connecting to the power supply, make sure that the Device and all its elements are dry. During operation, all elements of the EMERALD Device must be dry and not leaking. For the proper functioning of the EMERALD Device, your outlet must be uninterrupted,...
-
Page 11: Device Features
5. DEVICE FEATURES Table 1. Specifications Recommended productivity, no more than, liters per hour Water cooling productivity (5–10 C°), l / h Water heating productivity (85–95 C°), l / h Power consumption during water treatment, no more than, W Power consumption during water cooling, W Power consumption during water heating, W Specific electricity consumption, not more than W* h/l Supply voltage - standard socket with grounding (for adapter), V. -
Page 12: Contents Of Delivery
6. CONTENTS OF DELIVERY Table. 5. Contents of Delivery Item Number, pc. Overall view EMERALD HOME 60 OFFICE Device. Network cable with an IEC320 C14 plug for connecting the Device to the electrical network (the network cable is built into the Device casing). - Page 13 Table 6. Additional items sold separately Item Number, pc. Overall view Filter 1, activated carbon, replaceable, for quick- Add. 1 release fittings 1/4". Filter 2, mechanical polypropylene foam filter, 5 Add. 2 micron, replaceable, for 1/4" quick-release fittings. Slim Line 10" flask for water pre-treatment car- tridges with a bracket, a wrench and a set of fittings Add.
-
Page 14: Device Connection
Description of the main elements on the EMERALD Device casing Fig. 6 shows the main elements of the EMERALD HOME 60 Device located on the front and rear of the casing. For user convenience, the numbering of elements in Fig. 6 and on the Device con- nection diagrams in the OPERATION and FLUSHING modes is the same. -
Page 15: General Rules For Handling John Guest ® Type Quick-Release Fittings
® General rules for handling John Guest type quick-release fittings The connection of the 1/4" tubes to the fittings is done manually. John Guest® type quick-release connections allow you to repeat the procedures for connecting/disconnecting the tubes and fittings if necessary. - Page 16 CONNECTING TUBES AND CLOSING PLUGS TO QUICK-RELEASE FITTINGS. Connecting tubes or plugs to fittings is to be performed in accordance with Fig. 7.2: Insert the tube by hand into the fitting hole (1) as far as it will go. When properly connected, the tube enters the fitting hole by 15-18 mm;...
-
Page 17: Connecting Emerald Device Under Sink With Clean Water Tap
The EMERALD Device is placed unattached on a flat and stable horizontal surface. To connect the EMERALD Device, you need to do it using connecting hoses (1/4" tube and the parts included in the delivery set), in accordance with the diagram in Fig. 8. The white tube is cut into the required lengths already at the installation site. - Page 18 CONNECTION DIAGRAM OF EMERALD HOME 60 OFFICE DEVICE IN OPERATION MODE. The connection procedure for the EMERALD Device is performed in accordance with the diagram in Fig. 8 and consists of the following stages: Connecting to the cold water pressure line (4.5);...
-
Page 19: Connecting The T-Bend With A Ball Valve To The Water Supply Line
Connecting the t-bend with a ball valve to the water supply line The connection is made in accordance with the diagram in Fig. 9: Shut off the cold water supply to the sink, and then open the cold water shutoff valve on the kitchen faucet to relieve pressure in the pipe;... -
Page 20: Connecting The Water Pre-Treatment System
Connecting the water pre-treatment system In case of non-compliance of the source water WATER FLOW DIRECTION with the requirements of SanPiN 2.1.4.1074-01, it is possible to connect a pre-treatment system before the Device (purchased separately, see Table 6). To do this, connect a Slim Line 10" main flask (Fig. 11), before the Device, to the break in the cold water supply pipe, into which, depending on the source water contamination type, various replaceable... -
Page 21: Connecting The Emerald Device To The Electrical Network
Device is in STANDBY mode). Do not turn off the power button or disconnect the network cable while the Device is in OPERATION mode. To comply with electrical safety measures, the electrical outlet to which the EMERALD Device is connected must work uninterruptedly, have a working ground contact, and also be connected... -
Page 22: Device Operation
8. DEVICE OPERATION Basic operating modes STANDBY Mode. In STANDBY mode, the Device is pressurized and connected to the cold water pressure line, as well as to the electric network. The cold and hot water outlets are closed (not in use). Water does not flow through the Device. -
Page 23: Device Operation Indication
An indirect indicator of the optimal Device operation is a stable water flow rate from the cold (9, Fig. 8) and hot water (10, Fig. 8) outlet taps. The optimal range of water flow through the EMERALD HOME 60 OFFICE Device through one of the outlet taps should be from 1.0 to 1.5 l/min! During operation, as the electrochemical modules and filter elements of the Device get dirty, the water flow rate may gradually decrease. -
Page 24: Device Maintenance
The frequency of the EMERALD Device maintenance depends on the quality of the source water and the mode of operation. On average, when the Device is operated on tap drinking water that complies with SanPiN 2.1.4.1074-01, the Device should be flushed at least once every 3 months or after 1000 liters of... -
Page 25: Auxiliary Elements For Carrying Out Flushing Mode
Auxiliary elements for carrying out FLUSHING mode Internal compartment of the device casing The bottom lid of the Device casing is held by two spring bushings in the lower part of the casing (Fig. 15). In order to open the lid, you need to slightly press the lid down with both hands - the springs will compress and the lid can be removed by shifting it away from the main part of the casing. -
Page 26: Preparing Device For Flushing Mode
60-70 ° C (not higher!). Important! It is not allowed to flush the EMERALD Device with a citric acid solution with a temperature of more than 70°C. This can damage the hydraulic elements of the system! Use temperature gauges to accurately determine the temperature of the flushing solution. -
Page 27: Flushing Mode
FLUSHING Mode To start the FLUSHING mode, the EMERALD Device must be connected according to the diagram in fig. 19 and be in STANDBY mode. All hydraulic and electrical connections must be securely fixed. The flushing tank must be placed on a flat and stable surface (for example, on a worktop next to the sink, on the floor, or on the bottom shelf of the sink cabinet). - Page 28 WASHING-OUT STAGE At this stage, the Device is connected according to the diagram in Fig. 20 for washing out dissolved contaminants and residues of the flushing solution from the internal hydraulic elements of the Device with cold tap water. To start the WASHING-OUT stage (Fig. 20): Disconnect the flushing tank from the Device;...
- Page 29 If any failure occurs during the FLUSHING mode, you need to repeat this procedure from beginning to end before using the Device in OPERATION mode; To increase the useful life of the EMERALD HOME flushing tank and connecting tubes, we recommend after the FLUSHING mode, to wash these elements thoroughly before the next flushing with warm tap water, dry and remove;...
-
Page 30: Emerald Device Connection Diagram At Circulation And Hold-Up Stages
Setting 1/4" tubes instead of replaceable filters (11.13); Connecting the Device to the electrical network (3). Fig. 19. EMERALD Device connecting diagram in FLUSHING mode, CIRCULATION and HOLD-UP stages. 1. EMERALD HOME 60 OFFICE Device; 2. Network cable for connecting the Device to the electrical network (built into the casing);... -
Page 31: Emerald Device Connection Diagram At The Washing-Out Stage
EMERALD Device connection diagram at the WASHING-OUT stage The EMERALD Device connecting procedure at the WASHING-OUT stage is carried out in accordance with the diagram in fig. 20 and consists of the following stages: Setting plugs in fittings 14 and 18;... -
Page 32: Mud Filter Maintenance
Mud filter maintenance During the maintenance of the Device, it is also necessary to inspect and, if needed, clean the stainless steel filter mesh (2, Fig. 21) built into the body of the mud filter (1 and 3, Fig. 21) located in the lower parts of the Device casing, under electrochemical modules (12) and replaceable filters (11,13). -
Page 33: Troubleshooting Guide
10. TROUBLESHOOTING GUIDE Table 7. Troubleshooting guide Trouble Probable Cause Remedy Method Device does not turn 1. The hydraulic and electrical 1. Join the hydraulic and electrical connections of the Device are joined connections according incorrectly. CONNECTION DEVICE section. LED and electronic 2. -
Page 34: Warranty
Operating Manual. The warranty does not cover: ® EMERALD Device, which has been used for other purposes or in a way that is contrary to the instructions in this Operating Manual; ® Any EMERALD Device that has been used incorrectly, crashed, physically damaged, improperly installed or misused, altered, mishandled, or exposed to adverse external factors (including but not limited to, lightning, flood or fire);... -
Page 35: Transport And Storage
Device stated in this Operating Manual. The manufacturer and official trading partners are not responsible and do not accept claims if the EMERALD Device was used for other purposes or in a way that contradicts the instructions in this Operating Manual. -
Page 36: Acceptance And Sale Certificate
EMERALD Devices, as well as to carry out their service and warranty maintenance. The company EMERALD ECOTECHNOLOGIES LLC has the exclusive right to transfer to its official trading partners all the necessary powers for the sale of EMERALD Devices, as well as for their service and warranty maintenance. -
Page 37: Appendix № 1. Certificates
APPENDIX № 1. CERTIFICATES 1. CE CERTIFICATE OF CONFORMITY OF THE EUROPEAN UNION 2. RoHS EUROPEAN UNION DECLARATION OF CONFORMITY... - Page 38 3. ISO 9001-2015 CERTIFICATE OF CONFORMITY OF THE QUALITY MANAGEMENT SYSTEM 4. ЕАС CERTIFICATE OF CONFORMITY OF THE EAEU CUSTOMS UNION...
- Page 39 5. HYGIENIC CERTIFICATE, EXPERTS’ REPORT FROM RUSSIAN GOVERNMENT OFFICIALS (ROSPOTREBNADZOR)
