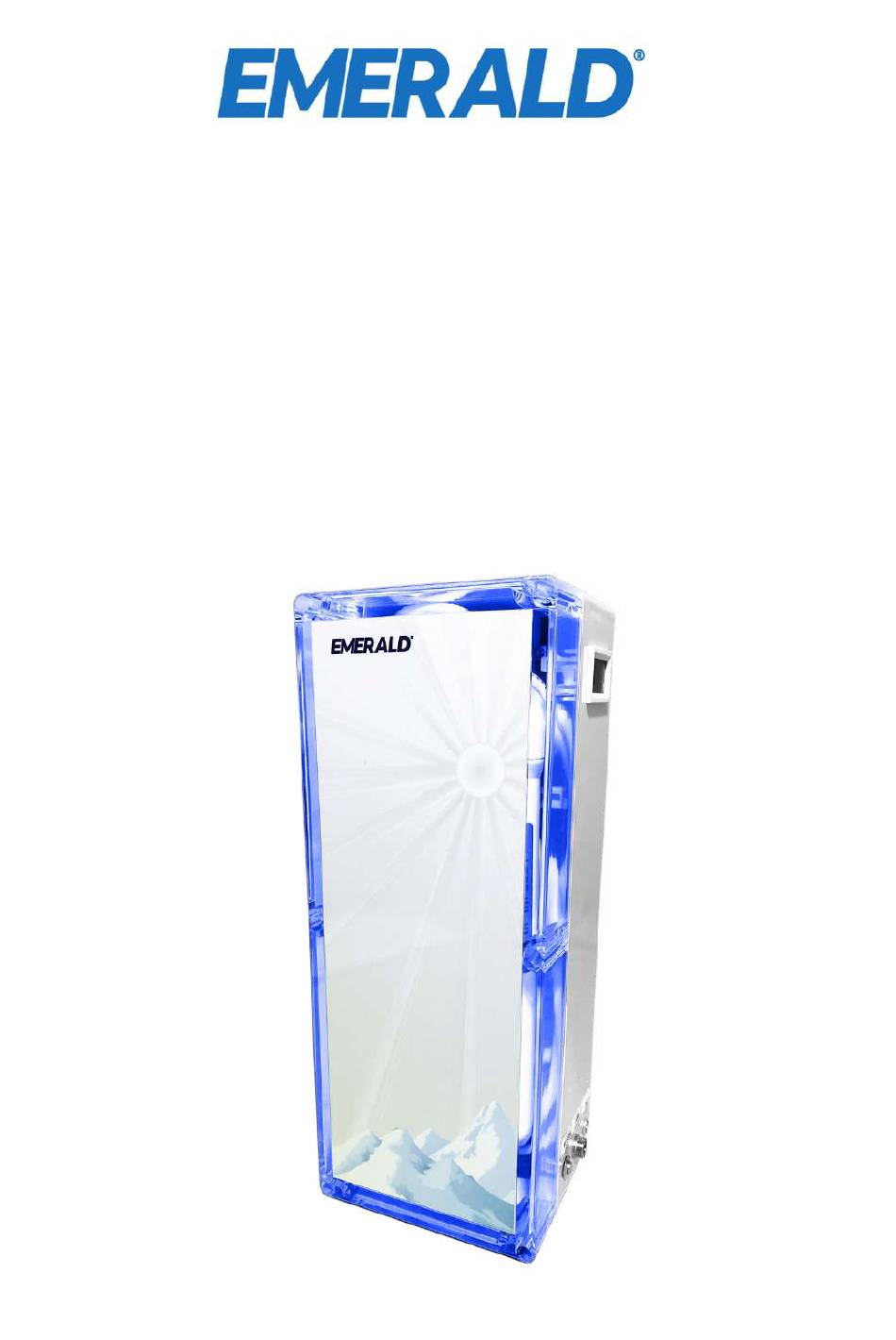

- Page 1 PASSPORT AND OPERATING MANUAL EMERALD HOME 60 FOR PURIFICATION AND ELECTRICAL TREATMENT OF FRESH WATER...
-
Page 2: Table Of Contents
INTRODUCTION....................... 2 INFORMATION ON ANTIOXIDANT WATER............... 2 WATER PURIFICATION AND ELECTRIC TREATMENT PRINCIPLE...... 3 The main stages of water purification and electric treatment in the EMERALD device....... 5 PRECAUTIONARY MEASURES..................6 DEVICE CONNECTION....................8 General rules for handling John Guest®... -
Page 3: Introduction
An adult needs to drink about 2 to 3 liters of water per day to maintain normal body activity. Antioxidant water from EMERALD device has a positive effect on the body when used as part of a normal diet. EMERALD antioxidant water protects the body from the effects of strong toxic oxidizing agents. -
Page 4: Water Purification And Electric Treatment Principle
The water obtained in the EMERALD device should be stored for no more than a day in glass containers with a closed lid away from direct sunlight and heat sources. Water treated in EMERALD devices meets the requirements of hygiene standards (see Appendix 1 “Certificates”). - Page 5 Catalytic and electrokinetic filters operate in clean conditions. They are located after the anodic destruction of microbes, microbial toxins and biofilms, which significantly increases their efficiency and service life. Therefore, the filter elements in the EMERALD device are protected against the growth of microbes, fouling with harmful biofilms and water pollution...
-
Page 6: The Main Stages Of Water Purification And Electric Treatment In The Emerald Device
The main stages of water purification and electric treatment in the EMERALD device. Stage 1. The anode chamber of the Bakhir electrochemical module In water flowing through the anode chamber of the electrochemical module, microorganisms, microbial toxins and biofilms are destroyed;... -
Page 7: Precautionary Measures
The outlet should not be located directly above the sink or any other place where water can enter it. Before connecting to the power supply network, make sure that the device and all its elements are dry. During operation, all components of the EMERALD Device must be dry and not leak. - Page 8 For the proper functioning of the EMERALD Device, your socket must work without interruption and must have EARTHING! Incorrect connection to the power supply can result in a risk of electric shock.
-
Page 9: Device Connection
If you use an alternative method of connecting the EMERALD Device, you must make sure that the method you choose does not contradict other provisons of this Passport and operation manual. In case of violation of the installation and operation regulations of the EMERALD Device, claims for warranty may be rejected. -
Page 10: Connecting The Emerald Device Over The Sink With A Diverter
Connecting the EMERALD Device over the sink with a diverter. The EMERALD device can be located without fastening on the worktop, or it can be fixed to the wall with screws, for which there are special suspensions on the rear wall of the device casing (see Fig. - Page 11 Fig. 7. EMERALD Device wiring diagram in OPERATION mode 1.Installation of EMERALD HOME 60 above the sink; 2. Power supply (adapter); 3. A diverter on the tap with a control; 4. Tap water inlet fitting; 5. Purified water outlet fitting; 6. Plug for connecting a power source;...
- Page 12 INSTALLING THE DIVERTER ON THE TAP. To connect the diverter to the tap: Remove the regular aerator from the tap; Using the necessary nozzles from the delivery set, install the diverter on the tap; To fix the diverter on the tap, press it against the tap and tighten the ring at the base of the diverter by hand.
-
Page 13: Connection Of The Emerald Device Under The Sink With A Pure Water Tap
Connection of the EMERALD device under the sink with a pure water tap. The EMERALD device is located without fastening on the lower shelf of the washing cabinet (see Fig. 9), or it is attached to one of its walls with screws, for which there are special suspensions on the rear wall of the device casing. - Page 14 EMERALD HOME 60 DEVICE CONNECTION UNDER THE SINK DIAGRAM. The procedure for connecting the EMERALD device (Fig. 10) consists of the following steps: Connection to the cold water supply line (3) and (4); Installation and connection of a clean water tap (5) and (9);...
- Page 15 CONNECTING TO THE COLD WATER SUPPLY LINE. Fig. 11. Connection to the cold water supply line Block the flow of cold water to the sink, and then open the cold water tap on the faucet to relieve pressure in the pipe; If necessary, tighten threaded connections.
- Page 16 MOUNTING AND CONNECTING THE PURE WATER TAP. Drill a hole with a diameter of 12 mm for the tap in the sink/worktop and install the tap into it (see Fig. 13). Drilling the hole in the sink should only be done if you are sure the sink will not be destroyed by this procedure.
-
Page 17: Connection Of The Device To The Electric Network
Connection of the device to the electric network. The EMERALD device is connected to the electric network in several stages - see Fig. 16. First you need to connect the power supply (adapter) to the network cable. Then you need to connect the power cable to an electrical outlet and insert the plug of the power supply into the power socket of the EMERALD device in the upper left corner of the side of the casing. -
Page 18: Device Operation
6. DEVICE OPERATION. Important! After connecting the EMERALD device, it is necessary to study the operating rules in detail. Important! Do not use the first 30 liters of purified water immediately after connecting the device for food purposes. After long downtimes of the device (more than 1 day), the first 30 liters of purified water should also be drained. -
Page 19: Operation Of The Emerald Device Under The Sink With The Pure Water Tap
Operation of the EMERALD device under the sink with the pure water tap. WATER SUPPLY THROUGH THE T-BEND WITH A BALL VALVE To supply water to the device, it is necessary to smoothly open the tap on the T-bend (see Fig. 18) so that cold tap water begins to flow into the device. -
Page 20: Water Flow Setting
Water flow setting. BASIC WATER FLOW ADJUSTMENT Basic adjustment of the water flow through the EMERALD HOME 60 device is carried out by regulating: Cold water shut-off valve on the common tap (use above the sink) - see Fig. 19;... -
Page 21: Basic Operating Modes
In this case, it is necessary to install a water pre-treatment softening system (ion exchange filters) before the device and/or to purchase a more powerful power source. You can get consultation concerning this issue by phone 8 (495) 928-77-71 or by email service@emerald.eco... -
Page 22: Device Maintenance
To achieve the maximum quality of water purification and electric treatment in the EMERALD HOME 60 device, as well as to ensure water quality standards, the user should regularly flush the system with a solution of citric acid. With timely and uncomplicated maintenance, your system will produce drinking water of the highest quality with excellent taste for many years. -
Page 23: Connection Diagram Of The Device In The Flushing Mode Above The Sink With A Diverter
Fig. 22. Connection diagram of the device in the FLUSHING mode above the sink with a diverter 1. EMERALD HOME 60 Device over the sink; 2. Power supply (adapter); 3. A diverter on the tap with a control; 4. Tap water inlet fitting; 5. The outlet fitting of purified water; 6. Plug for connecting a power source;... -
Page 24: Connection Diagram Of The Device In The Flushing Mode Under The Sink With A Pure Water Tap
Maintenance of the EMERALD Device is carried out in accordance with the diagram in Fig. 23. Fig. 23. Connection diagram of the EMERALD device in the FLUSHING mode under the sink with a pure water 1. Installing EMERALD HOME 60 under the sink; 2. Power supply (adapter); 3. A T-bend with a ball valve for supplying water to the device (Important! The tube for supplying tap water to the device is disconnected and is not used in the FLUSHING mode) 4. -
Page 25: Citric Acid Solution Preparation
Citric acid solution preparation. To carry out the flushing procedure of the EMERALD Device, it is necessary to prepare one and a half liters of citric acid flushing solution in the flushing unit tank (Fig. 22.23 - 11). The flushing solution of citric acid is prepared at the rate of 200 grams of citric acid per one and a half liters of water. - Page 26 The automatic flushing procedure takes 30 minutes and consists of six similar sequential steps, each of which includes: a) 1 minute - pumping and circulation of flushing solution in the device (flushing unit included); b) 4 minutes - hold-up of the flushing solution in the device (flushing unit is turned off); After completion of all the six automatic flushing cycles, the LED in the device starts flashing in blue, indicating that the PUMPING and HOLD-UP procedures of the flushing solution are completed.
-
Page 27: Troubleshooting Guide
8. TROUBLESHOOTING GUIDE. Table 1. Troubleshooting Guide Fault Probable cause Elimination method The Device does not 1. Device hydraulic and electrical 1. Connect hydraulic and electrical switch on. connections are incorrect. contacts in accordance with Section 5 LED does not light up. 2. -
Page 28: Warranty
Passport and the instruction manual. The term of the free warranty service of EMERALD Device is 1 year from the date of its sale, but no more than 24 months from the date of its manufacture. In the absence of a sale date and a stamp of a trading organization, the term of a free warranty service is calculated from the production date. -
Page 29: Transportation And Storage
To make claims under this warranty, you can leave a request on our official website www.emerald.eco, and also call the company's service department at the universal number: 8 (495) 928-77-71 or write to service@emerald.eco. We kindly ask you to contact us at the above contacts before you decide to send any product for troubleshooting. -
Page 30: Device Specifications
10. DEVICE SPECIFICATIONS. Table 2. Technical Features Recommended performance in pure water, liters per hour Power consumption, not more than, W Specific energy consumption, W * h/l Supply voltage - standard socket with grounding (for adapter), V. 110 ÷ 220 The frequency of the supply network, Hz 50 ÷... -
Page 31: Contents Of Delivery
EMERALD HOME 60 Device Power supply (adapter) Network cable for power supply EMERALD flushing unit with hose kit Set of connecting tubes, size 1/4 "4 meters) Passport and operation manual Aux. 1 Tap Diverter with a set of nozzles ("over the sink" delivery option) Aux. -
Page 32: Acceptance And Sales Certificate
600026, Russia, Vladimir city, Kuibysheva street, 26A EMERALD HOME devices are manufactured by EMERALD ECOTECHNOLOGIES LLC. The company has exclusive rights to manufacture EMERALD HOME devices, as well as to carry out their maintenance and warranty service. EMERALD ECOTECHNOLOGIES LLC has the exclusive right to transfer to its official trading partners all the necessary powers to sell EMERALD HOME devices, as well as to carry out their maintenance and warranty service. -
Page 33: Appendix No. 1. Certificates
APPENDIX No. 1. CERTIFICATES 1. CE CERTIFICATE OF CONFORMITY OF THE EUROPEAN UNION 2. RoHS DECLARATION OF CONFORMITY OF THE EUROPEAN UNION... - Page 34 3. ISO 9001-2015 CERTIFICATE OF CONFORMITY OF QUALITY MANAGEMENT SYSTEM 4. EAC CERTIFICATE OF CONFORMITY OF THE EURASIAN ECONOMIC UNION...
- Page 35 5. HYGIENIC CERTIFICATE, EXPERTS’ REPORT FROM RUSSIAN GOVERNMENT OFFICIALS (ROSPOTREBNADZOR)
