OPERATING MANUAL

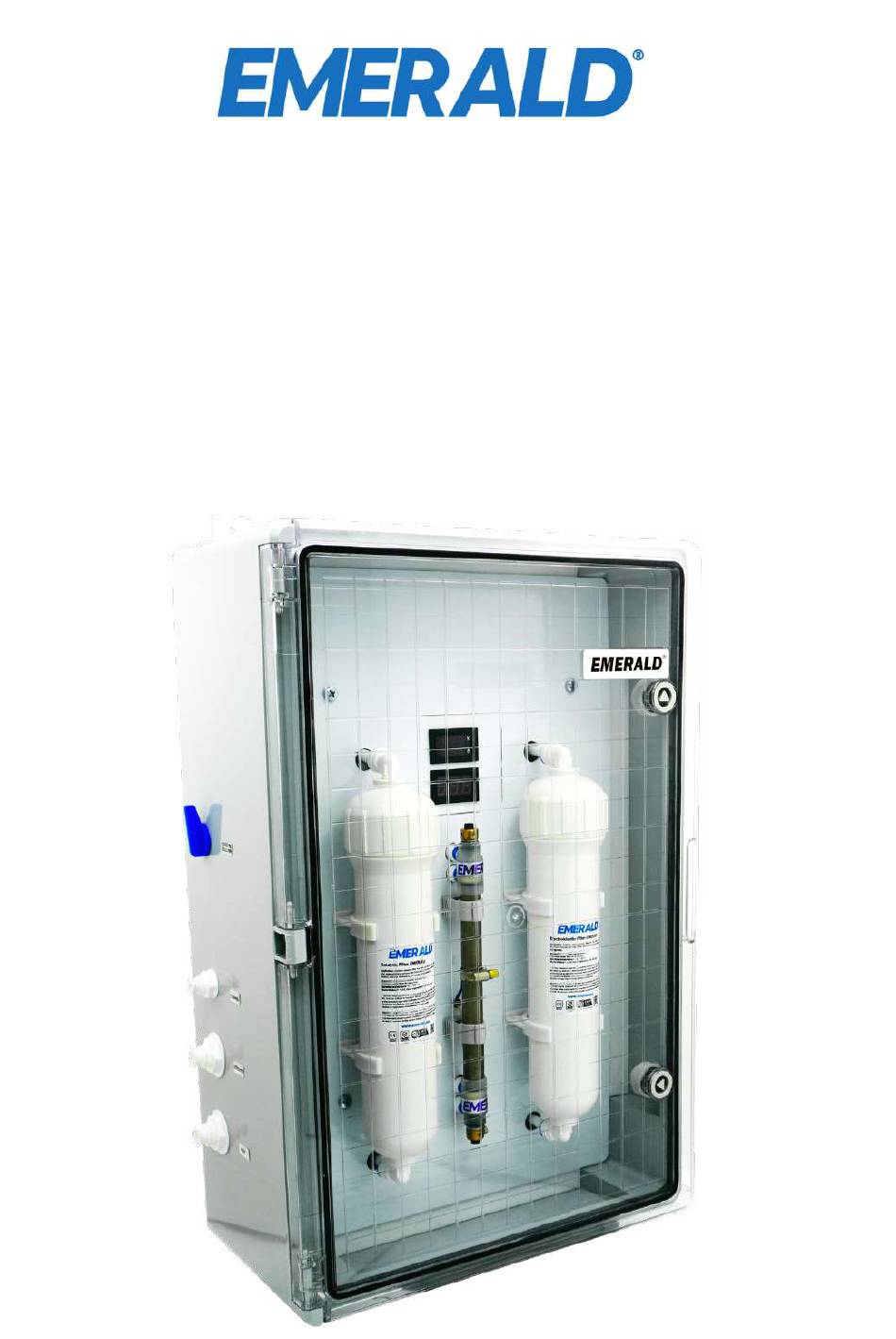

EMERALD HOME 250 SPA
DEVICE
FOR FRESH WATER PURIFICATION AND ELECTROCHEMICAL TREATMENT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HOME 250 SPA and is the answer not in the manual?

Questions and answers

Related Manuals for Emerald HOME 250 SPA

Summary of Contents for Emerald HOME 250 SPA

  • Page 1 OPERATING MANUAL EMERALD HOME 250 SPA DEVICE FOR FRESH WATER PURIFICATION AND ELECTROCHEMICAL TREATMENT...

  • Page 2: Table Of Contents

    PRECAUTIONARY MEASURES ..................10 DEVICE FEATURES .......................12 DELIVERY SET ........................13 DEVICE CONNECTION ......................15 Description of the main elements on the EMERALD Device casing ............15 ® General rules for handling John Guest type quick-release fittings ............. 16 Connecting the EMERALD Device ......................18 Connecting the EMERALD Device to the electric network .................

  • Page 3: Introduction

    The peculiarity of the EMERALD HOME 250 SPA Device is an increased productivity of 250 l/h, which allows using this equipment not only for obtaining pure antioxidant water for drinking...

  • Page 4: Information About Antioxidant Water - Catholyte

    (including free radicals). Antioxidant water from EMERALD HOME 250 SPA Device has a beneficial effect on the entire body, normalizing metabolism and the functioning of internal organs, cleansing toxins, and also strengthening the immune system, improving memory and toning up the body.

  • Page 5: Antioxidant Water Application Methods

    - freshly squeezed juices of carrots, apples, various berries, by adding antioxidant water from EMERALD Device to them. Herbal teas prepared with this water acquire a special taste and aroma. Ice cubes made of frozen antioxidant water will give the drink an extra benefit.

  • Page 6: Antioxidant Water Therapy In The Form Of Baths And Showers

    The water treatment scheme in EMERALD HOME SPA Devices is based on authentic MB-11 electrochemical modules and allows for producing up to 250 l/h of cold or warm electrochemically activated catholyte from ordinary tap water in a flow-through mode with ORP value in the range of (- 150)÷(-450) mV, while maintaining a neutral pH level in the range of 7.0÷8.5 units.
  • Page 7 Russian and international requirements for drinking water, including the international WHO recommendation «Guidelines for drinking-water quality». Important! EMERALD HOME 250 SPA Device is not a medical device. Before using catholyte for preventive or therapeutic purposes, consult a specialist. The information on the properties and methods of using catholyte presented in this section is for reference only and does not apply to medical reports.

  • Page 8: Principles Of Water Treatment

    4. PRINCIPLES OF WATER TREATMENT The EMERALD Device has high performance and runs on cold or warm tap water (not higher than 45 °С), producing up to 250 liters of purified antioxidant drinking water (catholyte) per hour. EMERALD Device ensures high quality of drinking water purification due to the consistent combination of water activation in electrochemical modules and the use of auxiliary environmentally friendly filter elements.
  • Page 9 Useful information! All water purification and activation processes in EMERALD Devices are as close as possible to what happens to water in living Nature, since the mechanism of fresh water purification in Nature is represented by two main processes: redox reactions and filtration.

  • Page 10: The Main Stages Of Water Treatment In Emerald Device

    The main stages of water treatment in EMERALD Device Stage 1. Anode chamber of the MB-11 electrochemical module Destruction of microorganisms, microbial toxins and biofilms in the water flowing through the anode chamber of the electrochemical module; Oxidative destruction of organic compounds, such as herbicides, pesticides, antibiotics, hormones, antidepressants, surfactants, phenols, petroleum products;...

  • Page 11: Precautionary Measures

    5. PRECAUTIONARY MEASURES For normal operation of the EMERALD Device, it is necessary to comply with the requirements for its operation and maintenance specified in this Operating Manual. Before you start using the Device, please read this manual carefully. If you have any questions regarding the connection or operation of the EMERALD Device, please contact our authorized dealers for advice or call our customer service.
  • Page 12 Before connecting to the power supply, make sure that the Device and all its elements are dry. During operation, all elements of the EMERALD Device must be dry and not leaking. For the proper functioning of the EMERALD Device, your outlet must be uninterrupted,...

  • Page 13: Device Features

    6. DEVICE FEATURES Table 1. Specifications Recommended productivity, no more than, liters per hour Consumed electrical power, not more than, W Specific electricity consumption, not more than W* h/l Supply voltage - standard socket with grounding (for adapter), V. 110 - 220 Power supply frequency, Hz 50 - 60 Overall dimensions (excluding inlet and protruding parts), WxHxD, mm...

  • Page 14: Delivery Set

    Plug with built-in RCD 30 mA and network cable with IEC320 C14 plug for connecting the Device to the electric network. EMERALD HOME flushing tank with 1/4" and 1/2" connection fittings . Diverter for connection to the faucet spout with an M22 plug and a nipple for 1/2"...
  • Page 15 Tab. 6. Auxiliary items purchased separately Name Number, pcs. Appearance T-bend with a ball valve for connection to the water supply line with connections: M G1/2" Add. 1 – F G1/2" (female thread) - M G3/4"; connect- ing fitting F G3/4" – tube 1/2". Slim Line 10"...

  • Page 16: Device Connection

    For easy use, the numbering of elements in Fig. 6 and on the main Device connection diagrams in OPERATION and FLUSHING modes is the same. Fig. 6. Main elements on the EMERALD HOME 250 SPA Device casing, left, front and right view. 1. EMERALD HOME 250 SPA Device;...

  • Page 17: General Rules For Handling John Guest ® Type Quick-Release Fittings

    ® General rules for handling John Guest type quick-release fittings ® Connection of white tubes 1/2" and 1/4" with fittings is done manually. John Guest type quick- release fittings allow, if necessary, for carrying out tubes and fittings connecting/disconnecting pro- cedures repeatedly.
  • Page 18 CONNECTING TUBES AND CLOSING PLUGS TO QUICK-RELEASE FITTINGS. Connecting tubes or plugs to fittings is to be performed in accordance with Fig. 7.2: Insert the tube by hand into the fitting hole (1) as far as it will go. When properly connected, the tube enters the fitting hole by 15-18 mm;...

  • Page 19: Connecting The Emerald Device

    Device and, after that, fix it to the wall through hangers using screws or anchor bolts. To connect the EMERALD Device to the water supply line, use a diverter nozzle with a set of adapters (4, Table 5), which is directly connected to the faucet spout instead of the standard aerator.
  • Page 20 CONNECTION DIAGRAM OF EMERALD HOME 250 SPA DEVICE IN THE BATHROOM. The procedure for connecting the EMERALD Device is carried out in accordance with the diagram in fig. 8 and consists of the following stages: Connecting to the water supply line (4,5);...
  • Page 21 CONNECTION TO THE WATER SUPPLY LINE VIA DIVERTOR. The main elements of the diverter (Fig.9.1): 1. Female thread F22 for connection to the faucet spout instead of a standard aerator or to adapters from the delivery set; 2. A nipple for 1/2" tube for connecting the water supply tube to the Device;...
  • Page 22 CONNECTION TO COLD WATER SUPPLY VIA T-BEND. An alternative option for supplying water to the Device is to connect it to the main water supply line through a t-bend with a ball valve (Fig. 10.1) type M G1/2" - F G1/2" - M G3/4", which is installed in the gap in the water line (purchased separately, see Aux.
  • Page 23 CONNECTING THE PRE-FILTERS BEFORE THE WATER INLET TO THE DEVICE. The delivery set includes a mud filter with plugs type F G1/2" - F G1/2" (Fig. 11.1) and two fittings for connecting type M G1/2" - 1/2" tube. The mud filter is used for preliminary mechanical purification of water before it is supplied to the Device.
  • Page 24 CONNECTING OF THE FLEXIBLE HOSE AND THE SHOWER HEAD. The outlet tube of the purified antioxidant water from the Device (6, Fig. 8) can go directly down into the bath, and can also be connected to the flexible hose and shower head using the quick-release fitting type M G1/2"...

  • Page 25: Connecting The Emerald Device To The Electric Network

    Connecting the EMERALD Device to the electric network Connecting the EMERALD Device to the electric network is carried out in several stages (Fig. 13): The network cable from the delivery set with an IEC320 C14 plug connected appropriate plug on the side of the...

  • Page 26: Device Operation

    9. DEVICE OPERATION Basic operating modes STANDBY mode. In the STANDBY mode, the Device is connected to the tap water supply line (with the shutoff valve on the faucet closed) and connected to the electric network. Water does not flow through the Device.

  • Page 27: Emerald Device Functioning In Operation Mode

    (Fig. 14), there is a sound signal, the LED located inside the casing lights up, and both indicator displays turn on (9,10 Fig. 6). Fig. 14. EMERALD HOME 250 SPA Device in the OPERATION mode. To turn off the Device: Close the shutoff valve on the faucet.

  • Page 28: Water Flow Setting

    Water flow setting The optimal range of water flow through the EMERALD HOME 250 SPA Device is 180 - 250 l/h (approximately 3 – 4.0 l/min.)! Adjustment of the water flow rate through the EMERALD HOME 250 SPA Device is carried out by means of: Faucet shutoff valve - adjusting the rate of the inlet water flow;...

  • Page 29: Device Maintenance

    To achieve the maximum quality of water purification and electrical treatment in the EMERALD HOME 250 SPA Device, as well as to ensure drinking water quality standards, the user must regularly flush the Device with a solution of citric acid. With timely and uncomplicated maintenance, your Device will produce pure antioxidant drinking water of high quality with the required characteristics for many years.

  • Page 30: Preparing Emerald Device For Flushing Mode

    4 minutes! Preparing the citric acid flushing solution To carry out the EMERALD Device flushing procedure, it is necessary to prepare one and a half liters of citric acid flushing solution in the EMERALD HOME flushing tank (12, Fig.

  • Page 31: Connecting Diagram Of Emerald Device In Flushing Mode

    Connecting Diagram of EMERALD Device in FLUSHING mode The procedure of connecting the EMERALD Device in the FLUSHING mode is performed in accordance with the diagram in fig. 17 and consists of the following stages: Preparing the citric acid flushing solution in the flushing tank (13);...

  • Page 32: Flushing Mode

    FLUSHING mode To start the FLUSHING mode, the EMERALD Device must be connected in accordance with the diagram in fig. 17 and be in STANDBY mode. All hydraulic and electric connections must be securely fixed. The flushing tank must be placed on a level and stable surface.
  • Page 33 Next, the user should disconnect the flushing tank and connect the Device according to the basic scheme of the OPERATION mode (see Fig. 8). In this mode, one should carry out the WASHING- OUT stage and rinse the Device with cold tap water to wash out the dissolved dirt and residues of the citric acid flushing solution.

  • Page 34: Mud Filter Maintenance

    Mud filter maintenance During the Device maintenance, it is also necessary to inspect and, if necessary, clean the stainless steel filter mesh (2, Fig. 19) built into the mud filter case (1 and 3, Fig. 19). To do so: After making sure that there is no pressure in the water supply line, disconnect the mud filter from the water supply tubes and the Device.

  • Page 35: Troubleshooting Guide

    11. TROUBLESHOOTING GUIDE Table 7. Troubleshooting guide Trouble Probable Cause Troubleshooting practice Device does not turn 1. The hydraulic and electrical 1. Connect the hydraulic and electrical connections of the Device are connections according to the DEVICE connected incorrectly. CONNECTION section. LED and electronica 2.

  • Page 36: Warranty

    Operating Manual. The warranty does not cover: ® EMERALD Device, which has been used for other purposes or in a way that is contrary to the instructions in this Operating Manual; ® Any EMERALD Device that has been used incorrectly, crashed, physically damaged, improperly installed or misused, altered, mishandled, or exposed to adverse external factors (including but not limited to, lightning, flood or fire);...

  • Page 37: Transport And Storage

    Device stated in this Operating Manual. The manufacturer and official trading partners are not responsible and do not accept claims if the EMERALD Device was used for other purposes or in a way that contradicts the instructions in this Operating Manual.

  • Page 38: Acceptance And Sale Certificate

    EMERALD Devices, as well as to carry out their service and warranty maintenance. The company EMERALD ECOTECHNOLOGIES LLC has the exclusive right to transfer to its official trading partners all the necessary powers for the sale of EMERALD Devices, as well as for their service and warranty maintenance.

  • Page 39: Appendix №.1. Post Filter Connection

    FLUSHING procedure of the EMERALD HOME 250 SPA Device. Before starting the FLUSHING mode, the post filter must be disconnected. Only after the full completion of the FLUSHING mode a new post filter can be connected.
  • Page 40 CONNECTION DIAGRAM OF EMERALD HOME 250 SPA DEVICE WITH POST FILTER. The procedure for connecting the EMERALD Device is carried out in accordance with the diagram in fig. 19.2 and consists of the following stages: Connecting to the water supply line (4,5);...

  • Page 41: Appendix № 2. Certificates
