INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death or
property damage.
— Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch; do
not use any phone in your building.
Leave the building immediately.
Immediately call your gas supplier
from a neighbor's phone. Follow the
gas supplier's instructions.
If you cannot reach your gas supplier,
call the fire department.
— Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
INSTALLATION INSTRUCTIONS
AND OWNER'S MANUAL
WARNING

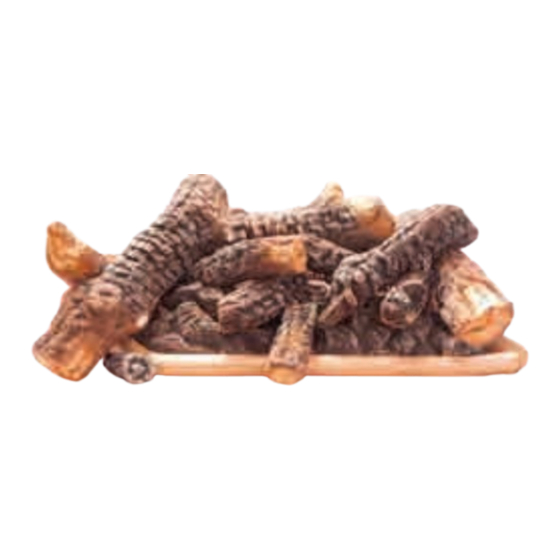

LOG SET MODELS
LS30TINF
For Use With DVCT30CBN-1
Fireplace Inserts
NOTICE: Ceramic logs may differ in appearance
from those shown in this manual.
If not installed, operated and maintained
in accordance with the manufacturer's
instructions, this product could expose you
to substances in fuel or from fuel combustion
which can cause death or serious illness.
GAS-FIRED
WARNING

Advertisement

Table of Contents
loading

Summary of Contents for Empire LS30TINF

  • Page 1 INSTALLATION INSTRUCTIONS AND OWNER’S MANUAL INSTALLER: LOG SET MODELS GAS-FIRED LS30TINF Leave this manual with the appliance. CONSUMER: For Use With DVCT30CBN-1 Retain this manual for future reference. Fireplace Inserts WARNING FIRE OR EXPLOSION HAZARD Failure to follow safety warnings exactly could result in serious injury, death or property damage.
  • Page 2: Log Identification

    LOG IDENTIFICATION DVCT30 LOG SET PART DESCRIPTION FRONT EMBER 38392 REAR 38393 RIGHT EMBER 38394 CHUNK LEFT EMBER 38395 CHUNK RIGHT 38396 RIGHT CENTER 38397 LEFT CENTER 38398 Page 2 38105-0-0817...
  • Page 3 LOG IDENTIFICATION DVCT30 LOG SET PART DESCRIPTION FRONT LEFT 38399 LEFT 38400 CHUNK CENTER 38401 CENTER FRONT 38402 EMBER LEFT FRONT 38403 EMBER Glowing 15496 Embers Coals 36747 (100) 38105-0-0817 Page 3...
  • Page 4: Log And Ember Placement

    LOG AND EMBER PLACEMENT NOTICE: Install liners before logs. See separate Liner Installation manual for details. CAUTION This fireplace is supplied with a set of twelve ceramic fiber logs. Do not handle these logs with your bare hands. Always wear gloves to prevent skin irritation from ceramic fibers.
  • Page 5 LOG AND EMBER PLACEMENT Place the large charred Ember Bed (A) onto burner base log assembly TOP VIEW FRONT VIEW 38105-0-0817 Page 5...
  • Page 6 LOG PLACEMENT Place Rear Log (B) onto burner pins as shown. TOP VIEW FRONT VIEW Page 6 38105-0-0817...
  • Page 7 LOG PLACEMENT Place Right Ember Chunk (C) on the front burner and onto pin on Ember Bed (A). TOP VIEW FRONT VIEW 38105-0-0817 Page 7...
  • Page 8 LOG PLACEMENT Place Left Ember Chunk (D) onto pin shown on Ember Bed (A). TOP VIEW FRONT VIEW Page 8 38105-0-0817...
  • Page 9 LOG PLACEMENT Place Right Log (E) along wall as shown. TOP VIEW FRONT VIEW 38105-0-0817 Page 9...
  • Page 10 LOG PLACEMENT Place Log (F) on the right rear of the burner base. Align with the angle of the burner tube. Page 10 38105-0-0817...
  • Page 11 LOG PLACEMENT Place Left Center Log (G) onto pin of Left Ember Chunk (D) and lay across Ember Bed (A) as shown. TOP VIEW FRONT VIEW 38105-0-0817 Page 11...
  • Page 12 LOG PLACEMENT Place Left Log (H) onto Ember Bed (A) pin and Rear Log (B) pin as shown. TOP VIEW FRONT VIEW Page 12 38105-0-0817...
  • Page 13 LOG PLACEMENT Place Left Log Chunk (I) over Left Log (H) as shown. TOP VIEW FRONT VIEW 38105-0-0817 Page 13...
  • Page 14 LOG PLACEMENT 10. Place Top Center Log (J) onto pin Left Ember Chunk (D) and pin Ember Bed (A). TOP VIEW FRONT VIEW Page 14 38105-0-0817...
  • Page 15 LOG PLACEMENT 11. Place Center Front Ember Log (K) as shown. TOP VIEW FRONT VIEW 38105-0-0817 Page 15...
  • Page 16 LOG PLACEMENT 12. Place Left Front Ember Log (L) on left side as shown. TOP VIEW FRONT VIEW Page 16 38105-0-0817...
  • Page 17 LOG PLACEMENT 13. Place Decorative Coals along the front and sides of burner. DO NOT cover burner ports. The log set is complete. TOP VIEW FRONT VIEW 38105-0-0817 Page 17...
  • Page 18: Appliance Service History

    APPLIANCE SERVICE HISTORY Date Dealer Name Service Technician Name Service Performed/Notes Page 18 38105-0-0817...
  • Page 19: Master Parts Distributor List

    MASTER PARTS DISTRIBUTOR LIST To Order Parts Under Warranty, please contact your local Empire dealer. See the dealer locator at www.empirecomfort. com. To provide warranty service, your dealer will need your name and address, purchase date and serial number, and the nature of the problem with the unit.
  • Page 20 Empire Comfort Systems Inc. Belleville, IL If you have a general question about our products, please e-mail us at info@empirecomfort.com. If you have a service or repair question, please contact your dealer. www.empirecomfort.com Page 20 38105-0-0817...
