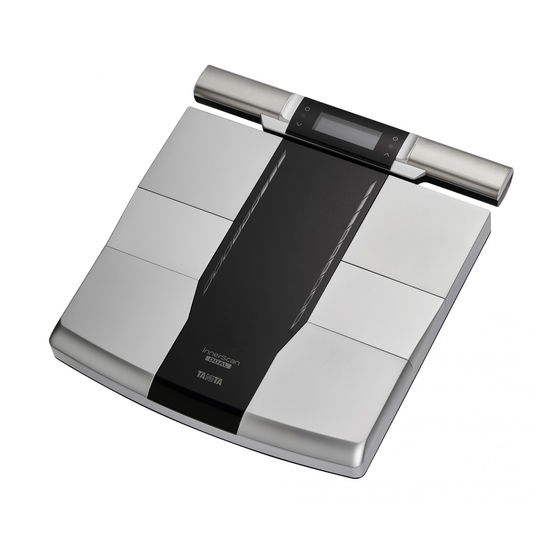

Tanita innerScan DUAL Instruction Manual

Dual frequency body composition monitor with integrated bluetooth technology
Hide thumbs Also See for innerScan DUAL:
Table of Contents

Advertisement

Quick Links

Dual Frequency Body Composition Monitor
with integrated Bluetooth technology
RD-545
en
Instruction Manual
Please read this Instruction Manual carefully and keep it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the innerScan DUAL and is the answer not in the manual?

Questions and answers

Related Manuals for Tanita innerScan DUAL

Summary of Contents for Tanita innerScan DUAL

  • Page 1 Dual Frequency Body Composition Monitor with integrated Bluetooth technology RD-545 Instruction Manual Please read this Instruction Manual carefully and keep it for future reference.

  • Page 2: Table Of Contents

    Table of Contents Introduction …………………………………………………… 3 Features and Functions ………………………………………… 3 For Your Safety ………………………………………………… 4 Getting Accurate Readings ……………………………………… 5 Preparations before Use ………………………………………… 6 Initial Setup (Type 1) Setup via Smartphone …………………… 7 Initial Setup (Type 2) From Body Composition Monitor ………… 9 Taking Measurements ………………………………………...

  • Page 3: Introduction

    Thanks to major investment in the latest BIA Technology and sports science research, TANITA has upgraded the Athlete Mode function to make measurements more accurate and suitable for a wider range of users. Who should use Athlete Mode? Adults aged 18 years and over who either: ・Train or exercise for 12 hours or more a week and have been doing so for at least six months.

  • Page 4: For Your Safety

    For Your Safety This section explains precautionary measures to be taken to avoid injury to the users of this device and others, and to prevent damage to property. Please familiarize yourself with this information to ensure safe operation of this equipment. Warning Failure to follow instructions highlighted with this mark could result in death or severe injury.

  • Page 5: Getting Accurate Readings

    Place the monitor on a hard, flat surface where there is minimal vibration to ensure safe and accurate measurement. Avoid excessive impact or vibration to the monitor. Doing so may damage the monitor or cause it to malfunction,or may cause setting to be erased. Do not use or store this monitor in the following locations.

  • Page 6: Preparations Before Use

    Preparations Before Use Inserting the Batteries Note: ・Be sure that the batteries are inserted in the correct orientation. If the batteries are  inserted incorrectly, fluid may leak from the batteries and damage the floor. ・If you do not intend to use this unit for a long period of time, remove the batteries  before storage.

  • Page 7: Initial Setup (Type 1) Setup Via Smartphone

    Note: ・Compatible apps may be changed or added, in which case screen displays and operation methods will vary accordingly. Contact Tanita.asia with any questions or concerns. ・The screen displays and instructions may differ depending on the app specifications.
  • Page 8 Initial Setup (Type 1) Setup via Smartphone 5.Operate the body composition monitor as indicated by the app. If the body composition monitor is not powered on, press and hold (enter button) for 3 seconds or more, then enter your information as indicated by the app. Note: ・Depending on signal strength, it may take a few seconds to connect to the body composition monitor.

  • Page 9: Initial Setup (Type 2) From Body Composition Monitor

    Initial Setup (Type 2) From Body Composition Monitor You first need to enter your personal information (date of birth, gender, height, weight and body composition) before you take a measurement. Once this information has been registered, it is recalled when you turn the power on and step on the body composition monitor, enabling you to use the device easily every day without the hassle of entering information each time.
  • Page 10 Initial Setup (Type 2) From Body Composition Monitor Gender Registration 1.Select your gender using the buttons. 2.Press to confirm. Height Registration 1.Select your height using the buttons. 2.Press to confirm. Display before measurement Body Composition Registration After is displayed, pull out the control panel from the device and carefully step barefoot onto the measuring platform.

  • Page 11: Taking Measurements

    Taking Measurements 1.Select "Input Data" in the app, and then follow the instructions in the app. Illustration 2. After measurement is complete, tap “Complete” to save the measurement data. Note: ・To weigh yourself while holding a smartphone, first enter the amount of weight you want to subtract into “Clothes Weight”.

  • Page 12: Conducting Measurements With Auto-Recognition

    Conducting Measurements with Auto-Recognition What is the Auto-Recognition Function? This function automatically recalls registered users and displays their results after they turn on the device, hold the control panel and step onto the measuring platform. This feature reduces hassle by eliminating the need to specify the user every use. Note: The auto-recognition function may automatically transition you to ID selection mode in situations such as those listed below: ・When measuring similar body sizes or weights...
  • Page 13 Weight is displayed. Measure your body composition and verify it against your registered details. ・ ・ ・ Auto-recognition data is displayed. Please make sure that the displayed data matches your registered content. The device automatically turns off after measurement results have been displayed. (Reviewing Measurement Results, pg.

  • Page 14: Measuring With An Id Number (Call Measurement)

    Measuring with an ID Number (Call Measurement) Enter your ID number and take measurements without using auto-recognition. Use this method if using auto-recognition repeatedly causes the device to switch to ID select mode, etc. Place the body composition monitor on a hard, flat, stable floor. 1.Press to turn on the power without removing the control panel from the device.

  • Page 15: Conducting A Measurement Without Registering (Guest User Measurements / Weight Only Measurements)

    Conducting a Measurement Without Registering (Guest User Measurements / Weight Only Measurements) Guest User Measurements 1.Press     to turn on the power without removing the control panel. and press     to confirm. 2.After is displayed, press , select 3.Select your age, followed by your gender and height using the buttons.

  • Page 16: Id Selection Mode

    ID Selection Mode If the auto-recognition function identifies multiple possible candidates, the device automatically switches to ID selection mode after body composition measurement. (The device beeps) Select your ID number using the buttons, then press to confirm. If you notice that your ID number is incorrect while you are viewing your results, press for 3 seconds or more to switch to the ID selection mode and re-select your ID.

  • Page 17: Reviewing Measurement Results (Whole Body)

    Reviewing Measurement Results (Whole Body) Measurement results are displayed after your personal information. Each item is displayed for approximately 4 seconds before switching to the next item. Assessment items are lit in the order of personal registration color then assessment color before switching to the next item.

  • Page 18: Reviewing Measurement Results (By Body Part)

    Reviewing Measurement Results (By body part) Press while results are being displayed for muscle mass, muscle mass score (muscle-q), or body fat percentage measurements for the whole body to review results for each body part. Press while individual body part measurement results are being displayed to switch between items. Measurement result assessments are indicated by the flashing color of the backlight.

  • Page 19: Changing Personal Data

    Changing Personal Data 1. Press to turn on the power without removing the control panel from the device. 2. After is displayed, press 3. Select your ID number (1-4) using the buttons. Note: ・If you have entered a nickname into the app settings and connected the body composition monitor to your smartphone, your nickname is displayed instead of your ID number.

  • Page 20: Erasing Personal Data

    Erasing Personal Data 1. Press to turn on the power without removing the control panel from the device. is displayed, press     . 2. After 3. Select the ID number to be deleted using the      and     buttons. 4. Press and hold      for more than 3 seconds. is displayed.

  • Page 21: Body Composition Guide

    TANITA Body Composition Monitors calculate your body composition using Dual Frequency Bioelectrical Impedance Analysis (BIA). Safe, low-level electrical signals are passed through the body via the TANITA foot pads on the monitor platform. The signal can flow easily through fluids in muscles and other body tissue but meets resistance as it passes through body fat, because body fat only contains a small amount of fluid.
  • Page 22 What Is Body Fat Percentage? (Applicable age 5-99) Body fat percentage is the amount of body fat as a proportion of your body weight. Reducing excess levels of body fat has shown to reduce the risk of certain conditions such as high blood pressure, heart disease, diabetes and cancer.
  • Page 23 Ensuring you have healthy levels of visceral fat may reduce the risk of certain diseases such as heart disease, high blood pressure, and the onset of type 2 diabetes. The TANITA Body Composition Monitor provides you with a visceral fat rating from 1 – 59. Rating 1 - 12.5  ...
  • Page 24 Muscle mass is judged by calculating the amount of muscle mass against the person’s height, and then the amount is classified. My TANITA app that links with this device displays the muscle mass judgement as a muscle score, as shown below.
  • Page 25 This person has a lower than average body fat percentage while having above-average muscle mass. Source: Data from Columbia University (New York) & TANITA Institute (Tokyo) Index of amount of muscle against height = Muscle mass (Kg) / height (cm)
  • Page 26 What Is Muscle Quality Score? (Applicable age 18 - 99) Muscle quality score indicates the “quality (state) of muscle” which changes according to factors such as age and fitness. The muscles of young people or those who exercise regularly is normally in a good state, but the state of muscles deteriorates in elderly people or those who do not get enough exercise.
  • Page 27 Below is the result of estimated bone masses of persons aged 20 to 40, who are said to have the largest amounts of bone mass by weight. (Source: TANITA Body Weight Science Institute) Please use the charts below as a guide for comparing your bone mass readings.

  • Page 28: Troubleshooting

    Troubleshooting If you are having problems with your device, check the following information before requesting repairs. Problem Check Reference Page □Are batteries inserted correctly? □Are the batteries worn out? Nothing is displayed no matter which button is □Is there plastic or dirt covering the battery terminals? pressed.

  • Page 29: Specifications

    ・ The product design and specifications may be changed at any time without prior notice. ・ The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such mark by TANITA Corporation is under license.
