Summary of Contents for Orla GRAND 110

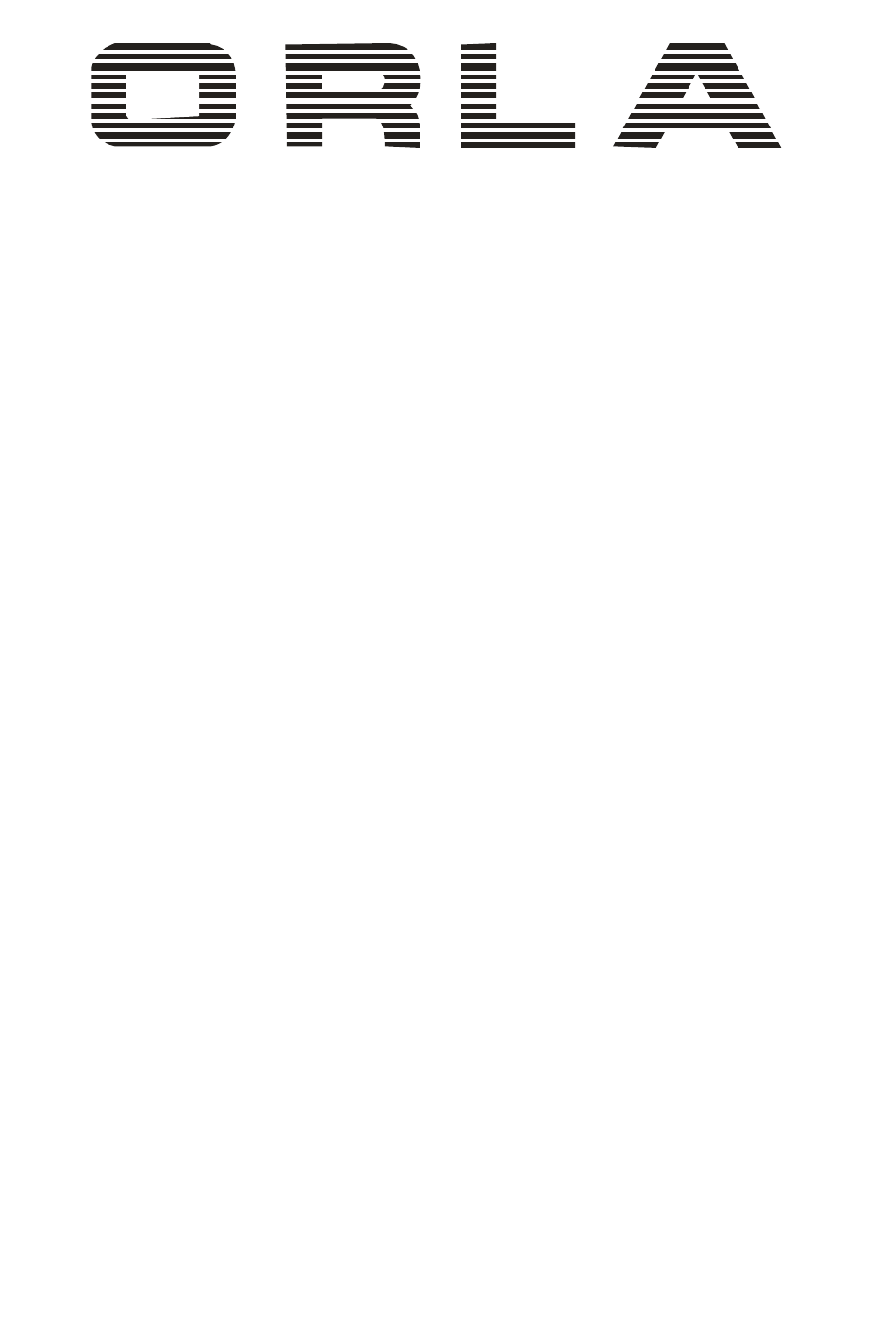

  • Page 1 M u s i c a l I n s t r u m e n t s GRAND 110 Owner’s Manual...
  • Page 2 Safety instructions...
  • Page 3 FCC warning statement § 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. §...

  • Page 4: Grounding Instructions

    GROUNDING INSTRUCTIONS This product must be grounded (earthed). In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with the local codes and regulations.

  • Page 6: Power Supply Dc

    POWER SUPPLY Plug output cable from power adapter into jack rear panel of your instrument, then plug the AC cable of your power adapter into a convenient wall AC power socket. Turn on the instrument by pressing the POWER ON/OFF switch located in the back panel.

  • Page 8: Slider Controls

    SLIDER CONTROLS The Master Volume slider controls the overall volume of the instrument. It control the volume also when connected to an headphone set. Moving the slider to the right it will make the sound lauder, moving it to the left it will make the sound softer. The Brilliance Control slider control adjusts the brightness of the sound.

  • Page 10: Selecting And Playing The Voices

    The first 128 sounds are listed according to the GM sound list from 1 to 128. From 129 to 476 the sounds are listed according to the ORLA XM Sound List that incorporates all the GM sounds plus all ORLA sound variations.
  • Page 12 It is also possible to play two sounds at the same time, selecting them from the top and the bottom row, for example STAGE ELECTRIC and PAD. To select the STAGE ELECTRIC sound press and hold the related button. While holding down the STAGE ELECTRIC button also press the SELECT button to select the upper row.
  • Page 14 How to select a new Player Choice sound: Press and hold the PLAYER CHOICE 1 button until the display shows: Use the [/\] and [\/] buttons it is possible to change the sound while its number is blinking with any one of the available sounds in the Voice List of the instrument. It is of course possible to directly digit the number of the new desired sound using the numeric keypad buttons.
  • Page 16 SPLIT - BASS SOUND When the BASS button is pressed the instrument automatically splits the keyboard in two parts and a BASS sound is automatically selected. It is also possible to change the Bass sound. Press and hold the BASS button. The display will show the automatically selected bass sound, for example: Use the [/\][\/] buttons to select the new bass sound from the following list: Acoustic Bass...

  • Page 18: Select The Split Point

    264 is the number – according to the internal Sound List – of the Left Sound automatically selected to Grand Piano and the sound is Accompaniment Strings 2. When the LEFT sound is indicated on the display (remember – the instrument gives approximately 4 seconds to input data) the sound can be changed using the [/\][\/] buttons to select the desired voice number according to the Voice List.
  • Page 19 types:...

  • Page 20: Chorus Effect

    1 – Room 2 – Hall 3 - Theatre If the REVERB effect is selected, it will stay switched ON even if a different sound is selected while playing. At Power Up the REVERB effect will always be switched at ROOM reverb. CHORUS EFFECT This effect is similar to panning the sound between two speaker systems.

  • Page 22: Transpose Set

    -12 -11 -10 +10 +11 +12 The examples below illustrate how to use the above table: To Transpose the instrument to the key of E above C, press the TRANPOSE button On and press the [/\] button 4 times. To Transpose the instrument to the key of A# below C, press the TRANSPOSE button On and press the [\/] button 2 times.
  • Page 24 Use the [/\][\/] buttons to set the desired Pitch value. The PITCH value on the display can be changed between –64 and +63. Press the PITCH button On and press the [/\][\/] buttons at the same time to restore the instrument pitch to 0.
  • Page 25 [STORE] button, for example BANK 3. new settings by pressing a few times the...
  • Page 26 Press and hold [STORE] button, and then press one of the [1 - 6] buttons where to store the panel setting, for example 1. The LCD displays The current panel settings are now stored in the memory in position nr. 1 in BANK 3 . It is possible to repeat this procedure for all available positions.
  • Page 28 To select one of the groups follow the indications below: Press and hold the [USB FILES] button Using the [/\][\/] buttons select one of the 2 available options. When the desired option is selected the display will show only the USB files related to the type of file selected until the instrument is switched off.
  • Page 30 SAVE THE OVERALL PRESETS TO USB DISK It is possible to SAVE the Overall Preset Registrations Banks to the USB Disk by following these instructions: Insert the USB Disk to the USB socket. Press [SAVE ] button and the display will show : indicates the progressive file number indicates the registration file number The display indicating your Overall Preset Registration Settings are saved into USB Disk,...

  • Page 32: Song Play Mode

    DELETE MEMORY REGISTRATIONS FROM USB Insert the USB Disk into the USB socket. Press and hold the [USB FILES] button to access the Setting files in the USB Disk. Select the Setting page by pressing the [/\][\/] buttons. Use [/\][\/] button to select the desired Overall Preset Registration Setting file you want to delete, then hold down the [RECORD] button and press [PLAY/LOAD] button.

  • Page 34: Tempo Control

    TEMPO CONTROL The [/\] and [\/] buttons can be used to control the tempo of the Standard Midi File song played from the USB disk and also the Metronome speed. SONG RECORDING The instrument lets you record your Songs and Registration settings to a USB Disk.. It is possible to record your song using up to sixteen independent tracks.

  • Page 36: Multi Track Recording

    (XXX indicates the total file number. 001 indicates the recording file number). MULTI TRACK RECORDING If you like to add new tracks to the just recordered song, select it on the display ( as previous example XXX: Song_001) and select now MULTI TRACK RECORDING by pressing the [USB FILES] button and the [RECORD] buttons at the same time（hold down the [USB FILES] button and press [RECORD] button）.

  • Page 38: Track On/Off

    DELETE SONG/FILE Insert the USB Disk into the USB socket. Use [/\][\/] button to select the song or the file you want to delete, then hold down the [RECORD] button and press [PLAY/LOAD] button. The display shows: Press [/\] button to delete the file. Press [\/] button to exit the function without deleting the file.

  • Page 40: Local Control

    Press the USB VOLUME button and the display will indicate the current Song Volume value. Use the [/\] and [\/] buttons to control the volume of the Standard Midi File song played from the USB disk. Range: 00-127 Default: 90 MIDI Use the MIDI button to select the midi settings.
  • Page 42 USB_LOCL OFF The instrument will not send the songs of the USB disk to the internal tone generator but will send all the midi information from the Midi Out of the instrument. Press the MIDI button again to select the PROGRAM CHANGE On/Off PGM ON This configuration will allow the instrument to send and receive the Program Change Midi information.
  • Page 44 RESET If it should be necessary to completely erase the internal RAM memory, a very simple reset feature is provided. Make sure that the instrument is switched off. Press and hold the [/\] and [\/] buttons Switch on the instrument while holding the [/\] and [\/] buttons down. The display shows Reseting Do not reset the instrument if it is not necessary.
  • Page 46 CONNECTIONS MIDI IN/THRU/OUT The Midi THRU connector retransmits any data from the Midi IN directly to other Midi devices. The Midi OUT connector transmits Midi data generated by the instrument to other Midi instruments. The Midi IN connector receives the Midi data from an external Midi device. USB TO COMPUTER It is possible to connect the instrument to a computer using the USB port located in the back panel of the instrument and control the Midi parameters.

  • Page 48: Voice List

    VOICE LIST NR PROG CHANGE BANK NAME NAME ON DISPLAY Grand Piano GrandPno Bright Piano BritePno Electric Grand El.Grand Honky Tonk HnkyTonk El. Piano 1 ElPiano1 El. Piano 2 ElPiano2 Harpsichord Harpsi 1 Clavinet Clavinet Celesta Celesta Glockenspiel Glocken Music Box MusicBox Vibraphone Vibes...
  • Page 50 NR PROG CHANGE BANK NAME NAME ON DISPLAY Synth Voice SynVoice Orchestral Hit Orch Hit Trumpet Trumpet Trombone Trombon1 Tuba Tuba Muted Trumpet MuteTrum French Horn FrenchHr Brass Section Brass Synth Brass 1 SynBras1 Synth Brass 2 SynBras2 Soprano Sax SprnoSax Alto Sax Alto Sax...
  • Page 52 NR PROG CHANGE BANK NAME NAME ON DISPLAY Fiddle Fiddle Shanai Shanai Tinkle Bell TnklBell Agogo Agogo Steel Drum Stl Drum Wood Block WoodBlok Taiko Drum TaikoDrm Melodic Tom MelTom1 Synth Drum SynDrum1 Reverse Cymbal RevCymbl Guit. Fret Noise FretNois Breath Noise BrthNois Seashore...
  • Page 54 NR PROG CHANGE BANK NAME NAME ON DISPLAY 60' Organ 60' Orgn Rock Organ 1 RockOrg1 Cool Organ CoolOrgn Tone Weel ToneWeel Rotor Organ RotorOrg Gospel Organ GosplOrg Jazz Organ 1 JazzOrg1 Rock Organ 2 RockOrg2 Percussive Organ PercOrgn Jazz Organ 2 JazzOrg2 Detune Organ 2 DetOrgn2...
  • Page 56 NR PROG CHANGE BANK NAME NAME ON DISPLAY Finger Bass 2 FngBass2 Finger // Slap Bass Fng Slap Finger Bass 3 FngBass3 Big Bass BigBass Big Bass Sustain BigBassS Organ Bass 1 OrgBass1 Pick Bass PickBass Bass 16+8 Bass16+8 Bass 8 Bass 8 Organ Bass 2 OrgBass2...
  • Page 58 NR PROG CHANGE BANK NAME NAME ON DISPLAY Orchestra Hit Orch Hit Trumpet Trumpet Trumpet2 Trumpet2 Trumpet3 Trumpet3 Trombone 1 Trombon1 Trombone 2 Trombon2 Mellow Trombone MelTromb Soft Trombone SoftTrom Tuba Tuba Tuba 2 Tuba2 Muted Trumpet MuteTrum French Horn 1 FrenchHr French Horn 2 FrnchHr2...
  • Page 60 NR PROG CHANGE BANK NAME NAME ON DISPLAY Square 2 Square2 Syn Wave SynWave Saw Tooth Saw 1 Saw Tooth 2 Saw 2 Syn Flute SynFlute Calliope Calliope Chiff Chiff Charang Charang Voice Voice Voice Sust. VoiceSus Fifths Fifth Bass Lead 1 BasLead1 Bass Lead 2 BasLead2...
  • Page 62 NR PROG CHANGE BANK NAME NAME ON DISPLAY Guitar Fret Noise FretNois Guitar Cut Noise CutNois String Slap StrgSlap Breath Noise BrthNois Key Click KeyClick Sea Shore Seashore Rain Rain Thunder Thunder Wind Wind Stream Stream Bubble Bubble Birds Tweet Horse Horse Birds 2...
  • Page 64 NR PROG CHANGE BANK NAME NAME ON DISPLAY Harmonium Harmon Master 1 Master 1 Master 2 Master 2 Master 3 Master 3 Master 4 Master 4 Master 5 Master 5 Master 6 Master 6 Musette Musette French French Italian Accordion Italian Brilliant Brillant...
  • Page 66 Drum Kit - a - STANDARD ROOM POWER ELECTRIC DANCE 24 - C1 Fingers Snap Left Fingers Snap Left Fingers Snap Left Fingers Snap Left Fingers Snap Left 25 - C#1 Finger Snap Right Finger Snap Right Finger Snap Right Finger Snap Right Finger Snap Right 26 - D1...
  • Page 68 Drum Kit -b - JAZZ BRUSH CLASSIC SOUND FX 24 - C1 Fingers Snap Left Fingers Snap Left Fingers Snap Left xxxxxxxxxxxxx 25 - C#1 Finger Snap Right Finger Snap Right Finger Snap Right xxxxxxxxxxxxx 26 - D1 Snare Roll Snare Roll Snare Roll xxxxxxxxxxxxx...
  • Page 70 10505530V2.0...
