Summary of Contents for VTech ErisTerminal VDP800

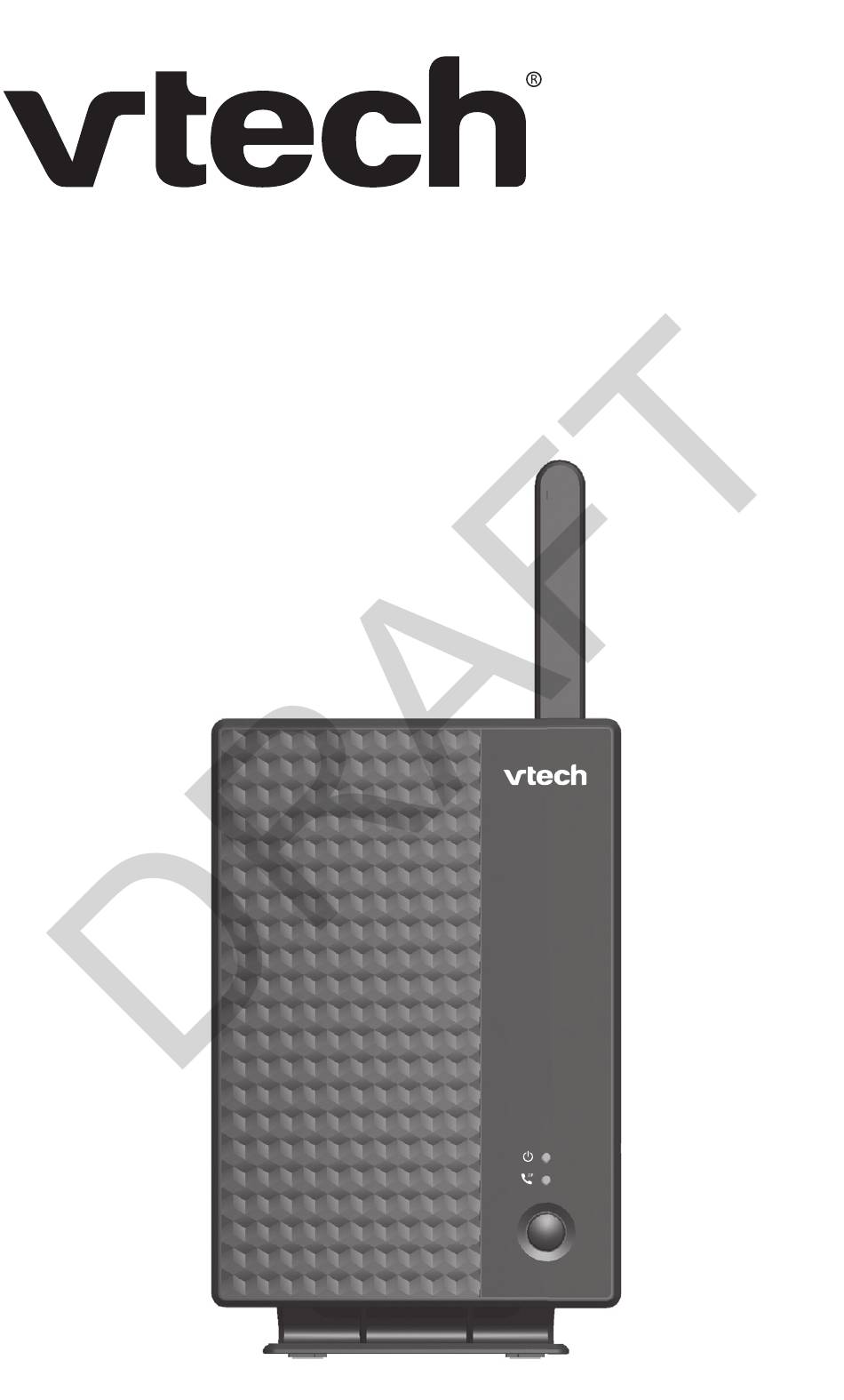

- Page 1 ErisTerminal SIP DECT Base Station ® VDP800 Quick Start Guide...
-
Page 2: Important Safety Information
Important Safety Information This symbol is to alert you to important operating or servicing instructions that may appear on the product or in this user’s manual. Always follow basic safety precautions when using this product to reduce the risk of injury, fire, or electric shock. Important Safety Instructions When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric... - Page 3 9. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied at the premises, consult your dealer or local power company. 10. Do not allow anything to rest on the power cord. Do not install this product where the cord may be walked on.
- Page 4 lightning. 16. Do not use the telephone to report a gas leak in the vicinity of the leak. Under certain circumstances, a spark may be created when the adapter is plugged into the power outlet, or when the handset is replaced in its cradle. This is a common event associated with the closing of any electrical circuit.
- Page 5 Compliance FCC part 15 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 6 nearby persons. For body-worn operation, this handset has been tested and meets the FCC RF exposure guidelines when used with the accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Industry Canada This Class B digital apparatus complies with Canadian requirements: CAN ICES-3 (B)/NMB-3(B).
-
Page 7: About This Guide
You can download the guide from businessphones.vtech.com. For customer service or product information, visit our website at businessphones.vtech.com or call 1 (888) 370-2006. Parts Checklist Your package contains the following items. Save your sales receipt and original packaging in the event warranty service is necessary. - Page 8 Quick Reference Guide Base station external features Power LED Flashes when joining the network or when registering/ deregistering a handset. Steady when power is connected and an IP address is acquired. SIP LED Flashes when registering/ deregistering a handset. Steady when all SIP accounts are registered.
- Page 9 Quick Reference Guide Base station external features Holes for wall mounting Network & Power Over Internet (POE) AC adapter input If no POE available. Green LED Steady when base station is powered on and operational. Off when base station is powered off.
-
Page 10: Base Station Installation
For more information about IP PBX configuration, see the VDP800/VDP801 Administrator and Provisioning Manual, available at businessphones.vtech.com. You can power the base station using a compatible VTech power adapter or using Power over Ethernet (PoE) from your network. (The base station requires PoE Class 2.) - Page 11 Plug the power adapter into an electrical outlet that is not controlled by a wall switch. IMPORTANT INFORMATION 3. Use only a compatible VTech power adapter (Ten Pao, model number S006AKU0500080). To order a power adapter, visit businessphones.vtech.com our website at...
- Page 12 To mount the base station on a wall: 1. Unscrew the foot stand, and remove it from the base station. 2. Install two mounting screws on the wall. Choose screws with heads larger than 5 mm (3/16 inch) in diameter (1 cm / 3/8 inch diameter maximum).
-
Page 13: Maintenance
Maintenance Taking care of your telephone • Your base station and cordless handset contain sophisticated electronic parts, so you must treat them with care. • Avoid rough treatment. • Place the handset down gently. • Save the original packing materials to protect your products if you ever need to ship them. -
Page 14: Technical Specifications
Technical Specifications RF frequency 1921.536–1928.448 MHz band Channels Operating 32–104 °F (0–40 °C) temperature Power Base: 5.0 Vdc @ 800 mA requirements Handset charger: 6.0 Vdc @ 400 mA Handset: 2.4 V, 750 mAh, Ni-MH battery pack Power over IEEE 802.3af supported, class 2 Ethernet Ethernet 10/100 Mbps RJ-45 port... - Page 16 Beaverton, Oregon 97008. VTech is a registered trademark of VTech Holdings Limited. ErisTerminal is a registered trademark of VTech Communications Inc. ® Copyright © 2017 for VTECH COMMUNICATIONS LTD. All rights reserved. Printed in China. Version 1, DRAFT 4, 01/18...
