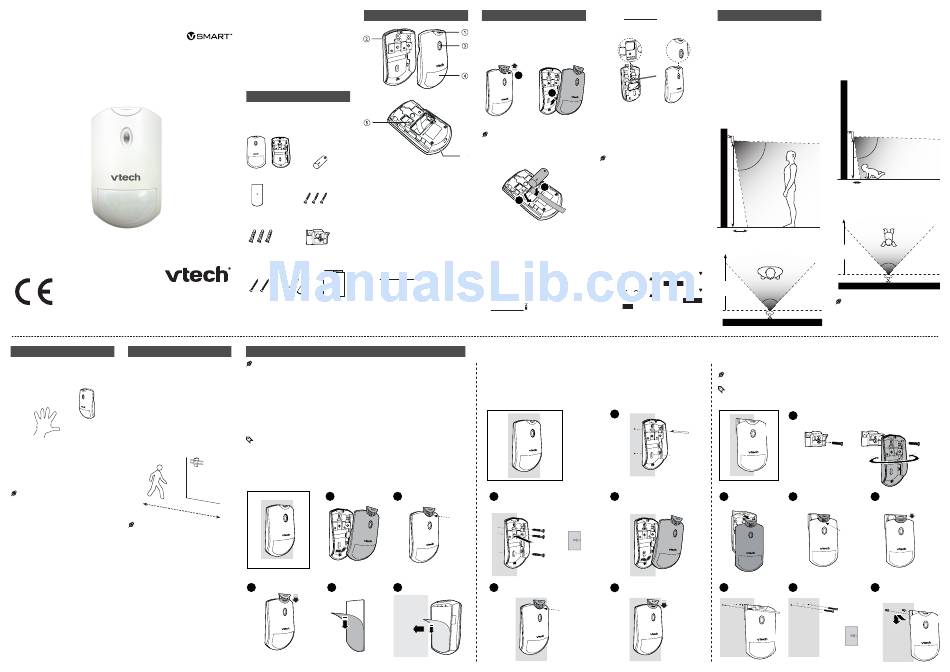

VTech VC7151-102A User Manual

Accessory
Wire-Free Motion Sensor
VC7151-102A/
VC7151-202A/
VC7151-302A
User's manual
Check the sensor before use Test the sensor signal strength
You can mount the Motion Sensor at a
1. Place the sensor about 3.3 feet (1 meter)
from the telephone base. location where family members or unwanted
visitors are likely to be coming and going.
2. Waive your hand or walk across the area
in front of the sensor. 1. Take the sensor to the desired mounting
location and then, hold it at the desired
height (Refer to Motion detection
section). Use adhesive tape to hold the
sensor temporarily in place.
2. Enter the Check signal mode under the
Sensor setup menu at your handset to
test the sensor signal strength.
3. Waive your hand or walk across the area
in front of the sensor again and check
whether a good signal is received at your
• You will receive alerts at your telephone telephone base.
base. Refer to the Installation guide or
user's manual of your telephone base
for the sensor alerts.
•
The LED light on the Motion Sensor will
flash red once.
NOTE
• Once motion is detected, the sensor will only
start to detect motion again after one minute.
When you have received alerts already, you will
only receive alerts again for motion detected
after one minute.
NOTES
• Once motion is detected, the sensor will only
start to detect motion again after one minute.
When you have received alerts already, you will
only receive alerts again for motion detected
after one minute.
• If there is no alert received when you walk
across the area in front of the sensor, move
your telephone base closer to the mounting
location or move the sensor closer to the
respective product.
• Depending on surroundings and obstructing
factors, like walls or cabinets, the sensor may
not transmit to the telephone base properly.
Congratulations
Motion Sensor overview
VC7003A
on purchasing your new VTech product.
Before using this product, please read
Important safety instructions.
This manual has instructions on how to
for use with set up and register your new sensor. For
instructions on sensor settings, see the
user's manual that came with your telephone
base.
What's in the box
Your product package contains the following
items. Save your sales receipt and original
packaging in the event warranty service is
necessary.
1 – Screw cover
Motion Sensor CR123A
Lithium battery
2 – Back cover
3 – LED light
Double-sided Screw for
mounting tape back cover x 3
Anchor for Mounting bracket
back cover x 3 on mounting base
with screw 4 – Motion detector
5 – PAIRING button
User's
manual
6 – Battery compartment case
Screw for Anchor for User's manual
mounting mounting
brackets x 2 brackets x 2
Mount the sensor
NOTES
• This sensor must be mounted vertically on wall. Do not mount the Motion Sensor in a horizontal
orientation, or flat on the ceiling.
• Make sure the mounting surface is clean. A textured surface or any imperfections to a smooth surface
can keep the mounting tape from making a strong bond.
• This device detects or performs better when provided with a constant and stable environment.
Avoid placing the sensor at a location which faces direct sunlight, or exposes to areas that may change
temperature rapidly, or where there are air ducts or substantial airflows.
• The recommended mounting height for motion detection of adults is between 6.2 feet (1.9 meters) and
7.5 feet (2.3 meters), and that for babies or pets is about 3.3 feet (1 meter).
• If you drill the holes into an object other than a stud, insert the screw anchors into the holes and tap
gently on the ends with a hammer until the screw anchors are flush with the wall or ceiling.
TIP
• You can choose to mount the sensor with the mounting tape first. Remove the mounting tape and use
screws later if you decide to mount it at that location for long term.
Mount with tape
Mount on the wall - with fixed angle
1
3 4
Before use
Open the battery compartment case
1. Slide to open the screw cover and unscrew
the screw until the battery compartment
case is separable from the back cover.
2. Separate the battery compartment case
from the back cover.
1
a
2
b
c
Install Motion Sensor Battery
d NOTES
• Use only CR123A Lithium Battery.
e
• When inserting battery, ensure polarities are
correct.
f
• For proper operation, use battery within the following
temperature range: 0°F (-18°C) and 130°F (49°C).
• Slide to open or close the screw cover
2
to reveal the battery compartment
case and PAIRING button.
1
g
h
• Briefly flashes red when the sensor is
first powered on.
1. Pull the ribbon tightly across the battery
• Flash red once, when motion is
compartment.
detected.
2. Insert the battery into the battery
compartment.
• Flashes green when the sensor is in
registration mode.
Add and register a sensor
You need to register your new VC7003A Contact
Sensor to your VC7151-102A/VC7151-202A/
• Press and hold to enter the
VC7151-302A telephone system.
registration mode.
Register a Motion Sensor:
1. If you have just inserted the battery, wait
for the red LED to stop flashing.
2. Press and hold /HANDSET LOCATOR on
the telephone base for about 4 seconds until
the IN USE light turns on. The telephone
base shows Registering... Please wait.
Mount with screws
Mount on the wall - with fixed angle
2 2
Tighten
the scew.
Drill a hole
here.
5 4
3. Use a narrow pointed object such as a
Motion detection
pen to press and hold the PAIRING button
on the Motion Sensor, until the LED light
The Motion Sensor detects motion with
at the front side flashes green. The sensor
is now registering to the telephone base. one-minute cool off time. Once motion is
detected, the sensor will start detecting
motions again only after one minute.
The Motion Sensor is more sensitive in
detecting motions crossing the space in front
of the sensor than that moving towards the
sensor.
i
The Motion Sensor can detect motion
occurring at distances up to 40 feet
(12 meters) when it is mounted at a height
of 7.9 feet (2.4 meters).
It is recommended to mount the sensor at the
height between 6.2 feet (1.9 meters) and 7.5 feet
j
The registration process takes about 90 (2.3 meters) for optimal detection coverage.
seconds to complete. When this registration
process completes, the green LED light
Side view
on the sensor will remain steadily on for
approximately two seconds then, will turn off.
Height: 6.9 feet (2.1 meters)
k
If registration fails, remove battery from the sensor
and wait for a few seconds. Then, re-install
l
battery and wait until the red LED stops flashing.
After that, begin registration process again.
Detection
m
NOTES
• If you are going to mount the sensor with screws or
mounting bracket, the back cover has to be mounted
before you assemble the battery compartment case
back to it (see Mount the sensor).
10 o
Replacing a sensor
If you have purchased this new VC7003A
accessory sensor to replace an old sensor, follow
the instructions to deregister your old sensor.
n
VC7151-102A/VC7151-202A/VC7151-302A
o telephone system can support up to 30 sensors.
To replace a sensor, deregister the registered
sensor first, and then register this new sensor
to the telephone base.
1.3 feet
(0.4 meter)
To deregister a sensor on VC7151-102A/
VC7151-202A/VC7151-302A telephone system:
Top view
1. Press MENU when the phone is not in use.
2. Enter the code *33734# to access the
Shooting area
DEREGISTER menu.
50 degrees
3. Press or on the handset, or CALLS /
or PHONEBOOK / to scroll to Single
18.3
sensor, and then press SELECT. inches
Up to 34.4 feet
4. Press or on the handset, or CALLS /
(10.5 meters)
or PHONEBOOK / to scroll to the sensor
to be deregistered, and then press SELECT.
5. Press YES to confirm the deregistration.
19.7
The telephone base shows Motion X is
inches
deregistered and you hear a beep when the
63 inches
deregistration process completes.
Mount on the wall - with rotated detection angle
NOTE
• This product requires professional installation.
TIP
• You can rotate the sensor 45 degree, and then mount the sensor next to the corner of wall for optimal
detection coverage.
1
3 2
(Optional)
Insert screw
anchors if
necessary.
5 5
Tighten
the scew.
For motion detection of babies or pets:
If you use the Motion Sensor only to detect
the motion of babies or pets, you can mount
the sensor at a lower position to shorten
the minimum distance before reaching the
detection area. It is recommended to mount
it at the height 3.3 feet (1 meters) for optimal
detection of babies and pets.
Side view
Height: 3.3 feet (1 meter)
Detection
area
o
78
area
78 o
10 o
0.7 feet
(0.2 meter)
Top view
Up to 16.4 feet
Detection area
(5 meters)
87 o
Height: 3.3 feet (1 meter)
Shooting area
22.8 inches
Detection area
o
87
19.7 inches
NOTE
60 degrees
• The numerical values in the illustrations are for
conceptual reference only. The actual angles
Height: 6.9 feet (2.1 meters)
and distances may vary upon the change in the
mounted height of the sensor.
1 This screw should only
be fully secured after you
adjusted the angle.
Unscrew first.
3 4
Tighten
the scew.
6 7
Tighten the screws after
you slided the sensor
over them.
(Optional)
Insert screw
anchors if
necessary.
