Fisher-Price Kawasaki Brute Force N9731 Owner's Manual

Monster traction
Hide thumbs Also See for Kawasaki Brute Force N9731:
Table of Contents

Advertisement

Quick Links

Download this manual
• Please read this manual
• Please read this manual
and save it with your original
and save it with your original
sales receipt.
sales receipt.
• Tools needed for assembly:
• Tools needed for assembly:
Phillips Screwdriver and safety
Phillips Screwdriver and safety
scissors (not included).
scissors (not included).
• Use only with a Power Wheels
• Use only with a Power Wheels
12 Volt Lead-Acid Rechargeable
12 Volt Lead-Acid Rechargeable
Battery and a Power Wheels
Battery and a Power Wheels
12 Volt Charger with type 12V
12 Volt Charger with type 12V
connector (both included).
connector (both included).

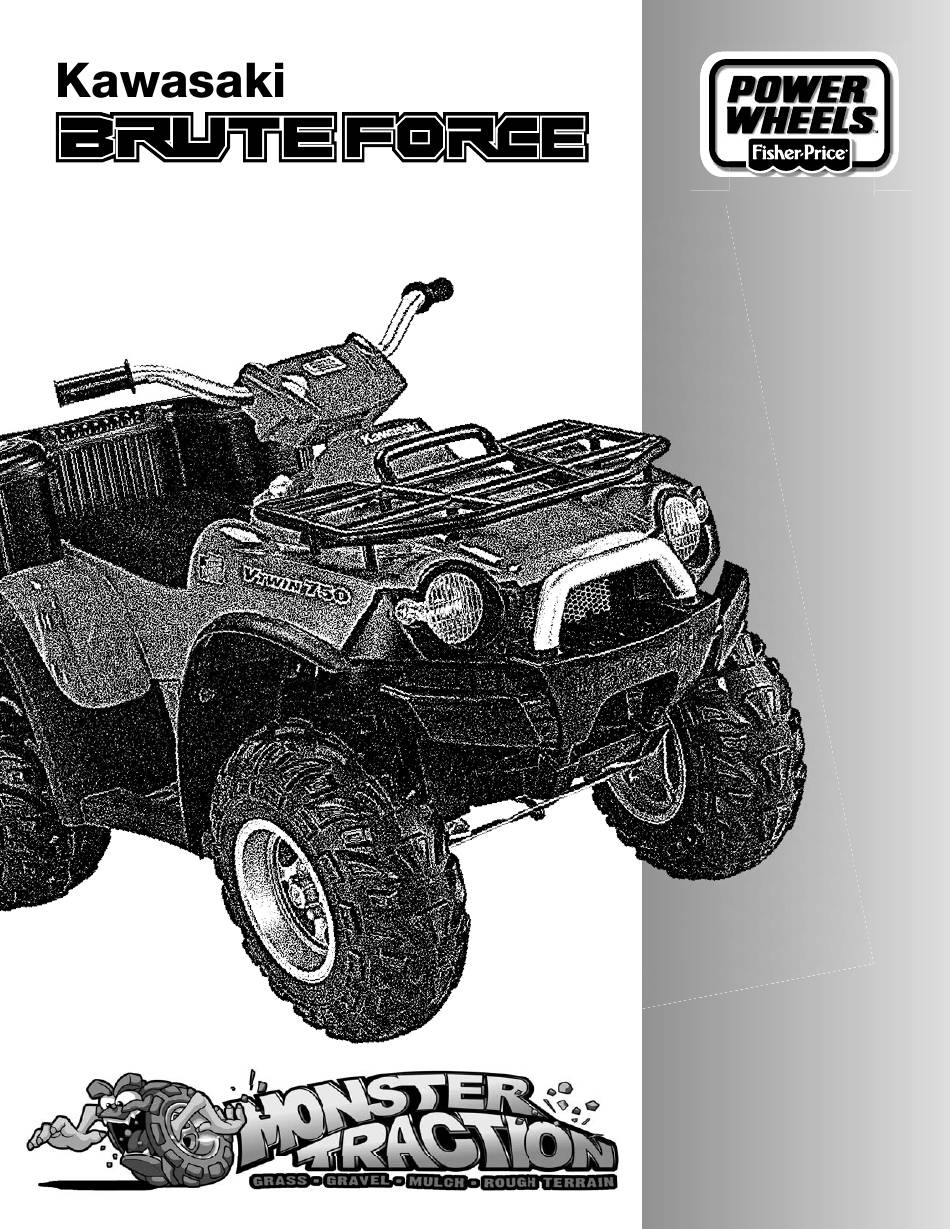

Owner's Manual
with Assembly Instructions
For Model N9731
® ®
® ®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kawasaki Brute Force N9731 and is the answer not in the manual?

Questions and answers

Related Manuals for Fisher-Price Kawasaki Brute Force N9731

Summary of Contents for Fisher-Price Kawasaki Brute Force N9731

  • Page 1 • Please read this manual • Please read this manual and save it with your original and save it with your original sales receipt. sales receipt. • Tools needed for assembly: • Tools needed for assembly: Phillips Screwdriver and safety Phillips Screwdriver and safety scissors (not included).

  • Page 2: Table Of Contents

    • Use this vehicle ONLY outdoors. Most interior flooring can line at www.powerwheels.com or call 1-800-348-0751. be damaged by riding this vehicle indoors. Fisher-Price ® will • To register your vehicle, please visit us on-line at not be responsible for damage to the floor if the vehicle is www.powerwheels.com.

  • Page 3: Warnings And Cautions

    ELECTRICAL HAZARD WARNING • Battery can fall out and injure a child if vehicle tips over. Always use battery retainer. • PREVENT FIRE - Never modify the electrical system. Alterations could cause a fire resulting in serious injury and could also ruin the electrical system. - Use of the wrong type battery or charger could cause a fire or explosion resulting in serious injury.

  • Page 4: Parts

    PARTS • If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded. •...

  • Page 5: Parts Picture

    PARTS PICTURE Vehicle Steering Column Cap Parts Not Shown Handlebar Front End Label Sheet #8 x 2" Screw - 2 Seat 12 Volt Charger " #8 x Screw - 13 12 Volt Battery Clip " #8 x Washer - 2 Base Plate Shovel #10 x 1"...

  • Page 6: Battery Charging

    BATTERY CHARGING ELECTRICAL HAZARD WARNING CAUTION • Battery can fall out and injure a child if Use the charger in dry locations only. vehicle tips over. Always use battery retainer. • PREVENT FIRE About Thermal Fuses - Never modify the electrical system. ®...

  • Page 7: Assembly

    ASSEMBLY WARNING Children can be harmed by small parts, sharp edges and sharp points in the vehicle's unassembled state, or by electrical items. 12V Battery Care should be taken in unpacking and assembly of the vehicle. Children should not handle parts, including the battery, or help in assembly of the vehicle.
  • Page 8 Front End Slot #8 x " Screw • Fit another #8 x " screw through the hole shown in the front end and into the vehicle. Tighten the screw. Hint: You may need to adjust the front end to align the holes. Base Plate Steering Linkage •...
  • Page 9 Steering Column BOTTOM VIEW • While holding the handlebar in place, carefully turn the vehicle over. • Make sure the end of the steering column is through the hole in the • Fit a " washer onto each #8 x 2" screw. steering linkage.

  • Page 10: Limited Warranty

    LIMITED WARRANTY Bumper-to-Bumper* Limited Warranty One year limited warranty from the date of purchase ® on the Power Wheels vehicle. Six month limited warranty on the 12 volt battery. For the original purchaser, this one year limited warranty covers the Power Wheels ®...

  • Page 11: Decoration

    DECORATION • Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils. • Place the labels exactly as shown in the illustrations. For best results, avoid repositioning a label once it has been applied to the vehicle. •...

  • Page 12: Battery Installation

    BATTERY INSTALLATION IMPORTANT! Use only a Power Wheels 12 volt lead-acid ® rechargeable battery. Use of any other battery will damage your Battery Retainer vehicle. Make sure that you charge the battery for at least 18 hours using the enclosed Power Wheels ®...

  • Page 13: Battery Care And Disposal

    BATTERY CARE AND DISPOSAL Disposal Care If a battery leak develops, avoid contact with the leaking acid • Your Power Wheels ® battery is a non-spillable, sealed and place the damaged battery in a plastic bag. See information lead-acid battery. It must be recycled or disposed of in an below for proper disposal.

  • Page 14: Safe Driving Rules

    SAFE DRIVING RULES Teach Safety Rules to Children RIDING HAZARD While children can quickly develop the skill necessary to drive this vehicle, it is important to remember that their judgment skills are still WARNING very immature. Unsupervised driving by children can lead to serious injury.

  • Page 15: Vehicle Operation

    VEHICLE OPERATION As assembled, your vehicle is ready to roll in low speed (2 mph, maximum). It has been pre-set so it will only operate in low speed. After your child has mastered the basic skills of driving and understands the rules for safe driving, it’s time to remove the high speed lock-out screw to allow the vehicle to operate in low or high speed.

  • Page 16: Charge Indicator

    CHARGE INDICATOR VEHICLE CARE • Check all screws, cap nuts and their protective coverings regularly and tighten as required. Check plastic parts on a regular basis for cracks or broken pieces. • During snowy or rainy weather, the vehicle should be stored inside or under a protective cover.

  • Page 17: Problems And Solutions Guide

    PROBLEMS AND SOLUTIONS IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels ® Consumer Relations, toll-free at 1-800-348-0751 between 9 AM - 7 PM (EST) Monday through Friday and 11 AM - 5 PM (EST) Saturday.
  • Page 18 PROBLEM POSSIBLE CAUSE SOLUTION Short run time (Less than Undercharged battery Charge the battery. A new battery should have been charged for at 1 - 3 hours per charge) least 18 hours before using the vehicle for the first time. After first- time use, recharge the battery for at least 14 hours after each use.
  • Page 19 PROBLEM POSSIBLE CAUSE SOLUTION Vehicle runs in low speed, but High speed lock-out not disconnected. The vehicle was pre-set to run only in low speed. To allow the does not run in high speed. vehicle to run in low and high speed, you must disconnect the High Speed Lock-Out.
  • Page 20 Kawasaki Trademarks used under license to Fisher-Price, Inc. Fisher-Price and Power Wheels are U.S. trademarks of Mattel, Inc. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A. ©2008 Mattel, Inc. All Rights Reserved. PRINTED IN MEXICO...
