Installation; Install Sim Card(S) - Fortinet FortiExtender 202E Quick Start Manual

IP Configuration
3
After you have connected the FortiExtender network interfaces, the device automatically
attempts to obtain an IP address from a DHCP server. If you do not use DHCP, you can
configure a static IP address.
To configure a static IP address:
1. Use an Ethernet cable to connect one of the LAN ports in the back of the
FortiExtender to the Ethernet port of your computer.
2. Configure the computer to be on the same subnet as the FortiExtender by changing
its IP address to 192.168.1.1 and the netmask to 255.255.255.0.
3. Open your web browser and point to the default FortiExtender web GUI address:
http://192.168.1.2
4. In both the username and password fields, type
5. Go to Network Configuration.
6. For address mode, select Static.
7. Specify the IP address, netmask, and gateway; and then click APPLY.
12
admin
and press Enter.

Installation

4
The FortiExtender device is designed for placement near a window (desk or wall mount) to
achieve the best 3G/4G signal strength. Refer to the diagram below for proper placement
and mounting.

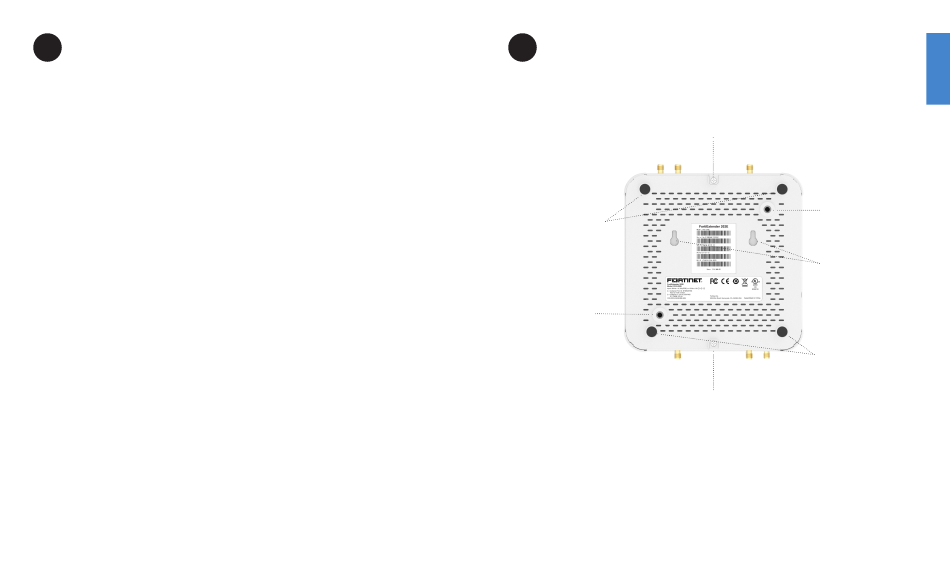

Modem 1 cover tab with screw
Rubber feet slots
Wall mount hole
Modem 2 cover tab with screw (FEX-202E/212E only)

Install SIM card(s)

1. Unscrew the modem cover screw on the bottom of the unit.
2. Push the screw tab outwards, and unlock the cover from one end to remove it.
3. Insert your MicroSIM (3FF) SIM card(s) into the SIM socket(s).
4. Replace the modem cover, and fasten it onto the unit housing with the screw.
Wall mount hole
Wall hanging slots
Rubber feet slots
