Fortinet FortiExtender 202E Quick Start Manual page 5

RF Connectors & System LEDs
LTE Modem 1 RF Connectors
MAIN
GPS AUX
LTE Modem 2 RF Connectors (FEX-202E/212E only)
Note:
1. Upper LTE LEDs are for LTE Modem 1; Lower LTE LEDs are for LTE Modem 2.
2. Management and FortiGuard Cloud LEDs apply to all FEX-201E/211E and
202E/212E models.
8
AUX GPS
LTE Modem 1
Management
LTE Signal Level 4
LTE Signal Level 3
LTE Signal Level 2
LTE Signal Level 1
Power
FortiGuard Cloud
MAIN

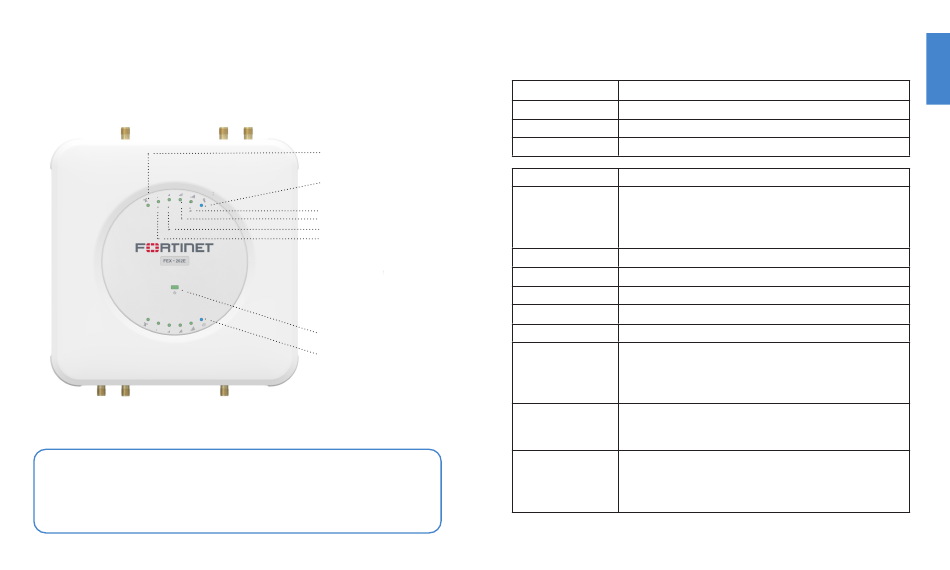

The following tables describe the use of RF connectors and the system LEDs on top of
the FEX-201E/211E and 202E/212E casing.
RF Connector Description
MAIN Main LTE antenna.
AUX Auxiliary (Diversity) LTE antenna.
GPS GPS/GNSS antenna.
LED Description
LTE Modem 1 Green Steady: Connected to carrier and working properly.
Green Flashing: Booting up and connecting to carrier.
Green Rapidly Flashing: SIM or firmware error.
OFF: No LTE Modem 1.
LTE signal level 1 Green: LTE signal strength <25% (LED 1 on).
LTE signal level 2 Green: LTE signal strength 25%–50% (LED 1 & 2 on).
LTE signal level 3 Green: LTE signal strength 50%–75% (LED 1, 2, & 3 on).
LTE signal level 4 Green: LTE signal strength >75% (LED 1 , 2, 3, & 4 all on).
LTE Modem 2 Same as LTE Modem 1. See above.
Power Green Steady: Booted up and working properly.
Green Flashing: Booting up.
Amber Steady: System error.
OFF: No power.
Management Blue Steady: Managed by FortiGate or FortiExtender Cloud.
Blue Flashing: Connecting to a managing device.
OFF: No management connection.
FortiGuard Cloud Blue Steady: Connected to FortiGuard Cloud (FGC).
Blue Flashing: Connecting to FGC.
Blue Rapidly Flashing: Error in connecting to FGC.
OFF: No connection to FGC.
