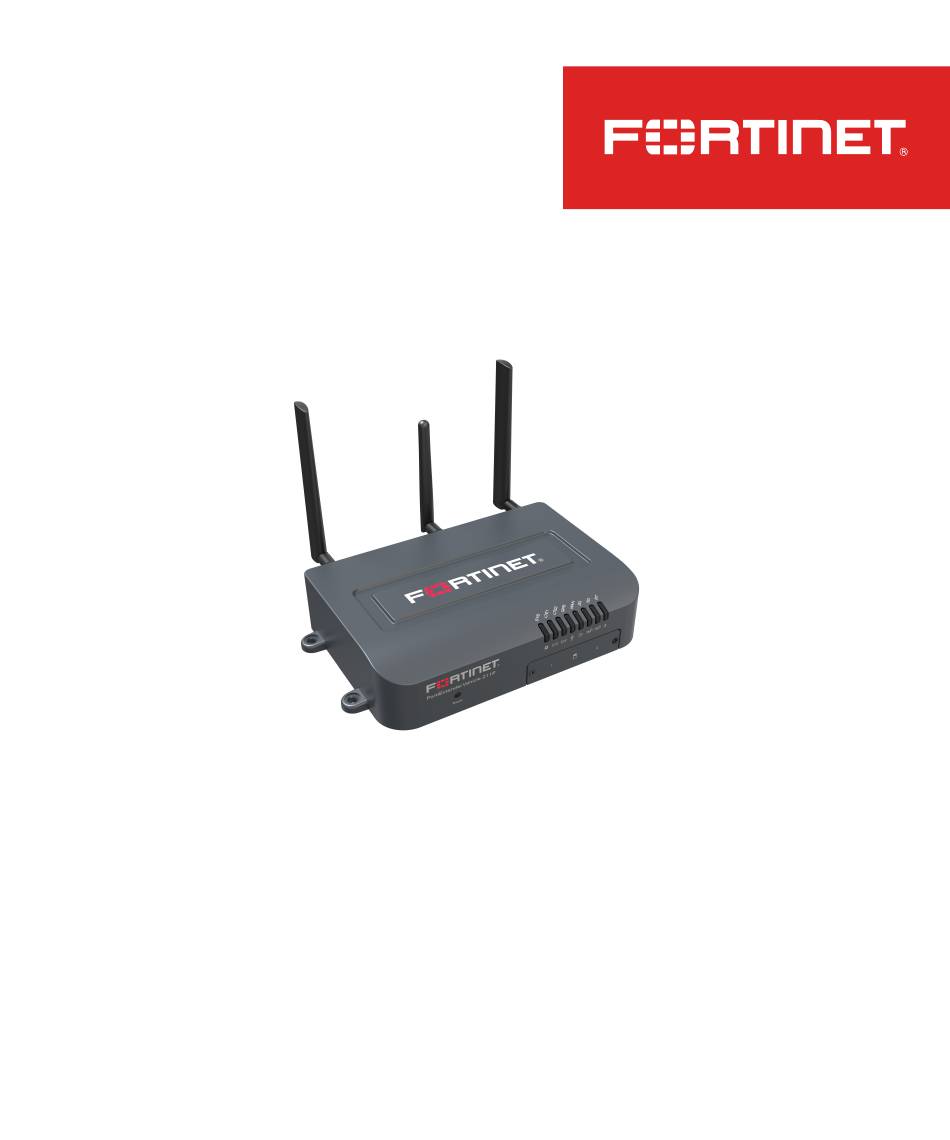

- Page 1 FortiExtenderVehicle 211F/211F-AM QuickStart Guide...
-
Page 2: Register For Support
® ® 本日、 フォーティネッ ト製品の登録をしてください。 of Fortinet, Inc., in the U.S. and other jurisdictions, and other Fortinet names herein may also be registered and/or common law trademarks of Fortinet. 登録すると次のメリッ トがあります。 All other product or company names may be trademarks of their respective テクニカルサポート... -
Page 3: Packing List
Product Description Packing List FortiExtenderVehicle 211F/211F-AM is a secure LTE wireless WAN extender device for vehiclular and industrial applications. It has a CAT12 LTE/GNSS module, 2x2 2.4G/5G WiFi 5 (11ac Wave2), and BLE integrated in the device. It features one (1) GE WAN, four (4) GE LAN 2 x WiFi &... - Page 4 Front Panel LEDs & Controls LEDs Behavior and Description LTE2 • Reserved for FEV-212F/FEV-212F-AM only. (Green/Amber) LTE2 WiFi WAN WiFi LAN 5G GPS/GNSS • Green: GPS/GNSS locked with > 5 positioning satellites. (Green/Amber) • Amber: GPS/GNSS locked with =< 5 positioning satellites. •...
-
Page 5: Button Usage
Ports, LEDs, Buttons, and Antenna Connectors LED Behavior LEDs Behavior and Description WAN Port LED • Green Steady: 1-Gb network connected. • Green Flashing: 1-Gb network activity. MAIN Antenna AUX Antenna GNSS Antenna Bluetooth Antenna • Amber Steady: 100-Mb network connected. •... -
Page 6: Mounting Holes
Mounting Holes Basic Connections To vehicle cigarette lighter socket Battery Adapter Cable 1. Press to release the power button to ensure that the device is in power-off state (the power button is fully out). 2. Plug the cigarette lighter connector of the vehicle power adapter into the vehicle's cigarette lighter socket. - Page 7 Power Connection to Vehicle Fuse Panel Vehicle Fuse Panel Ignition switch Accessory (switched) ACC/ ON Power cable Battery (constant) Ground (black) Ground Ground (chassis) (chassis) Battery 12V-24V Note: UL/cUL Listing for US/Canada vehicle use does not cover use of products connected to vehicle battery via DC cable/connector.
-
Page 8: Installation
Environmental specifications Ambient operating temperature: -40°C to 70°C. FortiExtenderVehicle 211F/211F-AM is designed for placement inside an automotive vehicle. Refer to specific Product Model Data Sheet for Environmental Specifications (Operating Temperature, Storage Temperature, Humidity, and Altitude). Refer to the following diagram for proper placement and mounting. - Page 9 This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. For FortiExtenderVehicle 211F-AM only. Innovation, Science and Economic Development (ISED) – Canada Federal Communication Commission (FCC)—USA This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt...
- Page 10 EU or countries that have implemented the EU Directives and/or spectrum regulation. Any Fortinet products not obtained directly from Fortinet or Fortinet’s authorized partners may not comply with EU Directives and Fortinet makes no assurances for such products.
- Page 11 Tento produkt je v súlade so smernicou 2014/53/EÚ. Slovensko Ta izdelek je v skladu z Direktivo 2014/53/EU. Suomi Tämä tuote on direktiivin 2014/53/EU mukainen. Svenska Denna produkt överensstämmer med direktiv 2014/53/EU. Note: The full declaration of conformity for this product is available at the link below: https://site.fortinet.com/ProductRegulatory/EU...
- Page 12 For Product License Agreement/EULA and Warranty Terms, visit: For FortiExtenderVehicle 211F only https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf UK Conformity Assessed (UKCA) – United Kingdom The product transmits within the frequency ranges and less than or equal to the power listed below: Standard Frequency Range...
-
Page 13: Training Services
Create a support account, register and manage your products, download updates, firmware images and release notes, and create technical support tickets. https://support.fortinet.com Fortinet Document Library Up-to-date versions of Fortinet publications for the entire family of Fortinet products. https://docs.fortinet.com Training Services Course descriptions, availability, schedules, and location of training programs in your area.
