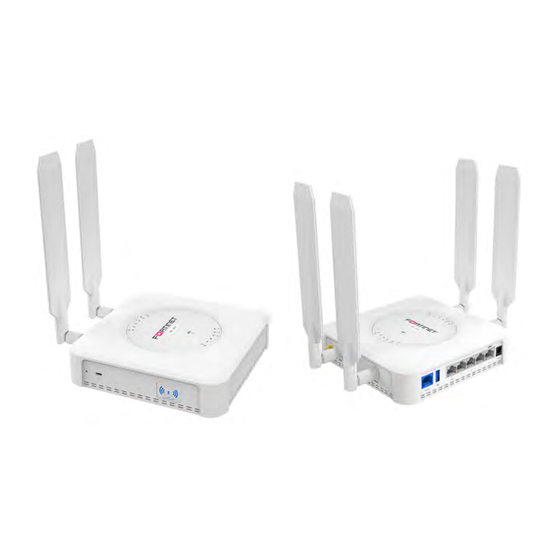

Fortinet FortiExtender 211E Quick Start Manual
  1. Manuals
  2. Brands
  3. Fortinet Manuals
  4. Extender
  5. FortiExtender 211E
  6. Quick start manual

Fortinet FortiExtender 211E Quick Start Manual

Hide thumbs Also See for FortiExtender 211E:
Table of Contents

Advertisement

Quick Links

Download this manual
FortiExtender-201E-211E-202E-212E-QuickStart.indd 1
FortiExtender-201E-211E-202E-212E-QuickStart.indd 1

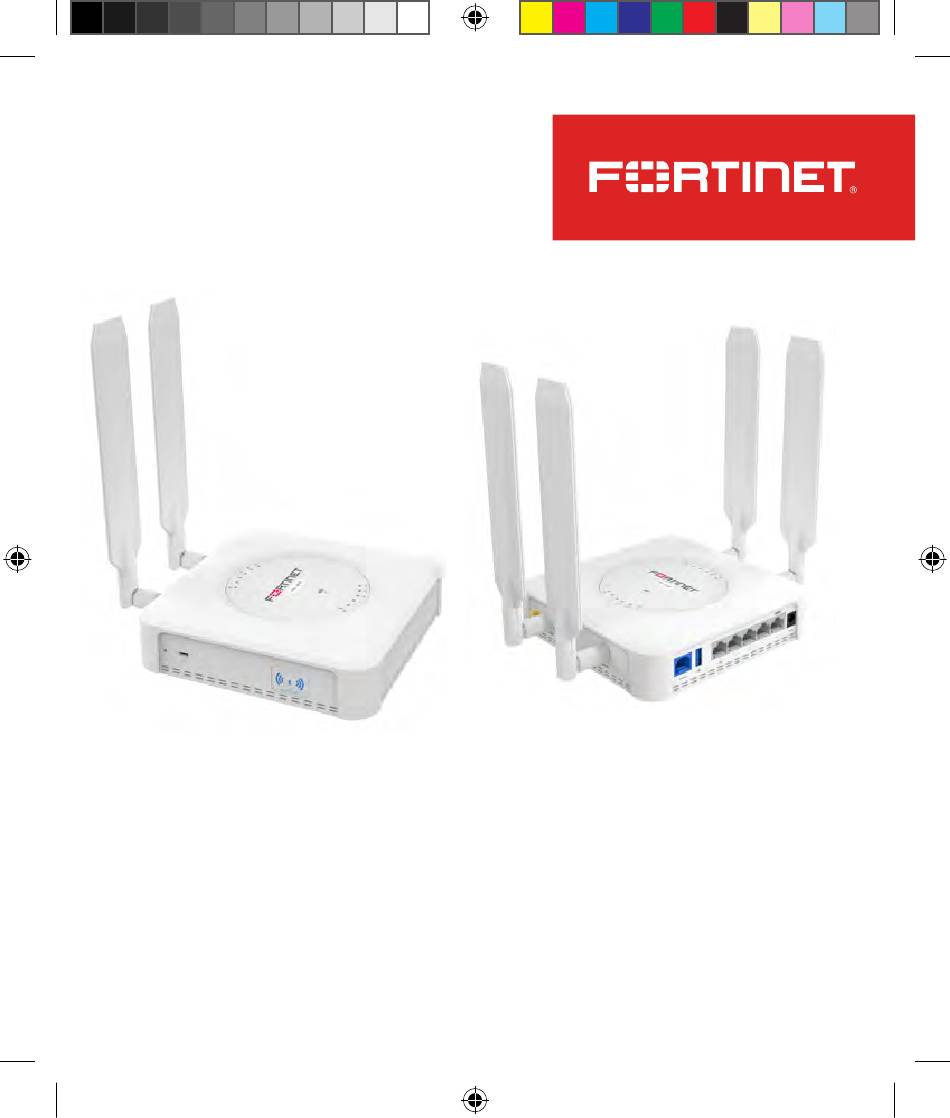

FortiExtender 201E/211E/202E/212E
QuickStart Guide
8/21/2020 6:42:23 PM
8/21/2020 6:42:23 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FortiExtender 211E and is the answer not in the manual?

Questions and answers

Related Manuals for Fortinet FortiExtender 211E

Summary of Contents for Fortinet FortiExtender 211E

  • Page 1 FortiExtender 201E/211E/202E/212E QuickStart Guide FortiExtender-201E-211E-202E-212E-QuickStart.indd 1 FortiExtender-201E-211E-202E-212E-QuickStart.indd 1 8/21/2020 6:42:23 PM 8/21/2020 6:42:23 PM...
  • Page 2 , and certain other marks are registered trademarks ® ® of Fortinet, Inc., in the U.S. and other jurisdictions, and other Fortinet names herein may also be registered and/or common law trademarks of Fortinet. All other product or company names may be trademarks of their respective owners.

  • Page 3: Register For Support

    Register for Support Register your Fortinet product to receive: • Technical Support • New product features • Protection from new threats Vous devez enregistrer le produit pour recevoir: • Support technique • Nouvelles fonctionnalitées du produit • Protection contre de nouvelles menaces La reistrazione ti permette di usufruire di: •...

  • Page 4: Packing List

    Packing List 211E LTE/GPS Antennas FEX-201E/ FEX-202E/212E Note: Actual product depends on model purchased. Mounting Kit Anchors and Screws Rubber Feet QuickStart Guide Drill Template Sticker FortiExtender-201E-211E-202E-212E-QuickStart.indd 4 FortiExtender-201E-211E-202E-212E-QuickStart.indd 4 8/21/2020 6:42:24 PM 8/21/2020 6:42:24 PM...

  • Page 5: Device Guide

    Device Guide Product Description All FEX-201E/211E and 202E/212E products feature the same FEX-200E chassis with one or two LTE FEM-06-AMEU or FEM-12-GBL modem(s) pre-installed, as highlighted below. Product Features Model Modem FEX-201E FEX-200E chassis with 1 FEM-06 AMEU modem pre-installed. FEX-211E FEX-200E chassis with 1 FEM-12 GBL modem pre-installed.
  • Page 6 Ports, LEDs, and Buttons GE WAN and LAN (1–4) Ports. Port 4 is PoE PD LAN (802.3af/at compatible). 12V/2A Input (optional) USB 2.0 RJ45 Network LEDs (Use 12V/2A power adapter with ID 2.1 mm plug.) Console Port Note: To access the device from its console port, you must set the baud rate to 115200.

  • Page 7: Led Behavior

    LED Behavior Behavior and Description RJ45 Network LEDs Green Steady: 1G network connected. Green Flashing: 1G network activity. Amber Steady: 100M network connected. Amber Flashing: 100M network activity. Off: No network connection. Bluetooth LED Green Steady: The Bluetooth configuration window is open. Blue Flashing: Bluetooth configuration is in progress.
  • Page 8 RF Connectors & System LEDs LTE Modem 1 RF Connectors MAIN AUX GPS LTE Modem 1 Management LTE Signal Level 4 LTE Signal Level 3 LTE Signal Level 2 LTE Signal Level 1 Power FortiGuard Cloud MAIN LTE Modem 2 RF Connectors (FEX-202E/212E only) Note: 1.
  • Page 9 The following tables describe the use of RF connectors and the system LEDs on top of the FEX-201E/211E and 202E/212E casing. RF Connector Description MAIN Main LTE antenna. Auxiliary (Diversity) LTE antenna. GPS/GNSS antenna. Description LTE Modem 1 Green Steady: Connected to carrier and working properly. Green Flashing: Booting up and connecting to carrier.

  • Page 10: Basic Connections

    Basic Connections Internet LAN/PoE Optional Power Connection 1. Insert one end of an Ethernet cable into the LAN/PoE port on the device. 2. Insert the other end of the Ethernet cable into the PoE LAN port on your FortiGate appliance. Ensure that FortiGate and FortiExtender are on the same subnet. 3.
  • Page 11 Assembly 1. Remove the dust cover that protects the SIM sockets and fits over the antenna posts. 2. Insert your MicroSIM (3FF) SIM card(s) into the SIM socket(s). 3. Observe the following guidelines: • If installing one SIM card, you can insert the card into either SIM socket. •...
  • Page 12 IP Configuration After you have connected the FortiExtender network interfaces, the device automatically attempts to obtain an IP address from a DHCP server. If you do not use DHCP, you can configure a static IP address. To configure a static IP address: 1.

  • Page 13: Installation

    Installation The FortiExtender device is designed for placement near a window (desk or wall mount) to achieve the best 3G/4G signal strength. Refer to the diagram below for proper placement and mounting. Modem 1 cover tab with screw Wall mount hole Rubber feet slots Wall hanging slots Wall mount hole...
  • Page 14 Place on top of a desk or flat surface 1. Attach the rubber feet to the four corners on the bottom of the unit. 2. Place the unit on the desk or flat surface. 3. Secure the unit in place with a Kensington lock. 4.
  • Page 15 Hang on a wall 1. Peel off the drill template sticker, and stick it onto the wall in a desired location. 2. Use the template to mark and drill the pilot holes. 3. Insert the anchors into the holes. 4. Insert the screws into the anchors and tighten, leaving around a 5-mm gap between the screw head and the wall.
  • Page 16 FEX-201E/211E Wall Mount FEX-202E/212E Wall Mount FortiExtender-201E-211E-202E-212E-QuickStart.indd 16 FortiExtender-201E-211E-202E-212E-QuickStart.indd 16 8/21/2020 6:42:30 PM 8/21/2020 6:42:30 PM...
  • Page 17 Cautions and Warnings Environmental specifications Ambient operating temperature: 0°C to 40°C Refer to specific Product Model Data Sheet for Environmental Specifications (Operating Temperature, Storage Temperature, Humidity, and Altitude) Référez à la Fiche Technique de ce produit pour les caractéristiques environnementales (Température de fonctionnement, température de stockage, humidité...
  • Page 18 Regulatory Notices Federal Communication Commission (FCC) – USA This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received; including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 19 Le présent émetteur radio (IC:7280B-121101) a été approuvé par ISED pour fonctionner avec les types d’antenne énumérés ci-dessous et ayant un gain admissible maximal et l’impédance requise pour chaque type d’antenne. Les types d’antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l’exploitation de l’émetteur.
  • Page 20 EU or countries that have implemented the EU Directives and/or spectrum regulation. Any Fortinet products not obtained directly from Fortinet or Fortinet’s authorized partners may not comply with EU Directives and Fortinet makes no assurances for such products.
  • Page 21 Denna produkt överensstämmer med direktiv 2014/53/EU. Note: The full declaration of conformity for this product is available in the link below: https://site.fortinet.com/ProductRegulatory/EU Compliance with 2014/53/EU Radio Equipment Directive (RED) In accordance with Article 10.8(a) and 10.8(b) of the RED, the following table provides information on the frequency bands used and the maximum RF...
  • Page 22 All other product or company names may be trademarks of their respective owners. Copyright © 2019 Fortinet, Inc., All Rights reserved. Contents and terms are subject to change by Fortinet without prior notice. No part of this publication may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from Fortinet, Inc., as stipulated by the United States Copyright Act of 1976.
  • Page 23 Fortinet. It is the Fortinet distributor’s and reseller’s responsibility to make clear to the end user the date the product was originally shipped from Fortinet, and it is the end user’s responsibility to understand the original ship date from the party from which the end user purchased the product.
  • Page 24 For any Open Source Software covered under the GPL, the source code is made available on this CD or download package. If any Open Source Software licenses require that Fortinet provide rights to use, copy or modify any Open Source Software program that are broader than the rights granted in this agreement, then such rights shall take precedence over the rights and restrictions herein.
  • Page 25 GNU GENERAL PUBLIC LICENSE GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License.
  • Page 26 to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice. This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.
  • Page 27 4. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange.
  • Page 28 12. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Library under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded.
  • Page 29 FortiExtender-201E-211E-202E-212E-QuickStart.indd 29 FortiExtender-201E-211E-202E-212E-QuickStart.indd 29 8/21/2020 6:42:30 PM 8/21/2020 6:42:30 PM...
  • Page 30 Create a support account, register and manage your products, download updates, firmware images and release notes, and create technical support tickets. https://support.fortinet.com Fortinet Document Library Up-to-date versions of Fortinet publications for the entire family of Fortinet products. http://docs.fortinet.com Training Services Course descriptions, availability, schedules, and location of training programs in your area.
