Summary of Contents for Westinghouse QR104

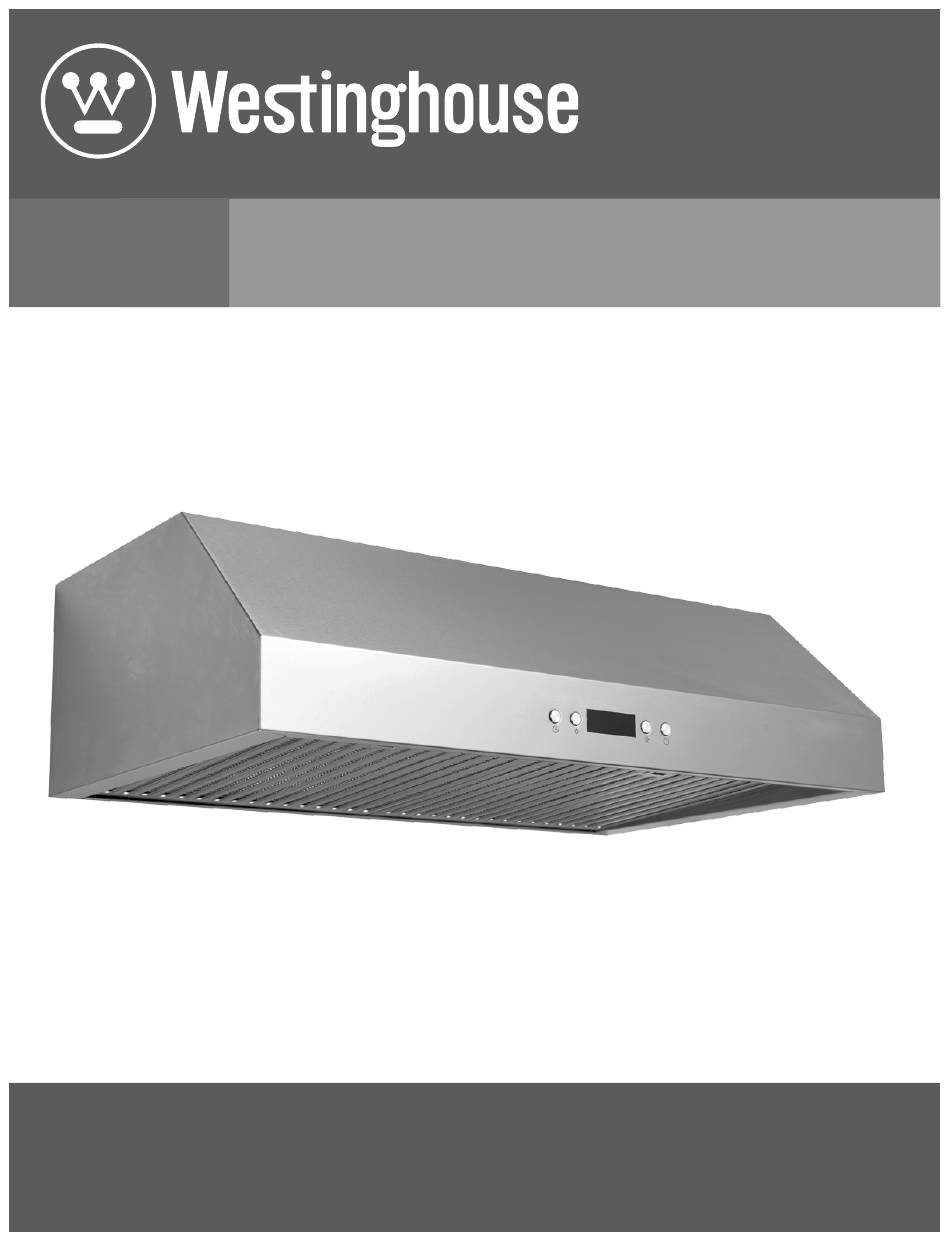

- Page 1 UNDER CABINET RANGE HOOD OWNER’S MANUAL # QR104 / 457-8621...
-
Page 2: Table Of Contents
Table of Contents Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Maintenance Safety Information . - Page 3 Safety Information (continued) COOKING SAFETY INFORMATION WARNING: To reduce the risk of fire, use only metal duct work . Never use plastic duct work . 1 . Never leave the range hood unattended when in use . 2 . Never cook over open flames under the range hood. WARNING: To reduce the risk of fire or electric shock, do 1 .
-
Page 4: Warranty
Warranty ONE YEAR LIMITED WARRANTY A thorough inspection must be made before installation and any damage must be promptly reported . We will not be liable for failures or damage that could have been discovered or avoided by proper inspection and testing prior to installation . Conglom Kitchen &... -
Page 5: Pre-Installation
Pre-Installation TOOLS/MATERIALS REQUIRED (NOT SUPPLIED) Measuring tape Level Utility knife Certified Adjustable Pencil Duct Tape wrench Flathead Needle nose Phillips screwdriver screwdriver pliers Hammer Electric drill Safety goggles Safety gloves CONGLOMKB .COM Please contact cs@conglomkb.com or 1-877-333-0098 for further assistance . -
Page 6: Package Contents
Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Range hood Hybrid filters Rectangular damper (located inside the hood) Round adapter (located inside the hood) HARDWARE INCLUDED NOTE: Parts not shown in actual size. Part Description Quantity Long tapping screws (ST4x18mm) Short tapping screws (ST4x10-F-Hmm) Wire Connectors Washer... -
Page 7: Planning Installation
Pre-Installation (continued) PLANNING INSTALLATION Number of people required: 2 or more WARNING: Always wear safety goggles and gloves during Carefully check the range hood for damage and for missing parts installation . prior to installation . If there is any damage or if you are missing parts, do not proceed with the installation . - Page 8 Pre-Installation (continued) FOLLOW THESE GUIDELINES WHEN INSTALLING DUCT WORK: - Your venting system must vent to the outdoors either horizontally through the back wall (13) or vertically through the roof (14) (refer to Fig . 5/Fig . 6/Fig . 7) . - Use round metal duct work with a uniform diameter of 177 mm (7 in) .
- Page 9 Pre-Installation (continued) WIRING CONNECTION REQUIREMENTS DANGER: Risk of electrical shock . This range hood must Installation work and electrical wiring must be done by a qualified be properly grounded . person(s) in accordance with all applicable codes and standards, including fire-rated construction. DANGER: Turn off the power circuit breaker or the power switch on the junction box before installing this...
-
Page 10: Installation
Installation REMOVING THE ELECTRICAL KNOCK-OUT HOLE REMOVING THE VENTING HOLE - Choose the venting hole to remove for your installation WARNING: Always wear safety goggles and gloves during type . Use the top holes (3 & 4) for a top venting installation . - Page 11 Installation (continued) INSTALLING THE RANGE HOOD DANGER: Turn off the power circuit breaker or the power switch on the junction box before installing this unit . Touching circuitry inside the range hood while it is energized will result in death or serious injury . DANGER: If installing this unit over a gas range, turn off the gas at the source before installing or servicing this unit .
-
Page 12: Operation
Operation There are four buttons, ON/OFF, SPEED, LIGHT and CLOCK SETUP . The center screen will show the clock (12 hour) . TURNING ON/OFF THE UNIT DELAY SHUT OFF FUNCTION - Press (5) to turn on the power . - While the fan is working, press (5) once, the fan and lights When you turn the power on, the unit starts working in low will automatically turn off after 2 minutes . -
Page 13: Maintenance
Maintenance REPLACING FILTERS DANGER: Turn off the power circuit breaker or the power switch on the junction box before performing maintenance . Touching circuitry inside the range hood while it is energized When filters need replacing, exchange with similar. Also replace will result in death or serious injury . -
Page 14: Care And Cleaning
Care and Cleaning RANGE HOOD WARNING: Failure to maintain basic standards of care and cleaning of the range hood will increase the risk of fire. The range hood should be cleaned (regularly internally and externally) to preserve its appearance and performance . Do Not: - Always clean in the direction of the grain (original - Do not use corrosive or abrasive detergents, steel... -
Page 15: Troubleshooting
Troubleshooting DANGER: Turn off the power circuit breaker or the power switch on the junction box before performing maintenance . Touching circuitry inside the range hood while it is energized may result in serious injury or death . Problem Solution - Check that the power supply cable and all electrical wiring are properly The range hood does not operate . -
Page 16: Specifications
Venting Options 758 mm (29.8 in) W High 120V~60Hz 2 x 5W LED GU10 370 ± Electronic Top venting QR104 457 mm (18 in) D Medium 1 .5A Button base light bulb Back venting 228 mm (9 in) H WIRING DIAGRAM... -
Page 17: External Range Hood Diagram
Specifications (continued) EXTERNAL DIAGRAM OF RANGE HOOD 758 mm (29 .8 in) 93 mm (3 .66 in) 340 mm (13 .38 in) 378 mm (14 .88 in) 102 mm (4 in) 88 mm (3 .46 in) 41 mm (1 .6 in) 28 mm (1 .1 in) 52 mm (2 .04 in) 655 mm (25 .79 in) -
Page 18: Service Parts
Service Parts If you are missing parts or if you require replacement parts, please contact our customer service team at cs@conglomkb.com or 1-877-333-0098 (8:30 am – 5 pm, EST, Monday–Friday). Identify the required part(s) and have the part number(s) ready. Part Description Code Quantity... - Page 19 St-Laurent, Québec, H4S 2C3 1-877-333-0098 | cs@conglomkb.com (service available in English and French, Monday - Friday from 8:30am - 5pm EST) www.conglomkb.com Made in China and WESTINGHOUSE are trademarks of Westinghouse Electric Corporation. Used under license by Conglom Inc. All Rights Reserved.
