BigTel 1580 Combo
USER'S GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BigTel 1580 Combo and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amplicomms BigTel 1580 Combo

Summary of Contents for Amplicomms BigTel 1580 Combo

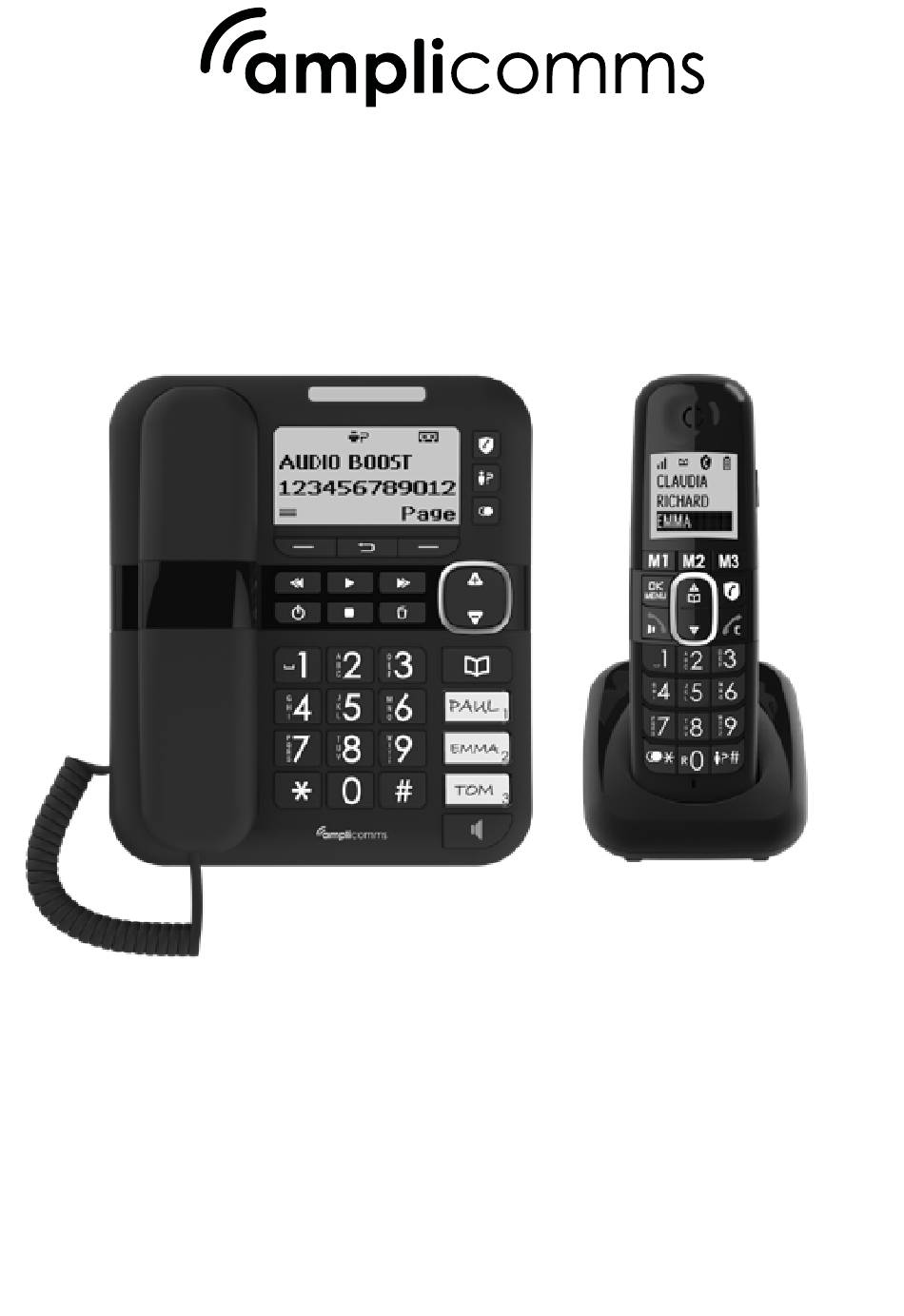

  • Page 1 BigTel 1580 Combo USER’S GUIDE...

  • Page 2: Table Of Contents

    TABLE OF CONTENT IMPORTANT SAFETY INSTRUCTIONS................4 1.1. Package Contents.........................4 INSTALLING YOUR PHONE....................5 2.1. Installing and charging the batteries..................5 2.2. Connecting the Base Station....................5 2.3. Connecting the Charger......................6 GETTING TO KNOW YOUR PHONE..................6 3.1. Base Station Overview......................6 3.2. Display Icons and Symbols of Combo Base................7 3.3.
  • Page 3 9.4. Delete an entry in the Call List..................18 9.5. Delete entire list Call List................18 VOICE MAIL........................18 10.1. Access Voice Mail Messages....................18 ANSWERING MACHINE....................19 11.1. Turn On/Off the Answering Machine..................19 11.2. Listen to the Messages in the Answering Machine.................19 11.3. Delete All Messages in the Answering Machine..............20 11.4.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using your telephone equipment, basic safety precautions should always be sticked to reduce the risk of fire, electric shock and injury, including the followings: Read and understand all the instructions. Follow all warnings and instructions marked on the product. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

  • Page 5: Installing Your Phone

    INSTALLING YOUR PHONE 2.1. Installing and charging the batteries Slide down to open the battery compartment cover. Place the 2 supplied rechargeable batteries as indicated. Pay extra attention to direction of polarity. Slide the battery compartment cover back. Put the handset on the base and charge for 8 hours before using the handset for the first time. The handset will give a beep when it is properly placed on the charger. Notes: Use only the supplied power adapter for the base station and wireless handset charger.

  • Page 6: Connecting The Charger

    2.3. Connecting the Charger Plug the small end of power adapter into a power jack on base bottom. Plug the large end of power adapter into a wall power outlet. GETTING TO KNOW YOUR PHONE 3.1. Base Station Overview CALL BLOCK •...

  • Page 7: Display Icons And Symbols Of Combo Base

    DOWN & VOLUME DECREASE KEY • In menu mode: Press to scroll down the menu items. • In Phonebook list / Redial list / Call List: Press to scroll down the list. • While entering names or numbers: Press to move the cursor to the right. • During a call and message playback: Press to decrease the volume. SKIP BACKWARD • Press to skip backward to the previous message. PLAY • In idle mode: Press to play the message • During playback : Press to repeat playing the current message from the beginning 10. SKIP FORWARD • Press to skip the current message and play the next message. 11.

  • Page 8: Handset Overview

    Steady ON indicates either Call Block or Block Anonymous is set to ON Flashes when Call Block menu is being accessed. Flashes when phonebook is being accessed. Flash when new TAM messages or Memo have not been read or TAM menu is being accessed.

  • Page 9: Display Icons And Symbols Of Cordless Handset

    AUDIO BOOST During a call: Press to audio boost on/off (inactive in speakerphone mode) Press to insert In idle mode: press and hold to access the redial list Press to insert In idle mode: Press and hold to access the call list In pre-dialing mode / during a call: Press and hold to insert pause 10. ALPHANUMERIC KEYPAD Press to insert a digit / character 1, 2, 3, key: In idle mode, Press and hold to dial pre-recorded number stored in Direct Memory. 0 key: In pre-dialing mode / during a call, Press and hold to insert flash 0 key: During a call, Press and hold to start conference call(in intercom mode) 11. TALK ON/SPEAKER In idle / pre-dialing mode : Press to make a call In Redial list / Call List / Phonebook entry: Press to make a call to the selected entry in the list During ringing: Press to answer a call During a call: Press to switch to speaker mode 12. HANDSET LED During charging: On steadily In ringing mode / Paging mode: Flashing quickly When new voice mail or new voice message (TAM): Flash slowly 3.4. Display Icons and Symbols of cordless handset The LCD display gives you information on the current status of the telephone.

  • Page 10: Using Your Phone

    Steady ON indicates it’s a new call which has not been read in call list and * will be shown in the end of the unread call number or name. After call read, * mark will disappear. Flashes when the call list is being accessed On indicates audio boost is on (very loud sound on earpiece of handset) Flashes when phonebook is being accessed. Flashes when redial list is being accessed. Hearing Aid Compatibility: Special feature which helps to eliminate background noise and interference when you use this telephone with a hearing aid.

  • Page 11: Call From The Call List

    4.2.4. Call from the Call List Through Cordless Handset: Press and hold key, OR press to select Call List then to access Call List. Press to select the desired entry Press to dial the entry. Through Telephone base: Press key, OR press to select Call List then OK to access Call List. Press to select the desired entry.

  • Page 12: Find The Handset

    4.9. Find the Handset You can locate cordless handset by pressing< Page >on telephone base station. All registered cordless handsets base will produce the paging tone and “Paging” is displayed on the LCD of the cordless handsets for 60 seconds. You can stop the paging by press , or any dialing keys on any cordless handset or on the base.

  • Page 13: Add Numbers To Blocklist

    5.2.2. From incoming call numbers Depuis la base: En mode veille, appuyez la touche Through Telephone base: to access the Call list. In idle mode, press key, or press , press Press to browse the Call list. Press OK to select desired number. Press OK and to select Add To Block.

  • Page 14: Block Private Calls

    5.7.1. Block Private Calls This mode will block incoming calls that have been purposely kept their numbers private from you. In idle mode, Through Telephone base: to select Call Block, then press OK , or press Press , and instead. to select Block Anonym. Press Press OK , and to select Private.

  • Page 15: View A Phonebook Entry

    Through Telephone base: Press key OR Press to select Phonebook, then press OK to access the phonebook list. Press OK to select Add New. Repeat steps 3 to 6 of part 6.1. (Note: ! appears to indicate this phonebook is VIP entry.) 7.2. View a Phonebook Entry Through Cordless Handset: Repeat step 1 in part 7.1 Press to select the desired entry.

  • Page 16: Delete A Phonebook Entry

    7.6. Delete a Phonebook Entry Through Cordless Handset: Repeat steps 1 and 2 in part 7.2 Press twice and to select Delete. , Confirm? will be shown, and then Press to select √ for delete or X not to delete. Press Press to confirm.

  • Page 17: Delete A Redial Number

    Press OK and to select Add To DM. to select M1/ M2/ M3. Press Press OK to enter the name. Press OK to edit the number if necessary. Repeat step 5 and 6 in part 7.1. (Note: ! appears to indicate this phonebook is VIP entry.) 8.3. Delete a Redial Number Through Cordless Handset: Repeat steps 1 to 3 in part 8.1.

  • Page 18: Store A Call List Number Into The Direct Memory

    Through Telephone base: Repeat steps 1 and 3 in Part 9.1. Press OK twice and to select Add To PB. Press OK to enter the name. Press OK to edit the number if necessary. Repeat step 5 and 6 in part 6.1 (Note: ! appears to indicate this phonebook is VIP entry.) 9.3.

  • Page 19: Answering Machine

    ANSWERING MACHINE Your phone includes a telephone answering machine that records unanswered calls when it is on. The answering machine can store up to 59 messages within the maximum recording time of approximately 60 minutes. As well as recording incoming messages, you can record memos for other users of your phone. If the answering machine memory is full, the LCD will display Memory Full in idle mode.

  • Page 20: Delete All Messages In The Answering Machine

    11.3. Delete All Messages in the Answering Machine Through Cordless Handset: to select Ans. Machine. Press Press to select Del All Old. Repeat steps 3 and 4 in part 7.7. Through Telephone base: Press to select Ans. Machine. Press OK and to select Del All Old. Press OK , Confirm? will be shown.

  • Page 21: Set The Answer Delay

    Through Telephone base: Repeat step 1 and 3 in 11.4.2. Press OK and to select Play. Press OK to playback your personalized OGM (if you have recorded a personalized OGM before) and “Playing OGM” is displayed on the screen. If a personalized OGM is not recorded before, the pre-set OGM will be played.

  • Page 22: Access Your Answering Machine Remotely

    You can ring your BigTel 1580 Combo from another tone-dialing phone to switch on or off the answering machine and listen to your messages remotely. Place a call from a tone-dialing phone to your BigTel 1580 Combo. When the answering machine answers the calls and starts playing the OGM, press KEY Enter the 4-digit Remote Access PIN.

  • Page 23: Phone Settings

    Press OK . If On is selected, you will be asked to enter the alarm time. Enter the alarm time. Press OK and to select Once or Daily. Press OK to set the snooze function, and <UP> or <DOWN> to select On or Off. Press OK to confirm.

  • Page 24: Set The Date And Time

    For Telephone base: Press to select BS Settings. Press OK and to select LCD Contrast. Press OK and to select desired Contrast level. There are 5 level for selection. Press OK to confirm the LCD contrast level. 13.5. Set the Date and Time 13.5.1. Change the Date Format Through Cordless Handset: Press to select HS Settings.

  • Page 25: Change Display Language

    13.7. Change Display Language For Cordless Handset: to select HS Settings. Press to select Language. Press Press to select desired language. Press to confirm. For Telephone base: Press to select BS Settings. Press OK and to select Language. Press OK and to select desired language. Press OK> to confirm.

  • Page 26: Troubleshooting

    Confirm? will be show. Select √ to confirm delete, or select X confirm not to delete. Note: After reset your phone, Welcome mode screen will appear again, then you can select the desired country. TECHNICAL SPECIFICATIONS Free Field Range Up to 300 metres* Indoor Range Up to 50 metres* Handset Battery Life 10 hours talk time** (average values) 100 hours standby** Number of Handsets Up to 4 Intercom Mode Three-Way Conference (1 outside correspondent + 2 internal correspondents) Electrical Connection/Base Main base adapter and charger: Mains Adaptor/Charger Model No .: AT-337E-060045A or 1-CHEUA451-081 Input: 100-240 V / 50-60 Hz / 0.15 A Output: 6 V DC / 450 mA, 2.7 W...

  • Page 27: Warranty

    Please contact the technical support of the telephone service provider for further information. WARRANTY Please carefully read the user guide included in this kit. The BigTel 1580 Combo product is approved equipment in accordance with European regulations, attested by the CE mark. The product you have just purchased is a technological product, it must be handled with care.

  • Page 28: Safety

    Help us protect the environment we live in! CONFORMITY The undersigned, ATLINKS EUROPE, declares that the DECT type radio equipment is in compliance with Directive 2014/53 / EU. The full text of the EU declaration of conformity is available at the following internet address: www.amplicomms.com Average power per channel of 10mW Maximum transmit power: 24dBm Frequency range: 1880-1900MHz Hereby, ATLINKS EUROPE declares that the radio equipment type DECT is in compliance with Legislation : Radio Equipment Regulations 2017 (SI 2017/1206).
  • Page 30 147 avenue Paul Doumer 92500 RUEIL-MALMAISON France RCS Nanterre 508 823 747 © ATLINKS 2021 - Reproduction prohibited. The Manufacturer reserves the right to modify the specificationsof its products in order to make technical improvements or complywith new regulations. AMPLICOMMS and ATLINKS are registered trademarks. BigTel 1580 Combo A/W No: 10002520 Rev.2 (EN) Printed in China...
