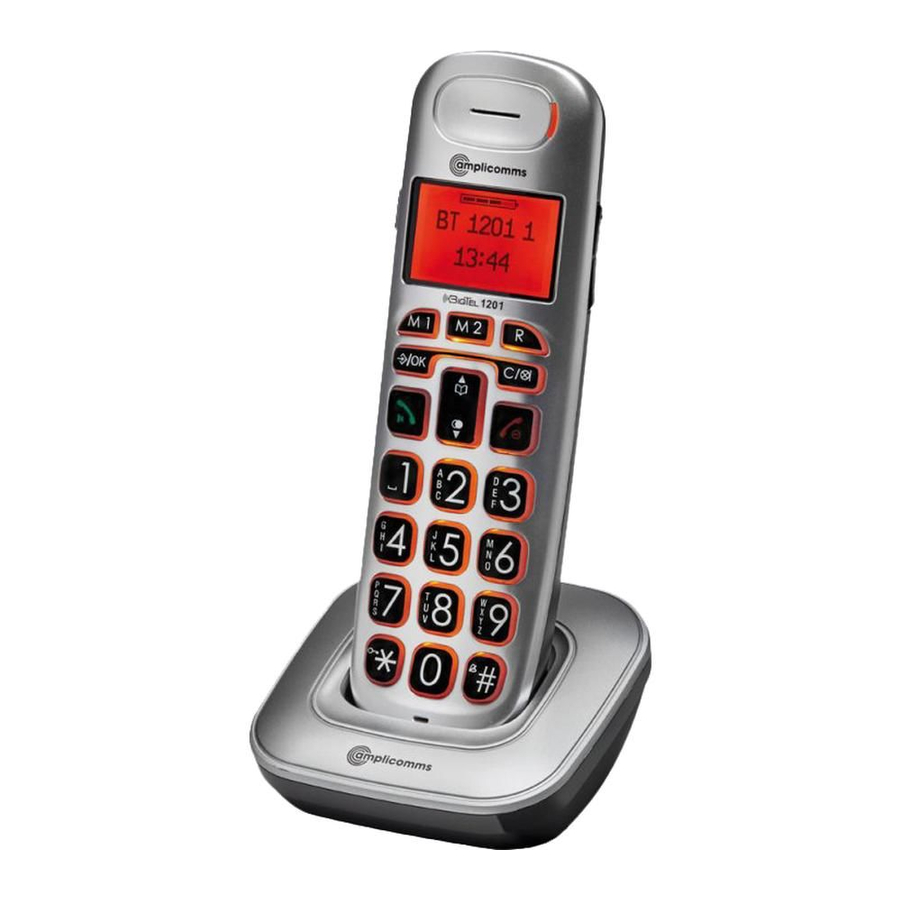

Amplicomms BigTel 1201 Quick Start

Table of Contents

Contents

1 Connect the cordless handset
2 Registering the handset
3 Technical details
4 Declaration of conformity
5 Documents / Resources
- 5.1 References
- 5.2 Download manual

Connect the cordless handset

You can register this handset as an additional handset on a BigTel 1480, BigTel 1280 or BigTel 1200.

Open the battery compartment and insert the rechargeablebatteries. Observe the correct polarity.
Slide the battery compartment cover towards the centre ofthe handset until it clicks into place.

For a full charge, the handset must be left in the charger for at least 16 hours (check the charger's power supply!).

Use only the batteries supplied with this product. If the batteries need to be replaced later on the same battery type must be used.

Registering the handset

Preparing the base station BigTel 1280/1200

In idle state press and hold down the paging key on the base for approx. 6 seconds (beep).

Preparing the corded phone BigTel 1480

In idle state press the menu key .
Select REGISTRATION and press the menu key .

On the handset BigTel 1201

The display shows: "Mobilteil anmelden".
Press the menu key
Select Einstell. and press
Select Mobilteil einstellen and press
Select Mobilteil anmelden and press
Select a base (e. g. "Basis 1") and press
Enter the PIN of the base station (in delivery state 0000) and press
After a short time the handset will be registered.

Setting the language (delivety state: GERMAN)

Press the menu key .
Select Einstell. and press the menu key
Select Mobilteil einstellen and press the menu key .
Select Sprache and press the menu key
Select a language and press the menu key

Technical details

Power supply (charger base)	Input: 100-240V 50/60Hz Output: 6 V DC 450mA
Rechargeable batteries	2 x AAA 400mAh NiMH
Optimum ambient temperature	0˚C to 45˚C
Optimum relative humidity	20% to 80%

Note

For further information on operation, disposal and warranty as well as safety information, please refer to the operating instructions for your BigTel.

Declaration of conformity

This device fulfils the requirements stipulated in the EU directive: 1999/5 EU. To view the complete Declaration of Conformity, please refer to the free download available on our website www.amplicomms.com.
