Passionate about Music
www.BetterMusicBuilder.com

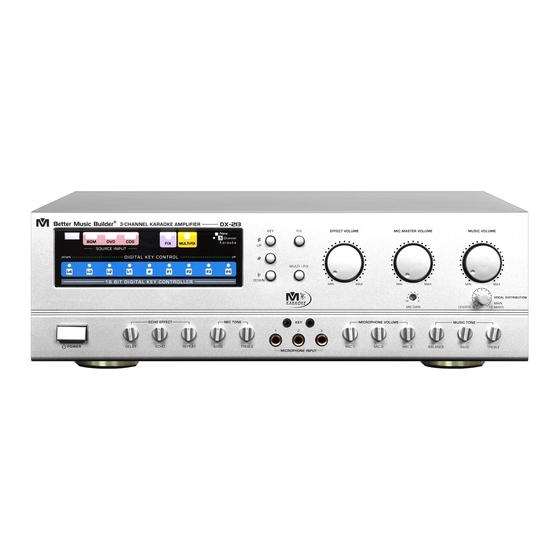

HOW TO CONNECT MAIN SPEAKER

DX-213 is capable of driving two main speakers, which are left and right. We recommend you using center speakers
for vocal monitor. Under this arrangement, main speaker can produce greater bass music output while center
speaker can produce clear vocal or monitor. The mixing of music and vocal is important to produce quality sound
for singing. Therefore, the audience can feel different three-channel speaker effects from main speaker and center
speaker. You can also adjust the vocal in front panel, or you can adjust the vocal in either main out speaker by
adjusting the balance.
MAIN
CENTER
RIGHT
SPEAKERS OUTPUT
CAUTION: SYSTEM IMPEDANCE 4~16 Ohm/SPEAKER

HOW TO CONNECT CENTER SPEAKER (MONITOR)

The center speaker is designed for monitoring the singer's voice. You can hook up one or two center speakers. In
case of two speakers, please make sure that the speakers have a impedance of at least 8 ohms and are
connected in parallel. Otherwise, this may damage your amplifier by overloading it.
Diagram 1 (One Center Speaker)
CS-306 CENTER SPEAKER (MONITOR)
SINGLE SPEAKER (8 ohm)
CENTER
Please do not use speaker with impedance less
NOTE
than 8 ohms otherwise the amplifier may be damaged.

HOW TO CONNECT VIDEO MONITOR

Video Out: 1Vp-p/75 ohms
BGM
DVD
CDG
BGM
DVD
CDG
RED
ww w.BetterMusicBuil der.com
DX-213
MAIN
LEFT
RCA VIDEO OUT
RCA VIDEO OUT
SUB
© 2008 BMB :: Better Music Builder. All rights reserved. Legal trademark.
3-Channel Mixing Amplifier
MAIN LEFT
SPEAKER
Diagram 2 (Two Center Speakers)
CENTER SPEAKER (MONITOR)
TWO SPEAKERS CONNECTED IN PARALLEL (4 ohm)
CENTER
1
We build value!
HD TV
or
MAIN RIGHT
ELECTRONIC
SPEAKER
SCREEN
VIDEO PROJECTOR
OR
13" KARAOKE
VIDEO MONITOR
