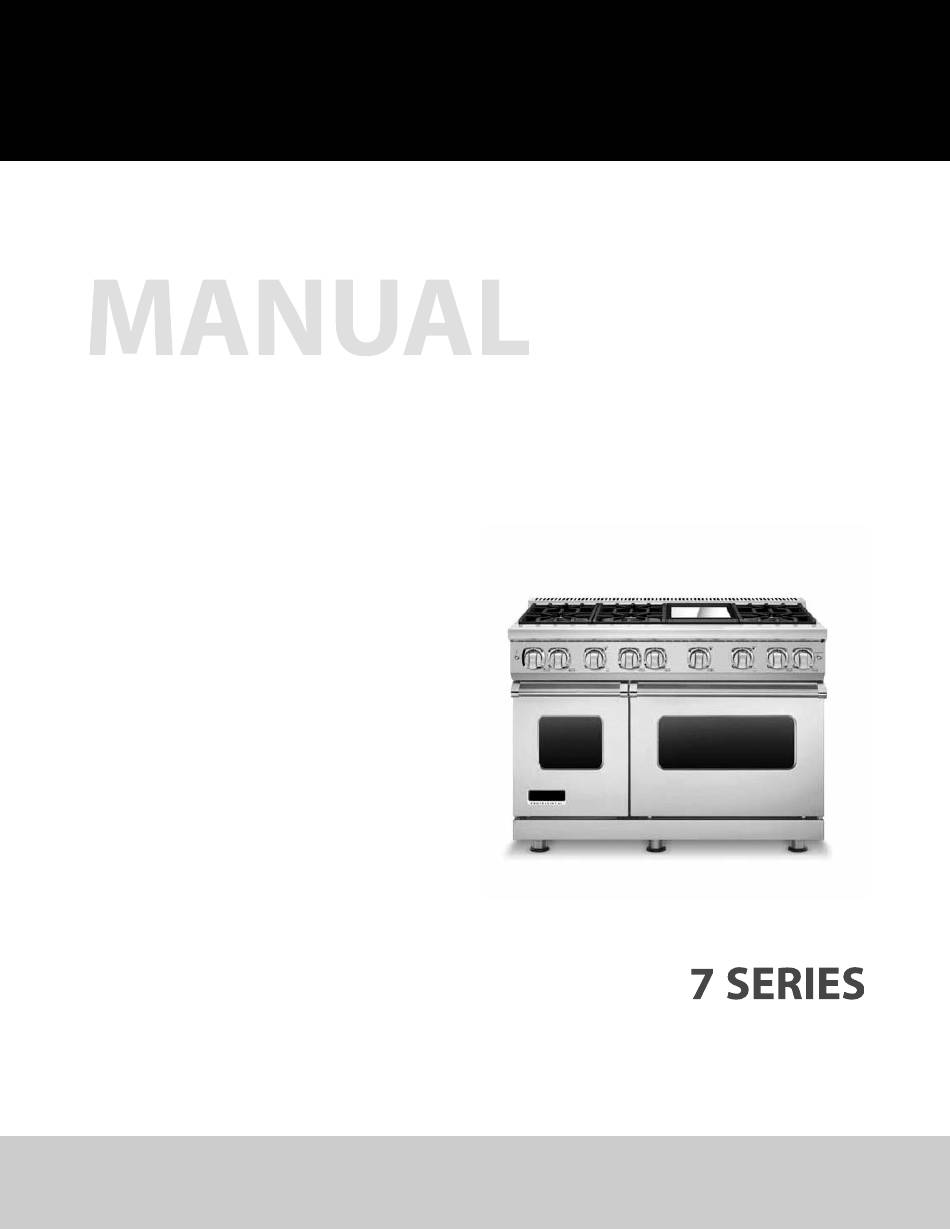

- Page 1 Use & Care Professional Freestanding Ranges VGR7361, CVGR7361, VGR748, CVGR748 VDR7361, CVDR7361, VDR748, CVDR748...
-
Page 2: Table Of Contents
Congratulations Congratulations and welcome to the elite world of Viking Range, LLC ownership. We hope you will enjoy and appreciate the care and attention we have put into every detail of your new, state-of-the-art range. Your range is designed to offer years of reliable service. This Use and Care Manual will provide you with the information you need to become familiar with your range’s care and operation. -
Page 3: Warnings
Warnings Warning and Important Safety Instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. Common sense, caution, and care must be exercised when installing, maintaining, or operating the appliance. ALWAYS contact the manufacturer about problems or conditions you do not understand. Recognize Safety Symbols, Words, Labels DA N G E R WARNING... - Page 4 Warnings To Prevent Fire or Smoke Damage • Be sure all packing materials are removed from the appliance before operating it. • Keep area around appliance clear and free from combustible materials, gasoline, and other flammable vapors and materials. • If appliance is installed near a window, proper precautions should be taken to prevent curtains from blowing over burners. •...
- Page 5 Warnings • PREPARED FOOD WARNING: Follow food manufacturer's instructions. If a plastic frozen food container and/or its cover distorts, warps, or is otherwise damaged during cooking, immediately discard the food and its container. The food could be contaminated. • If you are “flaming” liquor or other spirits under an exhaust, TURN THE FAN OFF. The draft could cause the flames to spread out of control.
- Page 6 Warnings Self-Clean Oven • Clean only parts listed in this guide. DO NOT clean door gasket. The door gasket is essential for a good seal. Care should be taken not to rub, damage, or move the gasket. DO NOT use oven cleaners of any kind in or around any part of the self-clean oven. •...
- Page 7 Warnings WARNING WARNING NEVER cover any slots, holes or passages in the oven bottom or cover an entire BURN HAZARD rack with materials such as aluminum foil. Doing so blocks air flow through the The oven door, especially the glass, can get hot. Danger of burning: oven and may cause carbon monoxide poisoning.
-
Page 8: Before Using Range
Before Using Range All products are wiped clean with solvents at the factory to remove any visible signs of dirt, oil, and grease which may have remained from the manufacturing process. Before starting to cook, clean the range thoroughly with hot, soapy water. There may be some burn off and odors on first use of the appliance—this is normal. -
Page 9: Product Controls Gas Range Features
Range Features (VGR/CVGR Gas Range) Center Left Rear Burner Center Right Rear Burner Right Front Burner Left Front Burner Left Oven Right Oven Control Knob Interior Oven Control Knob Control Knob Control Knob Temperature Temperature (15,000 BTU) Light Switch (15,000 BTU) (23,000 BTU) (23,000 BTU) Control Knob... -
Page 10: Dual Fuel Range Features
Range Features (VDR/CVDR Gas Range) Center Right Center Left Rear Burner Rear Burner Left Oven Right Oven Right Front Burner Left Front Burner Left Oven Right Oven Control Knob Interior Oven Control Knob Temperature Temperature Control Knob Control Knob Selector Self-Clean (15,000 BTU) Light Switch... -
Page 11: Oven Functions And Settings
Oven Functions and Settings VGR/CVGR Gas Models VDR/CVDR Dual Fuel Models BAKE (Natural Airflow Bake) BAKE (Two-Element Bake) Use this setting for baking, roasting, and casseroles. Use this setting for baking, roasting, and casseroles. CONVECTION BAKE CONV BAKE (Convection Bake) Use this setting to bake and roast foods at the same time with Use this setting to bake and roast foods at the same time with minimal taste transfer. -
Page 12: Surface Operation
Simmering ensures gentler treatment than boiling to prevent food from toughening and/or breaking up. The size of the pan and the volume of food can have a significant effect on how high or low a flame is needed for simmering. For this reason, Viking range and rangetop burners are engineered with a Vari-Simmer setting. -
Page 13: Surface Cooking Tips
Surface Operation Cooking Vessels Each cook has his or her own preference for the particular cooking vessels that are most appropriate for the type of cooking being done. Any and all cooking vessels are suitable for use in the range and it is not necessary to replace your present domestic vessels with commercial cookware. -
Page 14: Griddle/Simmer Plate
Griddle/Simmer Plate (on applicable models) The optional 15,000 BTU griddle is constructed of machined steel with a chrome finish and is uniquely designed to offer excellent cooking performance as well as easy clean up. The griddle is equipped with an electronic thermostat to maintain an even temperature across the griddle once the desired temperature has been set. -
Page 15: Oven Features
Oven Features Broiler Burner Oven Racks (3) Oven Lights Convection Fan Gentle Close Door Feature All oven doors come standard with a gentle close feature. The door will remain in an open position until the door is approximately 5” (12.7 cm) away from the oven. When reaching this point, the door will require a slight push to engage the gentle close mechaism. -
Page 16: Using The Oven
Using the Oven Conventional and Convection Cooking Because of variations in food density, surface texture and consistency, some foods may be prepared more successfully using the conventional bake setting. For this reason, conventional baking is recommended when preparing baked goods such as custard. The user may find other foods that are also prepared more consistently in conventional bake. -
Page 17: Bake (Dual Fuel Ranges)
Baking VDR/CVDR Dual Fuel Ranges BAKE (Two-Element Bake) Full power heat is radiated from the bake element in the bottom of the oven cavity and supplemental heat is radiated from the broil element. This function is recommended for single rack baking. Many cookbooks contain recipes to be cooked in the conventional manner. - Page 18 Baking Baking Tips • Make sure the oven racks are in the desired position before you turn on the oven. • DO NOT open the door frequently during baking. Look through the door window to check doneness whenever possible. If you must open the door, the best time is during the last quarter of the baking time.
- Page 19 Baking Conventional Baking Chart Single Rack Time Food Pan Size Position Temp (min) BREADS Biscuits Cookie sheet 3 or 4 400˚ F (204˚ C) 10 - 12 Yeast loaf Loaf pan 3 or 4 375˚ F (191˚ C) 30 - 35 Yeast rolls Cookie sheet 3 or 4...
- Page 20 Baking Convection Baking Chart Single Rack Time Food Pan Size Position Temp (min) BREADS Frozen Biscuits Cookie sheet 3 or 4 375˚ F (191˚ C) 7 - 9 Yeast loaf Loaf pan 3 or 4 375˚ F (191˚ C) 25 - 30 Yeast rolls Cookie sheet 3 or 4...
-
Page 21: Roasting (Dual Fuel Ranges)
Roasting (VDR Dual Fuel Models) CONV ROAST* (Convection Roast) The convection element runs in conjunction with the inner and outer broil elements. The reversible convection fan runs at a higher speed in each direction. This transfer of heat (mainly from the convection element) seals moisture inside of large roasts. A time savings is gained over existing, single fan convection roast modes. - Page 22 Roasting (VDR Dual Fuel Models) Conventional Roasting Chart (when using the Bake or Convection Bake setting) Internal Time Food Weight Temp (min/lb) Temp BEEF Rib roast Rare 4 - 6 lbs 325˚ F (162.8˚ C) 140˚ F (60.0˚ C) Medium 4 - 6 lbs 325˚...
- Page 23 Roasting (VDR Dual Fuel Models) Convection Roasting Chart Internal Time Food Weight Temp (min/lb) Temp BEEF Rib roast Rare 4 - 6 lbs 325˚ F (162.8˚ C) 140˚ F (60.0˚ C) Medium 4 - 6 lbs 325˚ F (162.8˚ C) 155˚...
-
Page 24: Broiling (Vgr Ranges)
Broiling Broiling Instructions Broiling is a dry-heat cooking method using direct or radiant heat. It is used for small, individualized cuts such as steaks, chops, and patties. Broiling speed is determined by the distance between the food and the broil element. Choose the rack position based on desired results. Conventional broiling is most successful for cuts of meat 1-2 inches thick and is also more suitable for flat pieces of meat. -
Page 25: Broiling (Vdr Ranges)
Broiling VDR/CVDR Dual Fuel Ranges CONV BROIL (Convection Broil)* The top element operates at full power. This function is exactly the same as regular broiling with the additional benefit of air circulation by the motorized fan in the rear of the oven. Smoke is reduced since the airflow also reduces peak temperatures on the food. - Page 26 Broiling To Use Broil or Convection Broil 1. Arrange the oven rack in the desired position before turning broiler on. 2. Center the food on a cold broiler pan and grid. Place broiler pan in oven. 3. Set the oven temperature control knob to “Broil”. Turn on the convection fan switch if you wish to convection broil. 4.
-
Page 27: Convection Dehydrate
Convection Dehydrate This oven is designed not only to cook, but also to dehydrate fruits and vegetables. Warm air is circulated by a motorized fan in the rear of the oven and over a period of time, the water is removed from the food by evaporation. Removal of water inhibits growth of microorganisms and retards the activity of enzymes. -
Page 28: Cleaning And Maintenance
Cleaning and Maintenance Any piece of equipment works better and lasts longer when maintained properly and kept clean. Cooking equipment is no exception. Your range must be kept clean and maintained properly. Before cleaning, make sure all controls are in the “OFF” position. Disconnect power if you are going to clean thoroughly with water. - Page 29 Cleaning and Maintenance Burner Flange After the burner flange has cooled, it should be wiped with hot soapy water but do not allow water to run or drip in the large center opening. DO NOT use steel wool, abrasive cloths, cleanser, or powders. To remove encrusted materials, soak the area with a hot towel to loosen the material, then use a wooden or nylon spatula.
-
Page 30: Replacing Oven Lights
Cleaning and Maintenance Replacing Oven Lights WARN IN G WA RN I N G DO NOT touch bulb with bare hands. Clean off any signs of oil from the bulb ELECTRICAL SHOCK HAZARD and handle with a soft cloth. Disconnect the electric power at the main fuse or circuit breaker before replacing bulb. -
Page 31: Self-Clean Cycle (Dual Fuel Models)
Self-Clean Cycle (VDR/CVDR Dual Fuel models only) This oven features an automatic pyrolytic self-cleaning cycle. During this cycle, the oven reaches elevated temperatures in order to burn-off soil and deposits. An integral smoke eliminator helps reduce odors associated with the soil burn-off. A powder ash residue is left in the bottom of the oven after completion of the self-clean cycle. -
Page 32: Door Removal
Door Removal Open door completely. Slowly close until latches stop door. Fold latches backward until locked in place. Lift door up and out. Door Replacement Close door. Open door completely. Carefully realign door on hinges. Slide Fold latches forward until locked in in and down. -
Page 33: Troubleshooting
Troubleshooting Problem Possible Cause and/or Remedy Range will not function. Range is not connected to electrical power: Have electrician check power circuit breaker, wiring, and fuses. Oven does not operate in Door is not shut tight enough for automatic door latch self-clean. -
Page 34: Service Information
Clearly describe the problem that you are having. If you are unable to obtain the name of an authorized service agency, or if you continue to have service problems, contact Viking Range, LLC at 1-888-845-4641, or write to: VIKING RANGE, LLC... -
Page 35: Warranty
() years from the date of original retail purchase or closing date for new construction, whichever period is longer. Viking Range, LLC, warrantor, agrees to repair or replace, at its option, any part which fails or is found to be defective during the warranty period. - Page 36 Viking Range, LLC 111 Front Street Greenwood, Mississippi 38930 USA (662) 455-1200 For product information, call 1-888-845-4641 or visit our web site at vikingrange.com in the US or brigade.ca in Canada F21233D EN (041517)
