Features

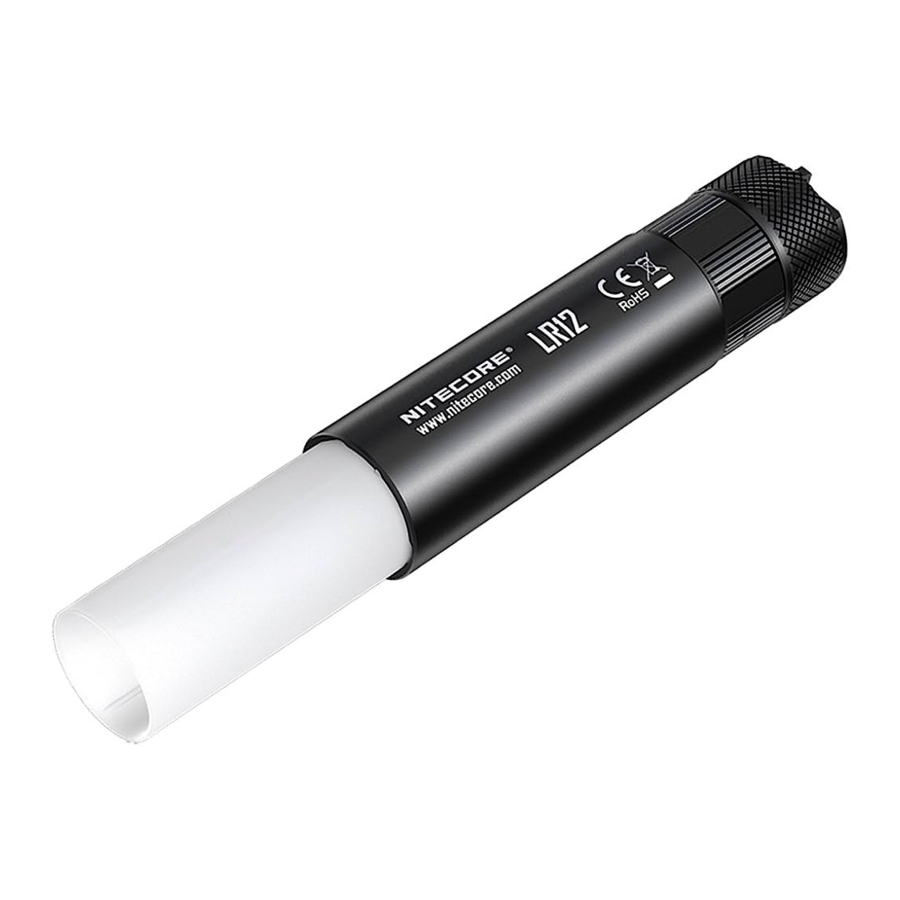

- 2-in-1 design lantern flashlight
- Integrated retractable diffuser enables the LR12 to double as a lantern and a flashlight
- Utilizes a CREE XP-L HD V6 LED to emit a max output of 1000 lumens
- Crystal Coating Technology combined with "Precision Digital Optics Technology" for unparalleled reflector performance
- Maximum beam intensity of 6900cd and throw distance of 166 meters
- High efficiency constant circuit provides unwavering output with runtime up to 900 hours
- 4 brightness levels and 1 special mode available
- Advanced Temperature Regulation module
- Polarity reverse protection
- Toughened ultra-clear mineral glass with anti-reflective coating
- Constructed from aero grade aluminum alloy with HAIII military grade hard-anodized finish
- Waterproof in accordance with IPX8 (2 meters submersible)
- Impact resistant to 1 meter
- Magnetic base and tail stand capability
Dimensions
Length: 4.18" (106.2m)
Tube Diameter: 1.06" (26.9mm)
Weight: 2.77oz (78.5g)
Accessories
Lanyard, spare O-ring
Battery Options
| SIZE | Nominal Voltage | Compatible | |
| 18650 Rechargeable Li-ion battery | 18650 | 3.7V | Y (Recommended) |
| Primary Lithium battery | CR123 | 3V | Y (Recommended) |
| Rechargeable Li-ion battery | RCR123 | 3.7V | N |
Technical Parameter
| FL1 STANDARD | Turbo | High | Mid | Low | Beacon |
 | 1000 lumens | 230 lumens | 60 lumens | 1 lumen | 1000 lumens |
 | * 1h | 6h | 24h | 900h | - |
 | 166m | 109m | 38m | 5m | - |
 | 6900cd | 2970cd | 360cd | 6cd | - |
 | 1m (Impact Resistance) | ||||
 | IPX8, 2m (Waterproof AND Submersible) | ||||
NOTICE: The above data has been measured in accordance with the international flashlight testing standards ANSI/NEMA FL1 using 1×18650 Li-ion battery (3.7V 3500mAh). The data may vary slightly during real-world use due to battery type, individual usage habits and environmental factors.
* The runtime for Turbo mode is the testing result before starting temperature regulation.
Operating Instruction
Battery Installation
Insert battery with its positive button end towards the front of the light and tighten the tail cap (polarity direction as illustrated in the diagram)
NOTE:
- Ensure the batteries are inserted correctly. The lantern will not operate if batteries are incorrectly inserted.
- Avoid direct eye exposure.
- When the lantern is kept in a backpack or left unused for extended periods of time, remove all batteries to prevent accidental activation and battery leakage.
Power ON/OFF
Tighten the tail cap to turn the light on, loosen the tail cap to turn the light off.
Note: The LR12's diffuser can be moved by rotating the tube of the light. When the bar is retracted, the LR12 can be used as a flashlight. When extended, the LR12'S diffuser doubles as a lantern.
Brightness adjustment
Turning the LR12 on within a 2-second interval after it is turned off will switch the light to the next available mode, repeat this process to cycle through "low-mid-high-turbo-beacon".
Note: The LR12 does not have memory function, it will always be turned on at the low output after it has been turned off for more than 2 seconds.
ATR (Advanced Temperature Regulation)
With Advanced Temperature Regulation module, the LR12 regulates its output and adapts to the ambient environment, maintaining optimal performance.
Changing Batteries
Batteries should be replaced if the output appears to be dim or the lantern becomes unresponsive.
VideosNitecore LR12 Flashlight Review Video
Nitecore LR12 Lantern and Flashlight Review Video
Documents / ResourcesDownload manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
