Page 1

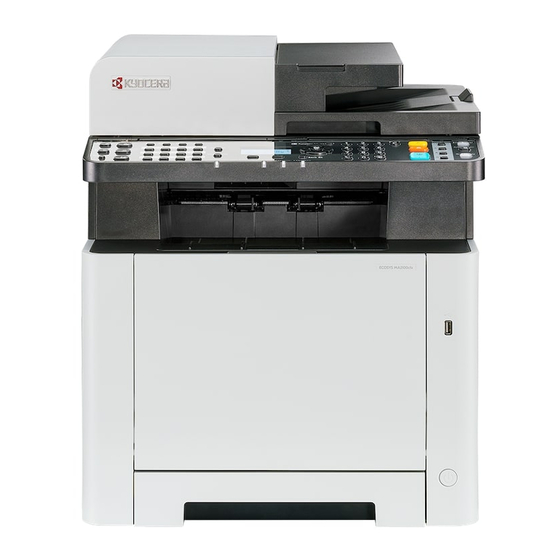

First Steps Quick Guide ECOSYS MA2100cwfx ECOSYS MA2100cfx ・ Printer Driver & Utility Install ・ Manual Download Refer to the following URL. https:/ /kyocera.info/ ➡ Please scan the code on the right. Or please check the following URL. https://kyocera.inst-guide.com/tb11f/...
Page 2
Preface OPERATION GUIDE FIRST STEPS QUICK GUIDE https://kyocera.info/ ZH-TW This guide (A) only explains the basic operations of the machine. For other information, refer to the manual (B) included on the DVD or the manual (B) available from our website.
Page 3
Unpacking (On some models) ZH-TW The included components differ depending on the countries or regions.
Page 4
Setting up the Toner Container 5 ~ 6 5 ~ 6...
Page 8
Power On ZH-TW > > ..> > ..At the first time when turning on the main power switch, the machine runs Startup Wizard to set the following: Language > Managed by Admin... Follow the instructions on the operation panel.
Page 9
Altitude Adjustment (1000m or higher Only) ZH-TW Sys. Menu/Count.: Application Edit Destination Adjust/Maint. Exit Adjust/Maint.: Color Regist. Correct. Bk Line Service Setting Exit Service Setting: LaserScanner Cln Drum Refresh Altitude Adj. Exit Altitude Adj.: Normal 1001 - 2000m 2001 - 3000m Exit...
Page 11
ZH-TW Report Print: Menu Map Status Page Font List Exit [Status Page] [Yes]...
Page 12
Install Drivers and Utilities https://kyocera.info/ Install the software using the installer either from the DVD or downloaded from the above URL. Follow the instructions on screen to install. Cancelling Copy/Scan...
Page 15
Copy Ready to copy. Copies 100% Zoom Paper Original size Paper size...
Page 16
Scan (E-mail) Setup 啟動網路瀏覽器。 啟動網路瀏覽器。 ZH-TW Launch your Web browser. Status Page Network Network Network TCP/IP TCP/IP TCP/IP KMA2FA6A KMA2FA6A Printer Host Name: KMA2FA6A IPv4 IPv4 IPv4 192.168.48.21 192.168.48.21 IP Address: 192.168.48.21 In the Address or Location bar, ZH-TW enter the machine’s IP address or Printer Host Name.
Page 17
Send ZH-TW Address Entry: Send to: abcd@efg.com Me(E-mail) E-mail Common Settings Folder(SMB) Text [E-mail] Enter the E-mail address.
Page 19
輸入傳真號碼。 ZH-TW FAX No. Entry: 0123456789 Chain Detail Enter the fax number.
Page 21
Private printing From a PC ZH-TW To activate the private printing from the PC, set the items No. 1 and 2 in the screen.
Page 22
From the Operation Panel ZH-TW Job Box: Document Box: Sub Address Box Private/Stored Polling Box Quick/Proof Job Box [Job Box] [Private/Stored]...
Page 23
ZH-TW > [ . > [ User 01: Private/Stored: Data 01 User 01 Data 02 User 02 Data 03 User 03 Menu Select Select the user of the document. Select the document to print. > [Select]...
Page 24
ZH-TW > > [ ] . > [ ] Copies: User 01: (1 - 999,---) Print copies Delete Specify the number of copies to print as desired. > [Yes] [Print]...
Page 25
Troubleshooting ZH-TW Product Library Product Library If an error occurs on the machine, the error message appears on the screen. Also the Attention indicator on the operation panel will light up or flash. Refer to the Operation Guide to Clear the error. For details, refer to the Operation Guide on the Product Library disc.
