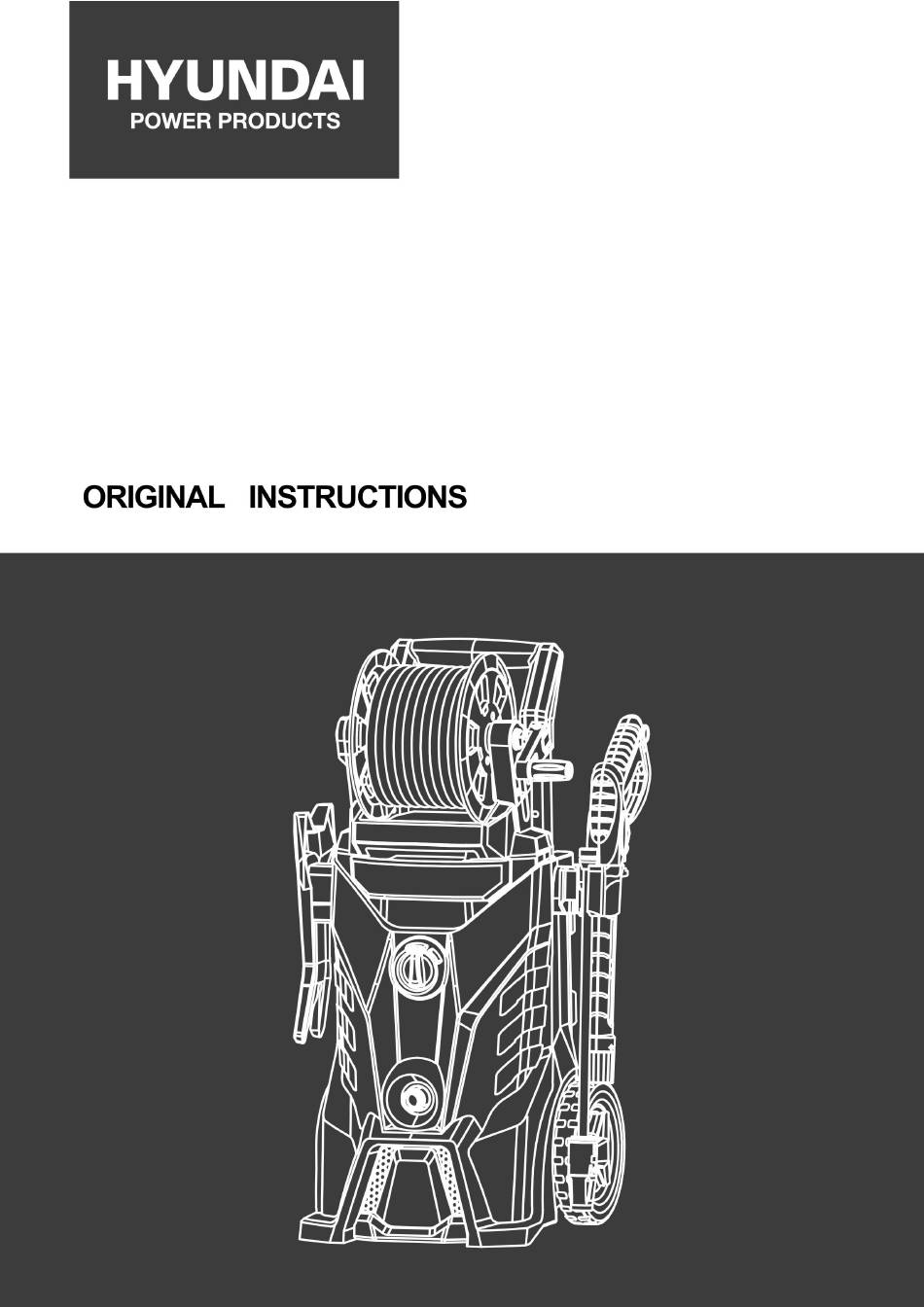

- Page 1 ELECTRIC PRESSURE WASHER HNHP25-95i CAUTION: Read the instructions before using the machine!
-
Page 2: Table Of Contents
SOMMAIRE 1. SAFETY INSTRUCTIONS 2. YOUR PRODUCT 3. ASSEMBLY 4. USE 5. CARE AND MAINTENANCE 6. STORAGE 7. DISPOSAL 8. DECLARATION OF CONFORMITY 9. WARRANTY 10. FAILURE 11. EXCLUSIONS Year of fabrication: 2020... -
Page 3: Safety Instructions
1.SAFETY INSTRUCTIONS Use this unit as described in this manual. Any mishandling and any use contrary to instructions for use shall in no case be the responsibility of the manufacturer. Failure to observe the safety and operating instructions may result in a risk of electric shock, fire and / or personal injury. - Page 4 If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Before any connection, check: The appliance, power cable and accessories are not damaged. In this case, do not use the appliance and take it to your dealer for inspection and repair.
- Page 5 chemical agents may adversely affect the safety of the machine. WARNING: During the use of high pressure cleaning devices, aerosols may form. Inhalation of aerosols can be dangerous for health. WARNING: High pressure jets can be dangerous if misuse. The jet should not be directed at people, live electrical equipment or the machine itself.
- Page 6 WARNING: To ensure machine safety, use only original spare parts from the manufacturer or approved by the manufacturer. WARNING: Water that has flowed through backflow preventers is considered to be non- potable. WARNING: The machine must be disconnected from the power supply during cleaning or maintenance when...
- Page 7 of a cord reel which keeps the socket at least 60 mm above the ground. WARNING: Do not use indoor combustion engines unless proper ventilation has been assessed by the national labour authorities. WARNING: Make sure there are no exhaust emissions near the air intakes.
- Page 8 When using machine, wear protective equipment including safety goggles, safety shoes, safety gloves, safety helmet with visor and double-insulated hearing protection. In order to move the unit easily, bend the lance. Make sure the unit is turned off and unplugged before transporting the unit.
- Page 9 Do not use the machine in extreme weather conditions, when it is very cold. Do not use the machine with ice water. Use the tool in a stable location. The inlet hose can be connected to the water mains with a maximum pressure of 10 bars.
- Page 10 The machine must be transported from one point to another and disconnected. Pull the transport handle all the way upwards. Use this handle to push the machine. Use the handle to lift the machine. Improper transport of the machine may result from accidents and injuries.
- Page 11 To avoid dangerous situations in the event of an accident (for example, contact with or spill of detergents) or equipment failure (such as a puncture or a component failure), please stop using the machine immediately. Check the problem. Have the machine inspected by a qualified technician.
- Page 12 • Personal injury and property damage due to broken accessories or the sudden impact of hidden objects during use. Intended Use Your PRESSURE CLEANER can perform a myriad of tasks in the house and in the garden. It effectively cleans a wide variety of surfaces. Your PRESSURE CLEANER is designed to operate from a cold water supply.
- Page 13 Symbols Read the instruction manual Complies with applicable European standards and directives Protection class II. This means that the device is equipped with double insulation. A plug to connect to the ground is not necessary WARNING! The jet should not be directed to persons, animals, live devices or the device itself.
-
Page 14: Your Product
2. YOUR PRODUCT a. Description 1. Pull rod 14. Soap bottle 2. Rod button 15. Tool box 3. Hose reel rocker 4. Gun support 5. Gun 6. Switch 7. Gun lance with nozzle 8. Wheel 9. Hose reel 10. Cable 11. - Page 15 Electrical diagram c Technical specifications Model HNHP25-95i Voltage 220-240V˜ 50 Hz 130 bar / 13 MPa Assigned pressure 195 bar / 19.5 MPa Allowable pressure 0,7 MPa Max inlet water 7 l/min Assigned flow 7.5l/min Max. flow Power 2500 W Gun vibration 2,5 m/s²...
-
Page 16: Assembly
3. ASSEMBLY Installation Note: The inlet filter (12) must always be installed to filter out sand, limestone and other impurities as these may damage the valves of the pump. Remove the cap from the inlet tube, and attach inlet filter (12) to the inlet. Install the gun. -
Page 17: Use
The minimum recommended length for the water supply pipe is 10 meters (but not more than 25 meters) with a diameter of 12.5 mm to avoid back pressure and any potential damage to your appliance. Make sure it can withstand water and a maximum pressure of 10bar (0.1Mpa). If you want to connect your device to other water sources, make sure the maximum water inlet pressure is 10bar (0.1Mpa). - Page 18 Press the gun trigger until the air has been expelled from the sprayer and water begins to flow. Once the water begins to flow to the nozzle, release the trigger. The sprayer is now running. Now you can turn the machine on.
- Page 19 Close the bottle and connect it to the gun body. Squeeze the bottle head into the hole of the gun body and rotate the head until it is perfectly matched. The rotary knob on top of the bottle can be turned to change the thickness of soap.
-
Page 20: Care And Maintenance
5. CARE AND MAINTENANCE The machine must be switched off and unplugged before any cleaning, maintenance and replacement of parts. Perform maintenance on this machine regularly according to these instructions to keep it in good working condition and extend its life. Always check the high-pressure hose and connectors regularly to ensure there aren't any damage or issues, as these are essential elements for the machine. -
Page 21: Declaration Of Conformity
BUILDER SAS ZI, 32 rue Aristide Bergès – 31270 Cugnaux - France Declares that the machinery designated below: ELECTRIC PRESSURE WASHER Ref.: HNHP25-95i Serial number: 20200916561-20200916660 Complies with the provisions of the Directive “machinery” 2006/42/CE and national laws transposing it:... -
Page 22: Warranty
9. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 23: Failure
10. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 24: Exclusions
11. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
