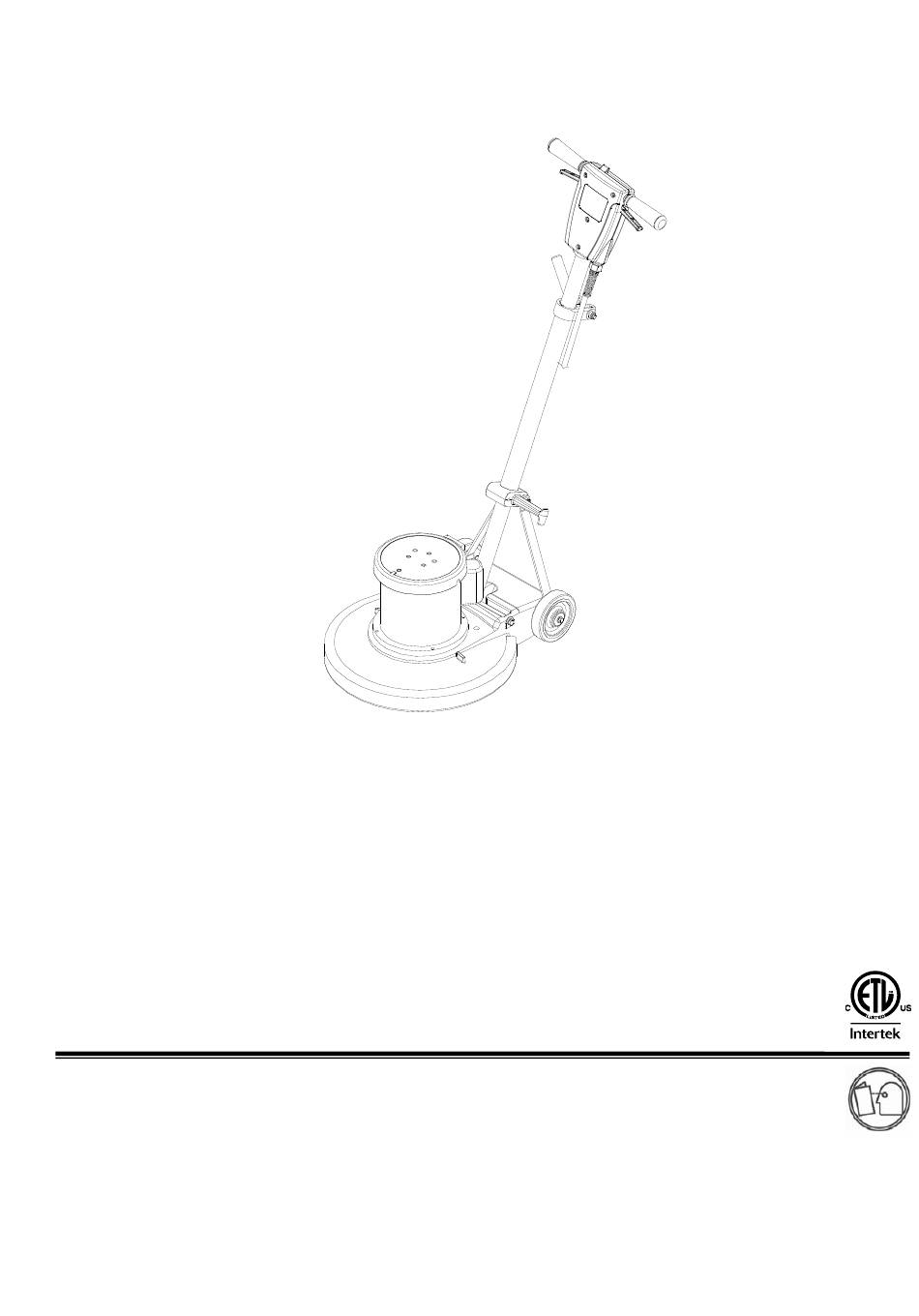

- Page 1 FLOOR POLISHER MODELS: BP17X 1.009-082.0 U17X 1.009-083.0 SPT20X 1.009-086.0 BP20X 1.009-087.0 U20X 1.009-088.0 BPD20X 1.009-089.0 UDS20X 1.009-090.0 BPD17X 1.009-093.0 Operating Instructions (ENG) 86373120-A 10/02/13...
- Page 2 MACHINE DATA LOG/OVERVIEW Model: Date of Purchase: Serial Number: Sales Representative: Address: Phone Number: Warranty Registration Thank you for choosing our product. Warranty registration is quick and easy. Your registration will allow us to serve you better over the lifetime of the product. To register your product go to: http://warranty.karcherna.com/warrantyregistration.aspx 86373120 FLOOR POLISHER...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Machine Data Log......2 Table of Contents ......3 HOW TO USE THIS MANUAL How to use this Manual..... 1-1 SAFETY Important Safety Instructions .... 2-1 Hazard Intensity Level...... 2-3 Grounding Instructions 120V.... 2-5 Grounding Instructions 230V .... -
Page 4: How To Use This Manual
HOW TO USE THIS MANUAL This manual contains the following sections: The OPERATIONS section is to familiarize the operator with the operation and function of the HOW TO USE THIS MANUAL machine. SAFETY OPERATIONS The MAINTENANCE section contains preventive MAINTENANCE maintenance to keep the machine and its PARTS LIST components in good working condition. -
Page 5: Safety
SAFETY IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. To reduce the risk of fire, electric shock, or injury: Use only indoors. Do not use outdoors or expose to rain. Use only as described in this manual. - Page 6 CONSIGNES IMPORTANTES DE SÉCURITÉ L'utilisation d'un appareil électrique demande certaines prècautions LISEZ BIEN L'ENSEMBLE DES CONSIGNES AVANT D'UTILISER CET APPAREIL. Pour réduire les risques d'incendie, d'électrocution ou de blessure : : AVERTISSEMENT Utilisez-le exclusivement dans des endroits fermés. Ne l'utilisez pas en plein air et ne le laissez pas sous la pluie. Utilisez-le exclusivement de la manière décrite dans ce manuel.
-
Page 7: Hazard Intensity Level
SAFETY The following symbols are used throughout this guide as indicated in their descriptions: HAZARD INTENSITY LEVEL There are three levels of hazard intensity identified by signal words – WARNING and CAUTION and FOR SAFTEY. The level of hazard intensity is determined by the following definitions: WARNING –... - Page 8 DEGRÉS DE RISQUES EN CAS DE DANGER Les symboles ci-dessous sont utilisés à travers ce manuel comme illustré dans leurs descriptions : DEGRÉS DE RISQUES EN CAS DE DANGER Il existe trois degrés de risques identifiés par les termes signalétiques –AVERTISSEMENT et ATTENTION et POUR VOTRE SÉCURITÉ.
-
Page 9: Grounding Instructions 120V
SAFETY Grounding Pin GROUNDING INSTRUCTIONS 120V GROUNDING CONNECTION THIS PRODUCT IS FOR COMMERCIAL USING AN ADAPTOR USE ONLY. Grounded Outlet ELECTRICAL: Metal Screw FIGURE A In the USA this machine operates on a 15 amp nominal 120V, 60 hz, A.C. power circuit. The Adaptor amp, hertz, and voltage are listed on the data Tab for Grounding... -
Page 10: Grounding Instructions 230V
SAFETY GROUNDING INSTRUCTIONS-230V Improper connection of the equipment- THIS PRODUCT IS FOR COMMERCIAL USE grounding conductor can result in a risk of ONLY. electric shock. Check with a qualified electrician or service person if you are in doubt ELECTRICAL: as to whether the outlet is properly grounded. The amp, hertz, and voltage are listed on the data Do not modify the plug provided with the label found on each machine. -
Page 11: Safety Label Location
SAFETY SAFETY LABEL LOCATION NOTE: These drawings indicate the location of safety labels on the Machine. If, at any time, the labels become illegible contact your authorized representative for prompt replacement. EMPLACEMENT DE L'ÉTIQUETTE DE SÉCURITÉ REMARQUE : Ces dessins indiquent l'emplacement des étiquettes de sécurité sur la machine. -
Page 12: Technical Specifications
Heavy-duty die cast aluminum deck with heavy- CONSTRUCTION duty rubber bumper, tubular steel adjustable handle with die cast aluminum handle housing MOTOR 1.5HP 115V induction U17X, SPT20X, U20X, BP17X, BP20X 1.75 HP 115V 175/300RPM BPD20X, UDS20X 1.75 HP 230V 175/300RPM BPD17X BRUSH/PAD SPEED... -
Page 13: Handle Installation
HANDLE INSTALLATION WHEN INSTALLING THE HANDLE ASSEMBLY, CHECK ORIENTATION OF THE CORD ASM AND CORD HOOK. MOTOR PLUG RECEPTACLE MOTOR PLUG PIVOT DECK HOLE ASSEMBLY (SEE NOTE) The handle must be installed by qualified personnel. Read all instructions thoroughly. The machine is shipped with handle unassembled. La poignée doit être installée par du personnel qualifié. -
Page 14: Controls
OPERATION NOTE: It is incorrect to make it lock CONTROLS opposite from the way it was assembled by applying more force to the nut. 1. Safety Lock – Prevents unintended operation of the machine. The pivot pin is off center in relationship to the axis of the handle. -
Page 15: Machine Operation
OPERATION NOTE: The machine is equipped with a circuit MACHINE OPERATION breaker to protect the motor in the event an overload condition occurs. The circuit breaker is located on the handle. Push the reset button to restart the machine. If the breaker trips For indoor use only. - Page 16 NOTES: 86373120 FLOOR POLISHER...
-
Page 17: Maintenance
MAINTENANCE SCRUB BRUSHES FINISHED FLOORS NOTE: All original equipment brushes are Nylon Polish is the softest brush. It will gently equipped with “Perform Alert”. This feature will clean finished tile or terrazzo floors without tell the operator when it is time to replace the removing floor finish or floor material. -
Page 18: Machine Troubleshooting
MACHINE TROUBLESHOOTING PROBLEM CAUSE SOLUTION Machine will not run Circuit breaker tripped in Check and reset. building. Power switch failure Test switch for continuity and replace if necessary. Tripped circuit breaker Reset. Faulty power cord Replace. Fuse in motor blown Replace (Dual speed only) CAUTION: To reduce the risk... - Page 19 NOTES: 86373120 FLOOR POLISHER...
-
Page 20: Brush/Pad Driver Group
BRUSH/PAD DRIVER 1 1 A-1C 2A-2K 86373120 FLOOR POLISHER... - Page 21 BRUSH/PAD DRIVER SERIAL NO. PART NO. DESCRIPTION NOTES: FROM 86000120 PAD DRIVER, 17" POLISHER 86284290 PAD DRIVER, 19” HS 86284300 PAD DRIVER, 20" POLISHER 86000140 BRUSH, 17" NYL. POL. W/CLT.PLT 86283800 BRUSH, 17" NYL.SCRUB W/CLT.PLT 86000130 BRUSH, 17" MILD GRIT W/CLT.PLT 86283710 BRUSH, 17"...
-
Page 22: Electrical-120V
ELECTRICAL-120V 86373120 FLOOR POLISHER... - Page 23 ELECTRICAL-120V SERIAL REF PART NO. QTY DESCRIPTION NOTES FROM 86002010 BOOT, 3/8 CIRCUIT BREAKER 86198450 CLAMP, 5/16 NYLON 86369090 CORD SET, ST, 14/50', YLW 86216920 CORDSET, 14/3 X 52 IN, SJT, BLK 86288450 SCR, M4.8 X 10 HHTF TYPE B 86136780 SCR, M3.5 X 40 PHTF 86007110...
-
Page 24: Electrical-230V
ELECTRICAL-230V 86373120 FLOOR POLISHER... - Page 25 ELECTRICAL-230V SERIAL NO. REF PART NO. DESCRIPTION NOTES FROM 86002010 BOOT, 3/8 CIRCUIT BREAKER 86198450 CLAMP, 5/16 NYLON 86369110 CORD SET, EURO,75', BLK 86216920 CORDSET, 14/3 X 52 IN, SJT, BLK 86288450 SCR, M4.8 X 10 HHTF TYPE B 86136780 SCR, M3.5 X 40 PHTF 86007110 SWITCH, 25A SPST 125-250V SNAP...
-
Page 26: Deck
DECK 9A-9D 2A-2B 86373120 FLOOR POLISHER... - Page 27 DECK SERIAL NO. REF PART NO. QTY DESCRIPTION NOTES FROM 86214930 AXLE, MAIN POLISHER BP17X, BPD17X, 2A 86216340 BUMPER, EXTRUSION 41.0" U17X BP20X, UDS20X, BPD20X, U20X, 2B 86216350 BUMPER, EXTRUSION 50.8" SPT20X 86216600 CAP, EXTRUSION 86221860 LINK, HANDLE ADJUST 86271550...
-
Page 28: Handle
HANDLE 86373120 FLOOR POLISHER... - Page 29 HANDLE SERIAL NO. REF PART NO. QTY DESCRIPTION NOTES FROM 86215130 BAR, HANDLE ADJUST 86366010 BUMPER, FLOOR MACHINE 86004070 GRIP, POLISHER HANDLE 86218440 HANDLE, POLISHER 86005150 LOCK, SAFETY HANDLE 86005160 LEVER, SWITCH 86136350 NUT, M6 HEX FINISH 86136360 NUT, M10 X 1.5 HEX NYLOK PLTD 86222560 PIN, PIVOT, HANDLE ADJUST 10 86223550...
-
Page 30: Motor
MOTOR DUAL SPEED ONLY 86373120 FLOOR POLISHER 5-11... - Page 31 MOTOR SERIAL NO. REF PART NO. QTY DESCRIPTION NOTES FROM BP17X, BP20X, 86378300 MOTOR, ASM. 1.5HP 120V U17X, SPT20X, U20X BP17X, BP20X, 86217490 COVER, MOTOR U17X, SPT20X, U20X BP17X, BP20X, 86340550 SCREW, 10-32 X .75, FLHMS, ZNPLT U17X, SPT20X, U20X...
-
Page 32: Wiring-120V
WIRING-120V CORD SET -CB1 120V AC 15A -SWITCH -SWITCH -MOTOR SERIAL NO. PART NO. DESCRIPTION NOTES: FROM 86311830 WIRE, 125MM, BLK/14, 76029X76029 86373120 FLOOR POLISHER 5-13... -
Page 33: Wiring-230V
WIRING –230V CORD SET -CB1 120V AC 15A EMC FILTER -SWITCH -SWITCH EMC FILTER2 -MOTOR SERIAL NO. PART NO. DESCRIPTION NOTES: FROM 86311830 WIRE, 125MM, BLK/14, 76029X76029 5-14 86373120 FLOOR POLISHER... -
Page 34: Suggested Spare Parts
86135540 COUPLING, MTR/GEAR BOX PLSHER BPD17X 86223390 RECTIFIER, 50A 600V BRIDGE SPDS20, UDS20 86312530 BREAKER, CIRCUIT 10A, VDE BPD17X U17X, SPT20X, BP17X, 86312460 BREAKER, 14A, VDE CIRCUIT BP20X, U20X, BPD20X, USD20X BP17X, U17X, SPT20X, 86377960 COUPLING, SHEAR BP20X, U20X 86373120 FLOOR POLISHER... - Page 35 NOTES: 86373120 FLOOR POLISHER 5-16...
Need help?
Do you have a question about the BP17X and is the answer not in the manual?
Questions and answers
Pad will not stay on
The Windsor BP17X pad may not stay on due to one of the following reasons:
1. Pad not centered – Re-center the pad properly.
2. Damaged or unevenly worn pad – Replace the pad if it is worn or damaged.
3. Damaged pad driver – Replace the pad driver if it is faulty.
4. Sheer coupling failure – If the motor runs but the pad does not turn, replace the coupling.
Check these possible issues and take the necessary corrective actions.
