Titan Controls Helios 11 Instruction Manual page 4

Troubleshooting Tips
If the Helios 11 is not performing as expected, try the following:
a. Confi rm that your power input is active from your breaker panel and providing 240
Volts/ 30 Amps/60 Hz to the controller.
b. Check the voltage input of your incoming cord set using a voltage test meter to verify
power is fl owing to the controller.
c. Make sure all of your connections are tight. Loose connections can cause "arcing".
d. Then confi rm that power is active and proper at your 240 volt outlets.
e. Verify that your power cords and ballasts are functioning properly and that there are
no shorts or arching occurring.
f. Should you fi nd your circuit breaker keeps tripping, check your breakers to verify that
they are the right amperage for your application.
g. If you unplug the trigger cord set and your lights remain on, contact us immediately
for resolution.
h. Still having problems with your Helios 11? Please contact our Technical Service
Representative to assist you further.
Controller Specifi cations:
• Size = 8"H x 6"W x 4"D
• Weight = 3.5 lbs.
• Voltage Input = 240 VAC
• Voltage Output = 240 VAC
*Relay Coil Voltage = 120 Volts
• Maximum Amperage = 30 Amps
*Maximum Wattage = 4000 Watts (1000 watts per outlet)
• Hertz = 60Hz
* Receptacle Type: Accepts NEMA 6-15R and 5-15R cord sets
*Electrical Relay Operations = 100,000 Cycles
• RoHS compliant = Yes
• Storage Temperature = 32°F (0°C) to 135°F (57°C)
• Operating Temperature = 40°F (5°C) to 125°F (52°C)

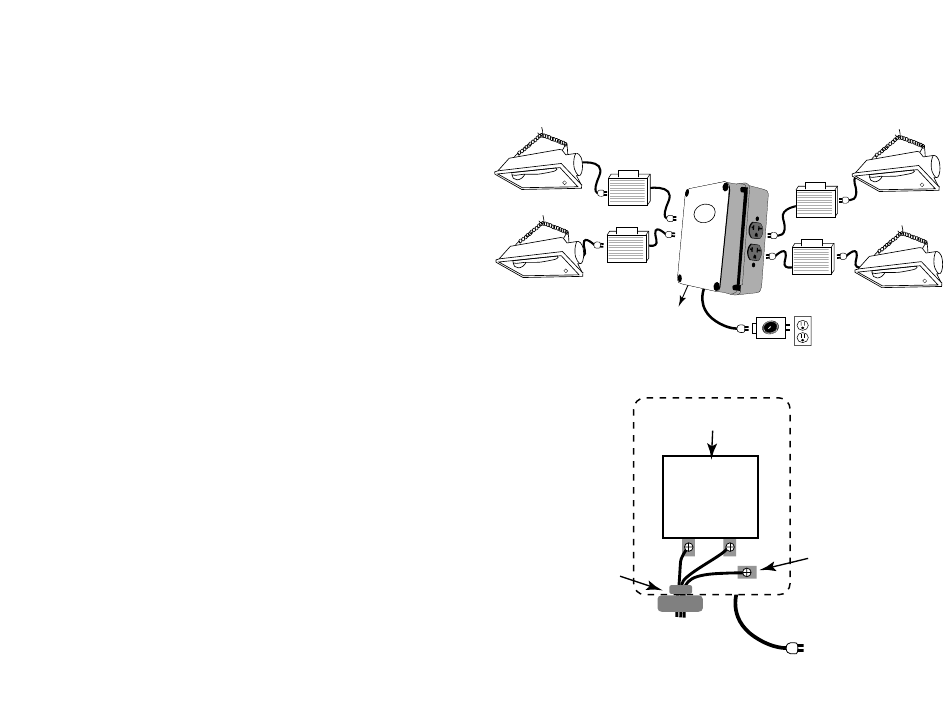

Installation Example
Controlling a Light Bank
Sun System
R
to 240 Volt Ballast
Helios 11
240 Volt
to 240 Volt Ballast
Sun System
R
to 30 Amp
Power Source
240 Volts
Inside Unit
Heavy Duty
Contactor Relay #1
240 Volt Only
Power Inputs
Input #1
120 VAC
Romex
Clamp
30 Amp
Power Input
10/2 with ground
167ºF (75ºC)
Sun System
to 240 Volt Ballast
to 240 Volt Ballast Sun System
to 120 Volt
Trigger
Titan Apollo
24 HR 120 Volt
Timer
Input #2
120 VAC
Ground
Lug
to 120 Volt
Trigger
R
R
