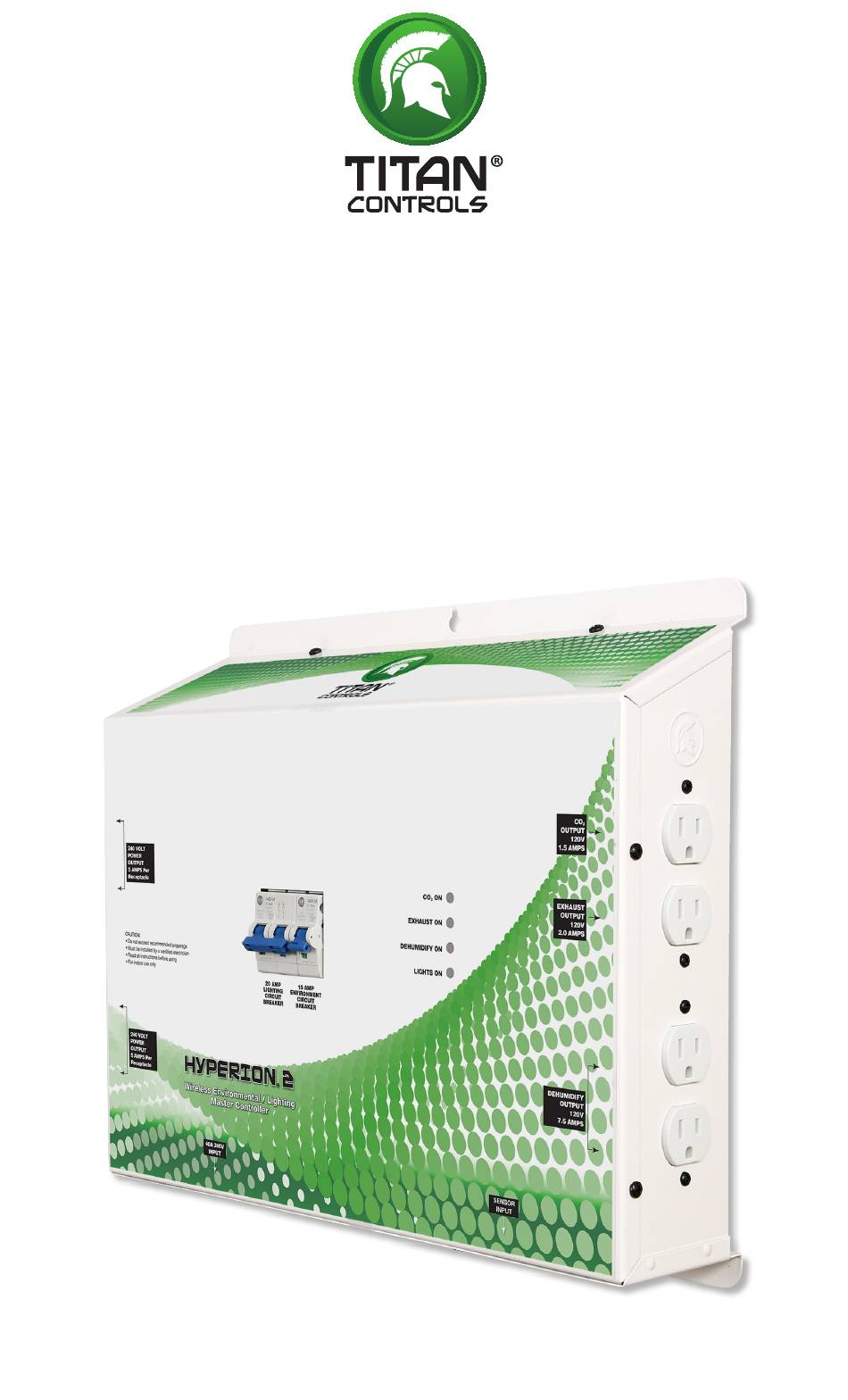

- Page 1 HyperioN ® Product #702880 Wireless Environmental / Lighting Master Controller Instruction Manual www.titancontrols.net...
-
Page 2: Table Of Contents
Hyperion 2 Table of Contents ® Overview ....................4 Figure 1: Control Network ............... 5 Quick Set Up Guide ................6 Figure 2: Master Controller ..............5 Control Description ................7 Daytime and Nighttime Defined..............7 Wireless Communication .................7 Daytime Control ..................7 Controlling Relative Humidity (RH) ............7 Controlling Temperature ...............8 Controlling CO ...................8... - Page 3 Empty CO Tank Condition ..............16 No Measured Light Condition ..............16 No Measured Darkness Condition ............16 Lighting Schedule Interrupted Condition ..........17 Temperature Sensor Error ..............17 RH Sensor Errors ..................17 Sensor Error ...................17 Real Time Clock Error ................17 Table 2: Remote Control Remote Control Codes ........18 Remote Sensor LED ................18 Table 3: Remote Sensor Module LED Codes .........19 Calibration ...................20...
-
Page 4: Overview
& tank system, and a 240V AC four light system. Separate Daytime and Nighttime control parameters are used to keep the room’s environment at optimum growing conditions throughout a 24-hour period. The Hyperion 2 is the complete solution to your indoor gardening requirements! - Page 5 Remote Controller 120V AC Circuit Light Exhaust Output Exhaust Power: 40 Amps/240V AC/60Hz...
-
Page 6: Quick Set Up Guide
Quick Set up Guide The Hyperion 2 Control is set up with default Daytime and Nighttime ® control parameters that enable it to be used immediately out of the box. To quickly set up the Hyperion 2, follow these instructions (use Figures 1 and ®... -
Page 7: Control Description
Control Description Daytime and Nighttime Defined The remote sensor has a photocell that it is used to determine if the controller will operate in Daytime or Nighttime mode. For the purpose of this document, Daytime is defined as the time when the remote sensor senses light and Nighttime is when it does not sense light in the room: The actual time-of-day does not contribute to Daytime or Nighttime modes of the Hyperion... -
Page 8: Controlling Temperature
Controlling CO2: During the Daytime, when the CO reading drops below the setpoint minus the hysteresis (the setpoint minus 100 ppm), the CO output will be activated. The CO output will remain on until the reading rises to the desired setpoint. When the CO reading reaches the setpoint the output will then turn off. -
Page 9: Light Odometer Feature
Light Odometer Feature (Change Bulbs Icon): The Hyperion 2 monitors the total time the lights output has been enabled. ® After 4,000 hours the remote controller will show the change bulbs icon. This is used to indicate that the grow lights may be approaching the end of their useful life. -
Page 10: Checking And Adjusting The Hyperion
Checking and Adjusting the Hyperion 2 Settings ® Checking the Hyperion 2 Control Parameters: ® 1. Press and hold the Menu button until the first parameter (LIGHTS) Figure 3: Remote Controller begins to blink. 2. Use the Menu button to cycle through each of the parameters. -
Page 11: Resetting The Light Odometer (Change Bulb Icon)
Table 1: On Period Settings for Hyperion 2 Lighting Control ® ON PERIOD Description 12 hrs. Flowering: lights stay on for 12 hours in a 24-hour period. 18 hrs. Vegetative: lights stay on for 18 hours in a 24-hour period. Custom Duration can be changed from 1 to 23 hours in a 24-hour period. -
Page 12: Setting The Current Time
To Reset the Light Odometer and Clear the Change Bulbs Icon: 1. Follows steps 1 through 3 (on page 11) to display the current number of hours logged on the light odometer. 2. Press and hold the Select button for 5 seconds while the display is showing the current odometer reading. -
Page 13: Battery Replacement
Battery Replacement: The remote controller uses a standard BR2325 lithium coin cell battery to keep time while it is unplugged: this battery typically last 10+ years before replacement is necessary. When the battery’s charge had been depleted, the Low Battery icon will appear on the display and the time will show dashes. -
Page 14: Co And Rh Settings
and RH Settings: To avoid making any changes, allow 5 seconds with no buttons pressed at any time during this procedure: the display will stop blinking and the system will return to normal operation. 1. Follow steps in the Checking The Hyperion 2 Control Parameters ®... -
Page 15: Codes And Errors
Codes and Errors Each of the conditions or errors described below has a code that is shown on the remote controller and can be used to identify the condition. Table 2, located on page 18, is a complete list of the codes reported by the Hyperion 2’s remote controller. -
Page 16: High Humidity Condition
High Humidity Condition: The Hyperion 2 displays a High Humidity warning by showing CODE 4: ® this occurs when the room’s RH rises above 80% and remains there for 30 minutes. This condition is automatically cleared when the RH drops below 80%. -
Page 17: Lighting Schedule Interrupted Condition
Lighting Schedule Interrupted Condition: If the Hyperion 2 has been set to run a lighting schedule and the schedule ® was interrupted for any reason (including a power failure), the remote controller will show a CODE 10. This indicates that the lights were not on for the entire scheduled time. -
Page 18: Remote Sensor Led
Table 2: Remote Control Remote Control Codes Code # Code Type Description Code 1 Over Temperature Temperature is greater than or equal to 95° F while the Lights Output is enabled. Code 2 High Temperature Temperature is greater than or equal to 95° F for an excess of 30 minutes while the Lights output is disabled. -
Page 19: Table 3: Remote Sensor Module Led Codes
Table 3: Remote Sensor Module LED Codes LED Code Meaning Green: Solid on (no flashes). Calibration of CO sensor was successful. (see CO Calibration section) Green: Normally on, flashes off Daytime mode and functioning twice. normally. Green: Normally off with two green Nighttime mode and functioning flashes. -
Page 20: Calibration
Calibration Calibration: The Hyperion 2 remote sensor is equipped with two buttons located on ® the bottom of the unit. It normally requires calibration approximately every 3 years. The button on the left (Figure 4) is used to place the controller into CO Calibration mode: the Hyperion 2’s CO... -
Page 21: Hyperion ® 2 Wireless Control Network
Hyperion 2 Wireless Control Network ® The Hyperion 2 is equipped with transceivers that operate in the non- ® licensed 2.4 GHz frequency band and are FCC (USA), IC (Canada), and ETSI (Europe) compliant. The remote sensor and remote controller communicate wirelessly and allow remote viewing of the controlled space’s conditions. -
Page 22: Remote Controller Behavior
Remote Controller Behavior: If the remote controller is unable to communicate with the remote sensor after the control network has already been formed, it will show dashes for all readings and NETWORK 0 in the lower right-hand corner. When wireless communication has been re-established and is functioning properly, the network code will be cleared and the display will function normally. -
Page 23: Rebuilding The Wireless Network
Rebuilding The Wireless Network: Under normal circumstances it will not be necessary to rebuild the wireless network as it is preset at the factory. However, if necessary, the wireless network can be rebuilt by follow these steps: 1. Press and hold the Network button on the remote sensor (refer to Figure 4) until the LED illuminates solid yellow (Table 3): this will place... -
Page 24: Factory Defaults And Control Limits
(3) years from the date of purchase. • During the warranty period, Titan Controls will, at our option, and ® without charge, repair or replace this product if the controller or any of its components fail or malfunction. - Page 25 • Defective controllers need to be returned with the “proof of purchase/receipt”. • For additional warranty information, contact a Titan Controls Technical ® Service Representative (888-808-4826) or your Dealer. Our normal business hours are Monday – Friday, 8 a.m. to 5 p.m. Pacific Standard Time.
-
Page 26: Troubleshooting Tips
Troubleshooting Tips If the Hyperion 2 is not performing as expected, try the following: ® • Confirm that your power input is active from your breaker panel and providing 240 Volts / 40 Amps / 60Hz to the controller. • Check the voltage input of your incoming cord set using a voltage test meter to verify power is flowing to the controller. -
Page 27: Service And Repair Program
Once we receive the unit back, we will repair the controller within 48 hours (business) and return it to you freight prepaid via UPS ground shipment. Include the following if returning directly to Titan Controls ® •... - Page 28 1 Square = ____ Foot/Feet VANCOUVER, W ASHINGTON U.S.A. Revised 06/29/2017AW #111810 © Titan Controls ®...
