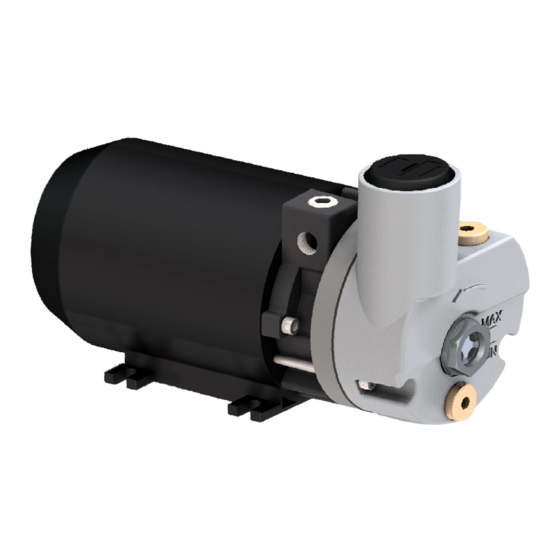

- Page 1 Instruction Manual Rotary Vane Vacuum Pumps PB 0004 C PC 0004 C Busch Vyroba CZ s.r.o. Svárovská 620, CZ 460 01, Liberec 11 Czech Republic 0870160580/B0001_en / Original instructions / Modifications reserved 26/09/2019...
-
Page 2: Table Of Contents
Table of Contents Table of Contents 1 Safety........................... 3 2 Product Description ..................... 4 2.1 Operating Principle....................4 2.2 Application ......................5 2.3 Start Controls ....................... 5 2.4 Standard Features....................5 2.4.1 Motor Thermal Protection................5 2.5 Optional Accessories..................... 5 2.5.1 Inlet Filter ....................5 3 Transport ........................ -
Page 3: Safety
Safety Prior to handling the machine, this instruction manual should be read and understood. If anything needs to be clarified, please contact your Busch representative. Read this manual carefully before use and keep for future reference. This instruction manual remains valid as long as the customer does not change anything on the product. -
Page 4: Product Description
2 | Product Description Product Description Suction connection Oil drain plug Discharge connection Oil sight glass Oil fill plug Exhaust filter Directional arrow Nameplate NOTE Technical term. In this instruction manual, we consider that the term ‘machine’ refers to the ‘vacuum pump’. -
Page 5: Application
Conveying of other media leads to an increased thermal and/or mechanical load on the machine and is permissible only after a consultation with Busch. The machine is intended for the placement in a non-potentially explosive environment. The machine is capable of maintaining ultimate pressure, see Technical Data [► 20]. -
Page 6: Transport
3 | Transport Transport NOTICE In case the machine is already filled with oil. Tilting a machine that is already filled with oil can cause large quantities of oil to in- gress into the cylinder. Starting the machine with excessive quantities of oil in the cylinder will immediately break the vanes and ruin the machine! •... -
Page 7: Installation
• Make sure that all provided covers, guards, hoods, etc. are mounted. If the machine is installed at an altitude greater than 1000 meters above sea level: • Contact your Busch representative, the motor should be derated or the ambient temperature limited. -
Page 8: Connecting Lines / Pipes
In case of very long connection lines it is advisable to use larger line sizes in order to avoid a loss of efficiency. Seek advice from your Busch representative. 5.2.1 Suction Connection NOTICE Ingress of foreign objects or liquids. -
Page 9: Filling Oil
Use of an inappropriate oil. Risk of premature failure! Loss of efficiency! • Only use an oil type which has previously been approved and recommended by Busch. For oil type and oil capacity see Technical Data [► 20] and Oil [► 20]. Check oil level 0870160580_PB_PC0004C_B0001_IM_en... -
Page 10: Electrical Connection
• Provide an overload protection according to EN 60204-1 for the motor. • Make sure that the motor of the machine will not be affected by electric or electro- magnetic disturbance from the mains; if necessary seek advice from Busch. • Connect the protective earth conductor. -
Page 11: Wiring Diagram Three-Phase Motor
Installation | 5 5.4.2 Wiring Diagram Three-Phase Motor NOTICE Incorrect direction of rotation. Risk of damage to the machine! • Operation in the wrong direction of rotation can destroy the machine in a short time! Prior to start-up, ensure that the machine is operated in the right direction. •... -
Page 12: Commissioning
6 | Commissioning Commissioning NOTICE The machine can be shipped without oil. Operation without oil will ruin the machine in short time! • Prior to commissioning, the machine must be filled with oil, see Filling Oil [► 8]. CAUTION During operation the surface of the machine may reach temperatures of more than 70°C. -
Page 13: Maintenance
Risk of injuries! Risk of premature failure and loss of efficiency! • Respect the maintenance intervals or ask your Busch representative for service. • Shut down the machine and lock against inadvertent start up. • Vent the connected lines to atmospheric pressure. -
Page 14: Maintenance Schedule
Weekly • Check the oil level, see Oil Level Inspection [► 14]. • Check the machine for oil leaks - in case of leaks have the machine repaired (contact Busch). Monthly In case of an inlet filter being installed: • Check the inlet filter cartridge, replace if neces- sary. -
Page 15: Oil Change
Maintenance | 7 7.3 Oil Change Drain pan For oil type and oil capacity see Technical Data [► 20] and Oil [► 20]. Check oil level 0870160580_PB_PC0004C_B0001_IM_en 15 / 24... -
Page 16: Exhaust Filter Change
Risk of premature failure! Loss of efficiency! • It is highly recommended that any dismantling of the machine that goes beyond any- thing that is described in this manual should be done through Busch. WARNING Machines contaminated with hazardous material. -
Page 17: Decommissioning
Decommissioning | 9 Busch will only accept machines that come with a completely filled in and legally binding signed ‘Declaration of Contamination’. (Form downloadable from www.buschvacuum.com) Decommissioning • Shut down the machine and lock against inadvertent start up. • Vent the connected lines to atmospheric pressure. -
Page 18: Troubleshooting
The machine does not start. The motor is not supplied • Check the power supply. with the correct voltage. The motor is defective. • Repair the machine (con- tact Busch). The machine does not reach Oil level too low. • Top up oil. the usual pressure on the The inlet filter cartridge (op- •... - Page 19 (EF) and the o-rings. The oil is black. Oil change intervals are too • Flush the machine (con- long. tact Busch). The inlet filter (optional) is • Replace the inlet filter. defective. The machine runs too hot. • See problem "The ma- chine runs too hot".
-
Page 20: Technical Data
0831 163 961 0831 168 344 In case of unfavourable ambient temperature, other oil viscosities may be used. Please consult your Busch repre- sentative for more details. To know which oil has been filled in the machine, please refer to the nameplate (NP). -
Page 21: Eu Declaration Of Conformity
This Declaration of Conformity and the CE-mark affixed to the nameplate are valid for the machine within the Busch scope of delivery. This Declaration of Conformity is issued under the sole responsibility of the manufacturer. When this machine is integrated into a superordinate machinery the manufacturer of the superordinate machinery (this can be the operating company, too) must conduct the conformity assessment process for the superordinate machine or plant, issue the Declaration of Conformity for it and affix the CE-mark. - Page 22 Note...
