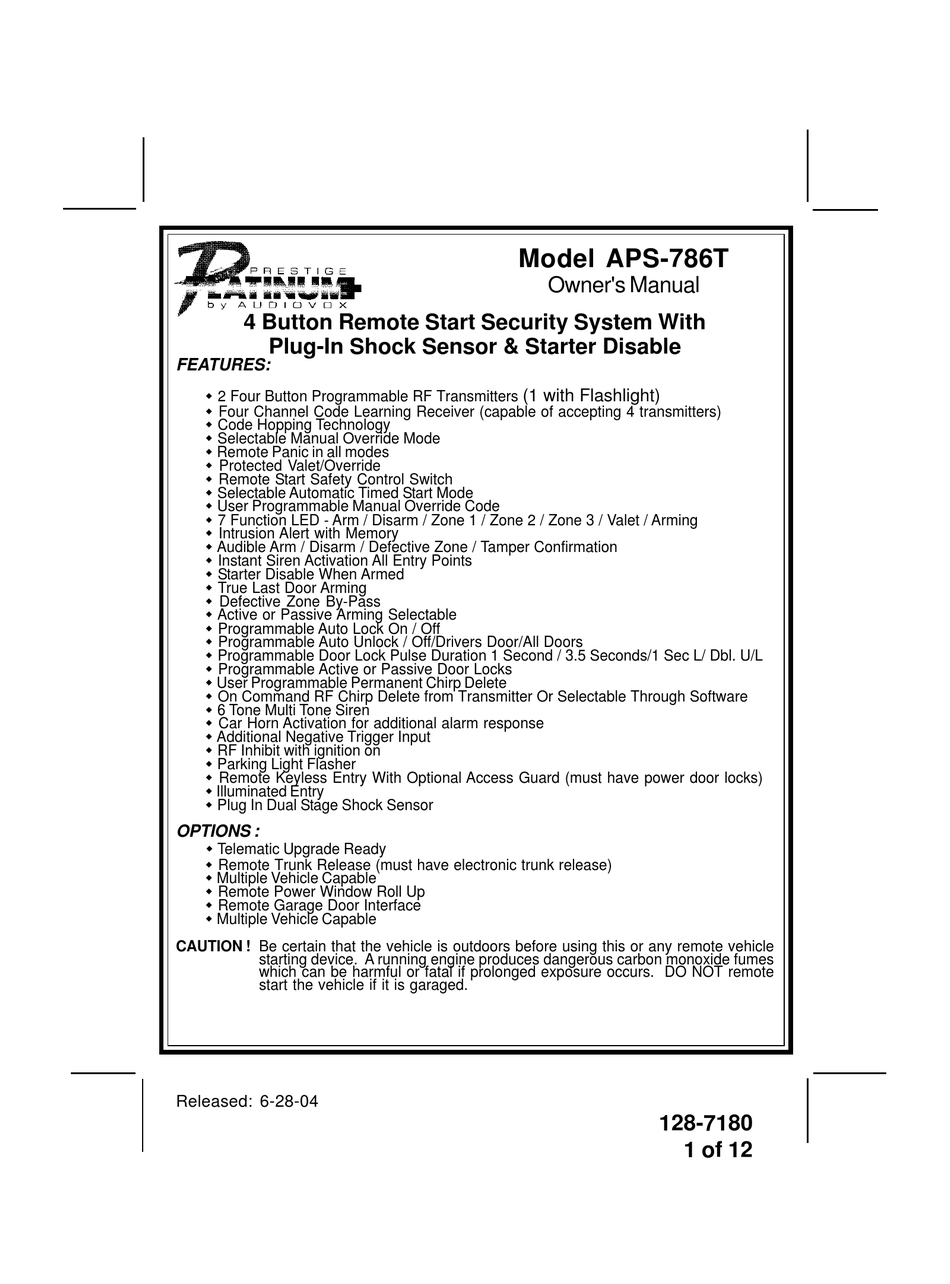

4 Button Remote Start Security System With
Plug-In Shock Sensor & Starter Disable
FEATURES:
! 2 Four Button Programmable RF Transmitters
! Four Channel Code Learning Receiver (capable of accepting 4 transmitters)
! Code Hopping Technology
! Selectable Manual Override Mode
! Remote Panic in all modes
! Protected Valet/Override
! Remote Start Safety Control Switch
! Selectable Automatic Timed Start Mode
! User Programmable Manual Override Code
! 7 Function LED - Arm / Disarm / Zone 1 / Zone 2 / Zone 3 / Valet / Arming
! Intrusion Alert with Memory
! Audible Arm / Disarm / Defective Zone / Tamper Confirmation
! Instant Siren Activation All Entry Points
! Starter Disable When Armed
! True Last Door Arming
! Defective Zone By-Pass
! Active or Passive Arming Selectable
! Programmable Auto Lock On / Off
! Programmable Auto Unlock / Off/Drivers Door/All Doors
! Programmable Door Lock Pulse Duration 1 Second / 3.5 Seconds/1 Sec L/ Dbl. U/L
! Programmable Active or Passive Door Locks
! User Programmable Permanent Chirp Delete
! On Command RF Chirp Delete from Transmitter Or Selectable Through Software
! 6 Tone Multi Tone Siren
! Car Horn Activation for additional alarm response
! Additional Negative Trigger Input
! RF Inhibit with ignition on
! Parking Light Flasher
! Remote Keyless Entry With Optional Access Guard (must have power door locks)
! Illuminated Entry
! Plug In Dual Stage Shock Sensor
OPTIONS :
! Telematic Upgrade Ready
! Remote Trunk Release (must have electronic trunk release)
! Multiple Vehicle Capable
! Remote Power Window Roll Up
! Remote Garage Door Interface
! Multiple Vehicle Capable
CAUTION ! Be certain that the vehicle is outdoors before using this or any remote vehicle
starting device. A running engine produces dangerous carbon monoxide fumes
which can be harmful or fatal if prolonged exposure occurs. DO NOT remote
start the vehicle if it is garaged.
Released: 6-28-04
Model APS-786T
Owner's Manual
(1 with Flashlight)
128-7180
1 of 12
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Audiovox Prestige Platinum Plus APS-786T
Summary of Contents for Audiovox Prestige Platinum Plus APS-786T
- Page 1 Model APS-786T Owner's Manual 4 Button Remote Start Security System With Plug-In Shock Sensor & Starter Disable FEATURES: ! 2 Four Button Programmable RF Transmitters (1 with Flashlight) ! Four Channel Code Learning Receiver (capable of accepting 4 transmitters) ! Code Hopping Technology ! Selectable Manual Override Mode ! Remote Panic in all modes ! Protected Valet/Override...
-
Page 2: Arming The System - Active
Your Remote Start Alarm System has many features and available options some of which are selected at time of installation. For your reference, the list on page 9 of this manual shows what features and options have been installed. Consult your installing dealer for options that may have been installed and are not listed. -
Page 3: Protection While The System Is Armed
ARMING THE SYSTEM - PASSIVE (AUTOMATIC) If the passive arming feature has been selected: 1. Turn the engine off, exit the vehicle, and close all doors, hood and trunk. The dash mounted LED will begin to flash rapidly indicating that the 30 second passive arming timer has begun. -
Page 4: Silent Disarming
NOTE: If the optional 2 step door unlock circuit is installed, when the unlock transmitter button is activated, the drivers door only will unlock, pressing the unlock button a second time will cause all doors to unlock. If your transmitter has a sperate lock unlock buttons, pressing the unlock button anytime after the first unlock command will cause all the vehicle doors to unlock. - Page 5 door locks will remain operational. To use the valet mode, the system must first be disarmed either by using your keychain transmitter, or by activating your personalized manual override code. 1. Enter the vehicle, and turn the ignition key to the on position. 2.
-
Page 6: Eliminating The Normal Arm/Disarm Chirps
NOTE: If 15 seconds of inactivity expire, or if the ignition switch is turned off for more then 5 seconds during any of the above steps, the unit will revert back to the last successfully stored code. Custom Code Programming Example: To Change the code from the factory pre-assigned code of 11 to “52”... -
Page 7: Remote Panic Operation
the chirps are now off. If the chirps were off before you started, the siren will emit one short chirp indicating that the chirps are now on. NOTE: If the vehicle battery is disconnected then reconnected, the unit will return to the default setting of chirps on. - Page 8 minutes. As a visual indication, the parking lights will flash or turn on depending on the programming set up by your installation center. When you arrive at your vehicle, disarm the alarm system by pressing and releasing the Disarm button of your keychain transmitter. Enter the vehicle and turn the ignition key to the on position.
-
Page 9: Telematic Upgrade
ADDITIONAL REMOTE FUNCTION CHANNEL 3 The system has an additional feature, (Channel 3) ,that can be connected to a number of different optional accessories. Some of the more common uses for this channel are: " Remote Trunk Release " Remote Window Close "... - Page 10 Page10 128-7180 10 of 12...
- Page 11 APS-786T SYSTEM FUNCTIONS AT A GLANCE ALARM DASH LED INDICATORS RAPID FLASHING PASSIVE ARMING SLOW FLASHING ARMED DISARMED ON SOLID VALET MODE 3 FLASH... PAUSE INTRUSION ZONE 3 2 FLASH...PAUSE INTRUSION ZONE 2 1 FLASH...PAUSE INTRUSION ZONE 1 ALARM SIREN CHIRP INDICATION 1 CHIRP* 2 CHIRPS* DISARMED...
- Page 12 © 2004 Audiovox Electronics Corporation, Hauppauge, NY 11788 128-7180 Page12 128-7180 12 of 12...
