3 Button Remote Security System
FEATURES:
w 2 Three Button Programmable RF Transmitters
w Three Channel Receiver (capable of accepting 4 transmitters)
w Anti-scan Technology
w Remote Panic in all modes
w Protected Valet
w 7 Function LED - Arm / Disarm / Zone 1 / Zone 2 / Zone 3 / Valet / Arming
w Intrusion Alert with Memory
w Audible Arm / Disarm / Defective Zone / Tamper Confirmation
w Instant Siren Activation (Optional)
w Low Current Horn Output
w True Last Door Arming (hardwire only)
w Defective Zone By-Pass
w Starter Disable
w Hardwire or Voltage Sense Selectable
w Active or Passive Arming Selectable
w Programmable Auto Lock On / Off
w Programmable Auto Unlock On / Off
w Programmable Door Lock Pulse Duration 1 Second / 3.5 Seconds/1 Sec L/ Dbl. U/L
w Programmable Active or Passive Door Locks
w User Programmable Permanent Chirp Delete
w On Command RF Chirp Delete from Transmitter
w 6 Tone Multi-Tone Siren
w RF Inhibit with ignition on
w Parking Light Flasher
w Shock Sensor
OPTIONS:
w Remote Trunk Release
w Remote Keyless Entry
w Multiple Vehicle Capable
w Remote Starter
w Remote Power Window Roll Up
w Remote Garage Door Interface

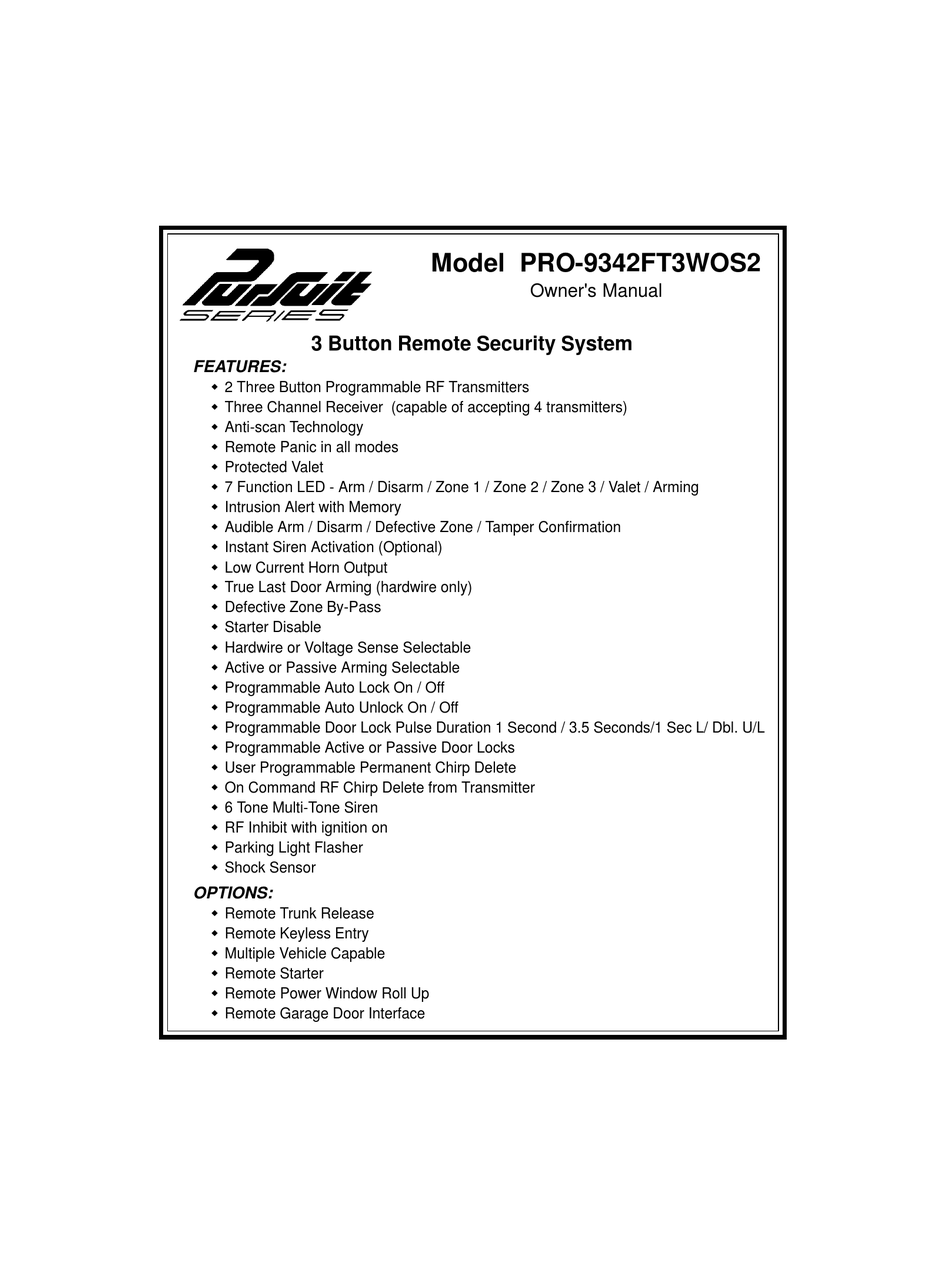

Model PRO-9342FT3WOS2
Owner's Manual
Advertisement
Table of Contents
Related Manuals for Audiovox PRO-9342FT3WOS2
Summary of Contents for Audiovox PRO-9342FT3WOS2
- Page 1 Model PRO-9342FT3WOS2 3 Button Remote Security System FEATURES: w 2 Three Button Programmable RF Transmitters w Three Channel Receiver (capable of accepting 4 transmitters) w Anti-scan Technology w Remote Panic in all modes w Protected Valet w 7 Function LED - Arm / Disarm / Zone 1 / Zone 2 / Zone 3 / Valet / Arming...
- Page 2 ARMING THE SYSTEM - ACTIVE 1. Turn off the engine, exit the vehicle and close all doors, hood lid, and trunk lid. 2. Press and release the Arm / Lock button on the keychain transmitter. þ Red dash mounted LED begins to flash slowly. þ...
- Page 3 sound. The alarm will continue to sound for 30 seconds, then stop and continue to monitor all protected entry points. If the thief left a door opened, the alarm will sound for six 30 second cycles, remain armed and ignore that triggered zone. þ...
- Page 4 Open any door to suspend the automatic arming. þ Parking Lights flash two times. If the parking lights flashed three times, then the alarm was triggered in your absence. Before turning the key on, examine the LED to identify which zone was triggered.
-
Page 5: Manually Overriding Your System
3. To return to normal operation, press and release the pushbutton switch any time the ignition is on. NOTE : Always remember to return the system to the NON VALET mode after servicing to ensure that the vehicle remains protected at all times. MANUALLY OVERRIDING YOUR SYSTEM: USING THE VALET SWITCH MANUAL OVERRIDE Your Security System can be disarmed without the use of the keychain transmitter. - Page 6 NOTE: If 15 seconds of inactivity expire or if the ignition switch is turned off for more then 5 seconds during any of the above steps, the unit will revert back to the last successfully stored code. Custom Code Programming Example: To Change the code from the factory pre-assigned code of 11 to “52”...
- Page 7 NOTE: If the Horn/Siren chirps two times, regardless of the valet switch operation as described above, then the horn and siren chirps have been turned off via programming features 7 and 8. Contact your installation center or Audiovox technical department for information on how to reinstate the chirp feature through programming.
- Page 8 Auto Unlock with ignition key o Passive Arming o No Lock in passive mode o Hardwire doors, hood, and trunk o Siren Activation o Horn Activation © 2000 Audiovox Electronics Corporation, Hauppauge N.Y. 11788 PASSIVE ARMING ARMED DISARMED VALET MODE INTRUSION ZONE 3...
