SKU# NB19909, NB19910
LAGUNA SWIMMING POOL
PACKAGES WITH COVER
INSTRUCTION MANUAL
NB19909: 15-FT ROUND, 48-IN DEEP
NB19910: 18-FT ROUND, 52-IN DEEP
Questions, problems, missing parts?
Before returning to your retailer, contact Blue Wave Customer Service at
1-800-759-0977, Monday – Friday. 8am – 5pm (CST)
V1: 02082023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NB19909 and is the answer not in the manual?

Questions and answers

Rebecca
June 18, 2025

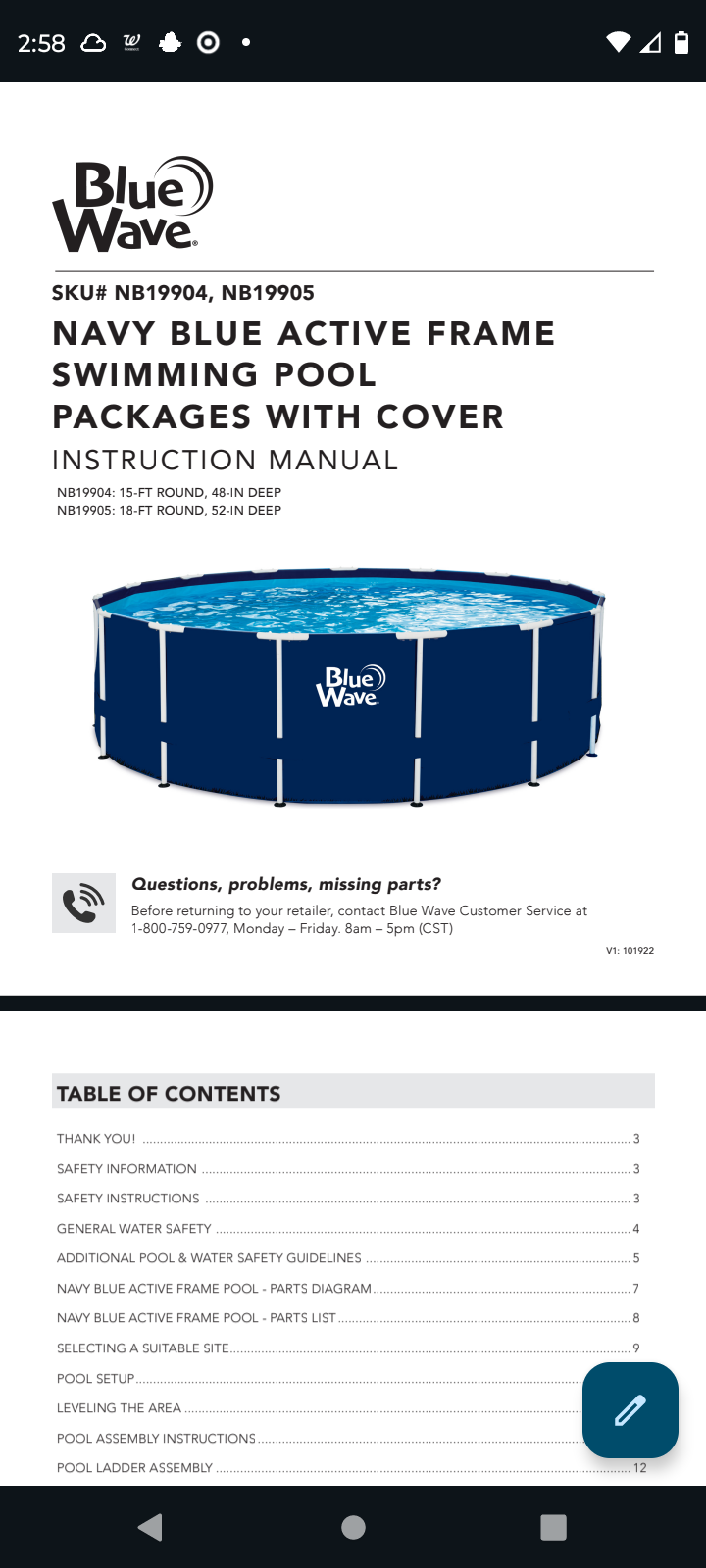

I need the instructions for the NB19904 pool with EZ Clean 80 filter. (15' x 48")

User image 68530ec859e34
0

Related Manuals for Blue Wave NB19909

Summary of Contents for Blue Wave NB19909

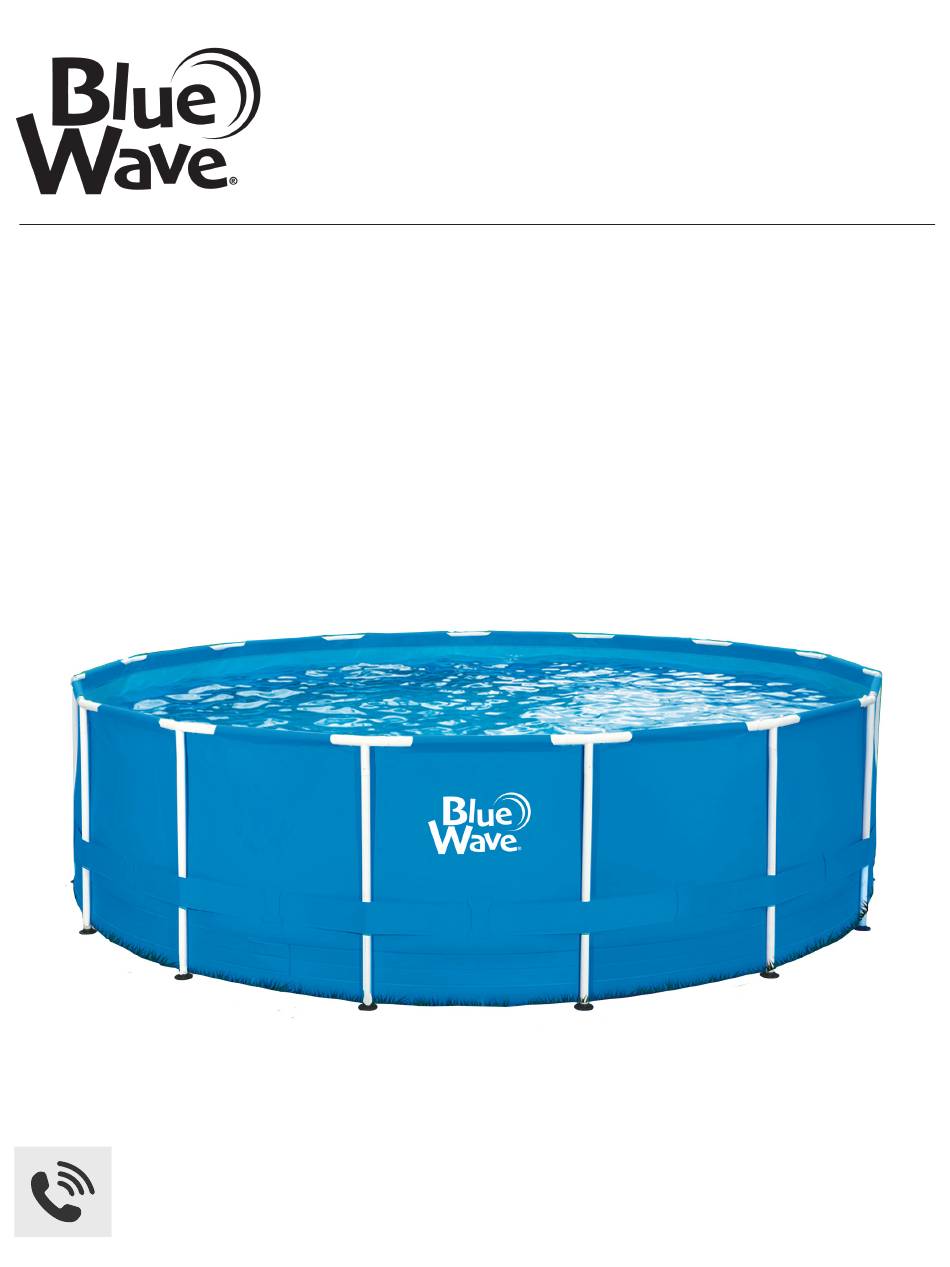

  • Page 1 PACKAGES WITH COVER INSTRUCTION MANUAL NB19909: 15-FT ROUND, 48-IN DEEP NB19910: 18-FT ROUND, 52-IN DEEP Questions, problems, missing parts? Before returning to your retailer, contact Blue Wave Customer Service at 1-800-759-0977, Monday – Friday. 8am – 5pm (CST) V1: 02082023...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS THANK YOU! ............................3 SAFETY INFORMATION ........................... 3 SAFETY INSTRUCTIONS .......................... 3 GENERAL WATER SAFETY ........................4 ADDITIONAL POOL & WATER SAFETY GUIDELINES ................5 LAGUNA POOL - PARTS DIAGRAM ......................7 LAGUNA POOL - PARTS LIST ........................8 SELECTING A SUITABLE SITE ........................

  • Page 3: Thank You

    However, in the rare case of issues during assembly or use of this product, please contact Blue Wave Customer Service at 1-800-759-0977 for immediate assistance before contacting your retailer. Please read the warranty information at the back of these assembly instructions for further details.

  • Page 4: General Water Safety

    SAFETY INSTRUCTIONS (CONTINUED) WARNING: Always know where the cut-off switch for the pump is, so it can be turned off in an emergency. It is necessary to have the GFCI cut-off switch plug accessible after installation of the pool. WARNING: To avoid electrocution, do not permit electric devices i.e., electric lights, telephone, radio, television, hair dryer, etc.

  • Page 5: Additional Pool & Water Safety Guidelines

    ADDITIONAL POOL & WATER SAFETY GUIDELINES • Name a safety supervisor before people enter the swimming pool area. Reinforce supervision when there are several people in or around the swimming pool. • Have personal flotation aids available. • Wet your neck, arms, and legs before entering the water. •...
  • Page 6 ADDITIONAL POOL & WATER SAFETY GUIDELINES • Installers are responsible for the following requirements during pool installation: a) Installers must follow written instructions regarding positioning of all equipment connected to the circulation systems. All of these components must be positioned to prevent access to the pool by young children.

  • Page 7: Laguna Pool - Parts Diagram

    Check all parts and ensure they are present and undamaged before assembly. Images and objects may differ. Report missing or damaged parts immediately to have them replaced. For Customer Service at 1-800-759-0977. damaged or replacement parts, contact Blue Wave ® 1. Pool Liner 2.

  • Page 8: Laguna Pool - Parts List

    LAGUNA - PARTS LIST QTY. QTY. BW No. Parts Description MFG No. 15-FT Round 18-FT Round NBP6253 POOL LINER - 15FT O605015D NBP6254 POOL LINER - 18FT O655218D NBP6174 HORIZONTAL BEAMS - 15FT 3810110W NBP6178 HORIZONTAL BEAMS - 18FT 3212127W NBP6175 VERTICAL LEGS - 15FT 3210117W...

  • Page 9: Selecting A Suitable Site

    SELECTING A SUITABLE SITE Carefully select the site for your new pool. This is the most important decision to ensure the safety and success of your pool’s construction. An incorrect site could cause problems in the future that may result in injury, death, or financial loss. Carefully read the check list below when selecting your site. ACCEPTABLE: TOOLS AND MATERIALS REQUIRED: •...

  • Page 10: Pool Setup

    POOL SETUP POOL SITE PREPARATION Remember, ground preparation is the most important step in the installation of the pool. Do not install the pool over underground power lines, sewer lines, or other structures. Do not install on cement, asphalt, or other hard surfaces. 1.

  • Page 11: Leveling The Area

    LEVELING THE AREA WARNING! Leveling is extremely important: take as much time as necessary to ensure the pool site is completely firm and leveled. • WARNING: VERY IMPORTANT! SITE MUST BE LEVEL, STABLE, COMPACTED SOIL. • CAUTION: You can not use sand or non-compacted soil to provide a level surface for this pool; it will only wash out.

  • Page 12: Pool Assembly Instructions

    POOL ASSEMBLY INSTRUCTIONS Before assembling your product, please take a few minutes to check out the contents and become familiar with all the parts. WARNING! DO NOT overfill the pool. DRAIN the pool to the proper level after a heavy rain. TIP: It will be much easier to install your pool if you unfold it and let it lay in direct sunlight for about 2 hours prior to installation.
  • Page 13 POOL ASSEMBLY INSTRUCTIONS (CONTINUED) 8. Carefully slide the Horizontal Beams (2) into the sleeves of the pool. 9. Connect the T-Fitting (4) to the Horizontal Beam (2). IMPORTANT: The last T-Fitting can be difficult to connect. Connect the first side of the Horizontal Beam to the T-Fitting.
  • Page 14 POOL ASSEMBLY INSTRUCTIONS (CONTINUED) 10. FOR 18’ POOLS ONLY! Insert the Pins (6) down through the top of the T-Fittings until the Pins snap into place on the lower side of the T-fitting. WARNING: The spring pin must be completely seated in the hole of the T-Fitting or your pool will collapse when you fill with water.
  • Page 15 POOL ASSEMBLY INSTRUCTIONS (CONTINUED) 12. FOR 15’ & 18’ ROUND POOLS ONLY! Look through the hole in the vertical leg of the T-Fitting as you insert the Vertical Leg. Rotate the leg until the holes in the Vertical Leg and the T-Fitting align. 13.

  • Page 16: Filtration System, Water Intake, & Return Fitting Installation

    FILTRATION SYSTEM, WATER INTAKE, AND RETURN FITTING INSTALLATION IMPORTANT: BEFORE ADDING WATER TO YOUR POOL YOU MUST INSTALL THE POOL WALL FITTINGS OR ENTIRE FILTRATION SYSTEM FIRST. BEFORE ADDING ADDITIONAL WATER TO YOUR POOL FOLLOW THE INSTRUCTIONS IN THE FILTER MANUAL THAT CAME WITH YOUR FILTER SYSTEM. ALL WATER INTAKE AND RETURN DIAGRAMS WILL BE DETAILED OUT IN THE FILTER MANUAL.

  • Page 17: Safety Warnings

    SAFETY WARNINGS The two following safety warning decals are printed on your pool wall. See the below images for reference. These are pre-installed on your pool. DANGER: COMPETENT SUPERVISION AND KNOWLEDGE OF THE SAFETY REQUIREMENTS IS THE ONLY WAY TO PREVENT DROWNING OR WARNING DECALS PERMANENT INJURY IN THE USE OF THIS PRODUCT! NEVER LEAVE YOUNG CHILDREN UNATTENDED.

  • Page 18: Pool Maintenance & Draining

    POOL MAINTENANCE & DRAINING 1. Keep the pool clean and maintain proper water chemistry by applying the correct pool chemicals. Unsanitary water is a serious health hazard. 2. Maintain pool pH level between 7.2 to 7.6. 3. Carefully follow the installation and other instructions in the filtration system manual. 4.

  • Page 19: Maintenance Kit

    NOTE: These may vary greatly by region. Products Pool Cover. IMPORTANT: Blue Wave Products pool ® 6. Cover pool with a Blue Wave ® cover is not a safety cover. 7. Clean and drain the pump, filter housing, and hoses. See instructions for winterizing the CottonTail balls in your filter manual.

  • Page 20: Pool Cover Use & Safety

    POOL COVER USE & SAFETY If you are going to use a pool cover, solar cover, or solar blanket, please read the following information. POOL COVER, SOLAR COVER, & SOLAR BLANKET WARNINGS: WARNING! AVOID DROWNING RISK. WARNING: Non-secured or improperly secured covers are a hazard. WARNING: Only use the included drawstring to secure the cover to the pool.

  • Page 21: Laguna Pool Warranty

    • Any labor to remove or reinstall a covered pool component is the responsibility of the purchaser (original) pool owner. • The decision to replace or repair any defective component is strictly up to the pool retailer or Blue Wave ®...
  • Page 22 • The warranty starts with the date of purchase not the installation date. WARRANTY VALIDATION AND PROCEDURE TO START A WARRANTY CLAIM: • The pool warranty must be registered with the local retailer or Blue Wave Products within 30 days of the date ®...
  • Page 23 CO UN TRY : EMAIL : PH O NE : I have read and fully understand the warranties made to me by Blue Wave ® Products, Inc.. I am signing this card to register my pool in accordance with your warranties.
