Summary of Contents for Blue Wave Cambrian

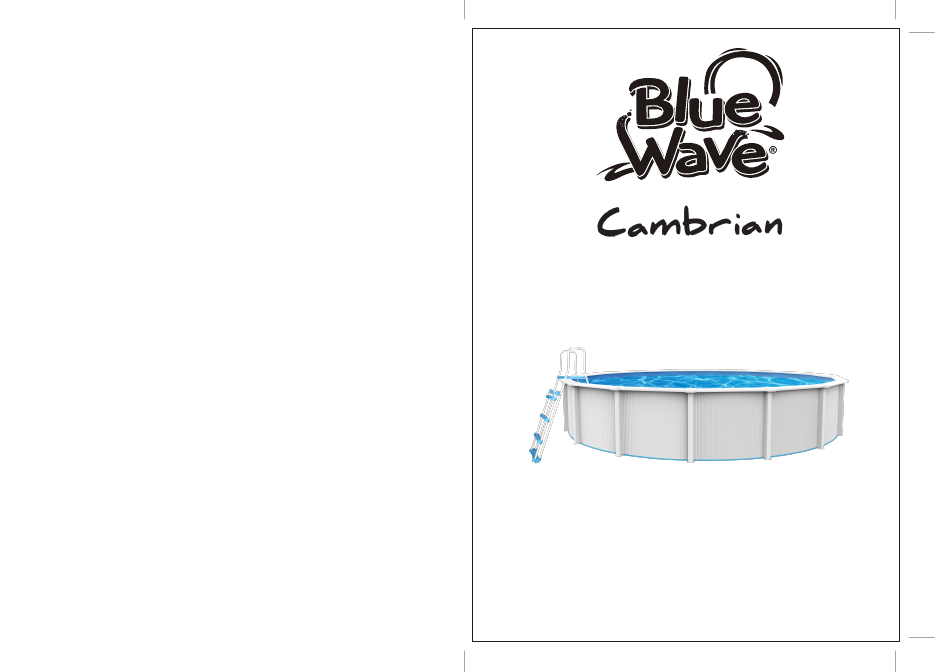

- Page 1 Round Above Ground Pool Instruction Manual VER.1218 NB19765 NB19766...
- Page 2 m (8ft) this pool...
-
Page 3: Product Contents
PRODUCT CONTENTS Mnf. NO. Part Name NB19765 NB19766 PSP5513B PSP7313B POOL POOL 20001001 POOL WALL LINER WALL 20001007 SKIMMER 20001003 POOL LINER SKIMMER 20001009 GROUND SHEET GROUND SHEET 20001008 POOL COVER 20181001 BOTTOM RAIL 20181002 FIX RAIL RESIN TOP PLATFORM POOL COVER 20181003... -
Page 4: Ground Preparation
GROUND PREPARATION The preparation of the ground is the most important step in the installation of the pool. Mark off your pool area by driving stakes. Have a helper hold a tape measure or a string and mark off the pool perimeter using flour or chalk. Remove sod inside the pool area to a distance of 30cm (1ft) beyond dimensions shown in the plot layout around entire perimeter of pool. - Page 5 1. Slide the Bottom Rail into the Metal Piece. IMPORTANT: Leave about 1cm (0.4'') gap between the 2 ends of the Bottom Rail. Repeat this process for all Bottom Rails. (See diagram 4) When all the rails are slided into the Metal Pieces, it should form a complete circle and the diameter should be equivalent to the diameter of the pool itself.
- Page 6 6"H x 6" W 0.8" SAND COVE 0.8" 0.8" INSIDE OUTSIDE INSIDE OUTSIDE Bottom Rail SAND COVE Place the Self Adhesive Tape over the exposed screw heads to seal them off.
- Page 7 Fix Rails ( 0.4" ) Round Rail 72°F then connect another Fix Rail, continue around the circle until all Fix Rails are all joined together. And finally 60°F apply the Round Rails to the Fix Rails. Fix Rail (See diagram 22) 3"...
- Page 8 Resin Metal Pieces at the top Make sure that the Metal Piece at the top is directly above the Metal Piece at the bottom. Place the remaining Metal Pieces on top of the Round Rails, between the Rail Joins and in alignment with the Metal Pieces at the bottom.
- Page 9 Diagram RESIN resin resin Resin Top Platforms. Resin Top Platforms resin Fix with the screws provided. 30,31,32,33 resin resin 27,28,29 Diagram Diagram Diagram Diagram Diagram Diagram...
- Page 10 For antirusting, all edges of cut out have to be covered by vinyl tape or rusting paint. Begin the installation of the through wall skimmer. Follow separate skimmer installations. 6" 6"...
