Summary of Contents for Blue Wave MONTAUK NB19836

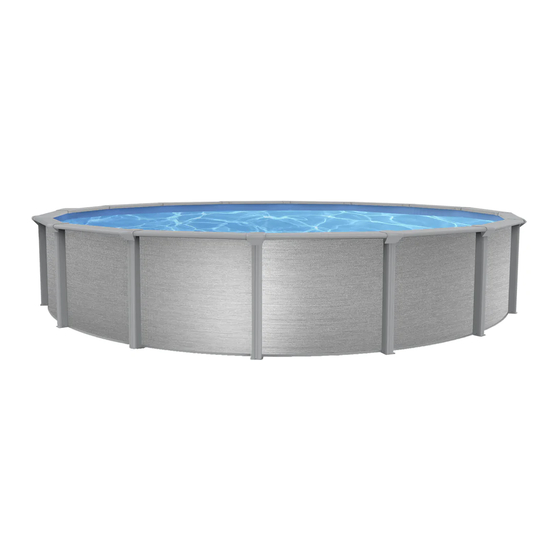

- Page 1 SKU# NB19836, NB19837, NB19838 MONTAUK ROUND 52-IN DEEP HYBRID POOL WITH 7-IN TOP RAIL INSTRUCTION MANUAL Questions, problems, missing parts? Before returning to your retailer, call our Consumer Hotline at 1-800-759-0977, Monday – Friday. 8am – 5pm (CST) V1: 042021...
-
Page 2: Table Of Contents
TABLE OF CONTENTS THANK YOU! ............................3 SAFETY INFORMATION ........................... 3 IMPORTANT SAFETY INSTRUCTIONS ....................4 GENERAL WATER SAFETY ........................5 ADDITIONAL POOL AND WATER SAFETY GUIDELINES ..............6 MONTAUK ROUND STYLE POOL - PARTS LIST ..................7 SELECTING A SUITABLE SITE ........................8 POOL SETUP .............................. -
Page 3: Thank You
THANK YOU! Thank you for purchasing this product. We work around the clock and around the globe to ensure that our products maintain the highest possible quality. However, in the rare case of issues during assembly or use of this product, please contact our Consumer Hotline at 800-759-0977 for immediate assistance before contacting your retailer. -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Please examine equipment before use. If there are any damaged or missing parts at the time of purchase, do not assemble or operate until parts are replaced. To lessen the risk of serious injury or death, follow these rules. The following instructions contain important safety information, please read these important safety instructions and abide by them when installing and using this pool. -
Page 5: General Water Safety
GENERAL WATER SAFETY • Always supervise children around water. • Ensure a pool fence is correctly installed and functioning if it is required by your local municipality or state code. • Follow all local and National Pool Safety Codes. • Learn CPR and keep in practice. •... -
Page 6: Additional Pool And Water Safety Guidelines
ADDITIONAL POOL AND WATER SAFETY GUIDELINES • Name only one safety supervisor when people are in the pool. • Reinforce supervision when there are several users in the swimming pool. Have personal flotation aids available (for people who cannot swim). •... -
Page 7: Montauk Round Style Pool - Parts List
Check all parts and ensure they are present and undamaged before assembly. Images and objects may differ. Report missing or damaged parts immediately to have them replaced. For damaged or replacement parts, contact Blue Wave Customer Service at (800)759-0977. ®... -
Page 8: Selecting A Suitable Site
SELECTING A SUITABLE SITE Carefully select the site for your new pool. This is the most important decision to ensure the safety and success of your pool’s construction. An incorrect site could cause problems in the future that may result in injury, death, or financial loss. Carefully read the check list below when selecting your site. Acceptable: Tools and Materials Required: •... -
Page 9: Pool Setup
POOL SETUP POOL SITE PREPARATION Remember ground preparation is the most important step in the installation of the pool. Do not install the pool over underground power lines, sewer lines, or other structures. Do not install on cement, asphalt, or other hard surfaces. 1. -
Page 10: Leveling The Area
LEVELING THE AREA WARNING! Leveling is extremely important: take as much time as necessary to ensure the pool site is completely firm and leveled. • WARNING: The pool contains thousands of gallons of water. Should the pool collapse due to unleveled ground, it could cause significant property damage and even result in injury or death. -
Page 11: Assembling The Pool Rail
ASSEMBLING THE POOL RAIL IMPORTANT: Leave about 0.6-in (1.5-cm) gap between the 2 ends of the bottom rail (see diagram 5). NOTE: It is recommended that a 2-in patio block is place under each foot plate. The patio blocks must be dug into the dirt so the bottom rails and foot plates lay flush on the ground. •... -
Page 12: Installing The Pool Wall
INSTALLING THE POOL WALL DO NOT ATTEMPT WALL INSTALLATION ON A WINDY DAY! CAUTION: It is advisable to wear protective gloves when handling the metal wall. CAUTION: Have 2 or 3 additional people for the installation of the pool wall into the bottom rail. This is necessary to hold the pool wall upright until the wall ends are connected and the bolts have been inserted in the bolt holes. -
Page 13: Measuring The Pool Wall
MEASURING THE POOL WALL WARNING: A POOL THAT IS NOT LEVEL IS VERY DANGEROUS AND MAY COLLAPSE AT ANYTIME. • Check the pool wall level by placing a 2-in x 4-in board or similar across the diameter of the pool wall and placing a level on the top of the board. -
Page 14: Protective Sand Cushion
PROTECTIVE SAND CUSHION Making a Protective Sand Cushion at the Foot of the Inner Pool Wall ATTENTION: THIS IS A CRITICAL STEP THAT WILL PREVENT THE LINER FROM BEING FORCED OUT UNDER THE WALL, TEARING, AND RELEASING THOUSANDS OF GALLONS OF WATER INTO THE YARD. -
Page 15: Installing The Pool Liner
INSTALLING THE POOL LINER These instructions only apply to overlap liner installation. Follow the liner manufacturer’s instructions for other style liners. IMPORTANT: Only attempt to install the liner on a warm and sunny day, preferably above 72 °F (22° C). Unfold the liner and put it in the sun for 2 hours. This helps to soften the liner. If the temperature is below 60°... - Page 16 INSTALLING THE POOL LINER continued • Remove the clothes pins one at a time while applying the top rails (see diagram 23). • Slide the rail connectors into one end of the top rail, make sure to leave a 0.6-in (1.5cm) gap between the two ends of the rail (see diagram 24), then connect another top rail and continue around the circle until all top rails are joined together (see diagram 24).
-
Page 17: Installing The Metal Plate
INSTALLING THE METAL PLATE • The first metal plate should be placed over the top rail and in the middle of the pool wall joint (see diagram 25). • Place the remaining metal top plates on top of the top rail, between the rail joints and aligned with the metal bottom plates (see diagram 26). -
Page 18: Fixing The Bottom Ledge Joint Cover
INSTALLING THE METAL PLATE continued • Adjust the distance between the two metal plates if necessary to fit the top ledges. Make sure that you place the longer side of the top ledge facing out and the shorter side facing inside the pool. Once you have fixed all the ledges into position, line up the screw holes and lightly fasten with the bolts, washes, lock washes and nuts provided (see diagram 29). -
Page 19: Assembly Of The Resin Vertical Supports
ASSEMBLY OF THE RESIN VERTICAL SUPPORTS • Line up the screw holes for the vertical supports. The first resin vertical support should be placed over the joint in the pool wall. Fix resin vertical supports onto the metal plates. Line up the screw holes and check if the vertical sections are in line. -
Page 20: Installing The Skimmer
INSTALLING THE SKIMMER • For protection and safety, all edges of the skimmer and return fitting windows must be covered by vinyl tape or rust proofing paint. • Follow the skimmer manufacturer’s instructions for skimmer installation. INSTALLATION OF THE FILTRATION SYSTEM ATTENTION: FOLLOW ALL SAFETY WARNINGS INCLUDED IN FILTRATION SYSTEM INSTALLATION MANUAL. -
Page 21: Safety Warnings
SAFETY WARNINGS • Install all safety warning decals and signs included with the pool. • The Filter Pump must be turned off when there are swimmers in the pool! WARNING DECALS TOP LEDGE DECALS: Round pools require three (3) of these warning labels (see diagram 36). -
Page 22: Pool Maintenance
POOL MAINTENANCE 1. Keep the pool clean and maintain proper water chemistry by applying the correct pool chemicals. Unsanitary water is a serious health hazard. 2. Maintain pool pH level between 7.2 to 7.6. 3. Carefully follow the installation and other instructions in the filtration system manual. 4. -
Page 23: Montauk Pool Warranty
MONTAUK POOL WARRANTY Warranties for the skimmer, ladder, liner, and filter system are found in their respective installation manuals. Twenty-Five Year Prorated Limited Warranty IMPORTANT Carefully read and apply all safety warnings, cautions, and instructions detailed in the installation manual and the safety and warning package that came with the pool. - Page 24 Year 16-Year 30 80% of List Price WARRANTY VALIDATION AND PROCEDURE TO START A WARRANTY CLAIM: • The pool warranty must be registered with the local retailer or Blue Wave Products within 30 days of the ® date of purchase. The warranty registration form is located in your safety and warning package.
