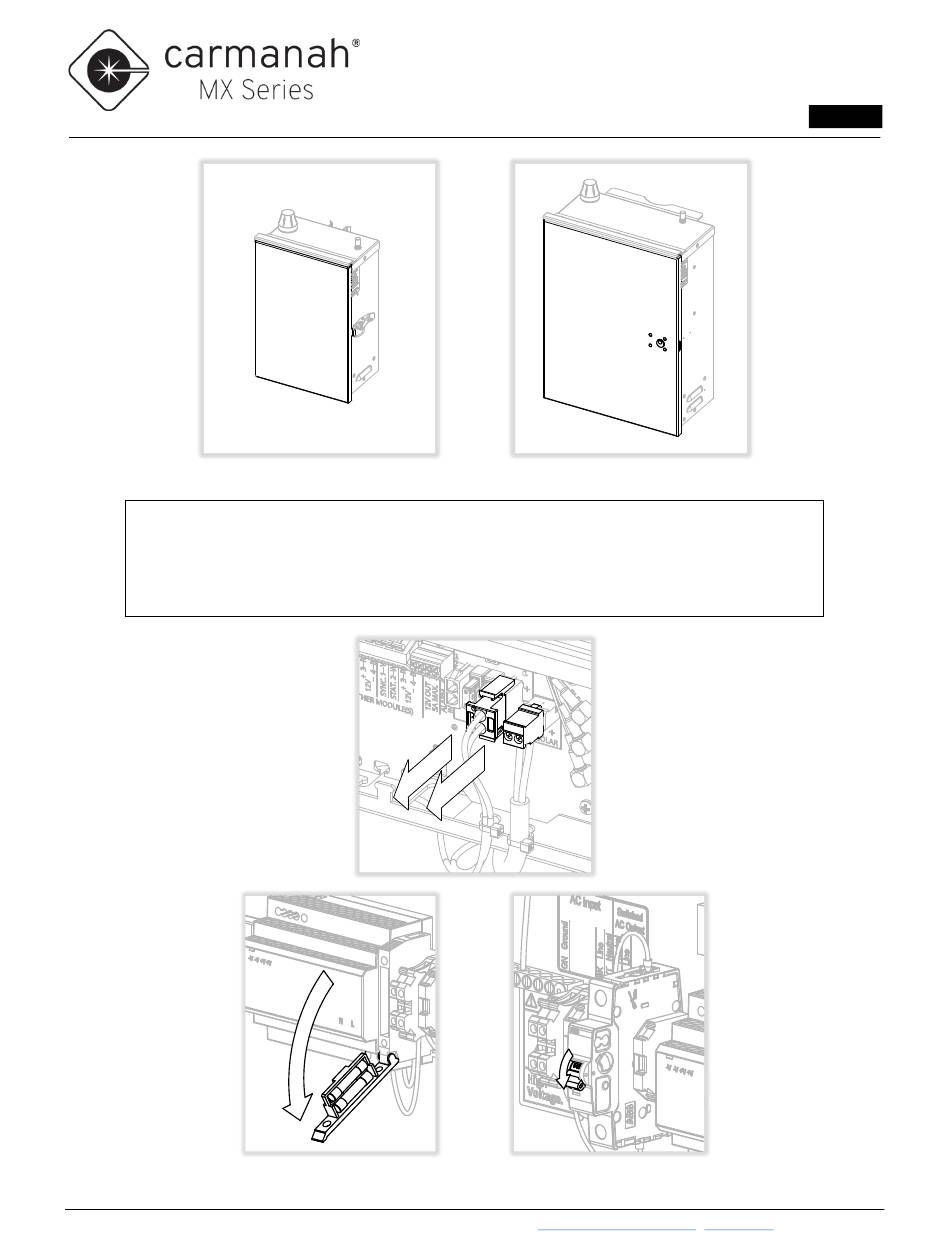

MX 300 & 400 CABINET DOOR REPLACEMENT GUIDE

LEVEL 4

1. Disconnect power to system:

• Solar only: disconnect solar connector and then battery connector.

• MX 300 AC Cabinet Module: open fuse holder.

• MX 400 AC Cabinet Module: turn off breaker.

90834REVA

Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 |

customersupport@carmanah.com

carmanah.com

Table of Contents

Do you have a question about the MX Series and is the answer not in the manual?

Page 1 • Solar only: disconnect solar connector and then battery connector. • MX 300 AC Cabinet Module: open fuse holder. • MX 400 AC Cabinet Module: turn off breaker. 90834REVA Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com...
Page 2 Ensure door is fully closed and locked. Failure to follow these steps can result in the door not fully closing and latching. This can result in the door staying ajar and possible damage or injury resulting in door hinge rivets failing. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com...
Page 3 2. Drill out four rivets securing door hinge to cabinet using a 0.191" drill bit, and remove door. 3. Ensure all rivets have been cleared from mounting holes and all metal debris has been removed from MX 400 cabinet. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com...
Page 4 Ensure door is fully closed and locked. Failure to follow these steps can result in the door not fully closing and latching. This can result in the door staying ajar and possible damage or injury resulting in door hinge rivets failing. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com...

Mx 300Mx 400
