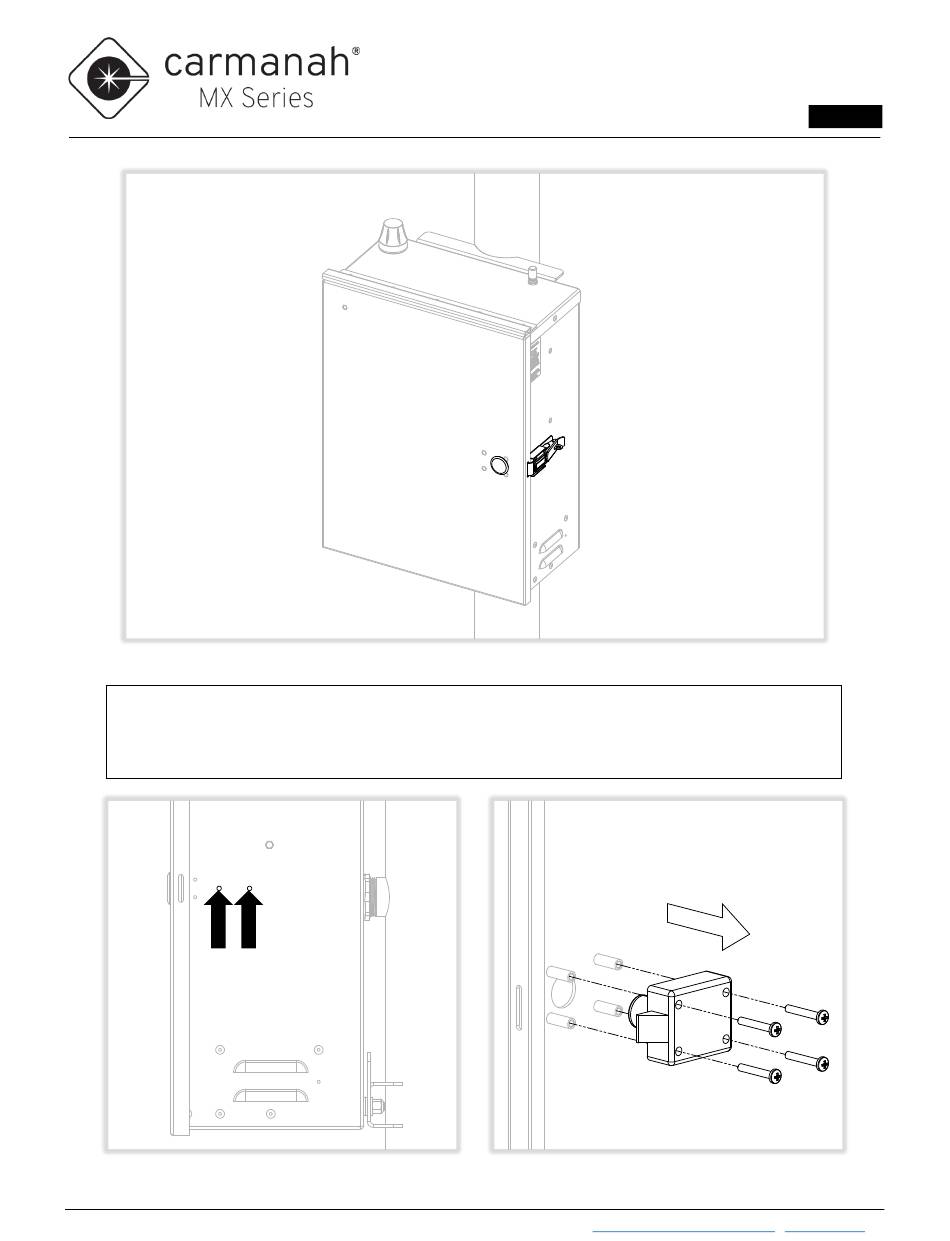

1. Locate two indentations on right side of cabinet shown. Open cabinet, move cables aside and
drill two 0.188" dia. holes through cabinet wall using indentations to locate drill bit. Remove
metal shavings.
2. Remove and dispose of four screws and existing latch from door standoffs on inside of door.
Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 |
MX 400 DRAW LATCH KIT INSTALL GUIDE
customersupport@carmanah.com
MX Series
LEVEL 4
91637REVA
|
