MX Series

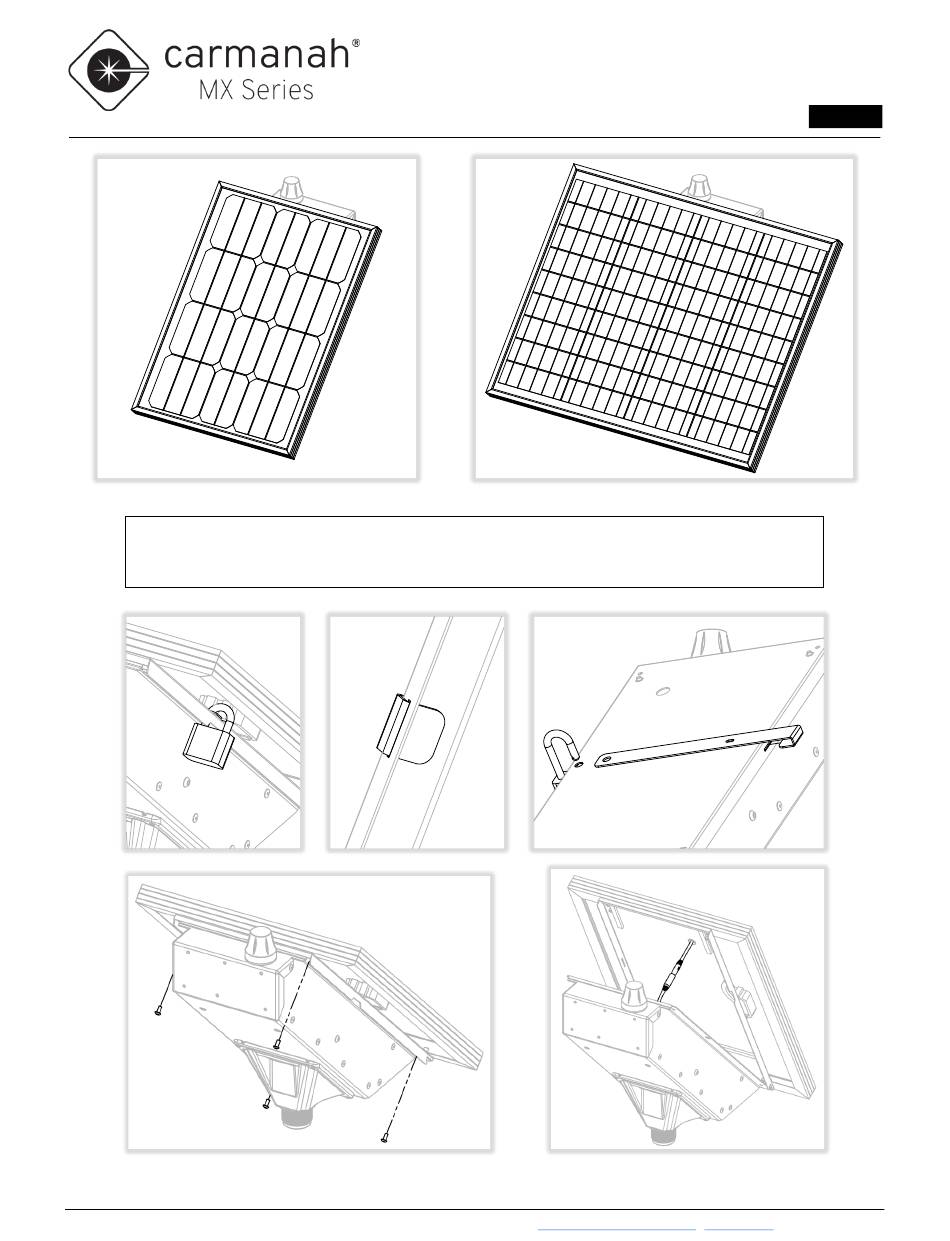

MX 200 SOLAR PANEL REPLACEMENT GUIDE
LEVEL 4
1. Unlock MX 200 and slide off lock bar.
2. Remove four screws securing solar panel to MX 200 chassis.
3. Disconnect solar panel connector and remove solar panel assembly.
90830REVA
1
Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 |
customersupport@carmanah.com
|
carmanah.com
Advertisement
Table of Contents
Related Manuals for Carmanah MX Series
Summary of Contents for Carmanah MX Series
- Page 1 1. Unlock MX 200 and slide off lock bar. 2. Remove four screws securing solar panel to MX 200 chassis. 3. Disconnect solar panel connector and remove solar panel assembly. 90830REVA Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com...
- Page 2 MX 200 SOLAR PANEL REPLACEMENT GUIDE LEVEL 4 4. Remove four solar panel lid screws. 5. Squeeze grommet snap features and push grommet and cable end through hole. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com...
- Page 3 7. Push grommet into lid hole ensuring it is fully snapped in place. 8. Fasten lid to solar panel with four screws. Check MX Field App to ensure solar panel is producing suitable voltage. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com...
- Page 4 Lower solar panel assembly onto chassis and fasten with four screws. 10. Slide tab of lock bar into slot in lid. 11. Align shackle holes and lock MX 200. Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com carmanah.com...
