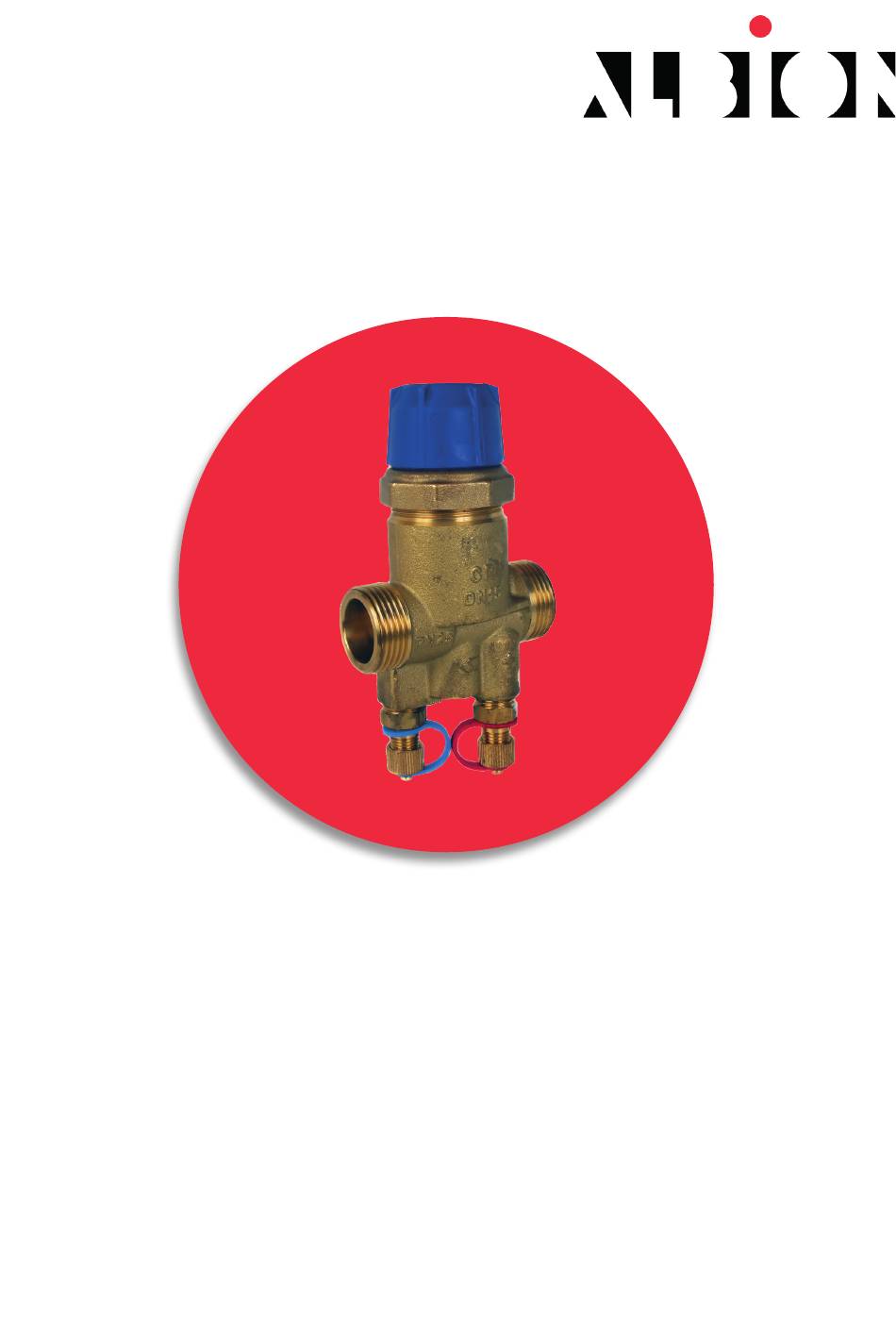

- Page 1 Installation & Operating Manual ART 20C Pressure Independent Control Valve (PICV) Albion Valves (UK) Ltd www.albionvalvesuk.com Email: sales@albionvalvesuk.com Tel: 01226 729900 ART 20C Rev 1...
-
Page 2: Table Of Contents
Valve Installation Balancing Approvals Classification Troubleshooting Warranty Introduction • Albion Valves (UK) Ltd ART 20C is a Pressure Independent Control Valve (PICV) which can be used to regulate the pressure differential in a circuit and to control the amount of fluid flowing through it. • Thanks to their unique design, PICV’s can perform flow regulation, differential pressure control and modulation for comfort control. Flow Regulation When an electric actuator is not present or the plastic cap has been removed, the valve is normally open. -
Page 3: Technical Data
0.86 1.09 1.77 2.65 Albion Valves (UK) Ltd recommend that any ART 20C PICV are sized prior to installation to ensure the correct valve selection. Valve Features • The ART 20C PICV can be used in conjunction with multiple actuators to open, close and modulate the valve. -
Page 4: Valve Installation
The valves may be installed in horizontal or vertical pipework, but the actuator must never be sited underneath the valve. • The valve is uni-directional and should only be used for flow in the direction shown on the valve. • Suitable gaskets / sealing material should be used during installation. • When setting the valve, the valve can be set by rotating the adjustment knob which sits underneath the cap. ART 20C Rev 1... -
Page 5: Balancing
Using a differential manometer, check that the differential pressure is higher or the same as the minimum value reported in the tables. The differential manometer interfaces with the balancing valve through the two binder points of the valve. When balancing is achieved, lock the pre-setting dial by screwing it down completely, preventing it from being unintentionally rotated. ART 20C Rev 1... - Page 6 ART 20C LF - 1/2" DN10 – Pre-set Values Pre-Set Flow 0.012 0.013 0.015 0.018 0.020 0.022 Rate 0.19 0.21 0.24 0.28 0.32 0.35 Min ∆p kPa 0.11 0.12 0.14 0.16 0.18 0.20 Pre-Set Flow 0.022 0.024 0.025 0.026 0.027 0.027...
- Page 7 ART 20C HF - 1/2" DN10 – Pre-set Values Pre-Set Flow 0.024 0.028 0.034 0.040 0.048 0.054 Rate 0.38 0.45 0.54 0.63 0.76 0.85 Min ∆p kPa 13.5 13.5 0.24 0.28 0.33 0.39 0.46 0.52 Pre-Set Flow 0.054 0.060 0.064 0.066...
- Page 8 ART 20C LF - 3/4" DN15 – Pre-set Values Pre-Set Flow 0.024 0.028 0.034 0.040 0.048 0.054 Rate 0.38 0.45 0.54 0.63 0.76 0.85 Min ∆p kPa 13.5 13.5 0.24 0.28 0.33 0.39 0.46 0.52 Pre-Set Flow 0.054 0.060 0.064 0.066...
- Page 9 ART 20C HF - 3/4" DN15 – Pre-set Values Pre-Set Flow 0.027 0.031 0.037 0.043 0.050 0.053 Rate 0.42 0.49 0.59 0.68 0.79 0.85 Min ∆p kPa 12.5 12.5 12.5 0.27 0.32 0.38 0.43 0.50 0.53 Pre-Set Flow 0.053 0.058 0.065...
- Page 10 ART 20C HF - 1" DN20 – Pre-set Values Pre-Set Flow 0.042 0.056 0.068 0.072 0.076 0.088 Rate 0.66 0.88 1.07 1.14 1.20 1.39 Min ∆p kPa 18.5 18.5 0.35 0.47 0.57 0.60 0.63 0.72 Pre-Set Flow 0.088 0.097 0.103 0.106...
- Page 11 ART 20C HF - 1 1/4" DN25 – Pre-set Values Pre-Set Flow 0.076 0.098 0.111 0.119 0.136 0.164 Rate 1.20 1.55 1.76 1.88 2.16 2.61 Min ∆p kPa 0.64 0.83 0.92 0.98 1.10 1.32 Pre-Set Flow 0.164 0.179 0.194 0.206 0.214...
-
Page 12: Approvals Classification
A full risk assessment should be undertaken prior to any works taking place. Warranty • For further details of Albion Valves (UK) Ltd warranty period, please refer to Albion Valves (UK) Ltd ‘Conditions of Sale’ available on our website. ART 20C Rev 1... - Page 13 Delivery We know that time is money, and when a priority project depends on a part you can trust Albion to deliver – next day for all orders placed before 4:00PM. Choice We may have started out with a single brass ball valve, but our range has grown substantially since and we now consider ourselves to be a ‘One Stop Shop’...
