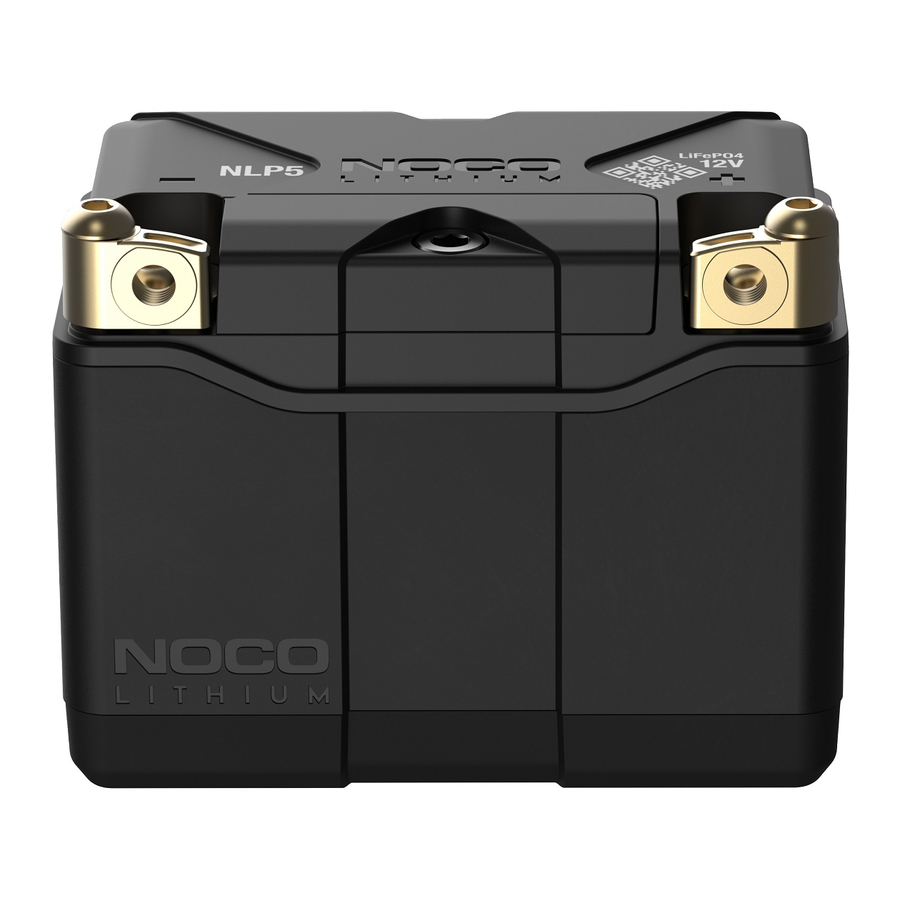

NOCO NLP5, NLP9, NLP14, NLP20, NLP30 - Lithium Powersport Batteries Manual

Installation

Before installing the product, make sure it's fully charged. Visually inspect the product for any signs of damage (e.g., cracks, dents). Make sure the battery terminals are free from dirt, oxidation, or corrosion. Install the product in any horizontal or vertical orientation, except with the terminals facing downward. Follow the below steps for the installation process:

1. Remove the original battery following the manufacturer's guidelines.
2. Compare the height of the original battery to the product. If the original battery dimensions are larger than the product, use the included spacers and foam to adjust the height to match the original battery as closely as possible. For more information on fitment, see our battery fitment guide.
3. Securely fasten the battery to the battery tray/box, making sure the battery cables reach both battery terminals.
4. Using the included fastening hardware, attach the positive (+) battery cable to the positive (+) battery terminal and the negative (-) battery cable to the negative (-) battery terminal. Make sure the battery cables connect to the correct polarity.
5. Securely fasten to the battery by using 70-90 inch-pounds of torque. Do not overtighten.

Battery Fitment

The following table provides the battery fitment and the corresponding spacers and foam needed to achieve proper height, width and length for retrofit applications.

Troubleshooting

Dynamic BMS.
The product utilizes a dynamic Battery Management System (BMS) that monitors the internal lithium-ion cells and disconnects them if a fault occurs. The BMS protects against over-charge, over-discharge, over-current, short-circuit, over-temperature, and undertemperature fault conditions. The BMS also includes cell balancing to maintain voltage balance between individual cells to ensure optimal battery performance. The BMS automatically recovers from fault conditions without user intervention.

In extremely cold temperatures, the battery may be slow to provide power initially. If this occurs, attempt to start the equipment again.
Repeated attempts will self-heat the lithium cells and allow them to provide sufficient power. In order to protect the lithium cells, the BMS will not allow charging below -10ºC (14.0°F). Once the battery temperature reaches -10ºC (14.0°F) or higher, charging will be allowed.

In order to protect the lithium cells, the BMS will not allow charging or discharging when the battery temperature reaches 60ºC (140°F). This situation can occur with high ambient temperature and repeated starting attempts which self-heat the battery. Once the battery cools the BMS will allow charging and discharging.

Charging

To recharge the product, connect a compatible lithium-ion charger to the positive (+) and negative (-) battery terminals. The recommended charging voltage is 14.6-volts. The product uses advanced lithium-ion technology that allows for the rapid charging of the internal lithium-ion cells. This is a table of the charging times, based on 100% depth-of-discharge (DOD), using recommended NOCO Genius Smart Battery Chargers:

Recharge Times Using NOCO GENIUS Chargers.

Technical Specifications

NOCO Five (5) Year Limited Warranty

NOCO warrants that this product (the "Product") will be free from defects in material and workmanship for a period of Five (5) Years from the date of purchase (the "Warranty Period").
To assert a warranty claim, the purchaser must:

1. request and obtain a return merchandise authorization ("RMA") number and return location information (the "Return Location") from NOCO Support by emailing support@no.co or by calling 1.800.456.6626; and
2. send the Product, including RMA number, and receipt to the Return Location.

With Receipt:
5 Year: No charge. With proof of purchase, the warranty period begins on date of purchase.

With NO Receipt:
5 Year: No charge, the warranty period begins on the serial number date.

Important Safety Warnings

READ AND UNDERSTAND ALL SAFETY INFORMATION BEFORE USING THIS PRODUCT. Failure to follow these safety instructions may result in ELECTRICAL SHOCK, EXPLOSION, FIRE, which may result in a SERIOUS INJURY, DEATH, or PROPERTY DAMAGE.

Electrical Shock. Product is an electrical device that can shock and cause serious injury. Do not submerge in water or get wet.

Explosion. Never short-circuit the battery terminals. Do not use with an incompatible charging device. Do not attempt to jump start, charge, or discharge the battery if damaged or frozen. Never charge or discharge the product outside its operating temperatures. Never over-charge or over-discharge the battery. Never exceed the maximum charging currents of the battery. Never incinerate.

Fire. The product is an electrical storage device that can emit heat. Do not cover product or place objects on top of the product. Keep the product away from combustible materials.

Eye Injury. Wear eye protection when operating product. Batteries can explode and cause flying debris. In the case of contamination of eyes or skin, flush affected area with running clean water and contact poison control immediately.

Proposition 65.

This product can expose you to chemicals including lead and exhaust fumes, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www. P65Warnings. ca.gov.

Personal Precaution.
Only use the product as intended. In case of an emergency, have someone nearby while using this product. Wear complete eye protection and protective clothing while working near a battery. Always wash hands after handling batteries and related materials. Do not handle or wear any metal objects when working with batteries, including; tools, watches, or jewelry. If metal is dropped onto the battery, it may spark or create a short-circuit resulting in electrical shock, fire, explosion, which may result in injury, death, or property damage.

Minors.
If the product is intended by "Purchaser" to be used by a minor, the purchasing adult agrees to provide detailed instructions and warnings to any minor before use. The "Purchaser" agrees to indemnify NOCO for any unintended use or misuse by a minor.

Choking Hazard.
Accessories for the product may present a choking hazard to children. Do not leave children unattended with the product or any accessory. The product is not a toy.

Handling.
Handle the product with care. The product can become damaged if impacted. Do not use a damaged product, including, but not limited to, cracks to the casing. Humidity and liquids may damage the product. Do not handle products or any electrical components near any liquid. Store product in dry locations. Do not operate the product if it becomes wet. If the product is already operating and becomes wet, discontinue use immediately.

Modifications.
Do not attempt to alter, modify, or repair any part of the product. Disassembling the product may cause injury, death, or damage to property. If the product becomes damaged, malfunctions or comes in contact with any liquid, discontinue use, and contact NOCO. Never disable the internal battery management system (BMS) for any reason. Any modifications to the product void your warranty.

Operating.
The operating temperature range is -4ºF (-20ºC) to 140ºF (60ºC). The charging temperature range is 14ºF (-10ºC) to 122ºF (50ºC). Do not operate outside of the recommended temperature ranges.

Storage.
The recommended storage temperature range is -4ºF (-20ºC) to 140ºF (60ºC). Never exceed 140ºF (60ºC) under any circumstances. For optimal longevity, store at 77ºF (25ºC) and a state-of-charge (SOC) higher than seventy-percent (70%). The storage self-discharge rate is less than five-percent (5%) per month. It is not recommended to store the battery for more than 6 months without charging.

Ventilation.
The product does not release gas during regular use, so there are no specific ventilation requirements. However, it is crucial to minimize temperature extremes or restricting airflow to the product. A minimum of 0.50" (12.7 mm) of space should be kept around the product to allow for adequate airflow.

Disposal.
The product must be recycled or disposed of separately from household waste. Disposal of the product in household trash is unlawful under state and federal environmental laws and regulations. Always take the product to your local battery recycling center.

Retrofit.
Lithium-ion batteries weigh substantially less than lead-acid batteries of comparable capacity. Some equipment is designed to utilize the weight of lead-acid batteries to achieve weight distribution. Using the product as a replacement battery could impact the weight distribution of the equipment. Understand the consequences of modified weight distribution and ensure safe weight distribution. You assume all responsibility and liability for any damages, injuries, or accidents that may occur due to degraded stability.

Charging.
The product is a 12-volt lithium-ion battery. Do not use a charger that utilizes a pulse charge or a desulfation feature. For optimal performance, we recommend only using the 12-volt lithium mode on NOCO Genius chargers. If using a third-party charger, it must be compatible with 12-volt Lithium Iron Phosphate (LiFePO4) batteries with a charging voltage of 14.6-volts, and be certified under one or more of the following standards: IEC60601, UL1236, RCM, PSE or CE (LVD, EMC). Be cautious of using low-quality chargers, as they may present a severe electrical risk that can result in injury to person and property, as well as shorten the life of the product and cause the product to malfunction. NOCO is not responsible for the user's safety when using accessories or chargers that are not approved by NOCO. During charging, if the battery becomes excessively warm, deforms, swells, or emits smoke or odor, discontinue use immediately and contact support.

Connections.
Make sure all connections to the product are secure. Use 70-90 inch-pounds of torque to secure the connections properly. Loose connections may cause reduced performance and increased heat due to resistance that may cause the melting of the enclosure or potentially a fire.

Medical Devices.
The product may emit electromagnetic fields. The product contains magnetic components that may interfere with pacemakers, defibrillators, or other medical devices. Consult with your physician before use if you have any medical device. If you suspect the product is interfering with a medical device, stop using the product immediately, and consult your physician.

Cleaning.
Disconnect and remove the product before cleaning. Immediately dry the product if it comes in contact with liquid or any contaminant. Use a soft, lint-free (microfiber) cloth. Do not use a pressure washer to clean the battery.

Explosive Atmospheres.
Obey all signs and instructions. Do not operate the product in any area with a potentially explosive atmosphere, including fueling areas or areas which contain chemicals or particles such as grain, dust, or metal powders.

High-Consequence Activities.
Do not use the product where the failure of the product could lead to injury, death, or severe environmental damage.

Radio Frequency Interference.
This product complies with regulations governing radio frequency emissions. Such emissions from the product may negatively affect the operation of other electronic equipment, possibly causing them to malfunction.
