Quick Start Guide
WALL IE / WALL IE PLUS / WALL IE Compact,
Industrial NAT Gateway/Firewall
Order number:
WALL IE
WALL IE PLUS
WALL IE Compact
Helmholz GmbH & Co. KG | Hannberger Weg 2 | 91091 Großenseebach | Germany
Phone +49 9135 7380-0 | Fax +49 9135 7380-110 | info@helmholz.de | www.helmholz.de
700-860-WAL01
700-862-WAL01
700-863-WAL01
as of firmware V 1.10.100
as of firmware V 1.00.000
as of firmware V 1.00.000
Version
17
en
27.04.2023
Advertisement
Table of Contents
Related Manuals for Helmholz WALL IE Compact
Summary of Contents for Helmholz WALL IE Compact
- Page 1 V 1.00.000 WALL IE Compact 700-863-WAL01 as of firmware V 1.00.000 Helmholz GmbH & Co. KG | Hannberger Weg 2 | 91091 Großenseebach | Germany 27.04.2023 Phone +49 9135 7380-0 | Fax +49 9135 7380-110 | info@helmholz.de | www.helmholz.de...
-
Page 2: Table Of Contents
10.1.2 WALL IE PLUS (700-862-WAL01)..................20 10.1.3 WALL IE Compact (700-863-WAL01) ................... 20 Function of the buttons ................... 20 Technical data ....................21 Quick Start Guide WALL IE /WALL IE PLUS / WALL IE Compact | Version 17 | 27.04.2023... -
Page 3: Safety Instructions
When using the devices, therefore, observe the relevant recommendations to prevent unauthorized access to installations and systems. Further information on this can be found in the device manuals. Quick Start Guide WALL IE /WALL IE PLUS / WALL IE Compact | Version 17 | 27.04.2023... -
Page 4: Introduction
This document explains the initial commissioning of the WALL IE, WALL IE PLUS or WALL IE Compact using the "NAT" and "Bridge" application examples. Only the most important settings are explained. -
Page 5: Connecting The Wall Ie

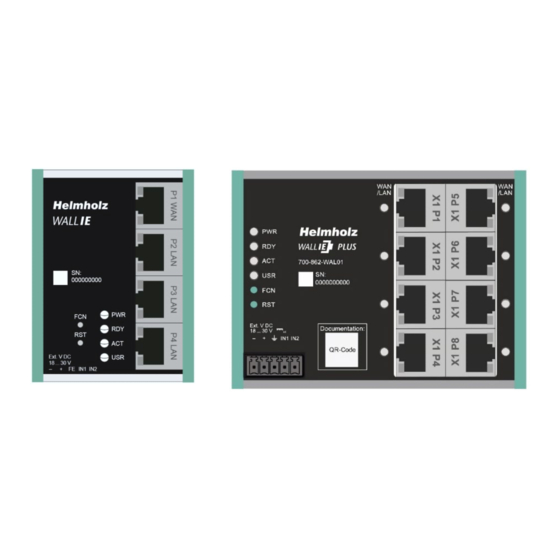

WAN and LAN is possible in the web interface. More detailed information can be found in the manual. The WALL IE Compact (700-863-WAL01) has a socket "X1 WAN" at the top for the external network and a socket "X1 LAN" at the bottom for the internal network. -
Page 6: Initial Access To The Web Interface
WAL01) via the LAN ports P2 - P4. With the WALL IE PLUS (700-862-WAL01), access is possible via the ports P2 - P8 or via all ports whose LED lights up green in the delivery state. With the WALL IE Compact, the web interface can be accessed via "X1 LAN". -
Page 7: Main View
Broadcast traffic is generally filtered at the WALL IE, which means that the time behavior of the machine network is not impaired by the company network. Quick Start Guide WALL IE /WALL IE PLUS / WALL IE Compact | Version 17 | 27.04.2023... -
Page 8: The Bridge Operating Mode
This allows the separation of part of the company network without using different network addresses. If “bridge” is your planned application case, please continue reading on page 16. Quick Start Guide WALL IE /WALL IE PLUS / WALL IE Compact | Version 17 | 27.04.2023... -
Page 9: Application „Nat
If you change the LAN IP address, you may need to reopen the WALL IE web page on the browser under the new IP address and log in again. Quick Start Guide WALL IE /WALL IE PLUS / WALL IE Compact | Version 17 | 27.04.2023... -
Page 10: Setting Up "Basic Nat" Rules
“Accept”. The “LAN to WAN” data transfer is initially always enabled but can also be limited by packet filters rules or the default action. Quick Start Guide WALL IE /WALL IE PLUS / WALL IE Compact | Version 17 | 27.04.2023... -
Page 11: Packet Filter "Wan To Lan
The filter rules can be defined for one protocol type with protocol “TCP”, “UPD” or “ICMP”. Destination Ports indicates the ports to which the filter rules apply. Quick Start Guide WALL IE /WALL IE PLUS / WALL IE Compact | Version 17 | 27.04.2023... -
Page 12: Packet Filter "Lan To Wan
The entry of the filter rules corresponds to the "WAN to LAN" packet filter rules, the source IP now indicates the IP address of the active device in machine network (LAN), and destination address represents the device in company network (WAN). Quick Start Guide WALL IE /WALL IE PLUS / WALL IE Compact | Version 17 | 27.04.2023... -
Page 13: Snat
LAN-IP as „gateway“. This is a considerable advantage when integrating into existing network structures since the parameters no longer have to be changed here. Quick Start Guide WALL IE /WALL IE PLUS / WALL IE Compact | Version 17 | 27.04.2023... -
Page 14: Napt
If the NAPT option is deactivated, the query packets from the LAN are forwarded from the LAN to the WAN with their original sender IP and sender port. Quick Start Guide WALL IE /WALL IE PLUS / WALL IE Compact | Version 17 | 27.04.2023... -
Page 15: Portforwarding
"WAN to LAN" packet filters is set to "Reject" or "Drop", corresponding filter rules for access must also be created for each port forwarding entry. Quick Start Guide WALL IE /WALL IE PLUS / WALL IE Compact | Version 17 | 27.04.2023... -
Page 16: Application "Bridge
LAN to WAN traffic is always enabled by default but can also be restricted by packet filters or the default action. A DHCP client or a DHCP server are not available in the bridge operating mode. Quick Start Guide WALL IE /WALL IE PLUS / WALL IE Compact | Version 17 | 27.04.2023... -
Page 17: Packet Filter "Wan To Lan
The filter rules can be defined for one protocol type with protocol “TCP”, “UPD” or “ICMP”. Destination Ports indicates the ports to which the filter rules apply. Quick Start Guide WALL IE /WALL IE PLUS / WALL IE Compact | Version 17 | 27.04.2023... -
Page 18: Packet Filter "Lan To Wan
General rule can be changed by setting the "Default Action" to "Reject" or "Drop". In addition to general rule, filtering can be further customized using specific packet filter rules. Quick Start Guide WALL IE /WALL IE PLUS / WALL IE Compact | Version 17 | 27.04.2023... -
Page 19: Firmware Update
After a firmware update it may be necessary to clear the browser cache once to update outdated JavaScript elements of the WALL IE website. Quick Start Guide WALL IE /WALL IE PLUS / WALL IE Compact | Version 17 | 27.04.2023... -
Page 20: Leds Status Information
The "RST" button triggers an immediate restart of the WALL IE in which all saved settings are retained. The WALL IE Compact does not have a reset button. Quick Start Guide WALL IE /WALL IE PLUS / WALL IE Compact | Version 17 | 27.04.2023... -
Page 21: Technical Data
DC 24 V (18 ... 30 V DC, SELV and limited energy circuit) Pollution degree Altitude Up to 2000m Temperature cable rating 87°C RoHS REACH Quick Start Guide WALL IE /WALL IE PLUS / WALL IE Compact | Version 17 | 27.04.2023... - Page 22 Transport and storage temperature -40 °C ... +85°C Relative air humidity 95 % r H without condensation Pollution degree Protection rating IP20 Certification RoHS REACH Quick Start Guide WALL IE /WALL IE PLUS / WALL IE Compact | Version 17 | 27.04.2023...
- Page 23 They are also provided in our download area of the respective products under www.helmholz.de. We also offer to send you or any third party the complete corresponding source text of the respective open source software for an at-cost fee of 10.00 Euro as a DVD upon request. This offer is valid for a period of three years, starting from the date of product delivery.
