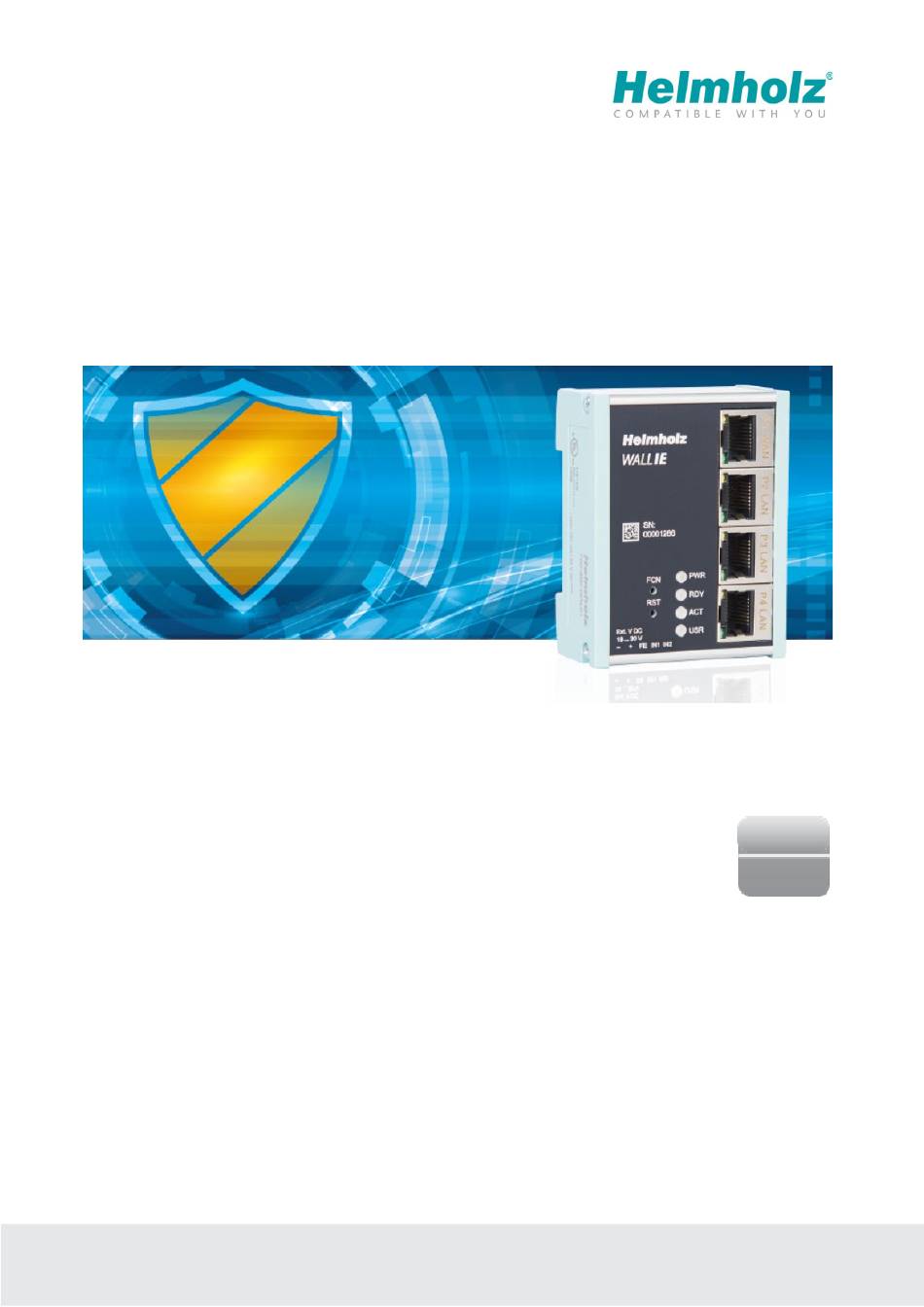

- Page 1 WALL IE, Industrial NAT Gateway/Firewall Order number: 700-860-WAL01 As of firmware V1.10 Helmholz GmbH & Co. KG | Hannberger Weg 2 | 91091 Großenseebach | Germany 18.07.2022 Phone +49 9135 7380-0 | Fax +49 9135 7380-110 | info@helmholz.de | www.helmholz.de...
-
Page 2: Table Of Contents
Content Safety instructions ....................3 Introduction ......................4 Connecting the WALL IE ..................4 Initial access to the web interface ................. 5 Main view ......................6 Choosing the operating mode ................6 The NAT operating mode ......................6 The Bridge operating mode ......................7 Application „NAT“... -
Page 3: Safety Instructions
1 Safety instructions Target audience This description is only intended for trained personnel qualified in control and automation engineering who are familiar with the applicable national standards. For installation, commissioning, and operation of the components, compliance with the instructions and explanations in this operating manual is essential. The specialist personnel is to ensure that the application or the use of the products described fulfills all safety requirements, including all applicable laws, regulations, provisions, and standards. -
Page 4: Introduction
Only the most important settings are explained. For a detailed description of all functions and important safety instructions, please refer to the WALL IE manual. This can be found at www.helmholz.de or scan the QR code directly. 3 Connecting the WALL IE The WALL IE must be supplied with DC 24 V at the wide range input 18-30 V DC via the supplied connector plug. -
Page 5: Initial Access To The Web Interface
4 Initial access to the web interface The WALL IE is delivered from the factory with the IP address 192.168.0.100 and the subnet mask 255.255.255.0 on the LAN side. Access to the web interface is only possible via the P2 - P4 LAN ports. The IP address of your network adapter must first be set in accordance with the IP subnet of the WALL IE: Start ... -
Page 6: Main View
Please check the WALL IE website for a newer firmware version. The firmware update is described on page 18. Firmware link: http://www.helmholz.de/goto/700-860-WAL01#tab-software 6 Choosing the operating mode Depending on the application for the WALL IE, the operating mode must be defined at the beginning. -
Page 7: The Bridge Operating Mode
Basic NAT, also known as “1:1 NAT” or “Static NAT”, is the translation of individual IP addresses or of complete IP address ranges. With the help of port forwarding, it is possible as an alternative to configure those packets be forwarded to a particular TCP/UDP port of the WALL IE to a certain participant in the machine network (LAN). -
Page 8: Application „Nat
7 Application „NAT“ To activate the NAT operating mode, select the “Operating Mode” menu point in the “Device” menu and set this to “NAT”. 7.1 Adjustment of the IP addresses in the NAT operating mode Click on the “Network” menu and select the sub- menu “Interface”. -
Page 9: Setting Up "Basic Nat" Rules
7.2 Setting up “Basic NAT” rules To use Basic NAT functionalities, the operating mode of the WALL IE must be set to "NAT". Select the "NAT" menu and the "Basic NAT" submenu. Enter the first rule and save it using the button. -
Page 10: Packet Filter "Wan To Lan
7.3 Packet filter “WAN to LAN” The packet filters can be used to restrict access between the company network (WAN) and the machine network (LAN). For example, it can be configured that only certain subscribers from the company network are allowed to exchange data with defined subscribers from the automation cell. The following filter criteria on layers 3 and 4 are available: IPv4 addresses, protocol (TCP/UDP/ICMP), and ports. -
Page 11: Packet Filter "Lan To Wan
If a filter rule applies to several or even all ports, this can be simply defined in the “Destination Ports” field. A list of ports is indicated separated by commas: “80,443,1194”. A port range can be indicated with a colon “4000:5000” or “1:65535” for all ports. Combinations are also possible: “80,443,4000:5000”. It is also possible to configure the access of several participants with one another. -
Page 12: Snat
7.5 SNAT The function “SNAT (Source NAT)” transparently forwards incoming traffic from the WAN side to the LAN network. To all packets, forwarded on LAN side by WALL IE, source IP address is replaced with WALL IE LAN IP address. Therefore, none of the LAN participants needs the WALLIE LAN-IP as „gateway“. -
Page 13: Napt
7.6 NAPT “NAPT for LAN to WAN traffic” replaces the sender addresses of queries from the LAN with the WALL IE WAN IP address. Source IP 10.10.1.1:xxx Source 192.168.10.1:80 The option “NAPT: Active” thus enables communication of devices from the LAN with devices in the WAN. -
Page 14: Portforwarding
7.7 Portforwarding With the help of port forwarding (“Port forwarding for WAN to LAN traffic”), it can be configured that packets at a certain TCP/UDP port of the WALL IE (WAN) can be forwarded to a participant in the LAN (e.g. 10.10.1.1:81 to 192.168.10.5:80). -
Page 15: Application "Bridge
8 Application “Bridge” To activate the bridge operating mode, select the "Operating Mode" menu item in the "Device" menu and set it to "Bridge". 8.1 Adjustment of the IP addresses in the bridge operating mode Click on the “Network” menu and select the sub-menu “Interface”. The IP addresses of the WALL IE (“LAN IP”) and affiliated subnet mask (“LAN netmask”) can be defined here. -
Page 16: Packet Filter "Wan To Lan
8.2 Packet filter “WAN to LAN” The packet filters enable the limitation of access between the company network (WAN) and the machine network (LAN). For example, it can be configured that only certain participants from the company network may exchange data with defined participants in the automation cell. -
Page 17: Packet Filter "Lan To Wan
If a filter rule applies to several or even all ports, this can be simply defined in the “Destination Ports” field. A list of ports is indicated separated by commas: “80,443,1194”. A port range can be indicated with a colon: “4000:5000” or “1:65535” for all ports. Combinations are also possible: “80,443,4000:5000.” It is also possible to configure the access of several participants with one another. -
Page 18: Firmware Update
QR code. The firmware file can be recognized by “.HUF” extension (Helmholz Update File) and is also encoded to protect it from being changed. Save the firmware file on your PC and select the location with "Browse" in the "Device" menu under "Firmware Upgrade". -
Page 19: Leds Status Information
10 LEDs status information No power supply or device defective Device is correctly supplied with voltage Device is ready to operate Flashing light or on Data transfer permitted between WAN and LAN Flashing light Reset to works setting activated Green (Link) Connected RJ45 LEDs Orange (Act) -
Page 20: Technical Data
12 Technical data Order no. 700-860-WAL01 Name WALL IE Dimensions (D x W x H) 32,5 x 58,5 x 76,5 mm Weight Approx. 130 g WAN interface Number Type 10Base-T/100Base-T Connection RJ45 socket Transmission rate 10/100 Mbps LAN interface Number... - Page 21 They are also provided in our download area of the respective products under www.helmholz.de. We also offer to send you or any third party the complete corresponding source text of the respective open source software for an at-cost fee of 10.00 Euro as a DVD upon request. This offer is valid for a period of three years, starting from the date of product delivery.
