December 2022
AEROBIC RESIDENTIAL
WASTEWATER TREATMENT
SYSTEM
INSTALLATION, OPERATION AND
MAINTENANCE MANUAL
ENVIRO-AIRE is a
registered trademark of
Delta Treatment Systems
Delta Treatment Systems
9125 Comar Drive
Walker, LA 70785
(800) 221-4436
www.infiltratorwater.com
info@infiltratorwater.com
ATTENTION: WARRANTY IN MANUAL
Advertisement
Table of Contents
Related Manuals for Infiltrator delta ENVIRO-AIRE EA50
Summary of Contents for Infiltrator delta ENVIRO-AIRE EA50
- Page 1 December 2022 AEROBIC RESIDENTIAL WASTEWATER TREATMENT SYSTEM INSTALLATION, OPERATION AND MAINTENANCE MANUAL ENVIRO-AIRE is a registered trademark of Delta Treatment Systems Delta Treatment Systems 9125 Comar Drive Walker, LA 70785 (800) 221-4436 www.infiltratorwater.com info@infiltratorwater.com ATTENTION: WARRANTY IN MANUAL...
-
Page 2: Table Of Contents
3. Consult your local Sanitarian/Regulatory Agency prior to installation. 4. FOR INSTALLATION OF ENVIRO-AIRE IN INFILTRATOR TANKS ONLY: An Infiltrator Authorized Assembler shall perform the assembly of the Infiltrator treatment system. Please call (800) 221-4436 with any questions. -
Page 3: Enviro-Aire Treatment Systems Notice
ENVIRO-AIRE TREATMENT SYSTEMS NOTICE To be completed by the installer and provided to the homeowner. ENVIRO-AIRE TREATMENT SYSTEMS NOTICE This manual provides operations, installation and warranty information on the TREATMENT PLANT ONLY. Other components that you may have, such as dosing equipment, drip irrigation or other components, require additional operations manuals and carry separate warranties. - Page 4 All of the details regarding system operation can be found in this manual. If you did not receive a copy, call Infiltrator Water Technologies at (800) 221-4436 or email info@infiltratorwater.com and we will send you one at no charge. Keep a Record of Service Below:...
-
Page 5: Introduction
INTRODUCTION THE DELTA AEROBIC WASTEWATER • Inspect effluent quality’s color, turbidity, and check for odor. An earthy odor is normal. TREATMENT SYSTEM AND HOW IT WORKS • Take a sample from the pretreatment treatment system and The ENVIRO-AIRE Aerobic Wastewater Treatment System that aeration chamber to check the sludge level described in the you have purchased produces high quality effluent suitable “Solids Removal”... - Page 6 INTRODUCTION Fabric softener dryer sheets are recommended rather than applies to normal operating conditions. Extreme conditions using liquid fabric softeners. such as frigid cold temperature, extreme heat and high altitudes may affect the operation and maintenance of • Use non-chlorine, biodegradable and non-toxic cleaning this unit.
- Page 7 INTRODUCTION SEASONAL USE GUIDELINES OF ENVIRO-AIRE SAMPLING REQUIREMENTS AEROBIC TREATMENT UNIT (if required to meet local regulation) 1. System not in use for more than one month and less than An ENVIRO-AIRE aerobic treatment plant properly operated three months. Electrical power is left on and there are no and maintained should provide the following effluent quality of: frost conditions.
-
Page 8: Installation Instructions
The ENVIRO-AIRE is delivered to the installation site assembled connections. Bring ¾-inch Schedule 40 PVC line out of the tank in an Infiltrator Tank or approved precast concrete tank. Care through the riser sidewall. Extend PVC air distribution piping must be taken when offloading and unpacking the treatment from the riser to where the aerator will be located. - Page 9 INSTALLATION INSTRUCTIONS with a ground fault interrupter (GFI) circuit breaker. Install a E. Test alarm circuit by momentarily squeezing air tubing and power disconnect switch to the panel that is operable and allowing air pressure to decrease. This should take a few available to a maintenance provider.

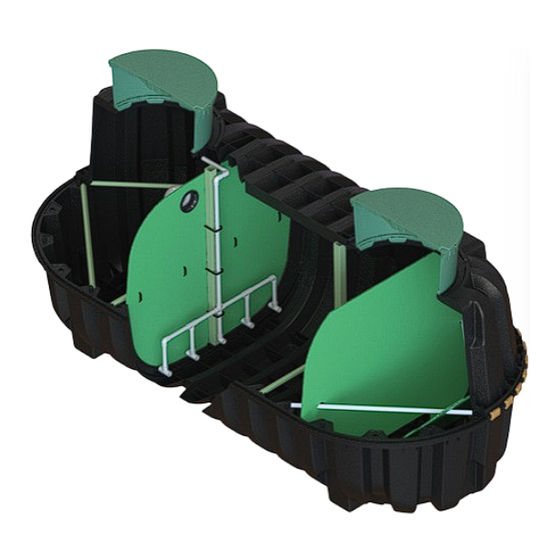

- Page 10 PRIMARY CHAMBER CLARIFIER CHAMBER IM-1060 TANK W/ ENVIRO-AIRE AEROBIC TREATMENT UNIT Examples of sample ports and vents. 4" ATRIUM VENT 4" ATRIUM VENT AND INFILTRATOR THROUGH RISER INFILTRATOR OPTIONAL SAMPLE PORT EZsnap RISER EZsnap RISER TO DISCHARGE TO DISCHARGE 4" PVC 4"...
-
Page 11: Troubleshooting Guide
TROUBLE SHOOTING AIR SUPPLY MALFUNCTION 3. Do not allow excess amounts of oil and grease to enter the system. Grease tends to form in white balls. 1. Check to be sure the air manifold are working properly. It TROUBLESHOOTING ELECTRICAL SYSTEM should be bubbling evenly and forcefully. -
Page 12: Enviro-Aire Unit Specifications
TROUBLE SHOOTING GENERAL COMMENTS • Only factory approved equipment can be used for replacement on individual treatment systems. • If the decision is made to pump out a system, be sure to contact a licensed waste hauler. • If a chronic problem develops and all items have been checked, consult Delta Treatment Systems or an authorized representative. - Page 13 FLOW DIAGRAM AIR IN GRADE ELEVATION INFLUENT IN EFFLUENT OUT CLARIFIER CHAMBER PRIMARY CHAMBER AERATION CHAMBER MINIMUM SPECIFICATIONS – EA50, EA60, EA75 AND EA80 IN CONCRETE TANK ONLY ESTABLISH VEGETATIVE CP23 CONTROL PANEL ATRIUM VENT AND COVER AND DIVERT OPTIONAL SAMPLE PORT SURFACE DRAINAGE 3/4"...
- Page 14 SPECIFICATIONS EA52.5-IM-1060 ONLY LAYOUT NOTE: Vent must be installed. See page 10 for options. INSTALL EZSNAP RISERS ATRIUM TO GRADE AS SPECIFIED VENT AERATOR 24" ACCESS CLARIFIER BAFFLE 4" 90° 3/4" PVC (TYP) DIFFUSER 16" PARALLEL WITH CLARIFICATION TANK WALL 47"...
- Page 15 CP2305RI – SCHEMATIC Setting High Level Pressure Switch Bring plant to operating water level with compressor on. Using properly sized screw driver, turn high level alarm adjustment screw clockwise until alarm occurs, then turn the screw counter-clockwise until alarm stops. Part Number Description HIGH LEVEL ALARM...
-
Page 16: Installer Checklist
INSTALLER CHECKLIST Owner: _______________________________________________ Date of Inspection: ______________________________________________ Mailing Address: ______________________________________________________________________________________________________ Model: ________________________________________________ Model Serial No.: ______________________________________________ System Address: _____________________________________ Lot # (if applicable): _____________________________________________ Phone Number: _____________________________ WW Permit No. (if applicable): ______________________________________________ Designer/Engineer: ___________________________________ Contact Information ______________________________________________ Authorized Installer: ___________________________________ Contact Information ______________________________________________ Number of Bedrooms: _____________________________ Number of Occupants: ______________________________________________ Treated Effluent Dispersal Method: ______________________________________________________________________________________ Verify the following:... -
Page 17: Service Provider Checklist
SERVICE PROVIDER CHECKLIST Service Provider Checklist Owner: ___________________________________________ Date of service call: _________________________ System Address: ___________________________________ Lot # (if applicable): _________________________ Mailing Address: ___________________________________ Model: ____________________________________ ____________________________________ Model Serial No.: ___________________________ Phone Number: ___________________________________ WW Permit No. (if applicable): ________________ Service Provider: ___________________________________ Contact Information _________________________ Yes No Primary Tank Yes No Discharge/Pump Tank (if present) -
Page 18: Data Plates
TREATMENT PLANT DATA PLATES Data plates are affixed to the control panel and aerator. The serial numbers must match. 2”x4” 3”x4” 1-7/8”x4” (optional) Delta Treatment Systems • 9125 Comar Drive, Walker, LA 70785 • (800) 221-4436 • www.infiltratorwater.com... -
Page 19: Warranty
WARRANTY DELTA TREATMENT SYSTEMS, LLC (“DELTA”) DELTA TWO (2) YEAR MATERIALS AND WORKMANSHIP LIMITED WARRANTY (a) This limited warranty is extended to the end user of a Delta ECOPOD Delta Whitewater and Delta EnviroAire Series Advanced ® Wastewater Treatment System (the “Delta Product”). A Delta System manufactured by Delta, when installed and operated in accordance with Delta’s installation instructions and local regulation by a licensed installer, is warranted to you: (i) against defective materials and workmanship for two (2) years after installation. - Page 20 DELTA TREATMENT SYSTEMS, LLC 9125 Comar Drive, Walker, LA 70785 (800) 221-4436 www.infiltratorwater.com info@infiltratorwater.com © 2022 Delta Treatment Systems. All rights reserved. Printed in U.S.A. K4623 1222 Contact Delta Treatment Systems’ Technical Services Department for assistance at (800) 221-4436...
