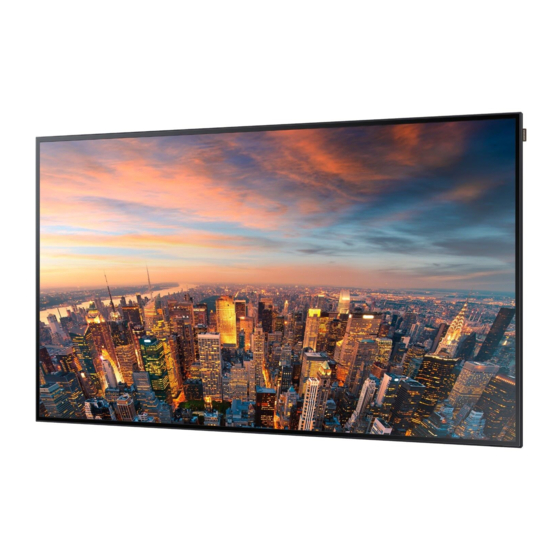

Page 1 User Manual DM82D The color and the appearance may differ depending on the product, and the specifications are subject to change without prior notice to improve the performance.
Page 2 Table of contents Before Using the Product Using MDC Screen Adjustment » Copyright » MDC Program Installation/Uninstallation » Picture Mode » Safety Precautions » Connecting to MDC » Backlight / Contrast / Brightness / Sharpness / Color / Tint (G/R) »...
Page 3 Support » Sound Mode » Network Status » Software Update » Sound Effect » Network Settings » Contact Samsung » HDMI Sound » Wi-Fi Direct » Go to Home » Sound on Video Call » Multimedia Device Settings » Reset All »...
Page 4 Table of contents Troubleshooting Guide » Requirements Before Contacting Samsung Customer Service Center » Q & A Specifications » General » PowerSaver » Preset Timing Modes Appendix » Responsibility for the Pay Service (Cost to Customers) » Optimum Picture Quality and Afterimage Burn-in Prevention »...
Page 5: Before Using The Product
© 2014 Samsung Electronics Samsung Electronics owns the copyright for this manual. Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited. Microsoft, Windows are registered trademarks of Microsoft Corporation. VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association.
Page 6: Safety Precautions
Safety Precautions Cleaning ― Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched. ― Take the following steps when cleaning. Caution ― The following images are for reference only. Real-life situations may differ from what is shown in the images.
Page 7: Electricity And Safety
Storage Connect the power plug to a grounded power socket (type 1 insulated devices only). Due to the characteristics of high-glossy products, using a UV humidifier nearby may create white- • An electric shock or injury may result. colored stains on the product. ―...
Page 8: Installation
THE PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES. • A fire may result. Only use the power cord provided with your product by Samsung. Do not use the power cord with other products. • A fire or electric shock may result.
Page 9 Bend and keep part of the outdoor TV antenna cable hanging downwards Edible oil, such as soybean oil, can damage or deform the product. Do not (the part inside the room) to prevent rainwater from entering the product. install the product in a kitchen or near a kitchen counter. •...
Page 10: Operation
If the product is dropped or the outer case is damaged, turn off the power SAMSUNG switch and disconnect the power cord. Then contact Samsung Customer • Be sure to consult Samsung Customer Service Center if you want to Service Center. install the product at such a place.
Page 11 • Be sure to power off the product and disconnect the power cord when water or other foreign substances have entered the product. Then contact Samsung Customer Service Center. Do not move the product by pulling the power cord or any cable.
Page 12 Caution Rest your eyes for more than 5 minutes for every 1 hour of product use. • Eye fatigue will be relieved. Leaving the screen fixed on a stationary image for an extended period of time may cause afterimage burn-in or defective pixels. •...
Page 13: Precautions When Handling The Panel
Precautions when handling the panel Be careful that children do not place the battery in their mouths when removed from the remote control. Place the battery in a location that children or infants cannot reach. • If children have had the battery in their mouths, consult your doctor Do not stand the product as shown in the image.
Page 14: Checking The Components
Preparations Checking the Components Components ― Components may differ in different locations. - Contact the vendor where you purchased the product if any components are missing. - The appearance of the components and items sold separately may differ from the Warranty card image shown.
Page 15 Items sold separately - The following items can be purchased at your nearest retailer. Wall-mount Kit Stand RS232C-Stereo cable DVI cable HDMI-DVI cable DP cable HDMI cable Video cable Stereo cable Component cable RCA stereo cable RCA cable AV/Component adapter AUDIO adapter RS232C(OUT) adapter DP-DVI cable...
Page 16 Parts ― The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. Panel Key Control Panel Buttons Description Power on the product. If you press the button when the product is turned on, the control menu will be displayed.
Page 17 Buttons Description ― If you press the button on the panel key when the product is turned on, the control menu will be displayed. Select the connected input source. Control menu Move the panel key right to select Source in the control menu. When the list of Source input sources is displayed, move the panel key left or right to select the desired input source.
Page 18: Reverse Side
Port Description Reverse Side RS232C IN Connects to MDC using an RS232C adapter. ― The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. RS232C OUT IR / AMBIENT SENSOR IN Supplies power to the external sensor board or receives the light sensor signal.
Page 19: Anti-Theft Lock
Anti-theft Lock Spacer logo ― An anti-theft lock allows you to use the product securely even in public places. Do not pull on the spacer logo using force. The logo may tear or break off. ― The locking device shape and locking method depend on the manufacturer. Refer to the user guide provided with your anti-theft locking device for details.
Page 20: Remote Control
Remote Control ― Using other display devices in the same space as the remote control of this product can cause the other display devices to be inadvertently controlled. ― A button without a description in the image below is not supported on the product. POWER Power off the product.
Page 21 Display information about the current input TOOLS INFO Quickly select frequently used functions. source. Move to the upper, lower, left or right menu, or adjust an option's setting. Confirm a menu selection. Exit the current menu. RETURN EXIT Return to the previous menu. mode, configure settings such as the HDMI program guide for digital channels.
Page 22: Connection Using An Ir Stereo Cable (Sold Separately)
Connection Using an IR Stereo Cable (sold separately) Make sure to connect the External ambient sensor while the product is powered off. Then, power on the product. IR OUT IR / AMBIENT Controlling more than one display product using SENSOR IN your remote control •...
Page 23: Switching Between Portrait And Landscape
• Make sure to install the specified wall mount. Switching between portrait and landscape ― Contact Samsung Customer Service Center for further details. • To use the product in portrait orientation, rotate the product clockwise until the spacer logo faces down.
Page 24 Figure 1.3 Side view Installation on an Indented Wall ― Contact Samsung Customer Service Center for further details. Plane view Minimum 40 mm Minimum 70 mm Minimum 50 mm Minimum 50 mm Ambient temperature: Under 35 C ― When installing the product on an indented wall, allow at least the space specified above between the product and wall for ventilation and ensure that the ambient temperature is kept below 35 C.
Page 25: Installing The Wall Mount Kit
We recommend you contact a technician for assistance when installing the wall mount bracket. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the wall mount on your own.
Page 26: Wall Mount Kit Specifications (Vesa)
Samsung is not liable for these kinds of accidents. • Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions.
Page 27: Remote Control (Rs232C)
Remote Control (RS232C) • Pin assignment 1 2 3 4 5 Cable Connection RS232C Cable Interface RS232C (9 pins) 6 7 8 9 TxD (No.2), RxD (No.3), GND (No.5) Signal Bit rate 9600 bps Detect data carrier Data bits 8 bit Received data Parity None...
Page 28 LAN Cable • RS232C cable Connector: 9-Pin D-Sub to Stereo Cable • Pin assignment 1 2 3 4 5 6 7 8 -P2- -P1- -P1- -P1- -P2- -P2- Female --------> STEREO <-------- PLUG Pin No Standard Color Signal ---------- (3.5ø) White and orange Orange White and green...
Page 29 Cross LAN cable (PC to PC) • Connector : RJ45 Direct LAN cable (PC to HUB) RJ45 RJ45 RJ45 MDC Signal Signal <--------> <--------> Signal Signal <--------> <--------> <--------> <--------> <--------> <-------->...
Page 30 Connection • Connection 2 • Connection 1 RJ45 RJ45 RS232C RS232C RS232C RS232C • Connection 3 RJ45 RS232C RS232C RS232C RS232C...
Page 31: Control Codes
Command type Command Value range Control Codes Video Wall On 0x84 Viewing control state (Get control command) Video Wall User Control 0x89 Header Command Data length Checksum • All communications take place in hexadecimals. The checksum is calculated by adding up all 0xAA Command type values except the header.
Page 32 Power control Volume control • Function • Function A product can be powered on and off using a PC. The volume of a product can be adjusted using a PC. • Viewing power state (Get Power ON / OFF Status) •...
Page 33 Input source control 0x24 HDMI2_PC • Function 0x25 DisplayPort The input source of a product can be changed using a PC. ― DVI_video, HDMI1_PC and HDMI2_PC cannot be used with the Set command. They only respond to • Viewing input source state (Get Input Source Status) "Get"...
Page 34 Screen mode control • Nak Header Command Data length Ack/Nak r-CMD Val1 Checksum • Function The screen mode of a product can be changed using a PC. 0xAA 0xFF 0x18 "ERR" Video Wall Screen mode cannot be controlled when the function is enabled.
Page 35 PIP On/Off control Auto adjustment control (PC and BNC only) • Function • Function The PIP mode of a product can be turned on or off using a PC. Automatically adjust the PC system screen using a PC. ― Only available on models that have the PIP function. •...
Page 36 Video Wall Mode Control Safety Lock • Function • Function Video Wall mode can be activated on a product using a PC. PC can be used to turn the Safety Lock function on or off on a product. Video Wall This control is only available on a product whose is enabled.
Page 37 Video Wall On • Nak Header Command Data length Ack/Nak r-CMD Val1 Checksum • Function Turn Video Wall on or off on the product from your computer. 0xAA 0xFF 0x84 • Get Video Wall On/Off Status "ERR": A code showing what error has occurred Header Command Data length...
Page 38 10x10 Video Wall Model 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x1F 0x11 0x12 0x13 0x14 0x15 0x16 0x17 0x18 0x19 0x1A 0x1B 0x1C 0x1D 0x1E 0x2F 0x21 0x22 0x23 0x24 0x25 0x26 0x27 0x28...
Page 39 Wall_SNo: Product Number code assigned to the product 10x10 Video Wall Model : ( 1 ~ 100) Set Number Data 0x01 0x02 0x63 0x64 • Ack Header Command Data length Ack/Nak r-CMD Val1 Val2 Checksum 0xAA 0xFF 0x89 Wall_Div Wall_SNo •...
Page 40: Connecting And Using A Source Device
Connecting and Using a Source Device Before Connecting Connecting to a PC • Do not connect the power cable before connecting all other cables. Pre-connection Checkpoints Ensure you connect a source device first before connecting the power cable. • A PC can be connected to the product in a variety of ways. ―...
Page 41: Connection Using A Dvi Cable (Digital Type)
Connection using a DVI cable (Digital type) Connection Using an HDMI-DVI Cable ― When you connect a PC to the product using an HDMI-DVI cable, set Edit Name DVI PC to access video and audio content stored on the PC. DVI / MAGICINFO IN HDMI IN 1, HDMI IN 2, HDMI IN 3...
Page 42: Connection Using An Hdmi Cable
MAGICINFO IN on the VESA standards. Using a DP cable that is not VESA compliant may cause the product to function improperly. Samsung Electronics shall not be held responsible for any issues from using a cable that is not VESA compliant.
Page 43: Connecting To A Video Device
Connecting to a Video Device • Do not connect the power cable before connecting all other cables. Ensure you connect a source device first before connecting the power cable. • You can connect a video device to the product using a cable. ―...
Page 44 Connection Using an HDMI-DVI Cable ― Audio will not be enabled if the product is connected to a video device using an HDMI-DVI cable. To resolve this, additionally connect an audio cable to the audio ports on the product and video device. ―...
Page 45 Connection Using an HDMI Cable Using an HDMI cable or HDMI to DVI Cable (up to 1080p) • You can use the DVI port on the product as an HDMI port by using a DVI-HDMI adapter. Sound → set HDMI Sound AV(HDMI) System →...
Page 46: Connecting To An Audio System
Connecting to an Audio System Connecting the antenna ― Connecting parts may differ in different products. ― Connecting parts may differ in different products. ― When the product is powered on for the first time, basic settings are configured automatically. Take extra care to ensure the wires inside the antenna cable are not bent.
Page 47: Connecting The Lan Cable
Connecting the LAN Cable ― Connecting parts may differ in different products. RJ45 • Use Cat7(*STP Type) cable for the connection. *Shielded Twist Pair...
Page 48: Connecting The Network Box (Sold Separately)
Connecting the network box (Sold separately) ― For details on how to connect to a network box, refer to the user's manual provided with the network box upon purchase. MagicInfo To use MagicInfo, a network box (sold separately) must be connected to the product. ―...
Page 49 Enter the IP information. Select a display mode. MagicInfo Setup Wizard - v.1.12 MagicInfo Setup Wizard - v.1.12 Select TCP/IP - step 2 Select Screen Type - step 4 Obtain an IP address automatically Use the following IP address: Landscape IP address: 192 .
Page 50: Changing The Input Source
Changing the Input source Source allows you to select a variety of sources and change source device names. You can display the screen of a source device connected to the product. Select a source from source list to display the screen of the selected source.
Page 51: Using Mdc
Using MDC Multiple display control "MDC" is an application that allows you to easily control multiple display devices simultaneously using a PC. - For details on how to use the MDC program, refer to Help after installing the program. The MDC program is available on the website. MDC Program Installation/Uninstallation In the displayed "Ready to Install the...
Page 52: Connecting To Mdc
Connecting to MDC Using MDC via RS-232C (serial data communications standards) An RS-232C serial cable must be connected to the serial ports on the PC and monitor. Monitor 1 RS232C IN RS232C OUT Monitor 2 Computer...
Page 53: Using Mdc Via Ethernet
Using MDC via Ethernet Enter the IP for the primary display device and connect the device to the PC. Display devices can be connected to each other using a LAN cable. Connection using a direct LAN cable ― Multiple products can be connected using the RJ45 port on the product and the LAN ports on the HUB. Computer RJ45 Monitor 1...
Page 54 Connection using a cross LAN cable ― Multiple products can be connected using the RS232C IN / OUT port on the product. Monitor 1 RJ45 RS232C OUT Monitor 2 Computer...
Page 55: Home Feature
Home feature → This feature is provided in Support Go to Home. Accessible using the HOME button on the remote control. Player ― To use the Player feature, set Play via MagicInfo in System. Play a range of content such as channels with schedules assigned, templates or files. Play channels or content using any of the following methods.
Page 56: Approving A Connected Device From The Server
Approving a connected device from the server Select Device from the top menu bar. Approving the Lite server • Set MagicInfo Mode Lite Server Network Settings. Approve and use the Lite server now. ― First configure the server Network Settings before device approval.
Page 57 Enter the information required to approve the device. When the device is approved by the server, the schedule registered in the selected group will be downloaded to the device. The schedule will run after it is downloaded. ― For further details on how to configure a schedule, refer to the <MagicInfo Lite Server user's manual>. ―...
Page 58 Approving the Premium server Select Device from the top menu bar. MagicInfo Mode Premium Server Network Settings. • Set Premium Approve and use the server now. ― First configure the server Network Settings before device approval. Access the server you have assigned to your device. Select Premium from the menus on the left.
Page 59 Enter the information required to approve the device. When the device is approved by the server, the schedule registered in the selected group will be downloaded to the device. The schedule will run after it is downloaded. ― For further details on how to configure a schedule, refer to the <MagicInfo Premium Server user's manual>.
Page 60: Network Channel
Network Channel Device : All Content : All Sort By : File name Options Player 1 / 4 item(s) Browse and play content stored in the selected device. Play content, templates and schedules configured on the server. Player • You can view whether the server is connected (approval) in the menu screen.
Page 61: Available Features In The Player Page
Available features in the Player page Player list page provides the following features. Device • Select either Internal to search for a desired device list. Internal Content • Select a content type as criterion to search for a desired content list. Video Image Flash...
Page 62: Player Page Settings Menu
Player page Settings menu Aspect Ratio Aspect Ratio Original or Full. to either Settings Full Original • ― This feature is only available for Video, Image, Office files. Settings Display Duration Set whether to display content in the original aspect ratio or full screen Set the duration for each page in a slideshow.
Page 63 When Content is Running Press the INFO button on the remote control. Type : Type of channel currently playing • ― Only applicable during Network Channel Local Channel playback. Viewing the details of the content that is running Number: Number assigned to the channel currently playing •...
Page 64 Changing the settings for the content that is running Press the TOOLS button on the remote control during content playback to configure settings such as Picture Mode Sound Mode. Playlist • View a list of content items currently playing. Music •...
Page 65: File Formats Compatible With Player
File Formats Compatible with Player Template files and LFD(.lfd) files • Supported file systems include FAT32 and NTFS. Restrictions • A file with a vertical and horizontal resolution larger than the maximum resolution cannot be • Ensure a distributed folder (content / schedules) exists in Internal memory.
Page 66 Contents File Extension Container Video Codec Resolution Frame rate Bit rate Audio Codec (fps) (Mbps) *.avi DivX 3.11 / 4.x / 5.x / 6.x 1920 x 1080 6~30 *.mkv LPCM *.asf MPEG4 SP / ASP *.wmv HE-AAC *.mp4 *.mov H.264 BP / MP / HP *.3gp MPEG(MP3) *.vro...
Page 67 Video Audio Image • 3D video is not supported. • Audio content with a Bit rate or Frame rate • Compatible image file format : Jpeg larger than the rate specified in the table above • Content with a resolution larger than the •...
Page 68 Flash Power Point • Compatible with Flash 10.1 • Compatible document file formats • Compatible document file formats • Flash Animation - Extension : ppt, pptx - Extension : pdf - Compatible file format : SWF - Version : Office 97 ~ Office 2007 •...
Page 69: Template Files
WORD Template files Network Channel Local • Compatible document file formats • Creation/editing/playback are only available in • Supported in Template. Channel - Extension : .doc, .docx - Version : Office 97 ~ Office 2007 • Compatible document file formats - Extension : .lfd •...
Page 70: File Formats Compatible With Videowall
File Formats Compatible with Videowall ― Refer to the <MagicInfo Server user's manual> for further details. Video Image • 3D video is not supported. • Compatible image file format : Jpeg, bmp, png • Content with a resolution larger than the resolution specified in the table •...
Page 71 Restrictions • Only one video (Video) file can be played per client. ― Different content files can be played on the displays of a video wall. Two video (Video) files cannot be played on a single display of a video wall. Available Not available Available...
Page 72: Available Features In The Schedule Page
Schedule Available features in the Schedule page Schedule page provides the following features. HOME → Schedule → ENTER E Type • - Local: Add or edit schedules. - Network: View the network schedule configured on the server. Schedule Type : Local Device : Internal Options Device...
Page 73 Configuring channel schedules Play media content such as videos, photos and music at a desired time. Select a channel to configure. Select video, music and photo content you want to apply to the channel schedule. Set the time to play the schedule. (Start Time Stop Time)
Page 74 Template Available features in the Template page Create unique content using templates. It is easy to create content. Simply change images and text in a template. HOME → Template → ENTER E Sort the template list using the following criteria. Market •...
Page 75 Inserting content such as videos, photos and PDF files Organize a template by inserting text, video, photo, or PDF files as desired. Entering text Template Select in the editable zone to add content or edit the existing text. Edit Item(s) selected Template Select in the editable zone to add content or edit the existing text.
Page 76 Preview Configure Template Name and Storage. Save Duration 23:59:59 Template Name Template1 Template preview is running. It will disappear Storage Internal after 20 seconds. Save Cancel New town interior design Save Press the button to finish creating the content. Sustainble evolution unfolods tomorrw’s design Preview the created template using the Preview feature.
Page 77: Clone Product
Clone Product Export the product settings to a USB device or load the settings via a USB device. This option is useful when assigning the same settings to several products. When USB does not contain a duplicate file HOME → Clone Product →...
Page 78: Pc Connection Cable
ID Settings Assign an ID to a set. Press u/d to select a number, and press E. HOME → ID Settings → ENTER E Device ID Enter the ID number of the product connected to the input cable for input signal reception. (Range: 0~224) ―...
Page 79: Video Wall
Video Wall Customize the layout of multiple displays that are connected to form a video wall. In addition, display part of a whole picture or repeat the same picture on each of the connected multiple displays. To display multiple images, refer to MDC Help or the MagicInfo user guide. Some models may not support the MagicInfo HOME →...
Page 80 Video Wall You can activate or deactivate Video Wall. To organize a video wall, select On. • Horizontal x Vertical This feature automatically splits a videowall display based on a videowall matrix configuration. Enter the videowall matrix. The videowall display is split based on the configured matrix. The number of vertical or horizontal display devices can be set within the range 1 and 15. ―...
Page 81: Network Status
Network Status Check the current network and Internet connection. HOME → Network Status → ENTER E Network Status - The displayed image may differ depending on the model.
Page 82: Picture Mode
- To apply the Calibration mode properly, make sure you configure the picture quality settings, such as brightness, color, gamma and uniformity, using the color calibration program Advanced Color Management. - To download the Advanced Color Management program, visit www.samsung.com/displaysolutions.
Page 83: On/Off Timer
On/Off Timer ― You must set Clock Set before you can use this feature. On Timer HOME → On/Off Timer → ENTER E On Timer so that your product turns on automatically at a time and on a day of your choosing. The power is turned on with the specified volume or input source.
Page 84: Off Timer
Off Timer Set the off timer (Off Timer) by making a selection from one of the seven options. (Off Timer 1 Off Timer • Setup: Select Off, Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or Manual. If you select Manual, you can choose the days you want Off Timer to turn off your product.
Page 85: More Settings
Ticker Input text while a video or image is displayed and display the text on the screen. • • Message: Enter a message to display on the screen. → → ENTER E HOME Ticker • Time: Set the Start Time End Time to display a Message.
Page 86: Url Launcher
URL Launcher For details on how to use the URL Launcher feature, contact the dealer the product was purchased from. ― To use the URL Launcher Play via URL Launcher in System. feature, set HOME → URL Launcher → ENTER E Change URL 12:00 URL Launcher...
Page 87: Screen Adjustment
Advanced Color Management. · Tint (G/R) - To download the Advanced Color Management program, visit www.samsung.com/displaysolutions. - The displayed image may differ depending on the model.
Page 88: Backlight / Contrast / Brightness / Sharpness / Color / Tint (G/R)
Backlight / Contrast / Brightness / Your product has several options for adjusting picture quality. Picture Mode Picture Mode settings Adjustable options Sharpness / Color / Tint (G/R) Shop & Mall, Office & School, Video/Image Backlight Contrast Brightness Sharpness Terminal & Station, Video Wall Color...
Page 89: Color Temperature
Color Temperature Adjust the color temperature (Red / Green / Blue). (Range: 2800K–16000K) ― Enabled when Color Tone is set to Off. ― If Picture Mode is set to Calibration, Color Temperature is disabled. MENU m → Picture → Color Temperature →...
Page 90: White Balance
White Balance 2 Point Adjust the color temperature for a more natural picture. MENU m → Picture → White Balance → ENTER E R-Offset G-Offset / B-Offset: Adjust each color’s (red, green, blue) darkness. • R-Gain G-Gain / B-Gain: Adjust each color’s (red, green, blue) brightness. •...
Page 91: Calibrated Value
Advanced Color Management to the Information and Advertisement modes. Don't Apply Apply • MENU m → → → ENTER E ― To download the Advanced Color Management program, visit www.samsung.com/displaysolutions. Picture Calibrated Value ― If Picture Mode is set to Calibration, Calibrated Value is disabled.
Page 92: Advanced Settings
Advanced Settings Picture Mode Picture Mode settings Adjustable options Shop & Mall, Office & School, Video/Image Dynamic Contrast Black Tone Flesh Tone Video Wall RGB Only Mode Color Space MENU m → Picture → Advanced Settings → ENTER E Text Dynamic Contrast Black Tone Advanced Settings...
Page 93: Dynamic Contrast
Dynamic Contrast Advanced Settings Adjust the screen contrast. Dynamic Contrast Medium Medium High • Black Tone Darker Black Tone Flesh Tone Select the black level to adjust the screen depth. RGB Only Mode Dark Darker Darkest • Color Space Native Flesh Tone Motion Lighting Flesh...
Page 94: Picture Options
Picture Options Picture Mode Picture Mode settings Adjustable options Shop & Mall, Office & School, Video/Image Color Tone Digital Clean View MPEG Noise Terminal & Station, Video Wall Filter HDMI Black Level Film Mode Auto MENU m → Picture → Picture Options →...
Page 95: Color Tone
Color Tone Picture Options If the input source is PC, or HDMI1, HDMI2, HDMI3 (PC connection), DisplayPort. Color Tone Cool Standard Warm • If the input source is AV, Component, HDMI1, HDMI2, HDMI3 or TV. Digital Clean View Cool Standard Warm1 Warm2 •...
Page 96: Hdmi Black Level
HDMI Black Level Picture Options Selects the black level on the screen to adjust the screen depth. Color Tone Normal • ― Available only in HDMI1, HDMI2, HDMI3 mode (AV Timing : 480p, 576p, 720p, 1080i, 1080p). Digital Clean View MPEG Noise Filter Film Mode HDMI Black Level...
Page 97: Dynamic Backlight
Dynamic Backlight Automatically adjust the backlight to provide the best possible screen contrast under the current conditions. • ― The Dynamic Backlight is not available when the input source is set to PC, AV, Component while Video Wall is On.
Page 98: Picture Size
Picture Size choose size and aspect ratio picture displayed on screen. Picture Size MENU m → Picture → Picture Size → ENTER E ― Different screen adjustment options are displayed depending on the current input source. • 16:9: Sets the picture to 16:9 wide mode.
Page 99 Position Adjusts the picture position. Position is only available if Picture Size is set to Zoom1, Zoom2, Wide Fit, Screen Fit or Custom. ― To use the Position function after selecting Zoom1, Zoom2, Wide Fit, Screen Fit or Custom, follow these steps. Press the d button to select Position.
Page 100 Resolution If the picture is not normal even when the resolution of the graphics card is one of the following, you can optimize the picture quality by selecting the same resolution for the product as the PC using this menu. 1024x768 1280x768 1360x768...
Page 101: Auto Adjustment
Auto Adjustment Adjust frequency values/positions and fine tune the settings automatically. MENU m → Picture → Auto Adjustment → ENTER E Picture Auto Adjustment - Available in mode only. - The displayed image may differ depending on the model. PC Screen Adjustment Coarse Fine •...
Page 102: Picture Off
Picture Off Picture Off Selecting switches off the screen. The volume is not disabled. To switch the screen on, press any button other than the volume button. MENU m → → → ENTER E Picture Picture Off Picture Picture Off - The displayed image may differ depending on the model.
Page 103: On-Screen Display
OnScreen Display PIP Settings The picture from the external video source will be in the main screen and the picture from the product will be in the PIP sub- picture screen. MENUm → OnScreen Display → → ENTERE Main picture Sub picture OnScreen Display HDMI...
Page 104 PIP (Off / On): Activate or deactivate the PIP function. • • Source: You can select a source of the sub picture. Antenna (Air / Cable): Select either Cable as the input source for the sub-screen. • ― This option is enabled if the secondary display is set to TV. Source •...
Page 105: Rotate Menu
Rotation Rotate Menu Configure the menu screen. MENUm → OnScreen Display → Rotation → ENTERE • Landscape: Display the menu in landscape mode (default). • Portrait: Display the menu in portrait mode on the right side of the product screen. Rotation Rotate Content Rotate Menu...
Page 106: Auto Protection Time
Screen Protection Auto Protection Time If the screen displays a still image for a certain period of time you define, the product activates the screen saver to prevent the formation of burnt in ghost images on the screen. MENUm → OnScreen Display →...
Page 107 Timer Screen Burn Protection Screen Burn Protection. You can set the timer for Pixel Shift Screen Burn Protection feature stops automatically after a specified period of time. Timer Timer Immediate Display Repeat: Display the image retention-preventive pattern set in Mode at specified time intervals(Period).
Page 108: Message Display
Immediate Display Screen Burn Protection Select the screen saver you want to display immediately. Pixel Shift Pixel Rolling Bar Fading Screen • Timer Side Gray Immediate Display When the screen is set to 4:3 aspect ratio, adjust the brightness of white margins on sides to protect the screen. Light Dark •...
Page 109: Menu Transparency
Menu Transparency Adjust transparency of menu box. High Medium • MENU m → OnScreen Display → Menu Transparency → ENTER E OnScreen Display Menu Transparency Medium - The displayed image may differ depending on the model. Menu Language Set the menu language. ―...
Page 110: Caption Mode
Caption Caption You can switch the caption function on or off. MENUm → OnScreen Display → Caption → ENTERE If captions are not available, they will not be displayed on the screen. • Caption ― The Caption feature does not work with devices connected to the product through the Component, HDMI1, HDMI2, HDMI3, input jacks.
Page 111: Digital Caption Options
Digital Caption Options Caption (digital channels only) Caption Configure the subtitle settings such as size and color. Adjusts the each option. When done, select Close. Caption Mode Default • Size: Options include Default, Small, Standard and Large. The default is Standard. Digital Caption Options Font Color: You can change the color of the letters.
Page 112: Reset Onscreen Display
Reset OnScreen Display This option returns the current settings under OnScreen Display to the default factory settings. MENU m → OnScreen Display → Reset OnScreen Display → ENTER E OnScreen Display Reset OnScreen Display - The displayed image may differ depending on the model.
Page 113: Sound Adjustment
Sound Adjustment Sound Configure the sound ( ) settings for the product. Sound Mode You can select a sound mode to suit your personal preferences. • Standard: Selects the normal sound mode. • Music: Emphasizes music over voices. MENU m → Sound →...
Page 114: Sound Effect
Sound Effect Configure your preferred sound effect for output sound. ― If Speaker Settings is set to External, Sound Effect is disabled. ― Available only when Sound Mode is set to Standard. MENUm → Sound → Sound Effect → ENTERE Virtual Surround Sound Effect This function provides a virtual 5.1 channel surround sound experience through a pair of speakers using HRTF(Head Related...
Page 115: Hdmi Sound
HDMI Sound Select whether to hear from AV(HDMI) or PC(DVI). AV(HDMI) PC(DVI) • MENU m → Sound → HDMI Sound → ENTER E Sound HDMI Sound AV(HDMI) - The displayed image may differ depending on the model. Sound on Video Call Select sound output to listen to during a video call.
Page 116: Speaker Settings
Speaker Settings TV Sound Output If you are listening to the sound track of a broadcast or movie through an external receiver, you may hear a sound echo caused by the difference in decoding speed between the products speakers and the speakers attached to your audio receiver. If this MENU m →...
Page 117: Reset Sound
Reset Sound The displayed image may differ depending on the model. Reset all sound settings to the factory defaults. MENU m → Sound → Reset Sound → ENTER E Sound Reset Sound - The displayed image may differ depending on the model.
Page 118: Auto Program
Channel Channel Configure the settings for the product. Available in mode only. Auto Program This feature automatically searches and saves all received channels. Auto Program takes about 6–7 minutes. • Auto Program Go to the menu. MENU m → Channel →...
Page 119 Antenna Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the LED display. Cable • MENU m → Channel → Antenna → ENTER E Channel Antenna - The displayed image may differ depending on the model. - Available in mode only.
Page 120: Channel List
Channel List Register or delete channels. Add favorite channels or rename analog channels. Channel List Select a desired channel from to view the channel instantly. ― To navigate Channel List faster, press the channel buttons. The channel list changes page by page. MENU m →...
Page 121: Edit Channel
Edit Channel Manage channels saved on your TV. Delete channels, re-register deleted channels or rename analog channels. Icons found in the edit channel page MENU m → → → ENTER E Channel Edit Channel : Analog channel • : A channel that is selected •...
Page 122 Editing registered channels Locking/unlocking channels using a password Options Select from the edit channel page. The following functions are provided in the page. Provided Lock specific channels to prevent children from accessing inappropriate content. functions may vary depending on the broadcast signal. ―...
Page 123: Edit Favorites
Edit Favorites Creating a favorite channel list Edit Channel Set frequently viewed channels as favorite channels. Favorite channels are indicated by a symbol in the Channel List page. A maximum of five favorite channel lists are allowed. Create different favorite channel lists for each family MENU m →...
Page 124 Viewing channels saved under a favorite channel list Deleting channels from a favorite channel list ― Favorite channel lists are only displayed if they have been created previously. Delete channels from a favorite channel list, if required. When changing the channel using the channel buttons, channels saved in favorite channel lists can only Select Change Fav.
Page 125 Renaming a favorite channel list Change the name of a favorite channel list, if required. Select Change Fav. from the screen to change the favorite channel list on the right to another desired favorite channel list. Select Options from the screen. Sub-menu items are displayed. Select Rename Favorites from the sub-menu items.
Page 126: Audio Options
Audio Options Preferred Language (for digital broadcasts) MENU m → Channel → Audio Options → ENTER E Use the up and down arrow keys to select a language, and then press E. Digital-TV broadcasts can simultaneously transmit many audio tracks (for example, simultaneous translations of the program Channel into foreign languages).
Page 127: Program Rating Lock
Program Rating Lock When turned on, the Program Rating Lock feature can automatically block programs that you deem inappropriate for your children. You must enter a PIN (personal identification number) before you can set or change any of the Program Rating Lock restrictions.
Page 128 Canadian English Rating: You can block TV programs based on their Anglophone Canadian rating. • Canadian English Rating displays a column with locks and the following ratings categories. C: Programming intended for children under age 8. / C8+: Programming generally considered acceptable for children 8 years and over to watch on their own. / G: General programming, suitable for all audiences.
Page 129: Channel Settings
Channel Settings Fine Tune (analog channels only) MENU m → Channel → Channel Settings → ENTER E If the reception is clear, you do not have to fine tune the channel, as this is done automatically during the search and store operation.
Page 130: Network Status
Network Network Status Network Settings MENU m → Network → Network Status → ENTER E MENU m → Network → Network Settings → ENTER E You can check the current network and Internet status. Configure network settings to use various smart hub features such as Internet search, content sharing through a home network and feature updates.
Page 131 Network Settings (Wired) • Depending on how your network is configured, you may be able to attach your product to your LAN by connecting the LAN port on the back of your product directly to a network wall outlet using a LAN cable. Connecting to a Wired Network See the diagram below.
Page 132 Set the network connection to use Internet services such as perform software upgrades. In the pop-up menu that appears, click Status. Automatic Network Settings (Wired) On the dialog that appears, click the Support tab. Connect to the network using a LAN cable. On the Support Tab, click the Details button.
Page 133 ― If the router cannot be found after retrying, select the Stop button. WEP, TKIP or TKIP AES (WPS2Mixed) on your AP or wireless router, Samsung products will not support Add Network button appears. a connection in compliance with new Wi-Fi certification specifications.
Page 134 How to set up manually When done, use the right arrow button to move the cursor to Done, and then press E. The network connection screen appears and the verification process starts. Network Type Wireless Network Settings from the page. ―...
Page 135 When done, select at the bottom of the page, and then press E. The network test screen appears and the verification process starts. “Your wireless network and Internet connection When the connection has been verified, the are setup and ready to use.”...
Page 136: Multimedia Device Settings
Wi-Fi Direct MENU m → Network → Wi-Fi Direct → ENTER E Set to connect the product to wireless mobile devices. Using this function, you can connect wireless mobile devices with your product directly without a router. To use this function, your mobile device To connect your mobile device with your product using Wi-Fi Direct, follow these steps: Wi-Fi Direct.
Page 137: Screen Mirroring
Screen Mirroring Server Network Settings MENU m → Network → Screen Mirroring → ENTER E MENU m → Network → Server Network Settings → ENTER E Connect a mobile device that supports the mirroring function to the product. This allows the screen and Connect to Server sound from the mobile device to be outputted on the product.
Page 138: Device Name
Device Name MENU m → Network → Device Name → ENTER E Select or enter a device name. This name can be shown on network remote controls over the network.
Page 139: Initial Settings (Setup)
System Setup Initial settings (Setup) After powering on the product for the first time, configure basic settings such as the language, channel and time. Press the button. MENU m → System → Setup → ENTER E ― Initial Setup automatically changes Source to TV.
Page 140 Clock Set Set the current date and time, and then select Next. Play via Select the appropriate player mode depending on the environment where you are using the product. ― The Play via setting step only appears when connected to the network. Setup Complete Congratulations! Setup is complete and you're ready to get started.
Page 141 Time You can configure Clock Set Sleep Timer. You can also set the product to automatically turn on or off at a specified time using the Timer function. Clock MENU m → → → ENTER E System Time Set the current year, date and time. Time ―...
Page 142: Time Offset
Time Zone Select your time zone. ― This function is only available when the Clock Mode is set to Auto. Time Offset If the current time that has been automatically set is different from the actual time, adjust the hour between the interval -12 hours and +12 hours.
Page 143: Sleep Timer
Time Switches the DST (Daylight Saving Time) function on or off. Clock Auto Manual Start Date: Set the start date of Daylight Saving Time. • Date: Set the end date of Daylight Saving Time. • Sleep Timer Time Offset: Select the correct time offset your timezone. •...
Page 144: Auto Source Switching
Auto Source Switching Turning on the display with Auto Source Switching On, and the previous video source selection is not active, the display will automatically search the different video input sources for active video. Auto Source Switching MENU m → System →...
Page 145: Power Control
Power Control Auto Power On This feature automatically turns on the product as soon as it is plugged in. Pressing the power button is not needed. MENU m → System → Power Control → ENTER E • PC Module Power Power Control The PC module can be turned on/off separately from the LFD.
Page 146: Standby Control
Standby Control Power Control You can set the screen standby mode to be applied when an input signal is received. Auto Power On Auto • Power-saving mode will activate if no input signals are detected even though a source device is connected to the display. PC Module Power The message No Signal...
Page 147: Eco Solution
Eco Solution Energy Saving Reduce the power consumption by adjusting the screen brightness. MENU m → System → Eco Solution → ENTER E Medium High • Eco Sensor Eco Solution To enhance your power savings, the picture settings will automatically adapt to the light in the room. Energy Saving •...
Page 148: No Signal Power Off
No Signal Power Off Eco Solution Save power by turning the device off when no signal is received from any source. Energy Saving 15 min. 30 min. 60 min. • ― Disabled when an attached PC is in power saving mode. Eco Sensor ―...
Page 149: Device Manager
Device Manager Configure options for external input devices connected to the product. Keyboard Settings MENU m → System → Device Manager → ENTER E Configure keyboard connection settings or options for a connected keyboard. Device Manager Select Keyboard Keyboard Settings Select a keyboard you want to use from the available connected keyboards.
Page 150: Mouse Settings
Mouse Settings Device Manager Select Mouse Keyboard Settings Configure mouse connection settings or options for connected mouse devices. Mouse Settings ― Among connected mouse devices, only one mouse can be used. Pointer Settings Mouse Options ― Depending on the country. - The displayed image may differ depending on the model.
Page 151: Pointer Settings
Pointer Settings Device Manager Pointer Size Keyboard Settings Specify the pointer size. Mouse Settings Small Medium Large Extra large • Pointer Settings Pointer Speed Specify the pointer speed. A higher speed increases the pointer sensitivity. Slow Standard Fast • - The displayed image may differ depending on the model. Pointer Image Specify the pointer shape.
Page 152: Change Pin
Play via Select the appropriate Play via mode depending on the environment where you are using the product. The home screen may be different depending on the setting. MagicInfo URL Launcher • MENU m → System → Play via → ENTER E System Play via MagicInfo...
Page 153 • - The displayed image may differ depending on the model. BD Wise Provides the optimal picture quality for Samsung DVD, Blu-ray and Home Theater products which support Wise. When Wise is turned On, the picture mode is automatically changed to the optimal resolution.
Page 154: Anynet+ (Hdmi-Cec)
Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your Samsung BD Wise product remote. The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your Samsung device has this feature, check if there is an Anynet+ logo on it.
Page 155 Auto Turn Off Anynet+ (HDMI-CEC) Anynet+ Setting an Device to turn automatically when the product is turned off. Anynet+ (HDMI-CEC) • ― If Auto Turn Off is set to Yes, running external devices will turn off at the same time as the product powers off. Auto Turn Off ―...
Page 156: Troubleshooting For Anynet
Troubleshooting for Anynet+ Problem Possible Solution Anynet+ does not work. • Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only. • Check if the Anynet+ device power cord is properly connected. • Check the Anynet+ device’s Video/Audio/HDMI cable connections. •...
Page 157 Problem Possible Solution The connected device is not • Check whether or not the device supports Anynet+ functions. displayed. • Check whether or not the HDMI cable is properly connected. Anynet+ (HDMI-CEC) System • Check whether is set to in the menu.
Page 158: Hdmi Hot Plug
HDMI Hot Plug General This feature is used to activate the time delay to turn on a DVI/HDMI source device. Security • BD Wise DivX® Video On Demand Anynet+ (HDMI-CEC) Shows the registration code authorized for the product. HDMI Hot Plug If you connect to the DivXⓇ...
Page 159: Reset System
Reset System This option returns the current settings under system to the default factory settings. MENU m → System → Reset System → ENTER E System Reset System - The displayed image may differ depending on the model.
Page 160: Software Update
Version: This is the software version already installed in the product. Update the software to the latest version. Auto Update This feature automatically updates the product when not in use. • Contact Samsung MENU m → Support → Contact Samsung → ENTER E View this information when your product does not work properly or when you want to upgrade the software.
Page 161 Go to Home Go to Home to play a variety of content from a memory device or a connected network. Player Accessible using the HOME button on the remote control. Search or play channels or content saved on devices. MENU m → →...
Page 162 Video Wall Customize the layout of multiple displays that are connected to form a video wall. In addition, display part of a whole picture or repeat the same picture on each of the connected multiple displays. To display multiple images, refer to MDC Help or the MagicInfo user guide. Some models may not support the MagicInfo function. Network Status Check the current network and Internet connection.
Page 163: Reset All
Reset All This option returns all the current settings for a display to the default factory settings. MENU m → Support → Reset All → ENTER E Support Reset All - The displayed image may differ depending on the model.
Page 164: Playing Photos, Videos And Music (Media Play)
• Before connecting a USB device to the product, back up files to ensure your data is not damaged or lost. Samsung Electronics is not liable for any damage or loss of data. • Do not remove a USB device while it is loading.
Page 165 Compatible devices with media play • Some USB digital cameras, smartphones and audio devices may not be compatible with the product. • Media play is only compatible with USB MSC devices. • MSC device refers to a Mass Storage Class Bulk-Only Transport device. Examples of MSC devices include Thumb drives, Flash card readers and USB HDDs.
Page 166 Using a USB device Connecting a USB device Turn on your product. Connect a USB device containing photo, music and/or movie files to the USB port on the back or side panel of the product. Player page automatically appears as soon as a USB device connects to the product. ―...
Page 167 Playing media content from a PC/mobile device Approving a PC/mobile device connection Play photos, videos or music saved on a PC or mobile device. To play media content from a PC or mobile device on the product, the connection with the PC or mobile device must be approved. ―...
Page 168: Features Provided In The Media Content List Page
Play content saved on a device connected to a home network. ― Playing media content using a non-Samsung DLNA server may result in a compatibility issue. ― Playback of some media content shared with a PC or mobile device may not be possible depending on the content encoding type or the content file format. Some functions may not be available.
Page 169: Menu Items In The Media Content List Page
Menu items in the media content list page Option Name Operations Photos Videos Music Slide Show Start a slideshow. ― This menu item is not available if Sort by is set to Folder. Encoding Select an encoding language if the title of media content appears corrupted. Rename Playlist Rename a playlist.
Page 170: Available Buttons And Features During Photo Playback
Available buttons and features during photo playback Pressing the E or TOOLS button displays the following buttons. The RETURN button makes the buttons disappear. Pause Play • Start or stop a slideshow. Using a slideshow, it is possible to play all photos in a folder. Previous Next •...
Page 171: Available Buttons And Features During Video Playback
Available buttons and features Option Name Operations during video playback Select Scene Thumbnails: Select a scene and play the video from the scene. ― Thumbnails is not available if 1) the thumbnail of the video is not extracted yet, 2) the video contains audio only or 3) the video play time is shorter than 60 seconds.
Page 172: Available Buttons And Features During Music Playback
Available buttons and features during music playback Pressing the E or TOOLS button displays the following buttons. The RETURN button makes the buttons disappear. Pause Play • Pause or play music. Rewind Fast forward • Rewind or fast forward music. Speed up playback up to 3x, if required. To play the previous music file, select ∂ twice. Previous Next •...
Page 173: Supported Subtitle And Media Play File Formats
Supported Subtitle and Media play file formats Subtitle External Internal • MPEG-4 timed text (.ttxt) • Xsub Container: AVI • SAMI (.smi) • SubStation Alpha • SubRip (.srt) Container: MKV • SubViewer (.sub) • Advanced SubStation Alpha • Micro DVD (.sub or .txt) Container: MKV •...
Page 174: Supported Music File Formats
Supported music file formats File Extension Type Codec Comments *.mp3 MPEG MPEG1 Audio Layer 3 *.m4a, *.mpa, *.aac, *.3ga MPEG4 *.flac FLAC FLAC The Seek (jump) function is not supported. Supports up to 2 channel Supported Video Formats • Video content will not play, or not play correctly, if there is an error in the content or the container. •...
Page 175 File Container Video Codec Resolution Frame rate Bit rate Audio Codec Extension (fps) (Mbps) *.avi DivX 3.11 / 4.x / 5.x / 6.x 1920 x 1080 6~30 *.mkv LPCM *.asf ADMPCM MPEG4 SP / ASP *.wmv (IMA, MS) *.mp4 *.mov HE-AAC H.264 BP / MP / HP *.3gp...
Page 176: Troubleshooting Guide
Troubleshooting Guide Requirements Before Contacting Samsung Customer Service Center Before calling Samsung Customer Service Testing the Product Center, test your product as follows. If the problem persists, contact Samsung Check if your product is operating normally by using the product test function.
Page 177: Check The Followings
Check the followings. Installation issue (PC mode) The screen keeps switching on and off. Check the cable connection between the product and PC, and ensure the connection is secure. Blank spaces are found on all four sides of the screen when The blank spaces found on the screen have nothing to do with the product.
Page 178 Screen issue The screen is not clear. The screen is blurry. Adjust Coarse and Fine. Remove any accessories (video extension cable, etc) and try again. Set the resolution and frequency to the recommended level. The screen appears unstable and shaky. Check that the resolution and frequency of the PC and graphics card are set within a range compatible with the product.
Page 179 Lines (red, green or blue) are displayed on the screen. These lines are displayed when there is a defect in DATA SOURCE DRIVER IC on the monitor. Contact a Samsung Service Center to resolve the issue. The display looks unstable and then freezes.
Page 180 Sound issue The volume is too low. Adjust the volume. If the volume is still low after turning it up to the maximum level, adjust the volume on your PC sound card or software program. Video is available but there is no sound. If an HDMI cable is connected, check the audio output settings on the PC.
Page 181 Sound issue There is an echo sound coming from the speakers. Different decoding speeds between the product speakers and external speakers can cause an echo. Speaker Settings to External. In this case, set Remote control issue The remote control does not work. Make sure that the batteries are correctly in place (+/-).
Page 182 Other issue Caption is grayed out and not selectable. If the selected input source is not TV, Caption OnScreen Display cannot be selected from the menu. Caption can be enabled from a source device. The product smells like plastic. The plastic smell is normal and disappears over time. The monitor appears tilted.
Page 183 Other issue There is no sound in HDMI mode. Displayed picture colors may not look normal. Video or sound may not be available. This can occur if a source device that only supports an older version of the HDMI standard is connected to the product. If these issues occur, connect an audio cable along with the HDMI cable.
Page 184 Q & A Question Answer How can I change the frequency? Set the frequency on your graphics card. • Windows XP: Go to Control Panel → Appearance and Themes → Display → Settings → Advanced → Monitor and adjust the frequency in Monitor Settings. •...
Page 185 Question Answer How do I set powersaving mode? • Windows XP: Set power-saving mode in Control Panel → Appearance and Themes → Display → Screen Saver Settings or BIOS SETUP on the PC. • Windows ME/2000: Set power-saving mode in Control Panel → Display → Screen Saver Settings or BIOS SETUP on the PC.
Page 186: Specifications
Specifications General Size Model Name DM82D Panel Size 82 CLASS (81.5 inches / 207 cm) Display area 1805.76 mm (H) x 1015.74 mm (V) / 71.09 inches (H) x 39.99 inches (V) Display area Dimensions (W x H x D) 1854.2 x 1064.2 x 89.3 mm (48.5 mm Without Handle) / 73.00 x 41.90 x 3.52 inches (1.91 inches Without Handle)
Page 187 ― Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may appear brighter or darker on the panel. This does not affect product performance. ― This device is a Class A digital apparatus. (USA only) Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website: www.samsung.com/recyclingdirect or call, (877) 278 - 0799...
Page 188: Power Saving Mode
PowerSaver The power-saving function of this product reduces power consumption by switching off the screen and changing the color of the power LED if the product is not used for a specified period of time. The power is not turned off in power-saving mode. To switch the screen back on, press any key on the keyboard or move the mouse. Power- savign mode only functions when the product is connected to a PC with a power-saving function.
Page 189: Preset Timing Modes
― Check the frequency when you exchange a CDT product (connected to a PC) for an LCD product. If the LCD product does not support 85 Hz, change the vertical frequency to 60 Hz using the CDT product before you exchange it with the LCD product. Model Name DM82D Synchronization Horizontal Frequency...
Page 190 Resolution Horizontal Frequency Vertical Frequency Pixel Clock Sync Polarity (kHz) (Hz) (MHz) (H/V) VESA, 640 x 480 37.500 75.000 31.500 VESA, 800 x 600 35.156 56.250 36.000 VESA, 800 x 600 37.879 60.317 40.000 VESA, 800 x 600 48.077 72.188 50.000 VESA, 800 x 600 46.875...
Page 191: Responsibility For The Pay Service (Cost To Customers)
― When the service is requested, in spite of in warranty, we may charge you for a visit from a service • Use of supplies or separatly sold product unspecified by Samsung. technician in the following cases. • Repair from a person besides an engineer of outsourcing service company or partner of Samsung Electronics Co., Ltd. Not a product defect •...
Page 192: Optimum Picture Quality
Optimum Picture Quality and Afterimage Black Matrix Color-Filter Common Electrode (ITO) Burn-in Prevention Optimum Picture Quality Source Drain • Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the panel. This does not affect product performance. - The number of sub-pixels by panel type: 6,220,800 •...
Page 193: Flight : Time
Preventing afterimage burn-in • Regular Text color Change - Use bright colors of similar brightness. ― The best way to protect the product from afterimage burn-in is switching the power off or setting the Interval: Change text color and background color every 30 minutes PC or system to run a screen saver when not in use.
Page 194 In the case of using open source software, Open Source Licenses are available on the product menu. Open Source License Notice is written only English. For information on the Open Source License Notice, contact the Samsung Customer Center or send email to oss.request@samsung.com.
Page 195 Terminology Non-interlace Mode and Interlace Vertical Frequency____ The product Component ports (green, blue and DVD (Digital Versatile Disc)____ DVD 480i / 480p / 720p / 1080i / red)____ The component ports, which 1080p____ Each of the scanning Mode____ Non-interlace mode displays a single image many times refers to a CD-sized mass storage disk rates above refers to the number of...

Samsung DM82D User Manual

Quick Links

Troubleshooting

Related Manuals for Samsung DM82D

Summary of Contents for Samsung DM82D

Table of Contents
