- Page 1 Refs. 563802, 563821 QUICK HDTV ENCODER/MODULATOR - Quad Composite to QAM INSTALLATION GUIDE HDTV ENCODER/MODULATOR - Quad Composite to QAM (EAS) w w w . t e l e v e s . c o m...
- Page 2 The equipment complies with the CE mark requirements. Responsible party: Televes USA LLC. 16596 E. 2nd Avenue Aurora, CO 80011 USA Telephone: +1 (720) 379 3748 televes.usa@televes.com Manufacturer: Televes S.A.U. Rúa B. de Conxo, 17 - 15706 Santiago de Compostela, A Coruña. Spain...

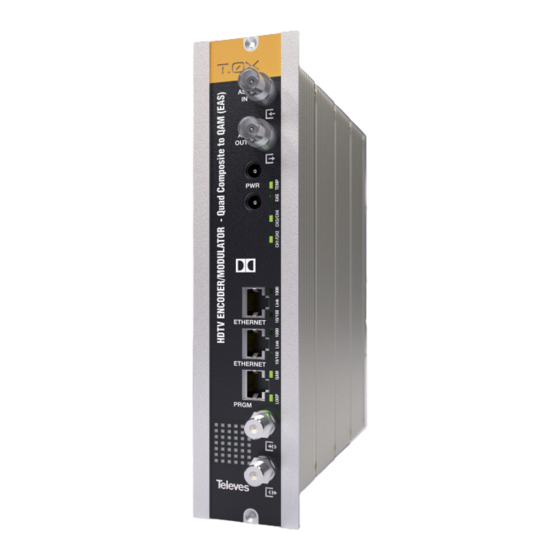

- Page 3 Description of connectors Front view Rear view 563802 563821 563802 563821 (EAS) (EAS) 1.- ASI input 1.- CVBS input (Video/Closed Caption). Channel 1 2.- ASI output 2.- Analog (L/R) audio input. Channel 1 3.- Power connectors 3.- CVBS input (Video/Closed Caption). Channel 2 4.- Ethernet connector...
- Page 4 Installation Connect the programmer to each unit and set a unique number in Install all units in the rack and connect them as shown in Figure 1. the “# ID” field according to the order of installation of the units in the rack.
- Page 5 The Status > Summary page should appear as the first page. This provides a summary of all the units installed in the network and the units will be sorted by the number entered in Step 5. The “Change Password” option only changes the password of the encoder currently logged in to.
- Page 6 Position cursor FW VERSION>> SELECT - QAM MODE - (in edit mode) / QAM B MODULE REF A/V INPUT Disable edit mode. 563802 INPUT 1 Change section / FW VERSION>> - INPUT OUTPUT FPGA SW/HW STATUS SELECT OUT Save parameters 1.00.0041...
- Page 7 Technical specifications References 563802, 563821* VIDEO Connectors 4 sets - 1x RCA for Video (CVBS) AUDIO Connectors 4 sets - 2x RCA for Analog Audio (L, R) CLOSED CAPTIONING Connectors 4 sets - 1x RCA for Video (Same as CVBS in)
