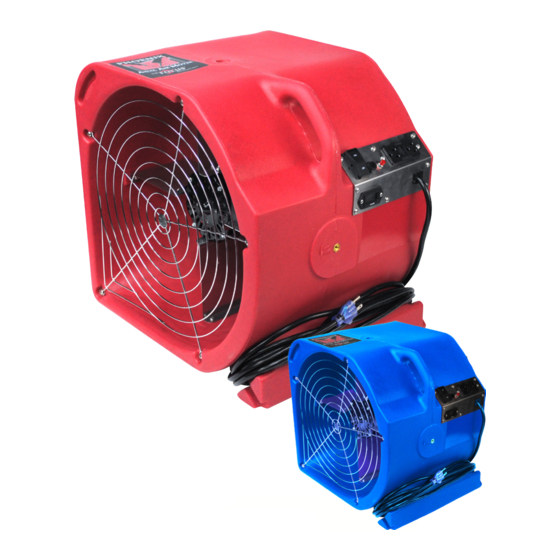

Axial air mover

Advertisement

Owner's Manual — Phoenix Axial Air Mover
The Phoenix Axial Air Mover is the industry's only Air Mover specifically engineered with patent pending
FOCUS
Technology. FOCUS
TM
than competitive product offerings. This highly focused air flow is directed towards the restoration industry's
problematic drying areas namely, carpet and pad, sub-floor, sill plate and walls. No other fan dries the sill
plate as quickly! Finally, the Phoenix Axial Air Mover with FOCUS
further than any other Axial Air Mover.
The Phoenix Axial Air Mover includes a 2-speed motor delivering
a focused airstream of approximately 3000 cfm, lightweight
stackable enclosure designed to fit existing vehicle rigging,
on-board duplex GFCI outlet, circuit breaker, superior cord
management and hour meter.
Conventional air movers create a circular air jet. With a circular
air jet the only way to get air into the square corner is to point
the fan towards the corner. This angle toward the wall wastes
valuable air velocity and throw distance. FOCUS
creates an air jet with a square corner, resulting in optimized
drying ability. In addition, the Axial Air Mover features built in
4.5° positioning which increases the fans ability to dry.
Dry fast, smart and profitably with Phoenix.
Phoenix Axial Air Mover
• Approximately 3000 CFM air flow directed where you
need it.
• Operator interface conveniently located for easy
access, featuring: power indicator lamp, large three-
position switch, circuit breaker, GFCI outlet, and hour
meter.
• Daisy-chain up to four Phoenix Axial Air Movers on a
single circuit.
• Integral circuit breaker eliminates nuisance trips to
the breaker box.
• Axial Air Mover itself is also GFCI protected.
• Units interlock for ease of stacking during storage
and handling.
• Weighs 2.5 lbs less than competitive units.
• Linear low density polyethylene construction.
• Low bearing temperatures increase motor life.
Specifications subject to change without notice.
Toll-Free 1-800-533-7533
4201 Lien Rd • Madison, WI 53704
Installation, Operation & Service Instructions
Read and Save These Instructions
Technology revolutionizes evaporative drying by producing air velocities greater
TM
Technology
TM
Technology sustains these air velocities
TM
Phoenix now offers
this unit in both
Red and Blue
Phoenix Axial Air Mover
PN 4025200 (Red)
4030680 (Blue)
1
www.UsePhoenix.com • sales@UsePhoenix.com
Patent: 7,331,759
TS-947
09/17 Rev. B

Advertisement
