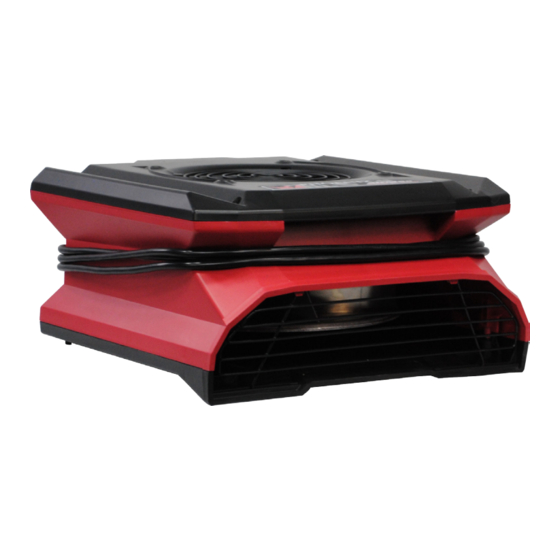

The Phoenix AirMAX is the new leader in performance,
convenience, portability, and safety for low profile air
movers.
Its compact 20 1/2" X 17" footprint and 8 7/8" height
make the Phoenix AirMAX the most compact and portable
fan in its class.  The rugged molded in handle gives you
the solid control required when packing and unpacking
lots of air movers.  Its easy-winding cord wrap and multiple
securement options makes it a snap to prep for transport.
Because of its deeply-molded interlocking features, the
Phoenix AirMAX is rock solid when stacked for transport.
With its Patent Pending, low resistance motor support
bracket and optimized outlet shape, the Phoenix AirMAX
delivers airflow of over 925 CFM. This gives you high velocity
air over a 25% larger area than other low profile air movers.
In addition, the Phoenix AirMAX is stable on all 5 sides for
maximum flexibility to position and direct the drying.
The Phoenix AirMAX is the safest fan in its class providing a
quality GFCI convenience receptacle that protects not only
connected loads, but onboard components as well. This is
unlike competing fans that require external GFCI protection.
In addition, where competitors position high voltage
electrical connections low to the floor, the leading edge
design of the Phoenix AirMAX allows these connections to
be located more than 4 times the minimum required height.
The Phoenix AirMAX is built to keep our customers, and their
customers, safe.
The Phoenix AirMAX
• 925 CFM, 1.9A
• Onboard circuit breaker and branch protection GFCI
• Daisy chain up to 6 fans on a single 15 Amp circuit
• Ultra secure stacking and cord wrap
• All Stainless Steel Fasteners
1.800.533.7533
Phoenix AirMAX - Radial Air Mover
OWNER'S MANUAL
Installation, Operation & Service Instructions
– READ AND SAVE THESE INSTRUCTIONS –
USEPHOENIX.COM
Phoenix now offers
this unit in both
Red and Blue
Phoenix AirMAX
PN 4035000 (Red)
4035060 (Blue)
US Patent D782, O22
Other Patents Pending
Specifications subject to change without notice.
WISCONSIN
1
TS-890
06/19 Rev. E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Phoenix AirMAX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Therma-Stor Phoenix AirMAX

  • Page 1: Introduction

    925 CFM. This gives you high velocity air over a 25% larger area than other low profile air movers.  In addition, the Phoenix AirMAX is stable on all 5 sides for Phoenix AirMAX maximum flexibility to position and direct the drying.
  • Page 2: Table Of Contents

    3 Operation 3.1 Transporting the Phoenix AirMAX The Phoenix AirMAX is designed to be stacked vertically or horizontally (“Bookshelf Stacking”) for transport. 3.2 Electrical Requirements The Phoenix AirMAX can be plugged directly into any standard wall receptacle.
  • Page 3: Ducting

    The 12 Amp thermal circuit breaker protects the unit and devices connected to its duplex GFCI receptacle.  In case 4.1 Power Cord of a fault, the breaker can be reset at the Phoenix AirMAX Visually inspect cord and plug head before use.  If there are control panel.
  • Page 4: Wiring Diagram

    5 Wiring Diagram 1.800.533.7533 USEPHOENIX.COM...
  • Page 5: Service Parts

    6 Service Parts Optional Parts Part No. Description 4024936 Duct, Lay Flat, 14” x 250’ 4035662 Impeller Assembly 4036557 Power Cord Kit (20’ cord, bolts & nuts) 4035235-08 Run Capacitor, 20 mfd, 370 VAC 4035665 Rubber Feet 4036256 Duplex GFCI Outlet Kit 4035825 Rocker Switch 4035752...
  • Page 6: Warranty

    This page intentionally left blank. 1.800.533.7533 USEPHOENIX.COM...
  • Page 7 Who Is Covered: This warranty extends only to the original end-user of the AirMAX Fan, and may not be assigned or transferred. First Year Warranty: Therma-Stor Products warrants that, for one (1) year the AirMAX Fan will operate free from any defects in materials and workmanship, or Therma-Stor Products will, at its option, repair or replace the defective part(s), free of any charge.
