Owner's Manual
Low amp draw, balanced airflow characteristics and
maximum velocities of over 2950 FPM are what propel the
Phoenix to rise above the competition.
The unique /3 horsepower design of the Phoenix
Centrifugal Air Mover, coupled with a three-speed switch,
allows the restoration technician to deliver the most airflow
using the fewest amps.
Maximum amp draw on high speed is 3.9 amps. This
drops to a mere 2.45 amps on low speed. It is now
possible to fit as many as four Phoenix Centrifugal Air
Movers onto a typical 5 amp household circuit.
The Phoenix housing is durable, washable, and chemical
resistant. Phoenix Centrifugal Air Movers are also
stackable. In addition, molded-in runners allow for the air
mover to be angled up from horizontal to 45° and 90°.

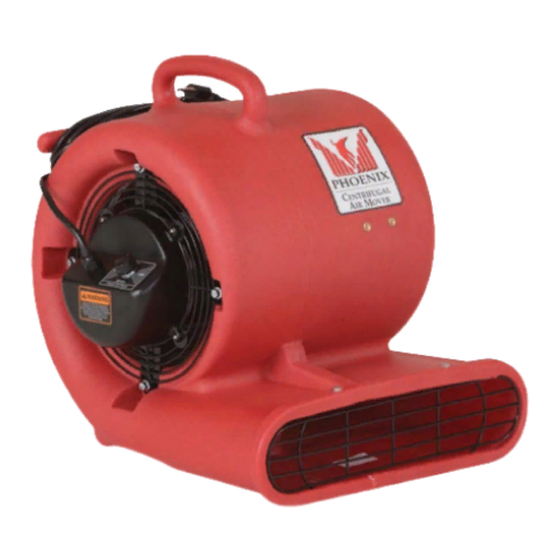

Phoenix Centrifugal Air Mover
• 3-Speed /3 Horsepower Motor
3.9 Amps on High Speed
2.6 Amps on Medium Speed
2.45 Amps on Low Speed
• Maximum Velocities Over 2950 FPM
• Best Balanced Exhaust Airflow
• Stackable
• Directional Airflow
Horizontal
45° Angle
90° Angle
Specifications subject to change without notice.
Toll-Free -800-533-7533
PO Box 8680 • Madison, WI 53708
—
Phoenix Centrifugal Air Mover
Installation, Operation & Service Instructions
Read and Save These Instructions
www.thermastor.com • sales@thermastor.com
Phoenix Centrifugal Air Mover
TS-350
Phoenix Centrifugal Air Mover
PN 4025825
Revised 1/07
Advertisement
Table of Contents
Related Manuals for Therma-Stor Phoenix
Summary of Contents for Therma-Stor Phoenix
- Page 1 Maximum amp draw on high speed is 3.9 amps. This drops to a mere 2.45 amps on low speed. It is now possible to fit as many as four Phoenix Centrifugal Air Movers onto a typical 5 amp household circuit.
- Page 2 • Do not leave device plugged in when not in use. • Dot not expose to rain–store indoors. • Use only as described in this manual. • Use only Manufacturer’s recommended attachments. Contact Therma-Stor for proper repair instructions. Toll-Free 1-800-533-7533 www.thermastor.com • sales@thermastor.com...
- Page 3 3 Operation The Phoenix Centrifugal Air Mover features a four-position switch - OFF, HIGH, MEDIUM, LOW. . Check the unit for airflow obstructions prior to plugging in the unit or operation. 2. Place the machine into the desired position for operation.
- Page 4 This page intentionally left blank. Toll-Free 1-800-533-7533 www.thermastor.com • sales@thermastor.com...
- Page 5 Therma-Stor LLC’s reasonable control. If any Phoenix Centrifugal Air Mover part is repaired or replaced, the new part shall be warranted for the balance of original warranty (but all warranty periods will be extended by the period of time, if any, that the Phoenix Centrifugal Air Mover is out of service while awaiting covered warranty service).
