- Page 2 Energizer and certain graphic designs are trademarks of Energizer Brands, LLC and related subsidiaries and are used under license by Builder SAS. All other brand names are trademarks of their respective owners. Neither Builder SAS nor Energizer Brands, LLC is affiliated with the respective owners of their trademarks...
- Page 3 Let's get started. You're excited to power up, so we'll keep this brief!
-
Page 4: Safety Warnings
1. SAFETY WARNINGS WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 5 c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
- Page 6 The manufacturer cannot be held responsible if the machine has been modified in an unauthorized manner or in such a way as to constitute a final damage. Observe the nature of the area where the work is being performed. ...
- Page 7 Only the use of spare parts and accessories approved by the manufacturer is permitted. Specially design to work with Energizer range of battery and charger. Any other use may be dangerous and severely damage the trimmer. Examples of improper use may include, but not limited to: General grass cutting and in particular near kerbs;...
- Page 8 Remove the battery when the tool is damaged and before maintenance. Read the instructions. Wear protective gloves Wear antiskid protective shoes= Be aware of the cutting elements Maximum height of use (15 meters) Risk of projections. Keep bystanders away.
-
Page 9: Your Product

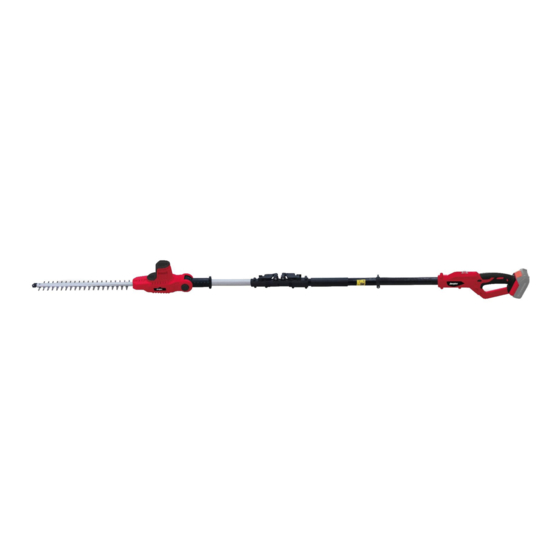

2. YOUR PRODUCT a. Description 1. Cutting blade 2. Pole position knob 3. Quick release (install the pole) 4. Quick release (telescopic handle) 5. Battery port 6. Harness 7. Blade guard Safety lock-out switch ON/OFF switch The tool is provided with a hexagon key. - Page 10 b. Technical data Voltage 20 V d.c. Cutting length 420mm Mass of tool 4,1 kg Sound pressure level LpA: 77,3 dB(A) K= 3 dB(A) Measured sound power level LwA: 88,1 dB(A) K= 3 dB(A) Guarantee sound power level LwA: 92dB(A) Vibration <2,5m/s²...
- Page 11 3. CHARGING a. Charging Energizer range battery and charger are sold together. Battery has not been fully charged at the factory. Before using it for the first time, charge the screwdriver's battery for 60min to 130min. Insert the charger plug into the charging socket and plug the charger into a 230V/50Hz electrical outlet.
- Page 12 4. ASSEMBLY a. Installing the pole Unscrew the pad and remove the screw which is on the tool. Install the pole in the unit until it clicks in place. Reinstall the pad and screw it in place. Note: the pad must be put on the vertical way (against the tool) to secure the pole. b.
- Page 13 c. Installing the battery pack Warning! Always remove battery pack from your tool when you are assembling parts, making adjustments, cleaning, carrying, transporting or when not in use. Removing battery pack will prevent accidental starting that could cause serious personal injury. NOTE: To avoid serious personal injury, always remove the battery pack and keep hands clear of the lock-out button when carrying or transporting the tool.
-
Page 14: Operation
5. OPERATION a. Switching on and off NOTE: Before using the hedge trimmer, the protective case has to be removed from the cutter bar. Switching on Press the safety lock-out switch (1). Keep it pressed and then press the ON/OFF switch (2). - Page 15 Adjust the length by pushing or pulling as required. Close the quick release by pulling it back down. NOTE: If the quick release does not have enough tension, this can be tightened with the assembly tool c. Working position The hedge trimmer can be operated in 4 different working positions. Lateral cutting: Telescopic handle refracted High vertical cutting: Telescopic handle extended...
- Page 16 High horizontal cutting: Motor unit set at 75°, telescopic handle extended Low cutting: Motor unit set at -60°, telescopic handle extended d. Adjusted motor unit angle For high and low cutting, you can adjust the angle of the motor unit in 15º steps from 75° to -60°.
-
Page 17: Maintenance And Storage
6. MAINTENANCE AND STORAGE a. Cleaning and maintenance A WARNING! RISK OF INJURY! Always switch the appliance off and remove the battery before carrying out any work on the appliance. The appliance must always be kept clean, dry and free from oil or grease. Never allow liquids to get into the appliance. - Page 18 The manufacturer warrants the product against defects in materials and workmanship for a period of 2 years from the date of purchase to the original purchaser. The guarantee applies when the product is used as a home tool. The warranty does not extend for failures due to normal wear and tear. The manufacturer agrees to replace the spare parts that are classified as defective by a designated distributor.
- Page 19 In order to get help about your pole hedge trimmer we invite you to go through this link or to call us by phone +33 (0)8.20.20.22.68: https://services.swap-europe.com/contact You need to create a "ticket" via their platform. • Login or create your account •...
-
Page 20: Declaration Of Conformity
EC Declaration of conformity BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Declares that the machine Designation: CORDLESS POLE HEDGE TRIMMER Model: EZ20VTHPC-UK Serial number ： Is in conformity with the European Directives: Machine Directive 2006/42/EC EMC Directive 2014/30/EU...
