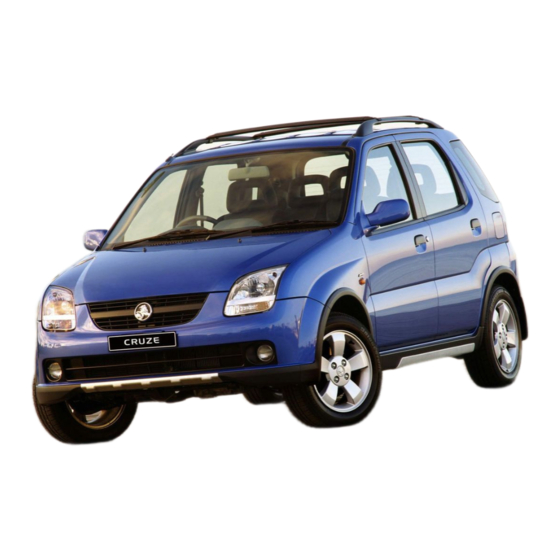

HOLDEN YG CRUZE Owner's Handbook Manual
  1. Manuals
  2. Brands
  3. HOLDEN Manuals
  4. Automobile
  5. YG CRUZE
  6. Owner's handbook manual

HOLDEN YG CRUZE Owner's Handbook Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YG CRUZE and is the answer not in the manual?

Questions and answers

Related Manuals for HOLDEN YG CRUZE

Summary of Contents for HOLDEN YG CRUZE

  • Page 2 ABN 84 006 893 232 Change of name, address or ownership In the event of a Safety Recall, or for various reasons, Holden may need to contact you as the owner of this vehicle. Also, if less than three years old, this vehicle will qualify for Roadside Assistance, refer to Chapter 9.

  • Page 3: Dashboard

    Dashboard Page Dashboard layout Tilt steering, horn and glovebox Gauges Clock / information display 1-11 Warning / reminder indicators 1-14 Wipers and washers 1-15 Exterior lamps 1-17 Ventilation 1-21 Heating 1-22 Air conditioning 1-24 Demisting 1-25 Cigarette lighter and ashtray 1-26 Ignition switch 1-27...
  • Page 4 Chapter 1 DASHBOARD DASHBOARD LAYOUT Chapter-Page Chapter-Page 1 Side demisters 1-24 11 Mirror control, dimmer and fog lamp switches 1-6, 1-15 2 Side ventilators 1-17 12 Cup holder 3 Airbags 6-13 13 Bonnet release 1-27 4 Heater control panel 1-21 14 Fuse box 6-22 5 Centre ventilator...
  • Page 5 Chapter 1 DASHBOARD TILT STEERING, HORN AND GLOVEBOX Tilt steering Push down on the lock lever, located under the steering column, to adjust the steering wheel height. LOCK After adjusting the steering wheel height, move the lock lever back to set the position. Before driving, ensure the steering wheel height has locked securely.
  • Page 6 Chapter 1 DASHBOARD GAUGES Chapter-Page Chapter-Page Warning / reminder indicators ..... 1-11 Fuel gauge ..........1-6 Speedometer ......... 1-4 Odometer / Tripmeter selector knob ......... 1-4 Tachometer ........... 1-5 Odometer / Tripmeter ......1-4 Temperature gauge ....... 1-5 Speedometer The speedometer indicates vehicle speed in kilometres per hour (km/h). Odometer / tripmeter display window A window in the speedometer is used to display the odometer, tripmeter A and...
  • Page 7 Chapter 1 DASHBOARD GAUGES cont. Tachometer The tachometer shows engine speed in revolutions per minute (rpm). WARNING: Do not drive with the engine speed (rpm) in the red zone. This can cause severe engine damage. Engine temperature gauge With the ignition switched on, this gauge indicates the engine coolant temperature.
  • Page 8 Chapter 1 DASHBOARD GAUGES cont. Fuel gauge When the ignition is on, this gauge indicates the approximate amount of fuel in the fuel tank. F = full E = empty Add fuel as soon as possible if the needle moves below the lowest graduation. Do not let the tank become empty.
  • Page 9 Chapter 1 DASHBOARD CLOCK / INFORMATION DISPLAY The clock / information display provides a digital clock and an average speed indicator. Select up to four functions depending on the position of the ignition switch. To switch between the functions, press the MODE button in quick succession.
  • Page 10 Chapter 1 DASHBOARD CLOCK / INFORMATION DISPLAY cont. Set the time 1. Press and hold the MODE button (1) until the display blinks (approximately 2 seconds). 2. Press the H (hour) button (2) to advance the hour to your desired setting. 3.
  • Page 11 Chapter 1 DASHBOARD CLOCK / INFORMATION DISPLAY cont. Running-time display Running-time is the time that the ignition switch has been in the ON position, with or without the engine running. The running-time display provides two functions: • progressive running-time • running-time alarm.
  • Page 12 Chapter 1 1-10 DASHBOARD CLOCK / INFORMATION DISPLAY cont. Date display Set the date when the ignition switch is set to ACC or ON. 1. Press and hold the MODE button (1) until the display blinks. 2. Press the H (hour) button (2) to advance the year display.
  • Page 13 If this indicator illuminates when driving, consult a Holden Retailer. Note: The vehicle can still be driven if the power steering system is faulty. However, due to the effort required to steer, consult a Holden retailer as soon as possible.
  • Page 14 Refer to Chapter 7. If the oil level is normal, have the system checked by a Holden Retailer. If the engine is hot, the indicator may illuminate intermittently when idling.
  • Page 15 If this indicator illuminates when driving and the park brake is fully released, pull off the road allowing a longer distance than usual to stop and check the function of the brakes. Consult a Holden Retailer as soon as possible.
  • Page 16 Chapter 1 1-14 DASHBOARD WIPERS AND WASHERS Wipers and washers are operational when the ignition is on. Windscreen wipers The front windscreen wipers have three operating positions: • INT: wipers sweep intermittently. • LO: wipers sweep continually at a slow speed.
  • Page 17 Chapter 1 1-15 DASHBOARD EXTERIOR LIGHTING Light switch Rotate the end section of the lever to the first position to switch on the: • front parking lamps • tail lamps • licence plate lamp • instrument lighting. Rotate the end section of the lever to the second position to switch the headlamps on in addition to the above lighting.
  • Page 18 Chapter 1 1-16 DASHBOARD EXTERIOR LIGHTING cont. Turn signals With the ignition on, push the lever up or down as required to signal a turn. The steering wheel cancels the signal when the turn is completed. In some turns (such as changing lanes) the steering wheel is not rotated enough to cancel the signal.
  • Page 19 Chapter 1 1-17 DASHBOARD VENTILATION Your vehicle features a flow through ventilation system for your comfort. Under reasonable conditions, it should not be necessary to open the windows. Side demist vent Centre vents Side vent Foot vents Windscreen demist vent Vent adjustment The demist and foot vents are not adjustable.
  • Page 20 Chapter 1 1-18 DASHBOARD VENTILATION cont. Temperature dial Anticlockwise = cooler air Clockwise = warmer air. Fan dial OFF plus four speeds. The air flow rate is affected by vehicle speed as well as by the fan. Vent dial Five positions: •...
  • Page 21 Chapter 1 1-19 DASHBOARD VENTILATION cont. BI-LEVEL Temperature-controlled air from the floor vents and cooler air from the centre and side vents. With the temperature selector in the fully cold or fully hot position, air from the floor, centre and side vents is the same temperature.
  • Page 22 Chapter 1 1-20 DASHBOARD VENTILATION cont. Air intake selector Slide the switch to select between recirculated inside air (4) and outside air (5). To prevent exhaust fumes and odours from entering your vehicle, use the recirculated air setting. For instance, when following a vehicle along a dusty road.
  • Page 23 Chapter 1 1-21 DASHBOARD HEATING Normal heating • Desired temperature setting. • Fan on (higher speed settings increase heating efficiency). • Fresh air. Note: Heat is not available until the engine warms up. Quick heating • Desired temperature setting. • Fan on (higher speed settings increase heating efficiency).
  • Page 24 Chapter 1 1-22 DASHBOARD AIR CONDITIONING Functions Air conditioning cools the air and removes moisture. If the temperature dial is moved away from extreme cold, the air will be heated before entering the cabin. While the air conditioner is in operation, you may notice changes in engine speed. This is normal.
  • Page 25 Chapter 1 1-23 DASHBOARD AIR CONDITIONING cont. Normal cooling • Air conditioning on. • Fresh air. • Cold temperature setting. • Fan on. • Ventilation (on the vent dial). • All vents open. Maximum cooling Use this setting in hot weather or when the vehicle has been left in the sun.
  • Page 26 Chapter 1 1-24 DASHBOARD DEMISTING Windscreen and side windows When the windscreen demister is selected, the side demister vents direct air to demist the side windows. • Air conditioning on. • Fresh air. • Fan on. (Preferably high speed). • Hot temperature setting.
  • Page 27 Chapter 1 1-25 DASHBOARD CIGARETTE LIGHTER AND ASHTRAY Cigarette lighter The cigarette lighter is operational when the ignition switch is set to ON or ACC. Press the cigarette lighter in to activate heating. The lighter automatically pops up when it is ready to use.
  • Page 28 Chapter 1 1-26 DASHBOARD IGNITION SWITCH Ignition switch The ignition switch has four positions: LOCK Remove the key in this position to enable the steering lock. This position enables the operation of some accessories. The normal operating position with all electrical systems enabled. START Engine starting position.
  • Page 29 Chapter 1 1-27 DASHBOARD BONNET Release lever The bonnet release lever is located inside the vehicle, below the driver's drink holder. Pull the lever towards you to release the bonnet. A safety catch prevents the bonnet from lifting fully. Safety catch The safety catch is located under the front of the bonnet.
  • Page 30 Chapter 1 1-28 DASHBOARD...

  • Page 31: Locks

    Locks Page Keys and lock buttons Door locks Tailgate and remote control Immobiliser...
  • Page 32 Chapter 2 LOCKS KEYS AND LOCK BUTTONS Keys Your vehicle comes with immobiliser ignition keys. A key identification number is provided with the keys. Keep this number in a safe place away from your vehicle in case you need to have new keys cut. Refer to Immobiliser in this chapter.
  • Page 33 Chapter 2 LOCKS DOOR LOCKS Locking the vehicle To lock all of the doors and the tailgate from outside of the vehicle, either: • press the remote control lock button (1) (the turn signal lights flash once) • turn the key in the driver's door. To lock a passenger door individually, press the lock knob down and hold the exterior door handle up as you close the door.
  • Page 34 Do not expose it to impacts, moisture or high temperatures. If you lose your remote control, contact a Holden Retailer for a replacement and to have the lost one deactivated. Operating distance The maximum operating distance of your remote control can vary depending on the surroundings, such as: •...
  • Page 35 Immobiliser keys from other vehicles can interfere with your vehicle. Keep those keys away from the ignition switch when using your vehicle. Refer to your Holden Retailer if you require extra keys. The vehicle must be programmed with the correct key identification code. If you lose a key, have the associated code removed from the on-board module for security reasons.
  • Page 36 Chapter 2 LOCKS...

  • Page 37: Know Your Vehicle

    Know your vehicle Page Front seat adjustment Head restraint and lumbar support adjustment Rear seat adjustment Seat belts Child restraints 3-12 Mirrors 3-13 Electric windows 3-14 Interior lamps 3-15 Assist grips 3-16 Brake pedal 3-17 Park brake and steering 3-18 Clutch pedal 3-19 Roof rails and underseat tray...
  • Page 38 Chapter 3 KNOW YOUR VEHICLE FRONT SEAT ADJUSTMENT Forward / rearward Adjust a front seat as follows: 1. Lift the lever at the front of the seat. 2. Slide the seat forward or backward as required. 3. Release the lever. 4.
  • Page 39 Chapter 3 KNOW YOUR VEHICLE HEAD RESTRAINT AND LUMBAR SUPPORT ADJUSTMENT Note: This safety feature is not intended as a headrest. It is solely for the reduction of whiplash neck movement in an accident involving your vehicle. Head restraint adjustment WARNING: •...
  • Page 40 Chapter 3 KNOW YOUR VEHICLE REAR SEAT ADJUSTMENT WARNING: To avoid injury from passing traffic, do not stand on the road side of the vehicle when converting the rear seat. Recline / incline Adjust the angle of the back seat as follows: 1.
  • Page 41 Chapter 3 KNOW YOUR VEHICLE SEAT BELTS Australian law requires that the driver and all passengers be properly restrained at all times with the seat belts provided in the vehicle. Failure to do so could increase the chance of injury and / or the severity of injury in accidents. You must wear a seat belt whether or not an airbag is mounted at your seating position.
  • Page 42 Chapter 3 KNOW YOUR VEHICLE SEAT BELTS cont. Lap-sash belts FIT A LAP-SASH SEAT BELT 1. Pull the belt across your body and insert the metal tongue into the buckle (listen for a click). 2. Settle the belt at your hips. 3.
  • Page 43 The belt pretensioners may trigger suddenly and cause injury if they are handled incorrectly. Therefore, front seats and belts should only be removed, disposed of and replaced by a Holden Retailer. The AIR BAG indicator on the instrument panel may indicate a system fault in three ways: •...
  • Page 44 • buckles • latch plates • retractors • anchorages • guide loops. Replace any seat belts that are damaged or do not function correctly. Consult your Holden Retailer if you need assistance with this inspection or for seat belt replacement.
  • Page 45 Chapter 3 KNOW YOUR VEHICLE CHILD RESTRAINTS Note: Always ensure that the seat belt fits firmly around the child restraint. If a child cannot see out of the window, do not raise the child by means of an ordinary cushion, it will not stay in place in a collision and the child can slip out of the straps and become entangled.
  • Page 46 Chapter 3 3-10 KNOW YOUR VEHICLE WHICH TYPE OF CHILD RESTRAINT FOR YOUR CHILD? Children should be restrained at all times and fitted with a child restraint appropriate to their size when travelling in a vehicle. Following are some guidelines about selecting the appropriate restraint for your child.
  • Page 47 Chapter 3 3-11 KNOW YOUR VEHICLE CHILD RESTRAINTS cont. Child restraint locking mechanism The seatbelts for the rear seats have an Automatic Locking Ratchet (ALR). Once this mechanism is activated, it allows the belt only to retract. To activate the ALR mechanism, extend the seat belt to its maximum length. To deactivate the ALR mechanism, let the seat belt fully retract.
  • Page 48 Chapter 3 3-12 KNOW YOUR VEHICLE MIRRORS Internal rear view mirror Grasp the mirror and swivel it to adjust it as required. Toggle the lever on the lower edge of the mirror towards you to reduce glare. Push Pull NIGHT Electric exterior mirrors Switches for the electric mirrors are located in the dashboard, to the right of the steering...
  • Page 49 Chapter 3 3-13 KNOW YOUR VEHICLE ELECTRIC WINDOWS Controls Driver's side The driver's door switch panel includes switches for the front windows (1), the rear windows (2) and a lock switch (3). Individual switches are located in the passenger doors. The electric windows are operational with the ignition on.
  • Page 50 Chapter 3 3-14 KNOW YOUR VEHICLE INTERIOR LAMPS Front interior lamps The front interior lamps illuminate when the the switch is set to DOOR and a door is open or when the lamp is switched on. Interior lamps The rear interior lamps illuminate when the the switch is set to DOOR and a door is open or when the lamp is switched on.
  • Page 51 Chapter 3 3-15 KNOW YOUR VEHICLE ASSIST GRIPS Assist grips Assist grips are provided for your convenience. You should not hang items from the assist grips that obstruct the driver's vision or that could be thrown in an accident.
  • Page 52 Your vehicle is equipped with front disc brakes and rear drum brakes. The brake system is self-adjusting. Pedal adjustment Have the brake system inspected by a Holden Retailer if any of the following occur: • Pedal to floor distance becomes less than 140 mm.
  • Page 53 (movement with no resistance). The free-play should be between 0 and 30 mm. If the free-play is more than 30 mm or you suspect a fault, consult a Holden 0 - 30 mm Retailer as soon as possible.
  • Page 54 Pedal adjustment Have the clutch operation inspected by a Holden Retailer if any of the following occur: • Pedal movement is too much or too Clutch pedal little.
  • Page 55 Chapter 3 3-19 KNOW YOUR VEHICLE ROOF RAILS AND UNDERSEAT TRAY Roof rails Observe the following precautions: • Do not mount cargo directly onto the roof panel. • Do not exceed the load capacity of the roof rails. Refer to Chapter 10. •...
  • Page 56 Chapter 3 3-20 KNOW YOUR VEHICLE LUGGAGE COMPARTMENT COVER The luggage compartment cover conceals cargo in the rear compartment. Install the cover Install the cover as follows: 1. Allow the spring action to open the cover. Note: This can happen suddenly. 2.
  • Page 57 Chapter 3 3-21 KNOW YOUR VEHICLE LUGGAGE COMPARTMENT COVER cont. Fold the cover SHORT SIDE 1. Grip both ends of the cover as illustrated. LONG SIDE 2. Bend the ends towards the centre. 3. Bend the cover further by twisting your wrists as illustrated.
  • Page 58 Chapter 3 3-22 KNOW YOUR VEHICLE LUGGAGE COMPARTMENT COVER cont. 5. Fully fold the cover so that each end becomes ring shaped. The short side of the cover now also becomes ring shaped. 6. Bind the cover securely to avoid unintentional opening.
  • Page 59 Chapter 3 3-23 KNOW YOUR VEHICLE Notes...
  • Page 60 Chapter 3 3-24 KNOW YOUR VEHICLE...

  • Page 61: Engine Starting, Safety, Automatic Transmission, Manual Transmission

    Driving Page Engine starting Safety Automatic transmission Manual transmission Snow chains and driving precautions (Anti-lock Braking System)
  • Page 62 Chapter 4 DRIVING ENGINE STARTING Start the engine as follows: 1. Apply the park brake firmly and release it only after you have started the engine and are ready to drive off. 2. Manual: Press the clutch pedal and shift the gear lever to the neutral position. Automatic: Move the shift lever to P (park) or N (neutral).
  • Page 63 Chapter 4 DRIVING SAFETY Before entering the vehicle 1. Check that the windows, mirrors and lamps are clean and not obstructed. 2. Check that the tyres are correctly inflated. 3. Check that there are no fluid leaks (other than air conditioner drainage). Before driving off 1.
  • Page 64 Chapter 4 DRIVING AUTOMATIC TRANSMISSION P (park) Select P and apply the park brake when leaving the vehicle. This stops the front wheels from turning. Note: Select P only when the vehicle is fully stopped. R (reverse) Select R only when the vehicle is fully stopped. When R is selected and the ignition is on, the reverse lamps illuminate .
  • Page 65 O/D OFF indicator blinks (with the ignition on). If a fault is indicated, manually shift through the gears using the transmission lever and consult a Holden Retailer as soon as possible. • If you select the next lower gear at a speed higher than that allowable for the gear, the transmission will not downshift until the vehicle speed slows to the maximum speed of the selected gear.
  • Page 66 Chapter 4 DRIVING MANUAL TRANSMISSION This system has five forward gears and one reverse gear. The shift pattern is displayed on the top of the gear shift lever. Clutch use Always press the clutch pedal fully before changing gears, to avoid clashing and possible chipping of the transmission gears.
  • Page 67 Chapter 4 DRIVING SNOW CHAINS AND DRIVING PRECAUTIONS Snow chains Standard snow chains can be used on your vehicle. However, although your all-wheel drive vehicle is designed to get better traction on slippery roads than a two-wheel drive vehicle, it will not have as much traction in deep snow, mud or sand as a multipurpose four-wheel drive.
  • Page 68 Chapter 4 DRIVING ABS (if fitted) The distance needed to bring any vehicle to a halt increases with the speed of the vehicle. The braking distance needed at 60 km/h will be approximately four times greater than at 30 km/h. Start to brake and slow down gradually, when there is plenty of distance between your vehicle and the stopping point.

  • Page 69: Fuel

    Fuel Page Fuel Petrol Emission Control Reducing fuel consumption...
  • Page 70 LPG conversion These vehicles have not been designed by Holden to be converted to LPG and Holden does not provide LPG conversion kits for these vehicles. Please refer to the warranty section in Chapter 9.
  • Page 71 After refuelling, install the cap and close the petrol flap. If you need to replace the petrol cap, use only a genuine Holden part or its equivalent. WARNING: The use of any fuel, other than the fuel specified, may cause serious damage to your vehicle and may void your New Vehicle warranty.
  • Page 72 Chapter 5 FUEL PETROL Filling the tank Refer to Chapter 8 for your vehicle fuel tank capacity. Over filling the petrol tank can affect the evaporative emission control system and can also result in a smell of petrol inside the vehicle. Therefore, fill the tank as follows: •...
  • Page 73 Maintenance schedule in Chapter 12. It is recommended that the necessary servicing be performed by an authorised Holden Retailer who has the specialised servicing equipment and trained personnel available to...
  • Page 74 Chapter 5 FUEL REDUCING FUEL CONSUMPTION Engine Maintain the engine in peak mechanical condition by having it serviced regularly in accordance with the Maintenance schedule in Chapter 12. This ensures that components are maintained or replaced enabling minimum fuel usage and peak engine performance. Tyre pressure Inadequate tyre pressure costs money due to poorer fuel economy and increased tyre wear.
  • Page 75 Chapter 5 FUEL Notes...
  • Page 76 Chapter 5 FUEL...

  • Page 77: Accidents, Being Involved, Being A Witness, Medical

    Emergencies Page Accidents Being involved Being a witness Medical assistance Flat tyre Towing your vehicle Engine overheating 6-11 Flat battery 6-13 Airbags 6-17 Bulb replacement 6-22 Fuses Your new vehicle is covered for 3 years by 24 hour Roadside Assistance, refer to Chapter 9.
  • Page 78 Chapter 6 EMERGENCIES ACCIDENTS All motorists are advised to learn what to do at the scene of an accident, particularly where persons are injured. Injured people can choke to death if their air passages are not cleared. They can bleed to death unless the bleeding is stopped. They may require mouth-to mouth resuscitation or may have to be moved, even though badly injured.
  • Page 79 Chapter 6 EMERGENCIES ACCIDENTS Part 3. Medical assistance This information is basic first aid information which is intended as a guide only and may not be applicable in all situations. You should always defer to a trained medical officer or other person with first aid knowledge. Protective equipment, such as rubber gloves are recommended.
  • Page 80 Chapter 6 EMERGENCIES FLAT TYRE If using a jack other than the one supplied with the vehicle, be sure to use correct lifting positions. Refer to step 10. WARNING: • Use the jack only for lifting the vehicle when changing wheels. •...
  • Page 81 Chapter 6 EMERGENCIES FLAT TYRE cont. 4. Place the transmission in reverse gear for manual or P (Park) for automatic. 5. Switch the hazard lamps on if your vehicle is near traffic. 6. Remove the jack and tools (stored under the luggage compartment floor).
  • Page 82 Chapter 6 EMERGENCIES FLAT TYRE cont. 9. Use the wheel nut wrench to loosen (but not remove) the wheel nuts. WARNING: • Do not jack the vehicle up on an inclined surface. • Do not allow passengers to remain in the vehicle. Reinforced sections at the front and rear of the vehicle underbody indicate the points to place the jack.
  • Page 83 Chapter 6 EMERGENCIES FLAT TYRE cont. 12. Continue to extend the jack slowly and smoothly until the tyre clears the ground. Allow enough clearance for the spare wheel and tyre, however, do not raise the vehicle higher than necessary. 13. Remove the wheel nuts and place them together in a dry place.
  • Page 84 Chapter 6 EMERGENCIES TOWING YOUR VEHICLE Precautions Proper lifting or towing equipment is necessary to prevent vehicle damage during any towing operation of the vehicle. Follow state and local laws. Drive slowly and avoid jerky movements during towing operations. Power assist for brakes is not available when the engine is off. More effort to brake and steer will be required.
  • Page 85 Chapter 6 EMERGENCIES ENGINE OVERHEATING The following symptoms can indicate engine overheating: • The temperature gauge needle moving to the red zone. • Steam escaping from under the bonnet. • A loss of power. • A loud knocking or pinging noise. WARNING: Immediate action is required if the engine overheats.
  • Page 86 Return to normal driving if the temperature gauge does not again show an overheat condition after 10 minutes. If you added clean water, consult a Holden Retailer to correct the coolant with a mixture to the correct specifications.
  • Page 87 Note: Read the following procedure in full before attempting to jump start your vehicle. If you are unsure about this procedure, leave the starting to a competent mechanic. If your battery discharges repeatedly for no apparent reason, have it inspected by an authorised Holden Retailer. WARNING: •...
  • Page 88 Chapter 6 6-12 EMERGENCIES FLAT BATTERY cont. Jump starting preparation Your vehicle battery has a negative earth and a 12 volt rating. Ensure that the battery in the assisting vehicle has a negative earth and the same voltage rating. The capacity of the assisting battery must not be substantially lower than that of the discharged battery.
  • Page 89 The AIR BAG indicator on the instrument panel flashes on and off six times when the ignition is switched on. This indicates that the airbag system is operational. Contact a Holden Retailer as soon as possible if the indicator either: •...
  • Page 90 Chapter 6 6-14 EMERGENCIES AIRBAGS cont. Seat adjustment The airbags inflate with great force. Correctly adjust the seats to ensure that you are not too close to the airbag. Adjust the seats to suit the occupant's height. The driver should be able to sit upright with slightly bent arms when holding the upper area of the steering wheel.
  • Page 91 If your vehicle sustains any front-end damage, have the airbag system inspected by an authorised Holden Retailer to ensure it is in proper working order. Bull bars Fitting a bull bar, fitting a nudge bar or making other modifications to the front of the vehicle can change the impact speed that would normally trigger airbag deployment.
  • Page 92 After deployment Have the whole airbag system replaced after inflation has occurred. Consult your Holden Retailer. Also have the system inspected by a Holden Retailer if the steering wheel or dashboard area is scratched, cracked or damaged. Do not cover the horn pad or dashboard area with adhesive or any other material, as this can hinder airbag operation.
  • Page 93 • Have your Holden Retailer adjust the headlamp aim as required. • If the bulb in a circuit requires frequent replacement, have your Holden Retailer inspect the circuit and repair the cause. • Avoid damage to the lenses by taking care not to over-tighten the retaining screws.
  • Page 94 Chapter 6 6-18 EMERGENCIES BULB REPLACEMENT cont. Headlamps Note: When handling the replacement bulb, do not touch the glass. 1. Open the bonnet and engage the DO NOT support rod. Refer to Chapter 1. TOUCH THE 2. Locate the headlamp bulb holder at the GLASS rear of the lamp assembly.
  • Page 95 Chapter 6 6-19 EMERGENCIES BULB REPLACEMENT cont. Side turn signal lamps 1. Locate the turn signal bulb lens located on front guard. 2. Gently lever the lens from the recess. 3. Pull the bulb out of the holder. 4. Insert the new bulb firmly. 5.
  • Page 96 Chapter 6 6-20 EMERGENCIES BULB REPLACEMENT cont. Stop / tail lamps 1. Locate and remove the assembly retaining screw on the back of the assembly (accessed from the underside of the vehicle). 2. Push the assembly out to the rear of the vehicle.
  • Page 97 Chapter 6 6-21 EMERGENCIES BULB REPLACEMENT cont. Front interior lamp Before removing the bulb, close the doors so that the lamp is not 'live'. 1. Remove the lens; press the front edge of the lens in and pull downwards. 2. Gently pull the bulb out. 3.
  • Page 98 Individual fuses protect the individual electrical circuits. WARNING: If a main or primary fuse blows after replacement, have your vehicle inspected by a Holden Retailer. Do not use a substitute for a fuse even as a temporary repair. This can cause extensive damage and even fire.
  • Page 99 Chapter 6 6-23 EMERGENCIES FUSES cont. Engine compartment fuse box 10 11 12 13 14 15 Fog lamp relay 10. Headlamp: right fuse 15 A Primary fuse: ignition switch 60 A 11. Headlamp: left and instrument panel fuse 15 A Primary fuse: circuit fuse box 60 A 12.
  • Page 100 Chapter 6 6-24 EMERGENCIES FUSES cont. It is recommended that you carry a complete spare set of fuses. Provision is made in the fuse box for storing these. There is also a special fuse tool in the fuse box. Before replacing a fuse, switch the respective switches off and remove the ignition key. A blown fuse is identified by its melted wire.

  • Page 101: Weekly Checks

    Weekly checks Page Owner / operator checks Engine oil level Engine coolant level Washer fluid level and battery Brake fluid level Auto transmission fluid level Tyres...
  • Page 102 Chapter 7 WEEKLY CHECKS MISCELLANEOUS CHECKS As well as ensuring regular servicing (refer to Chapter 12) there are simple weekly checks that the owner / operator is recommended to make. These are shown in the list below and / or on the following pages. WARNING: Electronic ignition systems have a high ignition power.
  • Page 103 Chapter 7 WEEKLY CHECKS ENGINE OIL LEVEL Check the level It is normal for engines to consume some oil. For this reason, check the engine oil level every 500 km and before starting long trips. Check the oil with the vehicle parked on level ground and with the engine at normal operating temperature but switched off.
  • Page 104 • An agent providing cold weather protection down to –30° (when the correct coolant concentration is maintained). If you need to top up the cooling system regularly, arrange for a Holden Retailer to inspect and repair the system. WARNING: Corrosion inhibitors and antifreeze fluids are poisonous. Use extreme care when handling.
  • Page 105 Chapter 7 WEEKLY CHECKS WASHER FLUID LEVEL AND BATTERY Washer fluid level Check the washer fluid level weekly, topping it up as required. The washer reservoir serves both the front and rear washers. WARNING: Do not operate the washer motor if the reservoir is empty.
  • Page 106 The level should be between the MIN and MAX lines. If the level is near the MIN line, add brake fluid. Arrange for your Holden Retailer to inspect and repair the system as soon as possible if any of the following situations: •...
  • Page 107 Chapter 7 WEEKLY CHECKS AUTOMATIC TRANSMISSION FLUID LEVEL Cool down Before checking the fluid level, wait about 30 minutes for the fluid to cool down after the vehicle has been either: • driven for a long time at high speed •...
  • Page 108 Out-of-balance wheels and tyres can cause annoying vibration and uneven tyre wear such as cupping and flat spots. If you have any reason to suspect that either of these problems exist, have a wheel alignment and balance check performed by your Holden Retailer.
  • Page 109 Refer any doubts concerning the fitness of the tyres on your vehicle to a Holden Retailer. Wheel replacement If replacing the wheels, ensure that the new wheels are equivalent in diameter, rim width, offset and mounting configuration to those originally installed in your vehicle.
  • Page 110 Chapter 7 7-10 WEEKLY CHECKS TYRES cont. Tyre replacement and repair WARNING: Do not mix different tyre construction types on your vehicle, such as radial and cross ply, except in emergencies. Your vehicle’s handling could be affected and may result in loss of control. When replacing tyres, use the same size, load rating and construction type as the original tyres on your vehicle.

  • Page 111: Specifications

    Specifications Page Specifications General specifications Identification labels...
  • Page 112 Chapter 8 SPECIFICATIONS SPECIFICATIONS o i t i v r i f i o i t i f i o i t y t i l l i f l i o y t i t i l e t l y t i t i l y t i...
  • Page 113 Chapter 8 SPECIFICATIONS GENERAL SPECIFICATIONS Transmission c i t t i l t i l y t i , l i u l f ® I I I - Transfer case and final drive t i l t i l y t i , l i Dimensions...
  • Page 114 The tyre placard is located on the driver's door pillar. Holden identification plate and Holden number The Holden identification plate (if fitted) is located in the engine bay, on the passenger-side inner guard. The Holden number displayed on this plate is used for warranty and Roadside Assistance identification.
  • Page 115 Chapter 8 SPECIFICATIONS IDENTIFICATION LABELS Vehicle identification number (ISOVIN) The individual ISOVIN Number appears on the Safety Compliance Plate, on the firewall in the engine compartment. This number is used for identification of parts. JSA GH Y81S 00123456 Sequential Production Serial Number Bodystyle Vehicle type World Manufacturer Identifier...
  • Page 116 Chapter 8 SPECIFICATIONS...

  • Page 117: Customer Assistance

    Chapter 9 CUSTOMER ASSISTANCE Customer Assistance Page Customer assistance For New Zealand Holden owners Roadside assistance New vehicle warranty Parts and accessories warranty Warranty questions answers...
  • Page 118 Manager or Service Manager – go to the General Manager or to the Dealer Principal. By now you should have satisfaction. If not, the Holden Customer Assistance office is at your disposal. The Holden Customer Assistance representatives can be telephoned from anywhere within Australia for only the cost of a local call.
  • Page 119 The information in this Owner's Handbook applies primarily to Australian Holden vehicles and there may be some differences to the Warranty and Owner Assistance provisions for New Zealand. Applicable details for New Zealand are set out in the Holden Warranty and Owner Assistance Information booklet enclosed in the New Zealand glovebox wallet.
  • Page 120 Australia wide. We hope the need never arises, but if it does, we’ll be there to help through Holden Roadside Assistance. How does Holden Roadside Assistance work? Holden Roadside Assistance is provided by Holden Ltd.
  • Page 121 Holden Roadside Assistance stays with the vehicle, so if you sell your vehicle during the 36 month period, it is still eligible for the balance of the Holden Roadside Assistance. The new owner simply registers for the service by using the change of ownership form supplied in the Roadside Assistance booklet.
  • Page 122 NEW VEHICLE WARRANTY CERTIFICATE New Vehicle Warranty application This Warranty is given by Holden Ltd., ABN 84 006 893 232, ('Holden'). The Warranty applies to the vehicle identified on the inside front cover of the service booklet in your vehicle’s glovebox.
  • Page 123 (d) use of incorrect types and grades of fuel, oil or lubricants (e) alteration of the vehicle by anyone not authorised by Holden (f) fitting of parts or accessories not recommended by Holden (g) any work carried out on the vehicle by anyone except an...
  • Page 124 Purchased at retail or trade • Parts and Accessories purchased at trade or retail and installed by other than a Holden Dealer or authorised Service Outlet are warranted for 1 year from the date of purchase. Please keep a receipt to support warranty claims.
  • Page 125 Selling Dealer whenever Holden Warranty service is needed. However, if this is not possible, you may go to any other Authorised Holden Dealer. The details recorded inside the front cover of the service booklet will be required by the Dealer.
  • Page 126 Q 5. Will I have to pay for maintenance costs during the Warranty Period? Maintenance costs are not covered by the Holden New Vehicle Warranty. The Maintenance Schedules in the service booklet (in your vehicle’s glovebox) specify the minimum maintenance required for your vehicle operating under normal conditions.
  • Page 127 Holden Dealer it is your responsibility to deliver your vehicle to the servicing Holden Dealer’s premises. If, as a result of a defect which is covered by the Holden New Vehicle Warranty, your vehicle cannot be driven safely and you arrange for the nearest Authorised Holden Dealer to carry out the required Holden Warranty service, Holden will accept reasonable towing costs to move your vehicle to the nearest Holden Dealer’s premises.
  • Page 128 Chapter 9 9-12 CUSTOMER ASSISTANCE...

  • Page 129: Loading The Vehicle Towing

    Tow and load Page 10-2 Loading the vehicle 10-4 Towing...
  • Page 130 Chapter 10 10-2 TOW AND LOAD LOADING THE VEHICLE Overloading Overloading is a safety hazard and could shorten the life of your vehicle or its parts. Never exceed the specified loads for your vehicle or trailer. Kerb weight Kerb weight is the mass of the unoccupied vehicle in running order, unladen, with all fluid reservoirs filled to nominal capacity (including fuel) and with all standard equipment fitted.
  • Page 131 Holden for your vehicle. Maximum allowable load on top of the roof rails = 50 kg. The roof racks approved by Holden for your vehicle weigh 7 kg, allowing a further 43 kg to be loaded. Roof loads alter the handling of the vehicle due to a change in the centre of gravity.
  • Page 132 Holden will not accept liability for defects occurring in towing equipment not recommended by Holden or for defects in the vehicle arising from the use of such equipment or for loss or injury caused by the use of such equipment. The use of such...
  • Page 133 Chapter 10 10-5 TOW AND LOAD TOWING cont. Tow ball load The tow ball load is the weight on the tow ball (and therefore the towing vehicle) when the packed trailer is hitched. It must not exceed or drop below the following: •...
  • Page 134 Chapter 10 10-6 TOW AND LOAD TOWING cont. Towing precautions • Your vehicle will handle differently when towing, so make a couple of short-distance trips with the trailer to become familiar with the changed handling characteristics. • Ensure that your vehicle is correctly maintained and serviced. Refer to Chapter 12. •...

  • Page 135: Cleaning

    Cleaning Page 11-2 Interior cleaning 11-4 Caring for paint 11-6 Paint polishing, wheels and tyres 11-7 Exterior glass cleaning 11-8 Cleaning products...
  • Page 136 If dirt accumulates and becomes embedded in the material pattern, use the following procedure: 1. Using lukewarm water and soap or Holden Velour Fabric and Vinyl Cleaner, work up thick suds on a piece of cheesecloth and apply to the surface. A soft bristle brush can be used to remove stubborn stains or dirt embedded in the grain of the material.
  • Page 137 For extremely soiled carpet, vacuum thoroughly to remove loose dirt then use Holden Velour Fabric and Vinyl Cleaner to clean a small area at a time. After each area is cleaned, remove as much of the cleaner as possible with the vacuum cleaner.
  • Page 138 Chapter 11 11-4 CLEANING CARING FOR PAINT Road bloom, etching and pitting If oils, dirt, exhaust and other pollutants are allowed to build up over a long period of time, they can combine to affect the paint finish.To preserve a new vehicle finish, correctly treat conditions that can damage the paint.
  • Page 139 Commercial bitumen and rubber materials can damage the PVC coating. Have all work on the underbody performed by a Holden Retailer, as it requires knowledge of the specified materials and experience concerning their application. Wash the vehicle underbody following the end of the cold weather season to remove...
  • Page 140 Note: Do not use petrol for cleaning tyres. Alloy wheels To preserve the original appearance of alloy wheels, keep them clean and free from build up of road dirt. Holden Wheel Cleaner can be used for cleaning alloy wheels. Do not use abrasive cleaners on alloy wheels.
  • Page 141 Lift the blades off the windscreen and, using a clean cloth, wipe them with Holden Optikleen. Do not operate the wiper blades by hand as this can damage the wiper drive mechanism.
  • Page 142 Chapter 11 11-8 CLEANING CLEANING PRODUCTS e f i o i t o i t t l a e f i o i t o i t t l a , r u , y r i n i , s t .
  • Page 143 Chapter 12 12–9 SERVICING 1500km or 1 month INSPECTION Holden invites the new owner of this vehicle to return to the selling Retailer for a free service inspection at 1500 km. Owner’s Mrs ..............Name Miss Other .... Address ..................
  • Page 144 Chapter 12 12–10 SERVICING COOLANT – check fluid level, check coolant % ENGINE OIL LEVEL– check LEAKAGE – visual check of engine and transmission LAMPS, MONITORING, SIGNAL EQUIPMENT AND PARK BRAKE ADJUSTMENT – check WIPER / WASHER – check fluid level and blade condition BODY / UNDERBODY –...
  • Page 145 Chapter 12 12–11 SERVICING I authorise performance of the services 15 000 km specified on the rear of this coupon. I understand I will be charged for the following 1 year hours of labour: SERVICE COUPON • 1 hour labour •...
  • Page 146 Chapter 12 12–12 SERVICING COOLANT – check fluid level, check coolant % ENGINE ACCESSORY DRIVE BELT– check AIR CLEANER ELEMENT – check ENGINE OIL AND FILTER – replace MANUAL TRANS FLUID – check TRANSFER CASE OIL – check REAR DIFFERENTIAL OIL – replace LEAKAGE –...
  • Page 147 Chapter 12 12–13 SERVICING I authorise performance of the services 30 000 km specified on the rear of this coupon. I understand I will be charged for the following 2 years hours of labour: SERVICE COUPON • 1.9 hours labour •...
  • Page 148 Chapter 12 12–14 SERVICING COOLANT – check level, check coolant % ENGINE ACCESSORY DRIVE BELT – check VALVE CLEARANCE – check EXHAUST SYSTEM – (except catalyst) check AIR CLEANER ELEMENT – check ENGINE OIL AND FILTER – replace AUTO TRANSMISSION – check fluid level LEAKAGE –...
  • Page 149 Chapter 12 12–15 SERVICING I authorise performance of the services 45 000 km specified on the rear of this coupon. I understand I will be charged for the following 3 years hours of labour: SERVICE COUPON • 1.5 hours labour •...
  • Page 150 Chapter 12 12–16 SERVICING COOLANT – replace ENGINE ACCESSORY DRIVE BELT – check AIR CLEANER ELEMENT – replace SPARK PLUGS – replace ENGINE OIL AND FILTER – replace MANUAL TRANSMISSION FLUID – replace TRANSFER CASE OIL – check REAR DIFFERANTIAL OIL – check LEAKAGE –...
  • Page 151 Chapter 12 12–17 SERVICING I authorise performance of the services 60 000 km specified on the rear of this coupon. I understand I will be charged for the following 4 years hours of labour: SERVICE COUPON • 1.9 hours labour •...
  • Page 152 Chapter 12 12–18 SERVICING COOLANT – check level, check coolant % ENGINE ACCESSORY DRIVE BELT – check VALVE CLEARANCE – check EXHAUST SYSTEM – (except catalyst) check AIR CLEANER ELEMENT – check ENGINE OIL AND FILTER – replace AUTO TRANSMISSION – check fluid level AUTO TRANSMISSION fluid hose –...
  • Page 153 Chapter 12 12–19 SERVICING I authorise performance of the services 75 000 km specified on the rear of this coupon. I understand I will be charged for the following 5 years hours of labour: SERVICE COUPON • 1 hour labour •...
  • Page 154 Chapter 12 12–20 SERVICING COOLANT – check level, check coolant % ENGINE ACCESSORY DRIVE BELT – check AIR CLEANER ELEMENT – check ENGINE OIL AND FILTER – replace TRANSFER CASE OIL – check REAR DIFFERENTIAL OIL – check LEAKAGE – visual check of engine and trans. LAMPS, MONITORING, SIGNAL EQUIPMENT AND PARK BRAKE ADJUSTMENT –...
  • Page 155 Chapter 12 12–21 SERVICING I authorise performance of the services 90 000 km specified on the rear of this coupon. I understand I will be charged for the following 6 years hours of labour: SERVICE COUPON • 2.5 hours labour •...
  • Page 156 Chapter 12 12–22 SERVICING COOLANT – replace ENGINE ACCESSORY DRIVE BELT – replace VALVE CLEARANCE – check EXHAUST SYSTEM – (except catalyst) check AIR CLEANER ELEMENT – replace SPARK PLUGS – replace FUEL EMISSION SYSTEM – check PCV VALVE – replace ENGINE OIL AND FILTER –...
  • Page 157 Chapter 12 12–23 SERVICING I authorise performance of the services 105 000 km specified on the rear of this coupon. I understand I will be charged for the following 7 years hours of labour: SERVICE COUPON • 1.6 hours labour •...
  • Page 158 Chapter 12 12–24 SERVICING COOLANT – check level, check coolant % ENGINE ACCESSORY DRIVE BELT – check AIR CLEANER ELEMENT – check FUEL FILTER – replace ENGINE OIL AND FILTER – replace TRANSFER CASE OIL – check REAR DIFFERENTIAL OIL – check LEAKAGE –...
  • Page 159 Chapter 12 12–25 SERVICING I authorise performance of the services 120 000 km specified on the rear of this coupon. I understand I will be charged for the following 8 years hours of labour: SERVICE COUPON • 1.9 hours labour •...
  • Page 160 Chapter 12 12–26 SERVICING COOLANT – check level, check coolant % ENGINE ACCESSORY DRIVE BELT – check VALVE CLEARANCE – check EXHAUST SYSTEM – (except catalyst) check AIR CLEANER ELEMENT – check ENGINE OIL AND FILTER – replace AUTO TRANSMISSION – check fluid level AUTO TRANSMISSION fluid hose –...
  • Page 161 Chapter 12 12–27 SERVICING I authorise performance of the services 135 000 km specified on the rear of this coupon. I understand I will be charged for the following 9 years hours of labour: SERVICE COUPON • 1.5 hours labour •...
  • Page 162 Chapter 12 12–28 SERVICING COOLANT – replace ENGINE ACCESSORY DRIVE BELT – check AIR CLEANER ELEMENT – replace SPARK PLUGS – replace ENGINE OIL AND FILTER – replace MANUAL TRANSMISSION FLUID – replace TRANSFER CASE OIL – check REAR DIFFERENTIAL OIL – check LEAKAGE –...
  • Page 163 Chapter 12 12–29 SERVICING I authorise performance of the services 150 000 km specified on the rear of this coupon. I understand I will be charged for the following 10 years hours of labour: SERVICE COUPON • 1.5 hours labour •...
  • Page 164 Chapter 12 12–30 SERVICING COOLANT – check level, check coolant % ENGINE ACCESSORY DRIVE BELT – check VALVE CLEARANCE – check EXHAUST SYSTEM – (except catalyst) check AIR CLEANER ELEMENT – check ENGINE OIL AND FILTER – replace AUTO TRANSMISSION – check fluid level LEAKAGE –...
  • Page 165 Chapter 12 12–31 SERVICING I authorise performance of the services 165 000 km specified on the rear of this coupon. I understand I will be charged for the following 11 years hours of labour: SERVICE COUPON • 1.6 hours labour •...
  • Page 166 Chapter 12 12–32 SERVICING COOLANT – replace ENGINE ACCESSORY DRIVE BELT – check AIR CLEANER ELEMENT – check ENGINE OIL AND FILTER – replace AUTO TRANSMISSION – fluid replace TRANSFER CASE OIL – check REAR DIFFERENTIAL OIL – check LEAKAGE – visual check of engine and trans. LAMPS, MONITORING, SIGNAL EQUIPMENT AND PARK BRAKE ADJUSTMENT –...

  • Page 167: Maintenance Schedule, Service Times, Service Coupons

    Servicing Page 12-2 Service intervals 12-4 Additional service requirements 12-6 Maintenance schedule 12-8 Service times 12-9 Service coupons...
  • Page 168 SERVICING SERVICE INTERVALS When it comes to service, remember that your Holden Retailer has the trained personnel and specialised equipment to correctly service your vehicle. Your Retailer invites you to return for all your service needs both during and after the warranty period.
  • Page 169 Damage caused by failure to have proper maintenance services carried out by an authorised Holden Retailer or authorised Service Outlet or in accordance with Holden specifications may void your New Vehicle Warranty. It is strongly recommended that you read the New Vehicle Warranty in Chapter 9 so that you are aware of your Warranty exclusions.
  • Page 170 As a guide, if you operate continually for a period of one month or 1000 km under any of the extreme conditions, then Holden recommends additional services. If at any time it is considered that any items should be more frequently serviced due to the type of operation or before a long trip, discuss the situation with the service manager of a Holden Retailer.
  • Page 171 Chapter 12 12-5 SERVICING ADDITIONAL SERVICE REQUIREMENTS cont. SPECIAL SERVICE FOR ADDITIONAL SPECIAL SERVICE FOR ADDITIONAL SERVICE REQUIREMENTS SERVICE REQUIREMENTS Date ....km ......Date ....km ......Items performed: ....... Items performed: ............................................................................Servicing Servicing Retailer ..........
  • Page 172 Chapter 12 12-6 SERVICING MAINTENANCE SCHEDULE r i f – – t l e – t l e – – l a t – – – – t l i f – – – t l i f – l l i –...
  • Page 173 Chapter 12 12-7 SERVICING MAINTENANCE SCHEDULE cont. , s r t s r l i a – l i a – i r b – i t i – t – i t c i h t – – – i l l –...
  • Page 174 • The repair or replacement of any part found faulty during a service check and not covered by the Holden warranty will be added to the charges. • Where any deficiencies are noted, such items should be reported to the owner / operator so that the extra work required can be authorised.
  • Page 175 (hereinafter Holden) Change of name, address or ownership In the event of a Safety Recall, or for various reasons, Holden may need to contact you as the owner of this vehicle. Also, if less than three years old, this vehicle will qualify for Roadside Assistance, refer to Chapter 9.

  • Page 176: Index

    Fluid level ........7-4 Assist grips ........3-15 Overheating ....... 6-9 Audible warning ......1-26 Temperature gauge ....1-5 Australian Holden Retailers ..9-12 Courtesy lamp ....... 3-15 Automatic transmission Curb weight ........10-2 Operation ........4-4 Customer assistance ....9-10 Fluid level ........
  • Page 177 Height adjust seat belts ....3-6 High beam indicator ...... 1-11 First aid ........... 6-3 Holden Retailers ......9-12 Flashers Holden Customer Assistance ..9-10 Hazard warning ....... 1-16 Hood ..........1-27 Turn signal ......1-16 Horn ..........1-3 Flat battery ........6-11 Flat tyre ...........
  • Page 178 INDEX Labels ..........8-4 Outlets, air ........1-17 Lights Overheating Bulb replacement ....6-17 Procedure ........6-9 Instrument panel ....... 1-4 Temperature warning ....1-5 Headlamp switch ..... 1-15 Owner / operator checks ....7-2 Interior lamp ......3-15 Owner responsibility Loading information ......
  • Page 179 INDEX Safer driving precautions ....4-3 Tyres Safety belts ........3-5 General ........7-8 Seat Inflation pressure ...... 7-8 Front .......... 3-2 Rotation ........7-8 Rear ........... 3-4 Seat belt cleaning ......11-3 Seat belts ........3-5 Vehicle Identification Number ..8-5 Serial number .........

  • Page 180: Table Of Contents

    New Vehicle Warranty certificate, Parts and Accessories Warranty, Warranty Customer Assistance 9 questions and answers, Roadside Assistance, Customer Assistance, for New Zealand Holden owners. Tow and Load 10 Loading the vehicle, towing. Interior cleaning, caring for paint, roof, paint polishing, Cleaning 11 wheels and tyres, exterior glass, cleaning products.
  • Page 181 We thank you for choosing Holden and want to assure you of our continuing interest in your motoring pleasure and satisfaction and compliment you on your choice. This handbook applies to all Cruze models. Due to different models and options, you may find reference in this handbook to some equipment not installed in your own vehicle.
  • Page 182 Please fill in the form below if you have changed your name, address, bought the vehicle second-hand, or have become the new driver. Holden requires these details in order to contact the operator in the event of a safety recall and to keep the initial 3 year Roadside Assistance details up to date (refer to Chapter 9).
  • Page 183 Place in an envelope and mail to: The Manager - Warranty Administration Service Department Holden Limited Box 548D, G.P.O. Melbourne Victoria, 3001...
  • Page 184 Please fill in the form below if you have changed your name, address, bought the vehicle second-hand, or have become the new driver. Holden requires these details in order to contact the operator in the event of a safety recall and to keep the initial 3 year Roadside Assistance details up to date (refer to Chapter 9).
  • Page 185 Place in an envelope and mail to: The Manager - Warranty Administration Service Department Holden Limited Box 548D, G.P.O. Melbourne Victoria, 3001...
  • Page 186 Please fill in the form below if you have changed your name, address, bought the vehicle second-hand, or have become the new driver. Holden requires these details in order to contact the operator in the event of a safety recall and to keep the initial 3 year Roadside Assistance details up to date (refer to Chapter 9).
  • Page 187 Place in an envelope and mail to: The Manager - Warranty Administration Service Department Holden Limited Box 548D, G.P.O. Melbourne Victoria, 3001...

Table of Contents

Save PDF
